DE17-1081-12.84

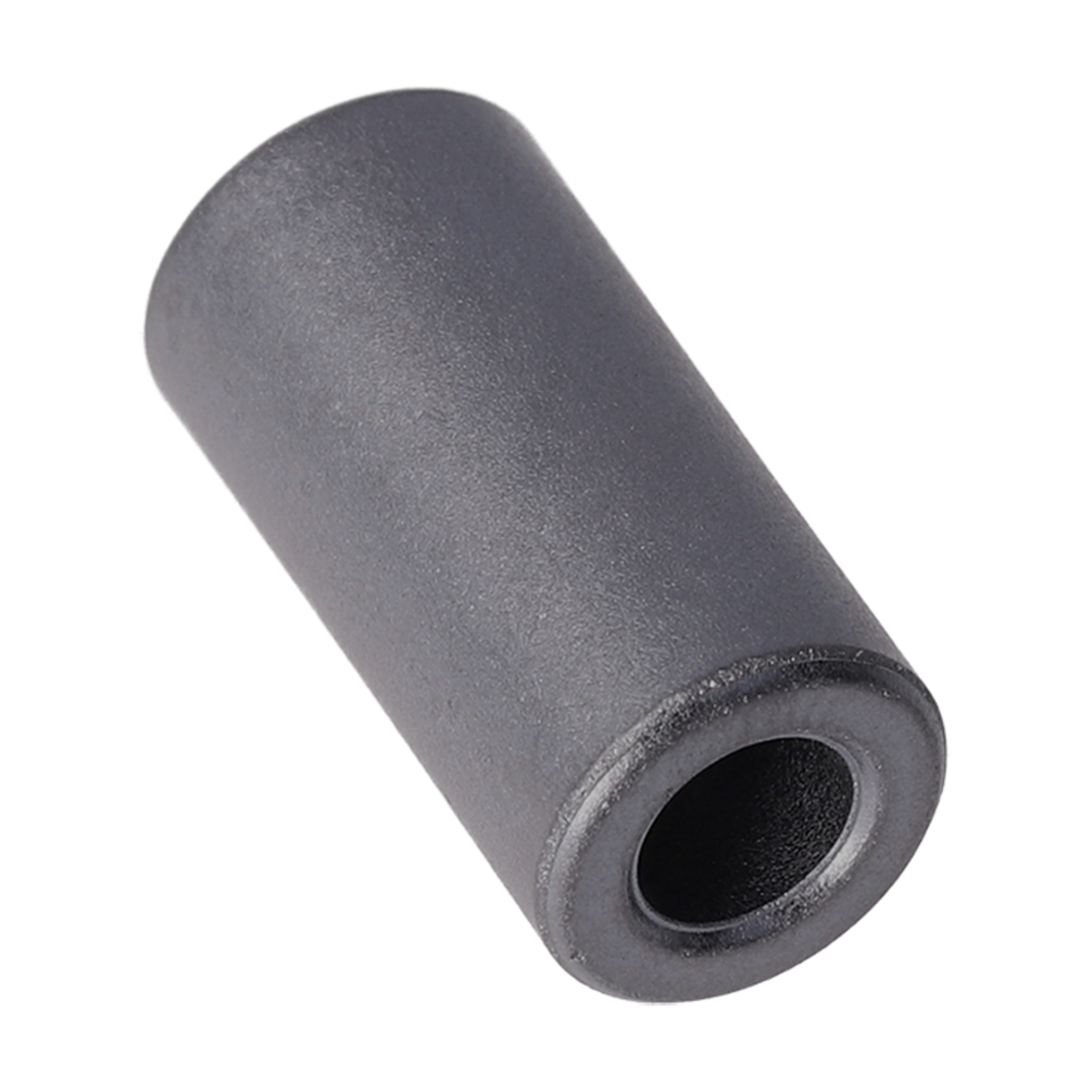

Essentra Components Ferrite ring RRH 28,57mm 56,1g Ø12,83mm 195Ohm
Manufacturer Part No.
DE17-1081-12.84
Schukat Part No.
RRH-259-128-286-84
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
160 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 8 or multiple of 8)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RRH
- Type
- Ferrite ring
- Features
- Ferrite material K5B
- For suppression of conducted interference
- Can be wrapped around the cable before final assembly and are suitable for household appliances and consumer electronics- Dimension: Length
- 28.57 mm
- Weight
- 56.1 g
- Max. Cable diameter
- 12.83 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 28.57 mm
- Outer diameter
- 25.91 mm
- Diameter, inner
- 12.83 mm
- Weight
- 56.1 g
Technical features
- Max. Cable diameter
- 12.83 mm
- Curie temperature
- 140 °C
- Temperature coefficient
- 7 % / °C
- Loss factor
- 250
- Impedance at 25 MHz
- 127 Ohm
- Impedance at 100 MHz
- 195 Ohm
