301320140050

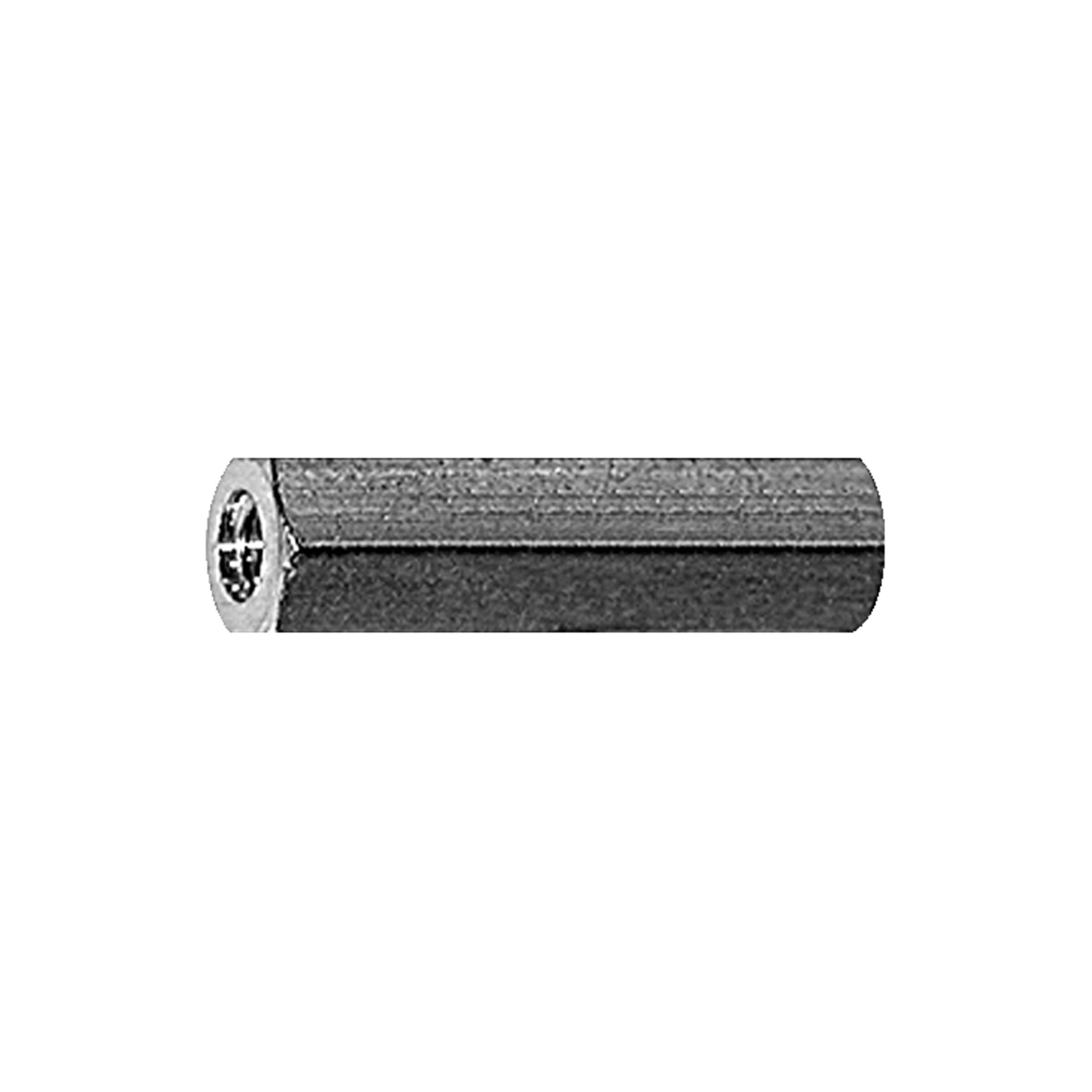

Essentra Components DI3M Brass, nickel plated spacer bolt Internal/internal thread silver AF5,5mm 20mm

301320140050-ESSE
Manufacturer Part No.
301320140050
Schukat Part No.
301320140050-ESSE
Manufacturer
Essentra Components
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 17/2026
1.300 Pcs.
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
DI3M
Type
spacer bolt
Material
Brass, nickel plated
Colour
silver
Dimension: Length
20 mm
Key Width
5.5 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Essentra Components
Design
  • hexagon
Structure
  • Internal/internal thread
Thread 1 Length
  • 10 mm
Thread 1
  • Internal thread M3
Thread 2 Length
  • 10 mm
Thread 2
  • Internal thread M3
Series
  • DI3M
Material
  • Brass, nickel plated
Type
  • spacer bolt
Product group
  • G8257
Colour
  • silver

Dimensions and Weights

Key Width
  • 5.5 mm
Dimension: Length
  • 20 mm
