Manufacturer Part No.

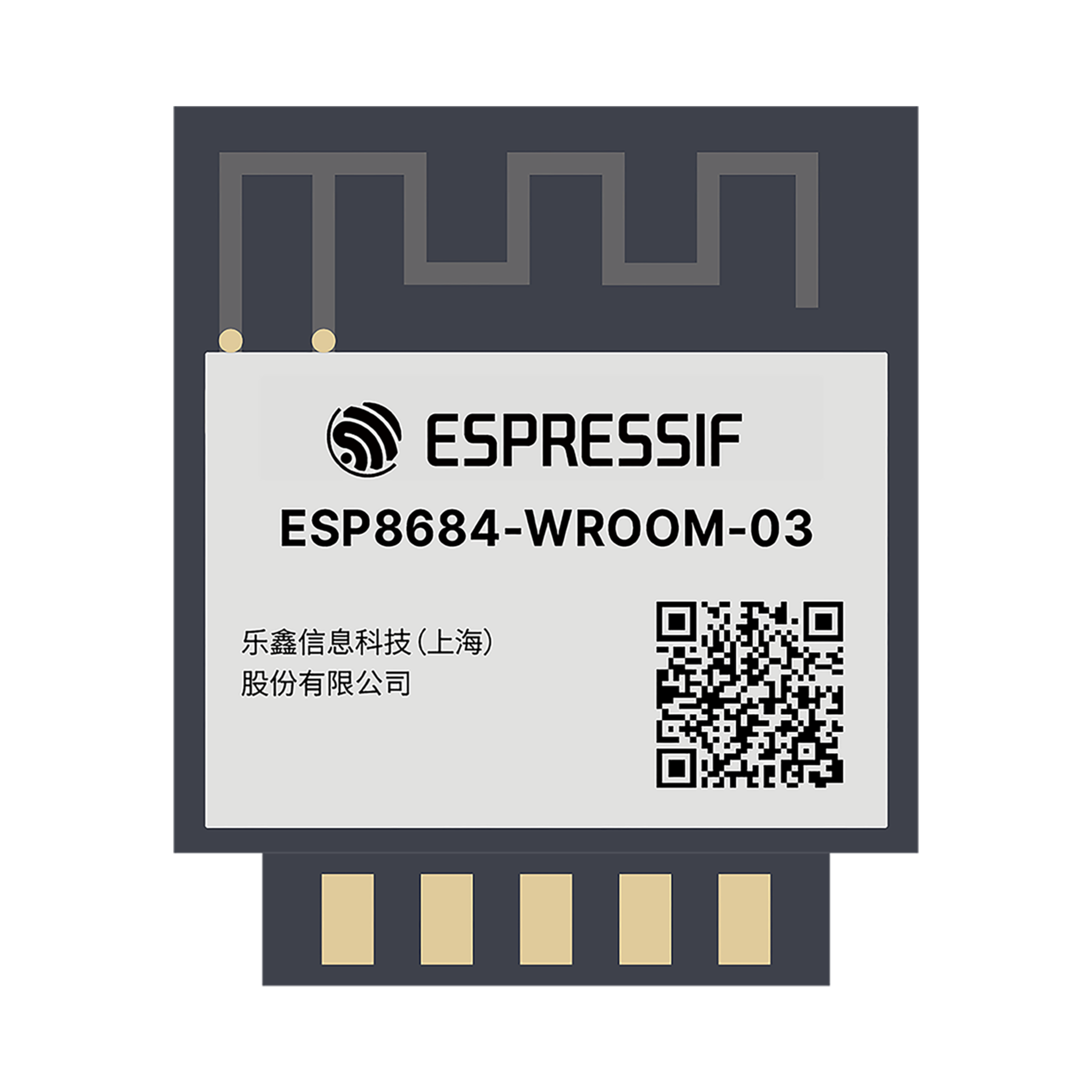

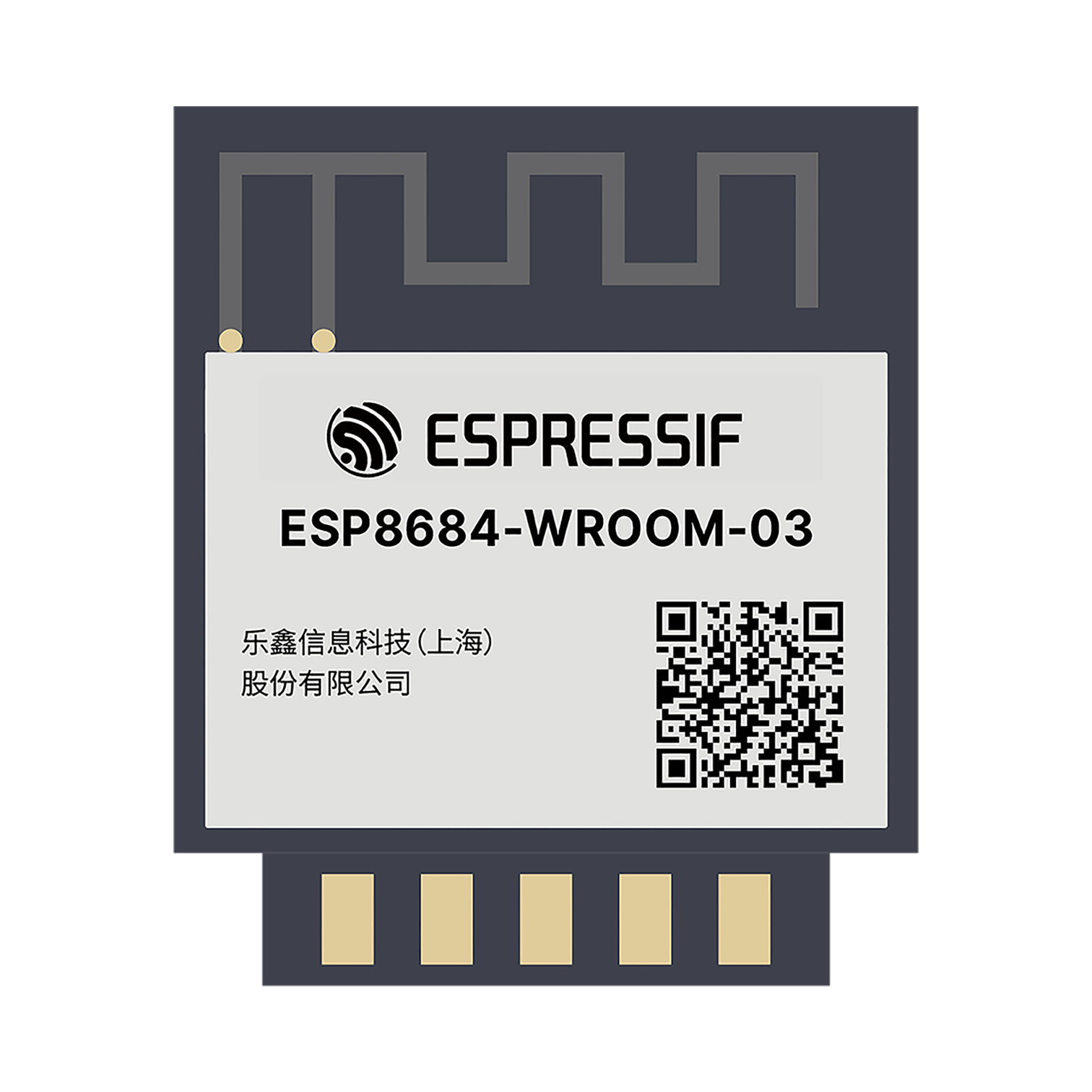

ESP8684-WROOM-03-H4
Schukat Part No.
ESP8684WROOM03H4
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
650 Pcs.
650 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 650 or multiple of 650)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- CPU Architecture
- RISC-V
- Number of Processor Core
- 1
- GPIO
- 8
- Transmission Protocol
- 802.11 b/g/n
- Bluetooth
- Bluetooth LE v5.0
- Transmission Frequency
- 2.4 GHz
- Data Rate Max.
- 72 Mb/s
- Supply Voltage Min.
- 2.7 V
- Supply Voltage Max.
- 3.6 V
- Flash
- 4 MB
- SRAM
- 272 KB
- ROM
- 576 KB
- PSRAM
- 0 MB
- Real-Time Clock
- Crypto Engine
- USB OTG
