Manufacturer Part No.

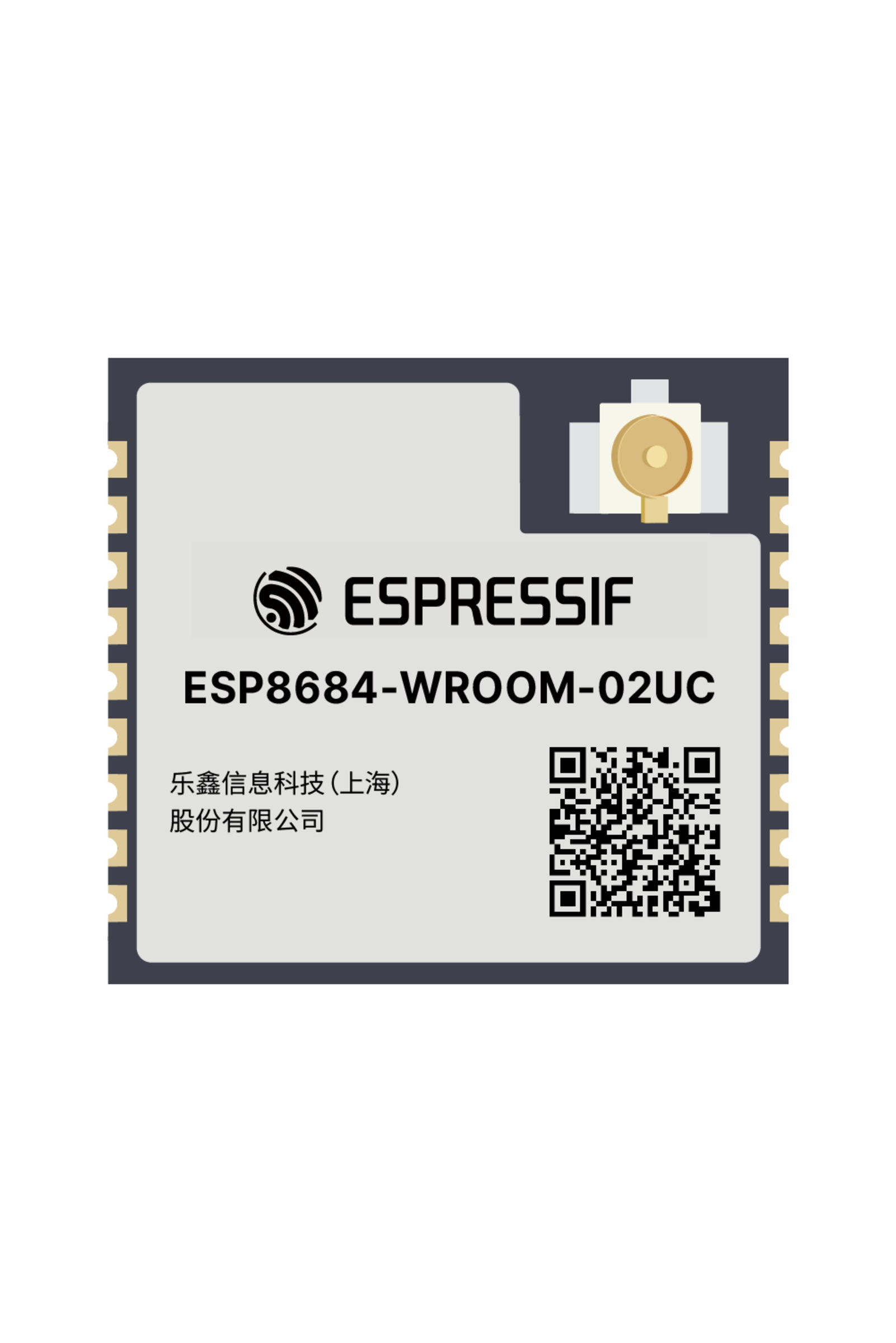

ESP8684-WROOM-02UC-H4X
Schukat Part No.
ESP8684WR02UCH4X
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- WiFi/Bluetooth Module
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Transmission Protocol
- IEEE 802.11b/g/n; 2.4 GHz; HT20; up to 72 Mbps
- Data Rate Max.
- 72 Mb/s
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 105 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 105 °C
Electrical Properties
- Number of Processor Core
- 1
- GPIO
- 14
- CPU Core
- RISC-V
- Transmission Protocol
- IEEE 802.11b/g/n; 2.4 GHz; HT20; up to 72 Mbps
- Bluetooth
- Bluetooth LE v5.3
- Transmission Frequency
- 2.4 GHz
- Data Rate Max.
- 72 Mb/s
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Flash
- 4 MB
- SRAM
- 272 KB
- ROM
- 576 KB
- Antenna
- PCB
- Interfaces
- I2C_1x
- SPI_3x
- UART_2x
- Real-Time Clock
- Number of PWM Channels
- 6
- Number of ADC Channels
- 1(5)
- ADC Resolution
- 12 bit Bit
- Crypto Engine
- USB OTG
