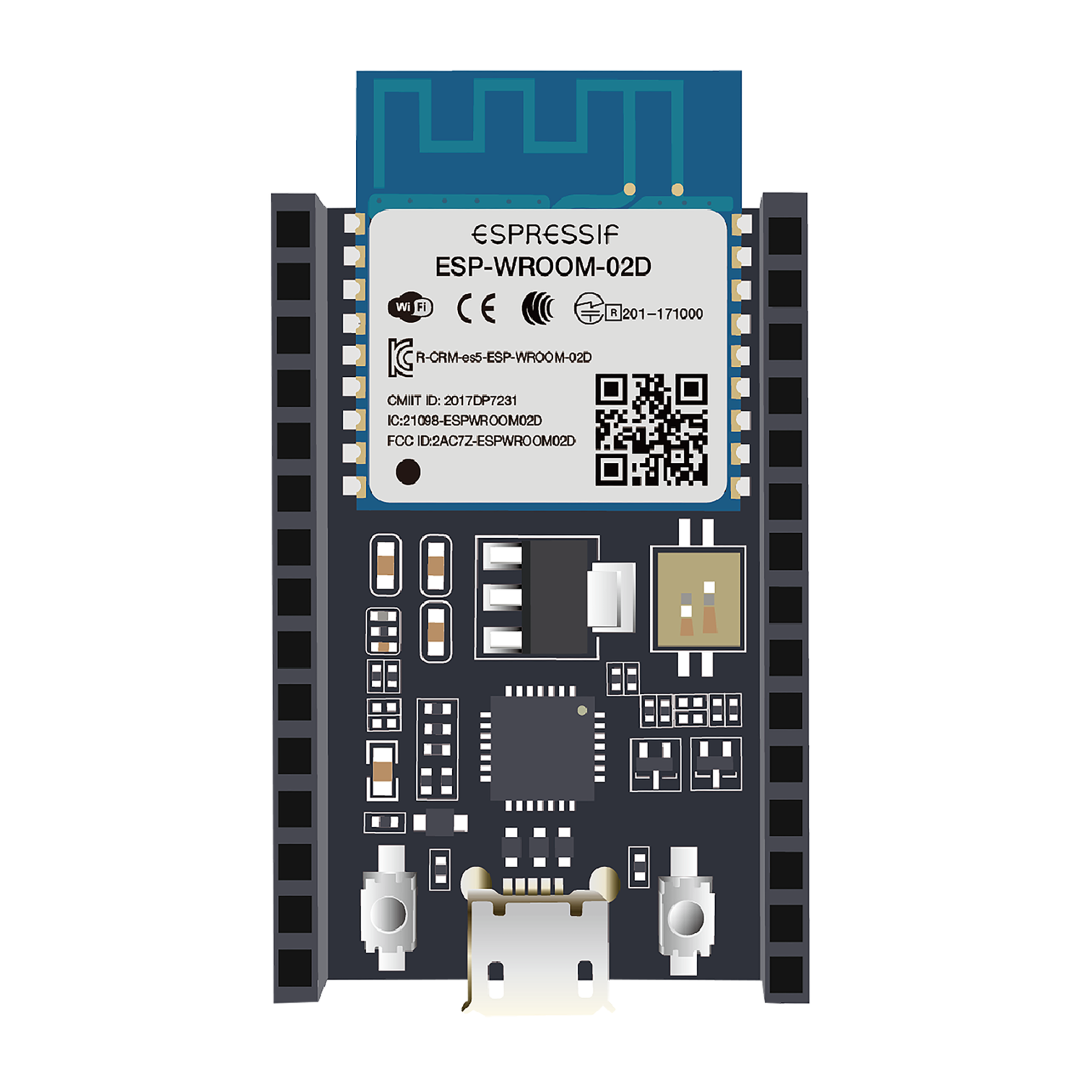

ESP8266-DEVKITC-02D-F

Espressif Systems WiFi/Bluetooth Development Board

ESP8266-DEVKITC-02
Manufacturer Part No.
ESP8266-DEVKITC-02D-F
Schukat Part No.
ESP8266-DEVKITC-02
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

65 Pcs. in stock

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 25.04.2025
Cancelled by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
WiFi/Bluetooth Development Board
Flash
2 MB
Antenna
PCB
Interface
ADC
HSPI
I/O
I2C
I2S
IR
PWM
UART
USB
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Espressif Systems
Type
  • WiFi/Bluetooth Development Board
Series
  • ESP8266
Product group
  • Y5729
Dimension: Length
  • 44.9 mm
Dimension: Width
  • 25.4 mm
Packaging
  • Boxed
Features

  • ESP8266-DEVKITC-02D-F is a low-footprint and entry-level development board that is part of the ESP8266 series. This board comes with a rich peripheral set. The ESP8266 pinning used is optimized and designed for trouble-free working and prototyping.

Electrical Properties

Program Memory Size
  • 448 KB
Memory Size
  • 520 KB
Flash
  • 2 MB
Antenna
  • PCB
Interface
  • ADC
  • HSPI
  • I/O
  • I2C
  • I2S
  • IR
  • PWM
  • UART
  • USB
Contained Module/Controller
  • ESP-WROOM-02D
CPU Architecture
  • Xtensa
Number of Processor Core
  • 1
Transmission Protocol
  • IEEE 802.11 b/g/n
Bluetooth
  • N/A
Transmission Frequency
  • 2.4 GHz

Documents

esp-wroom-02u_esp-wroom-02d_datasheet_en.pdf
Download (pdf, 1.352 KB)
