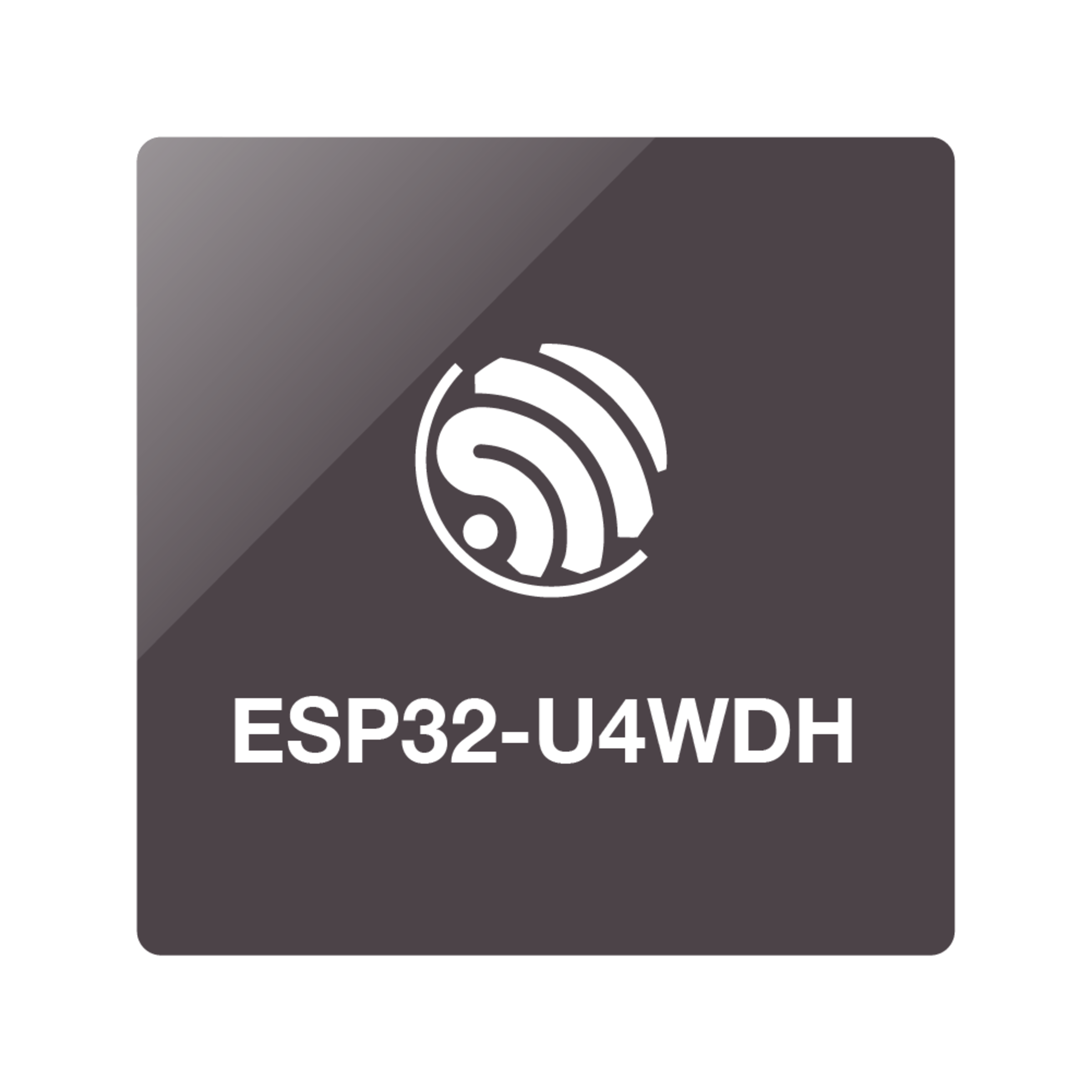

ESP32-U4WDH
Espressif Systems SoC Xtensa LX6 QFN-48 IEEE 802.11b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.800 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Manufacturer Package
- QFN-48
- CPU Core
- Xtensa LX6
- CPU Architecture
- Xtensa
- Transmission Protocol
- IEEE 802.11b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Interfaces
- I2C_2x
I2S_2x
SPI_4x
USART_3x - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 105 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- CPU Architecture
- Xtensa
- Number of Processor Core
- 2
- GPIO
- 34
- Transmission Protocol
- IEEE 802.11b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
- CPU Core
- Xtensa LX6
- Bluetooth
- BR/EDR + Bluetooth LE v4.2
- Security
- AES, SHA, RSA, ECC, RNG, Secure Boot, Flash Encryption
- Transmission Frequency
- 2.4 GHz
- Data Rate Max.
- 150 Mb/s
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Flash
- 4 MB
- Flash SPI
- Quad
- SRAM
- 520 KB
- ROM
- 448 KB
- Interfaces
- I2C_2x
- I2S_2x
- SPI_4x
- USART_3x
- Real-Time Clock
- Number of PWM Channels
- 16
- Number of ADC Channels
- 1(8) 1(10)
- ADC Resolution
- 2x12 bit
- Ethernet Speed
- MII / RMII
- Crypto Engine
- USB OTG
