NEW
Manufacturer Part No.

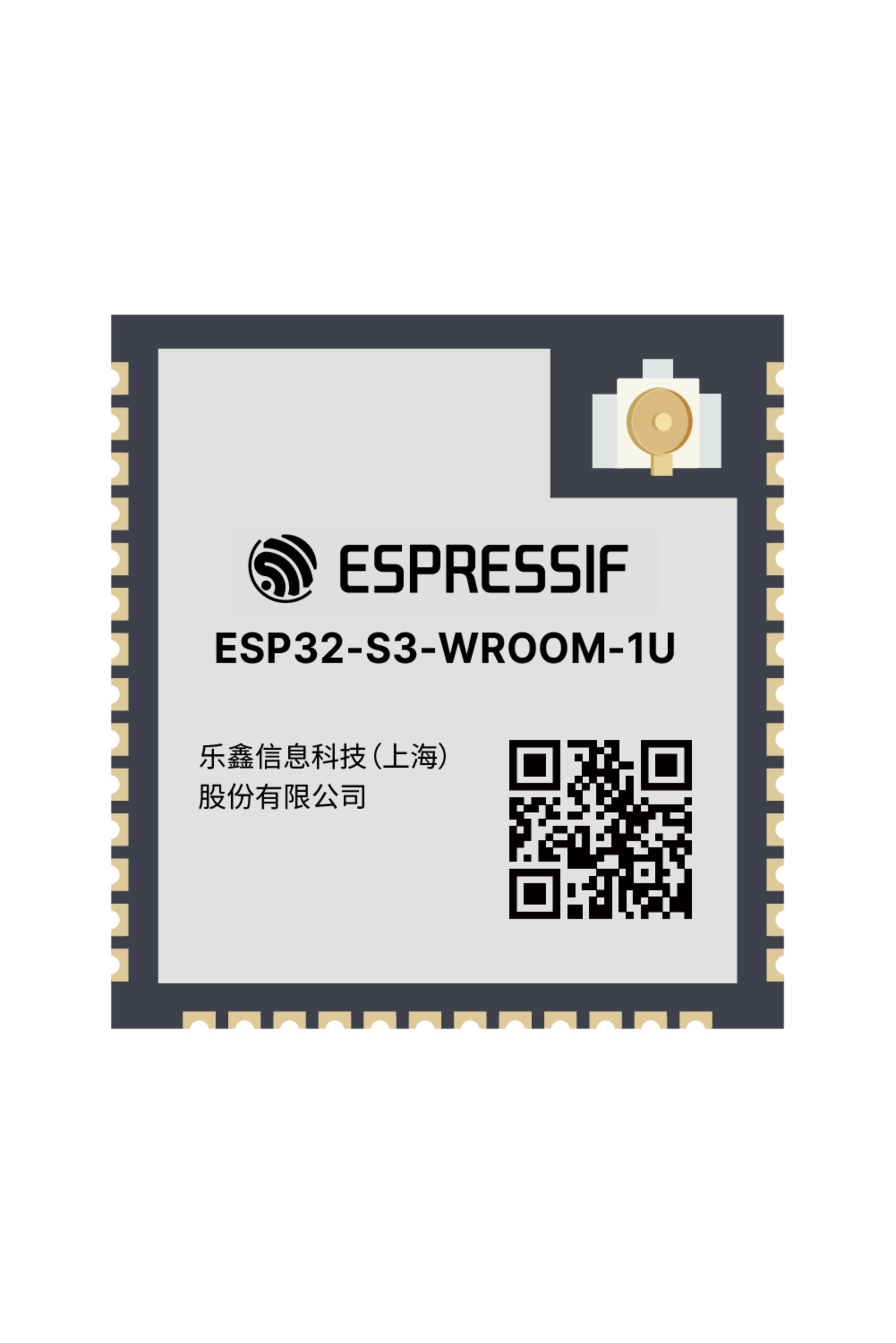

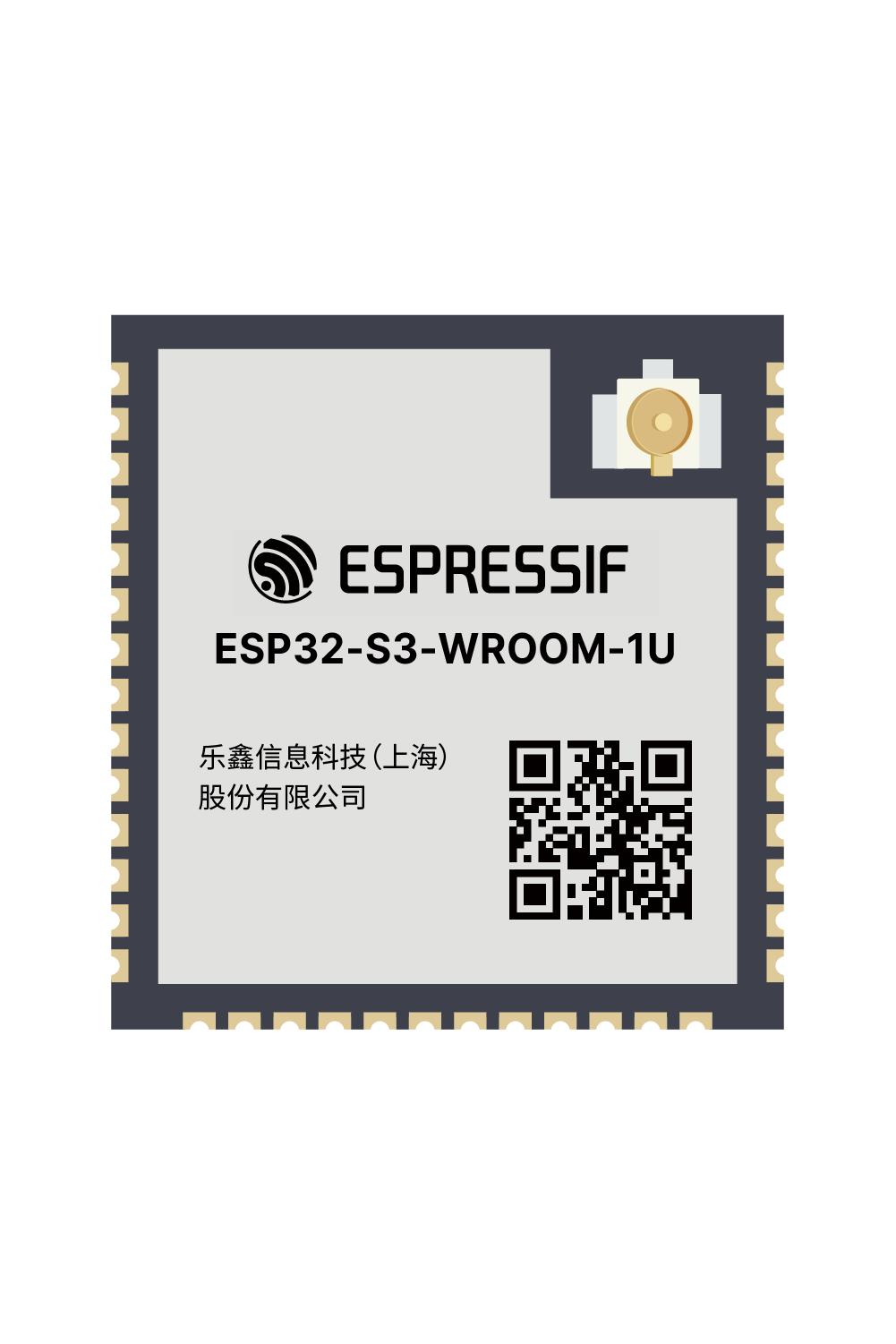

ESP32-S3-WROOM-1U-N16R8
Schukat Part No.
ESP32S3WR1UN16R8
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
Prices
Qty in Pcs. | Price per 1 Pcs. | Price Type STP = Standard price RRP = Recommended retail price CPL = Customer price list | |
---|---|---|---|
1 | 3,98 € | STP | |
10 | 3,66 € | STP | |
50 | 3,50 € | STP | |
100 | 3,34 € | STP |
Manufacturer bundle 650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs. 3,98 €
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 65 °C
Electrical Properties
- CPU Architecture
- Xtensa LX7
- Number of Processor Core
- 2
- GPIO
- 33
- Transmission Protocol
- IEEE 802.11 b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
- Bluetooth
- Bluetooth LE v5.0
- Transmission Frequency
- 2.4 GHz
- Data Rate Max.
- 150 Mb/s
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Flash
- 16 MB
- SRAM
- 512 KB
- ROM
- 384 KB
- PSRAM
- 8 MB
- Antenna
- PCB
- Interfaces
- CAN (TWAI)_1x
- I2C_2x
- I2S_2x
- SPI_4x
- UART_3x
- USB_1x
- Real-Time Clock
- Number of PWM Channels
- 8
- Number of ADC Channels
- 2(10)
- ADC Resolution
- 12 bit Bit
- USB Speed
- FS
- Crypto Engine
- USB OTG
