Manufacturer Part No.

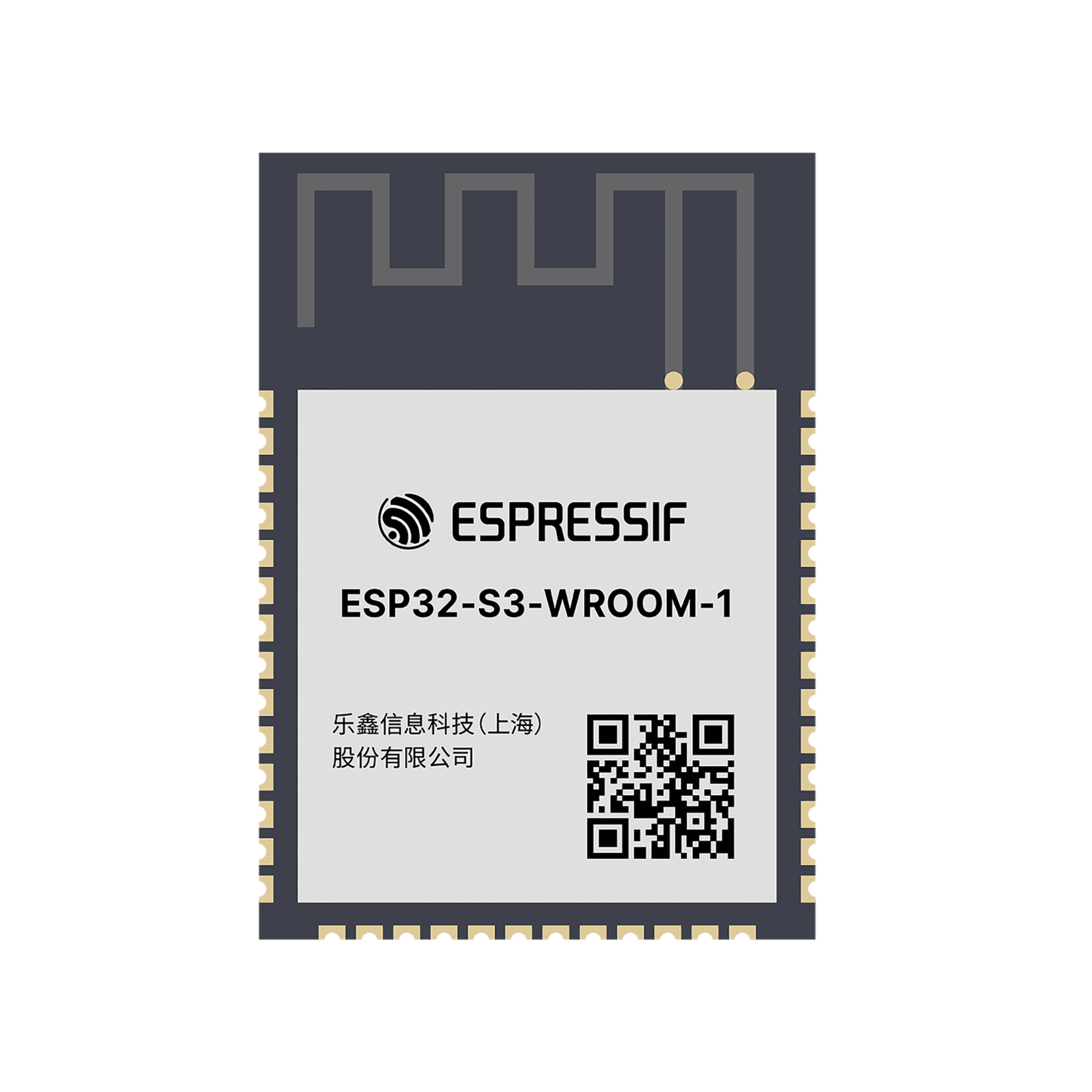

ESP32-S3-WROOM-1-N4R2
Schukat Part No.
ESP32S3WROOM1N4R2
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.244 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- CPU Architecture
- Xtensa
- Number of Processor Core
- 2
- GPIO
- 36
- Transmission Protocol
- 802.11 b/g/n
- Bluetooth
- Bluetooth LE v5.0
- Transmission Frequency
- 2.4 GHz
- Data Rate Max.
- 150 Mb/s
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Flash
- 4 MB
- SRAM
- 512 KB
- ROM
- 384 KB
- PSRAM
- 2 MB
- Antenna
- PCB
- Real-Time Clock
- Crypto Engine
- USB OTG
