ESP32-S3-BOX

Espressif Systems WiFi/Bluetooth Development Kit

ESP32-S3-BOX
Manufacturer Part No.
ESP32-S3-BOX
Schukat Part No.
ESP32-S3-BOX
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 29.01.2024
Article discontinued
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
WiFi/Bluetooth Development Kit
Flash
16 MB
PSRAM
8 MB
Antenna
PCB
Interface
I/O
PmodTM
USB-C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Espressif Systems
Type
  • WiFi/Bluetooth Development Kit
Series
  • ESP32-S3
Product group
  • Y5729
  • Y5729
Dimension: Length
  • 48.9 mm
Dimension: Width
  • 57.8 mm
Packaging
  • Boxed
Features

  • The ESP-BOX is a newest generation AIoT development platform released by Espressif Systems. The ESP32-S3-BOX is based on the ESP32-S3 Wi-Fi + Bluetooth 5 (LE) SoC from Espressif. The ESP-BOX is a home appliance control development platform with voice assistance + touch and screen controller, sensor, infrared controller and intelligent Wi-Fi gateway. The development board comes with pre-installed firmware that supports offline voice interaction. With the SDKs and examples provided by Espressif, you can develop a variety of AIoT applications based on the BOX series products, such as online and offline voice assistants, voice -enabled devices, human-computer interaction devices, control panels, multiprotocol gateways.

Electrical Properties

Supply Voltage Min.
  • 5 V
Supply Voltage Max.
  • 5 V
Program Memory Size
  • 384 KB
Memory Size
  • 512 KB
Flash
  • 16 MB
PSRAM
  • 8 MB
Antenna
  • PCB
Interface
  • I/O
  • PmodTM
  • USB-C
Contained Module/Controller
  • ESP32-S3 AI
CPU Architecture
  • Xtensa
Number of Processor Core
  • 2
Transmission Protocol
  • IEEE 802.11 b/g/n
Bluetooth
  • Bluetooth LE v5.0
Transmission Frequency
  • 2.4 GHz

Other Products

All Products of the Series
Loading...

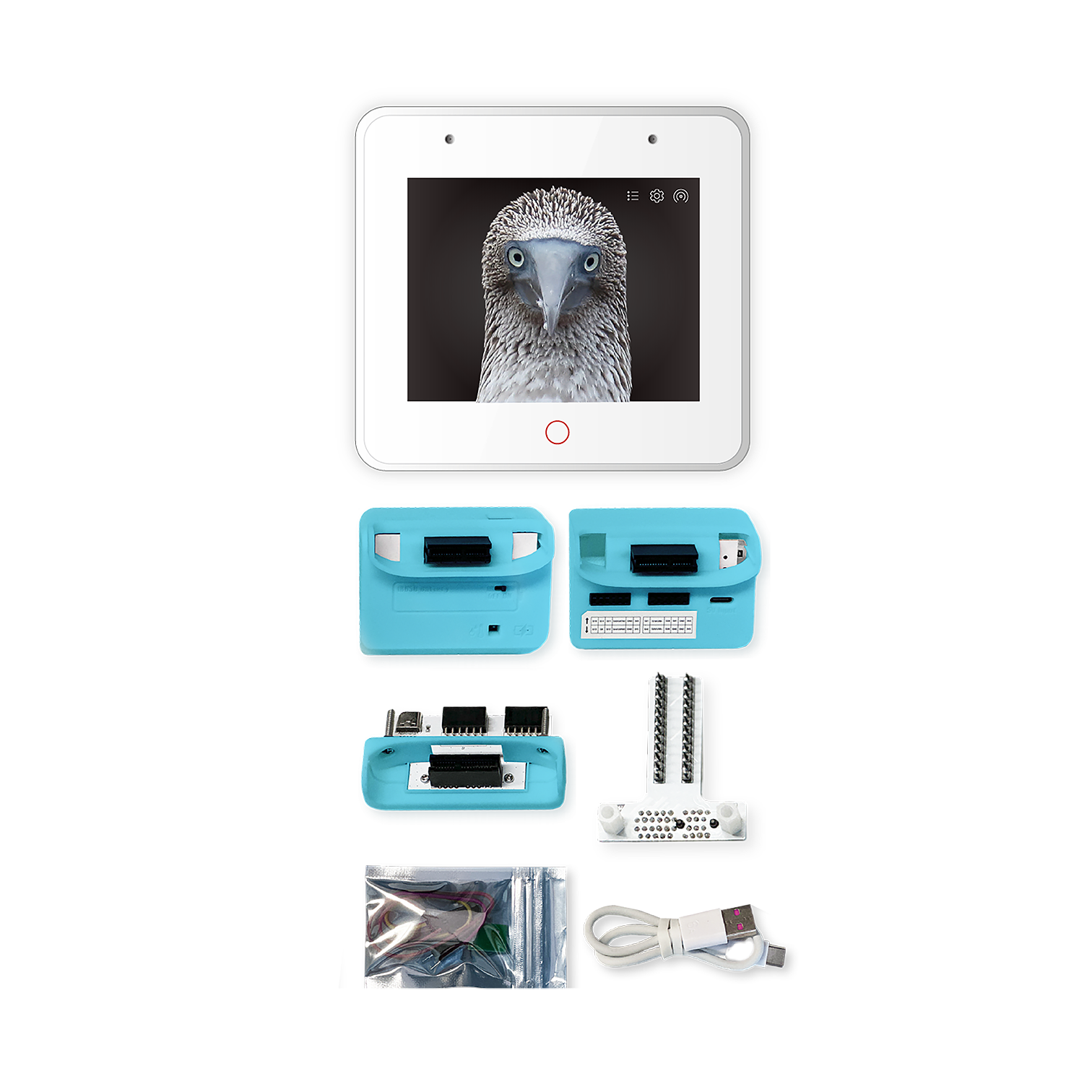

ESP32-S3-BOX-3
