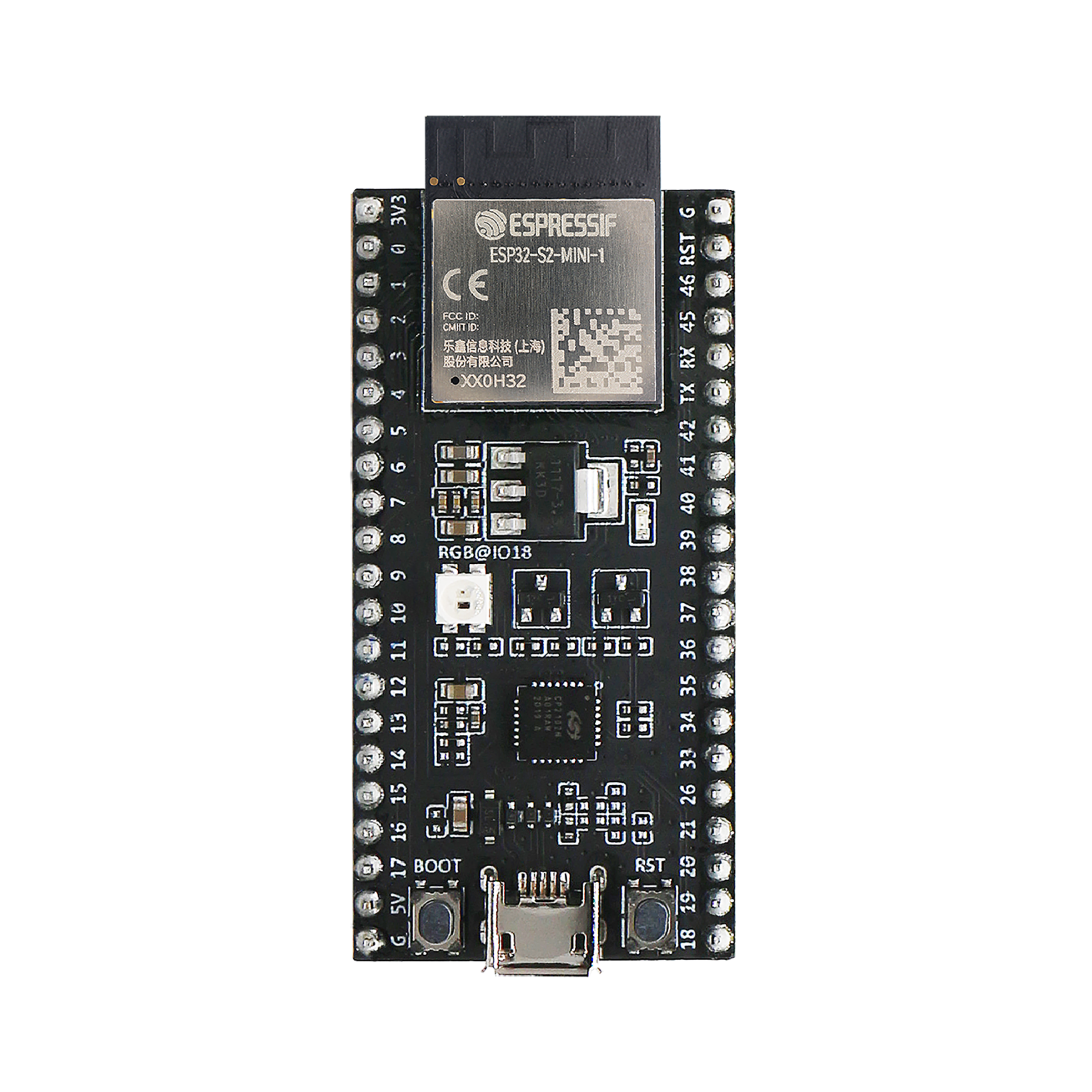

ESP32-S2-DEVKITM-1

Espressif Systems WiFi/Bluetooth Development Kit

ESP32-S2-DEVKITM-1
Manufacturer Part No.
ESP32-S2-DEVKITM-1
Schukat Part No.
ESP32-S2-DEVKITM-1
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 12.08.2024
Cancelled by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
WiFi/Bluetooth Development Kit
Flash
4 MB
Antenna
PCB
Interface
ADC
CAN
DAC
I/O
I2C
I2S
SPI
UART
USB
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Espressif Systems
Type
  • WiFi/Bluetooth Development Kit
Series
  • ESP32-S2
Product group
  • Y5729
Dimension: Length
  • 54.4 mm
Dimension: Width
  • 25.4 mm
Packaging
  • Boxed
Features

  • ESP32-S2-DevKitM-1 is a general purpose development board based on the ESP32-S2FH4 chip, which is part of the ESP32-S2 chip series. With a rich peripheral set and optimized pinout, this board enables fast prototyping.

Electrical Properties

Supply Voltage Min.
  • 3,3 V
Supply Voltage Max.
  • 5 V
Program Memory Size
  • 128 KB
Memory Size
  • 320 KB
Flash
  • 4 MB
Antenna
  • PCB
Interface
  • ADC
  • CAN
  • DAC
  • I/O
  • I2C
  • I2S
  • SPI
  • UART
  • USB
Contained Module/Controller
  • ESP32-S2-MINI-1
CPU Architecture
  • Xtensa
Number of Processor Core
  • 1
Transmission Protocol
  • IEEE 802.11 b/g/n
Bluetooth
  • N/A
Transmission Frequency
  • 2.4 GHz

Documents

esp32-s2-mini-1_esp32-s2-mini-1u_datasheet_en.pdf
Download (pdf, 1.030 KB)

Other Products

All Products of the Series
Loading...

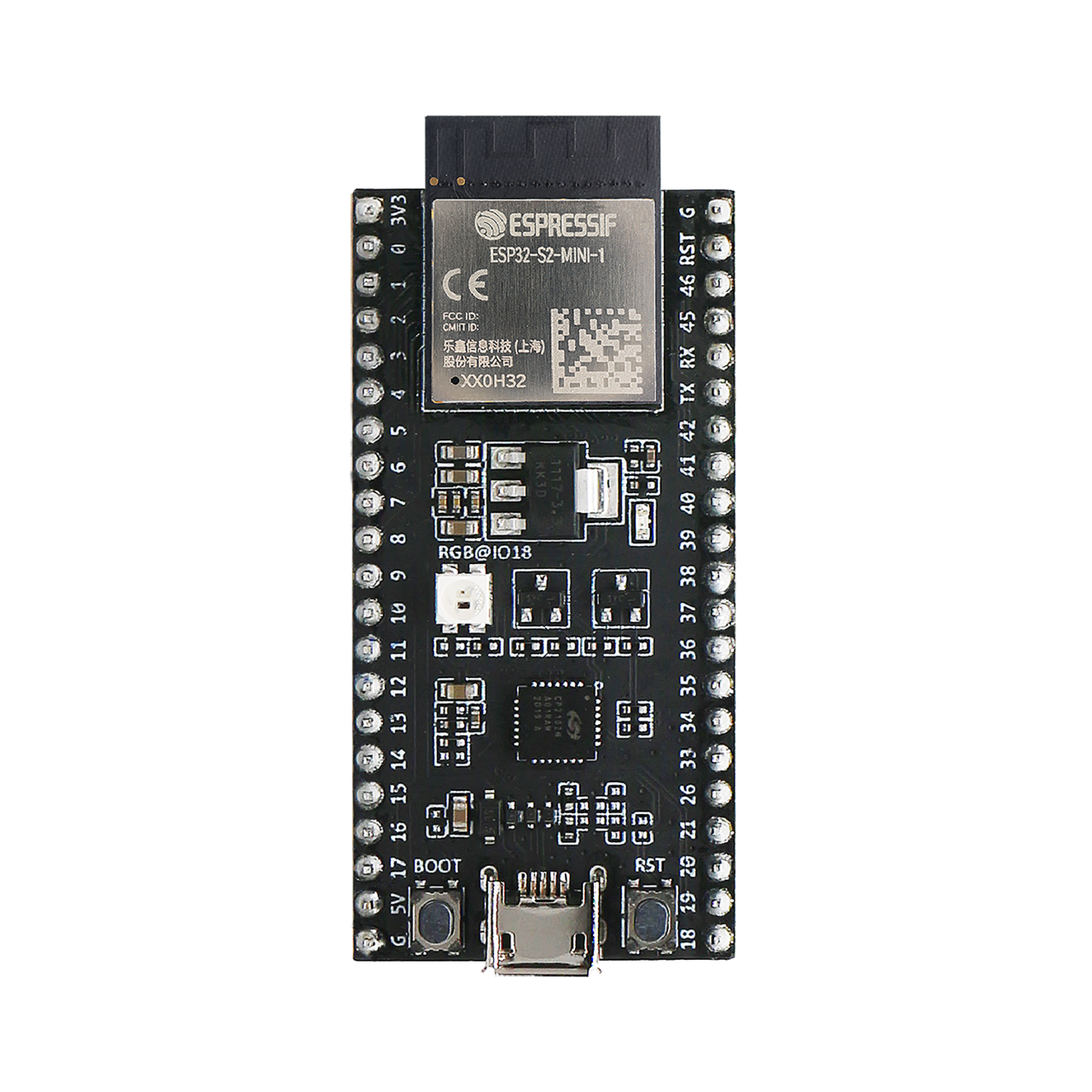

ESP32-S2-DEVKITM-1-N4R2
