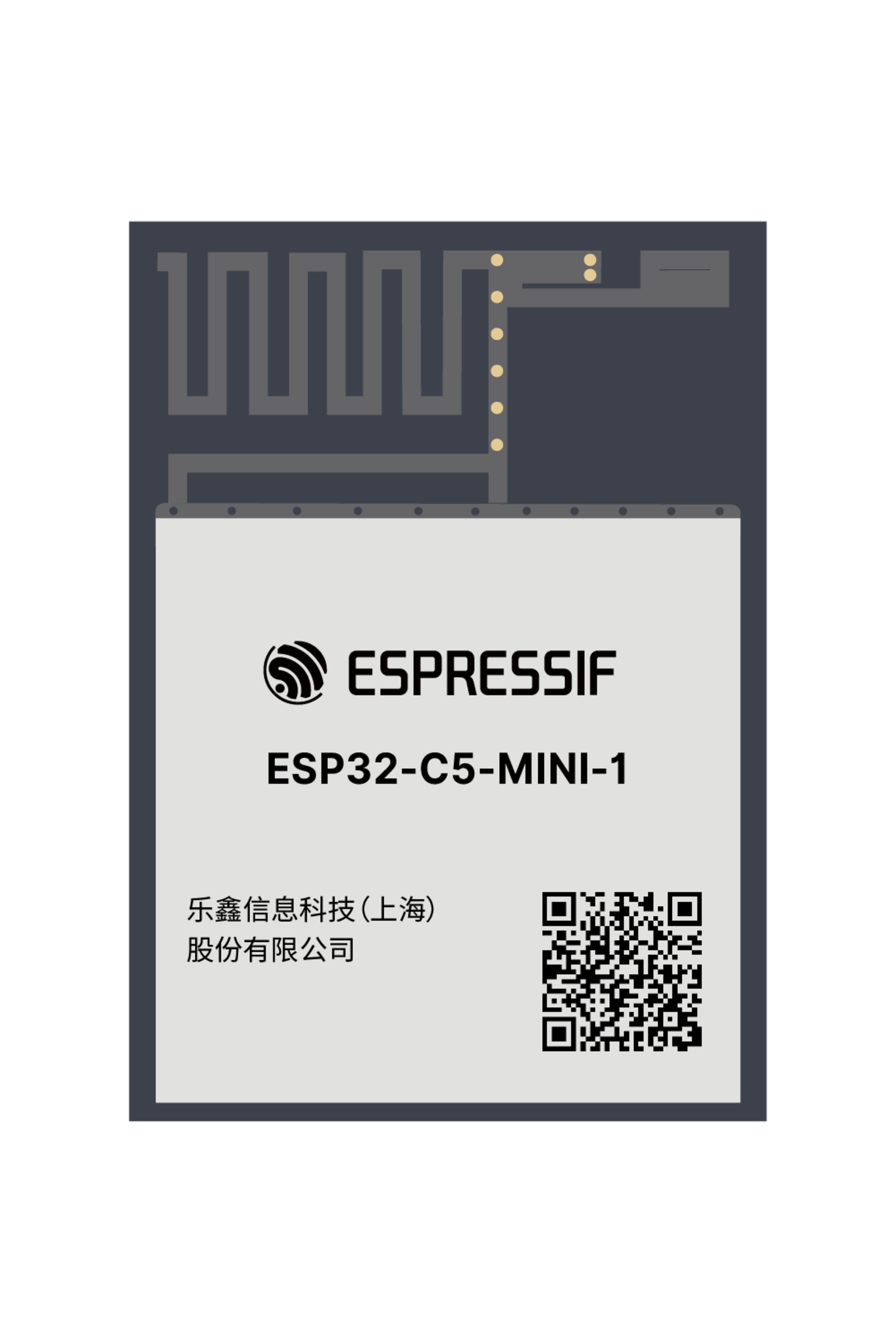

ESP32-C5-MINI-1-N4

Espressif Systems WiFi/Bluetooth Module IEEE 802.11b/g/n/ax; 2.4/5 GHz; HT20; up to 150 Mbps 65-SMD Module PCB

ESP32-C5-MINI-1-N4
Manufacturer Part No.
ESP32-C5-MINI-1-N4
Schukat Part No.
ESP32-C5-MINI-1-N4
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.448 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
General:
As part of PCN PCN_20251201, the hardware metallization and chip version of the ESP32-C5 series were updated from v1.0 to v1.2, and the pinout of the ESP32-C5HF4 series was adjusted. During the transition, there may be a temporary mix of shipments containing both the previous and updated versions. If you have any questions, please contact your personal sales representative.
Type
WiFi/Bluetooth Module
Supply Voltage Min.
3 V
Supply Voltage Max.
3.6 V
Transmission Protocol
IEEE 802.11b/g/n/ax; 2.4/5 GHz; HT20; up to 150 Mbps
Data Rate Max.
150 Mb/s
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Espressif Systems
Type
  • WiFi/Bluetooth Module
Series
  • ESP32-C5
Product group
  • Y5725
Dimension: Length
  • 15.4 mm
Dimension: Width
  • 21.3 mm
Dimension: Height
  • 2.4 mm
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Pin Count
  • 65
Manufacturer Package
  • 65-SMD Module
Notice
  • General:
    As part of PCN PCN_20251201, the hardware metallization and chip version of the ESP32-C5 series were updated from v1.0 to v1.2, and the pinout of the ESP32-C5HF4 series was adjusted. During the transition, there may be a temporary mix of shipments containing both the previous and updated versions. If you have any questions, please contact your personal sales representative.

Operating conditions

Operating Temperature, min. (TA)
  • -40 °C
Operating Temperature, max. (TA)
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Electrical Properties

Number of Processor Core
  • 1
GPIO
  • 22
CPU Core
  • RISC-V
Transmission Protocol
  • IEEE 802.11b/g/n/ax; 2.4/5 GHz; HT20; up to 150 Mbps
Bluetooth
  • Bluetooth LE v5.3
Transmission Frequency
  • 2.4 GHz
Data Rate Max.
  • 150 Mb/s
Supply Voltage Min.
  • 3 V
Supply Voltage Max.
  • 3.6 V
Flash
  • 4 MB
SRAM
  • 384 KB
ROM
  • 320 KB
PSRAM
  • 0 MB
Antenna
  • PCB
Interfaces
  • CAN_1x
  • I2C_2x
  • I2S_1x
  • SDIO_slave_1x
  • SPI_3x
  • UART_3x
  • USB_1x
Real-Time Clock
Number of PWM Channels
  • 6
Number of ADC Channels
  • 1(6)
ADC Resolution
  • 12 bit Bit
Crypto Engine
USB OTG

Documents

esp32-c5-mini-1_datasheet_en_rev1.pdf
Download (pdf, 743 KB)
PCN_20251201_Upgrade_of_ESP32-C5_Series_Products_EN.pdf
Download (pdf, 2.543 KB)
