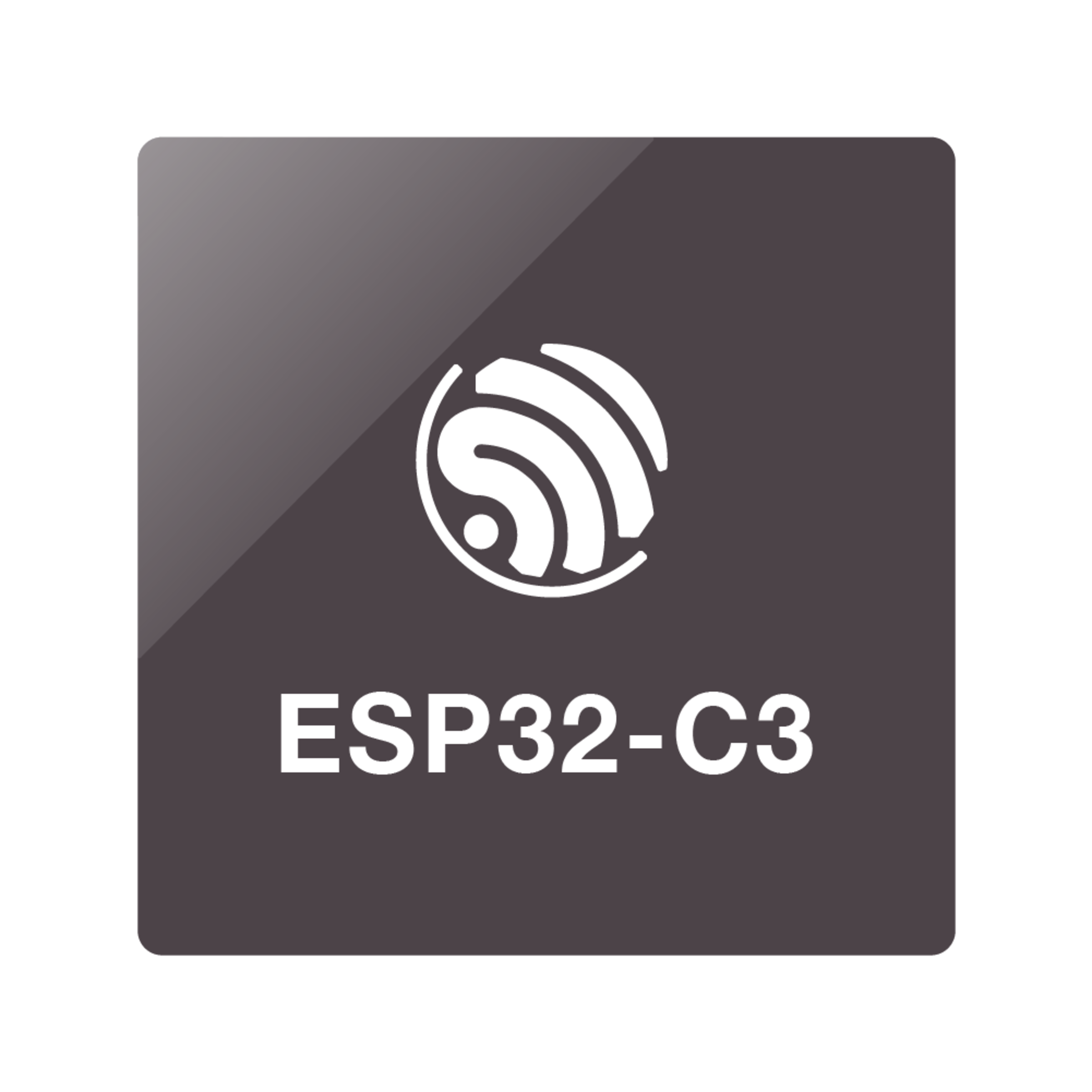

ESP32-C3FH4X
Espressif Systems SoC 160MHz RISC-V QFN-32 IEEE 802.11b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.498 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Manufacturer Package
- QFN-32
- CPU Core
- RISC-V
- CPU clock frequency Max.
- 160 MHz
- Transmission Protocol
- IEEE 802.11b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Interfaces
- I2C_1x
I2S_1x
SPI_3x
UART_2x - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 105 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Electrical Properties
- Number of Processor Core
- 1
- GPIO
- 22
- Transmission Protocol
- IEEE 802.11b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
- CPU Core
- RISC-V
- Bluetooth
- Bluetooth LE v5.0
- Security
- AES, SHA, RSA, RNG, Secure Boot, Flash Encryption, Digital signature, HMAC module
- Transmission Frequency
- 2.4 GHz
- CPU clock frequency Max.
- 160 MHz
- Data Rate Max.
- 150 Mb/s
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- Flash
- 4 MB
- Flash SPI
- Quad
- SRAM
- 400 KB
- ROM
- 384 KB
- Interfaces
- I2C_1x
- I2S_1x
- SPI_3x
- UART_2x
- Real-Time Clock
- Number of PWM Channels
- 6
- Number of ADC Channels
- 1(5) 1(1)
- ADC Resolution
- 2x12 bit
- Crypto Engine
- USB OTG
