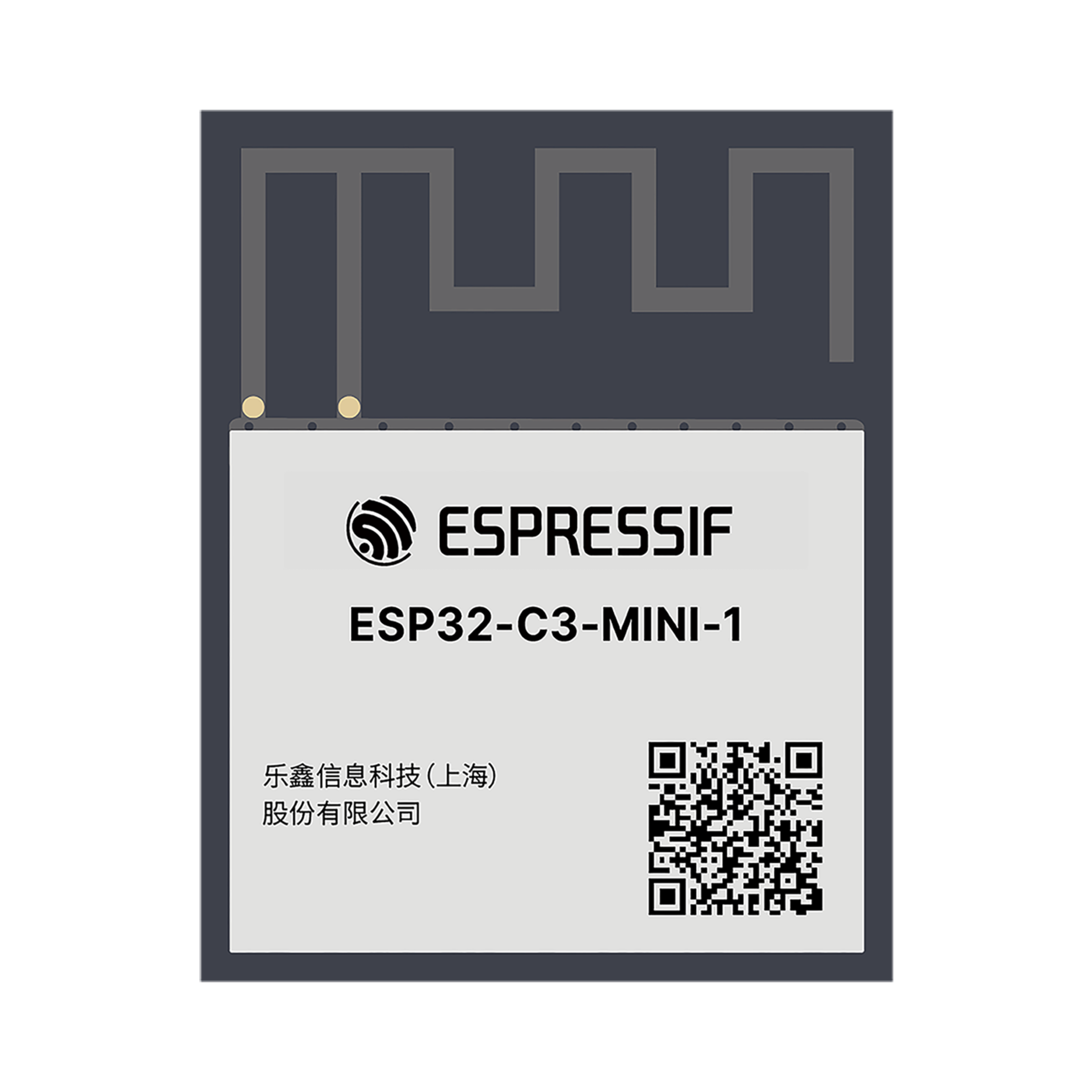

ESP32-C3-MINI-1-N4

Espressif Systems WiFi/Bluetooth Module IEEE 802.11 b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps 53-SMD Module PCB

ESP32C3MINI1N4
Manufacturer Part No.
ESP32-C3-MINI-1-N4
Schukat Part No.
ESP32C3MINI1N4
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10.777 Pcs. in stock

Next Stock Receipt
Week 26/2026
9.750 Pcs.
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
WiFi/Bluetooth Module
Supply Voltage Min.
3 V
Supply Voltage Max.
3.6 V
Transmission Protocol
IEEE 802.11 b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
Data Rate Max.
150 Mb/s
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Espressif Systems
Type
  • WiFi/Bluetooth Module
Series
  • ESP32-C3
Product group
  • Y5725
Dimension: Length
  • 13.2 mm
Dimension: Width
  • 16.6 mm
Dimension: Height
  • 2.4 mm
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Pin Count
  • 53
Manufacturer Package
  • 53-SMD Module

Operating conditions

Operating Temperature, min. (TA)
  • -40 °C
Operating Temperature, max. (TA)
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 105 °C

Electrical Properties

CPU Architecture
  • RISC-V
Number of Processor Core
  • 1
GPIO
  • 15
CPU Core
  • RISC-V
Transmission Protocol
  • IEEE 802.11 b/g/n; 2.4 GHz; HT20/40; up to 150 Mbps
Bluetooth
  • Bluetooth LE v5.0
Transmission Frequency
  • 2.4 GHz
Data Rate Max.
  • 150 Mb/s
Supply Voltage Min.
  • 3 V
Supply Voltage Max.
  • 3.6 V
Flash
  • 4 MB
SRAM
  • 400 KB
ROM
  • 384 KB
PSRAM
  • 0 MB
Antenna
  • PCB
Interfaces
  • CAN (TWAI)_1x
  • I2C_1x
  • I2S_1x
  • SPI_3x
  • UART_2x
Real-Time Clock
Number of PWM Channels
  • 6
Number of ADC Channels
  • 1(5) 1(1)
ADC Resolution
  • 12 bit Bit
Crypto Engine
USB OTG
