Manufacturer Part No.

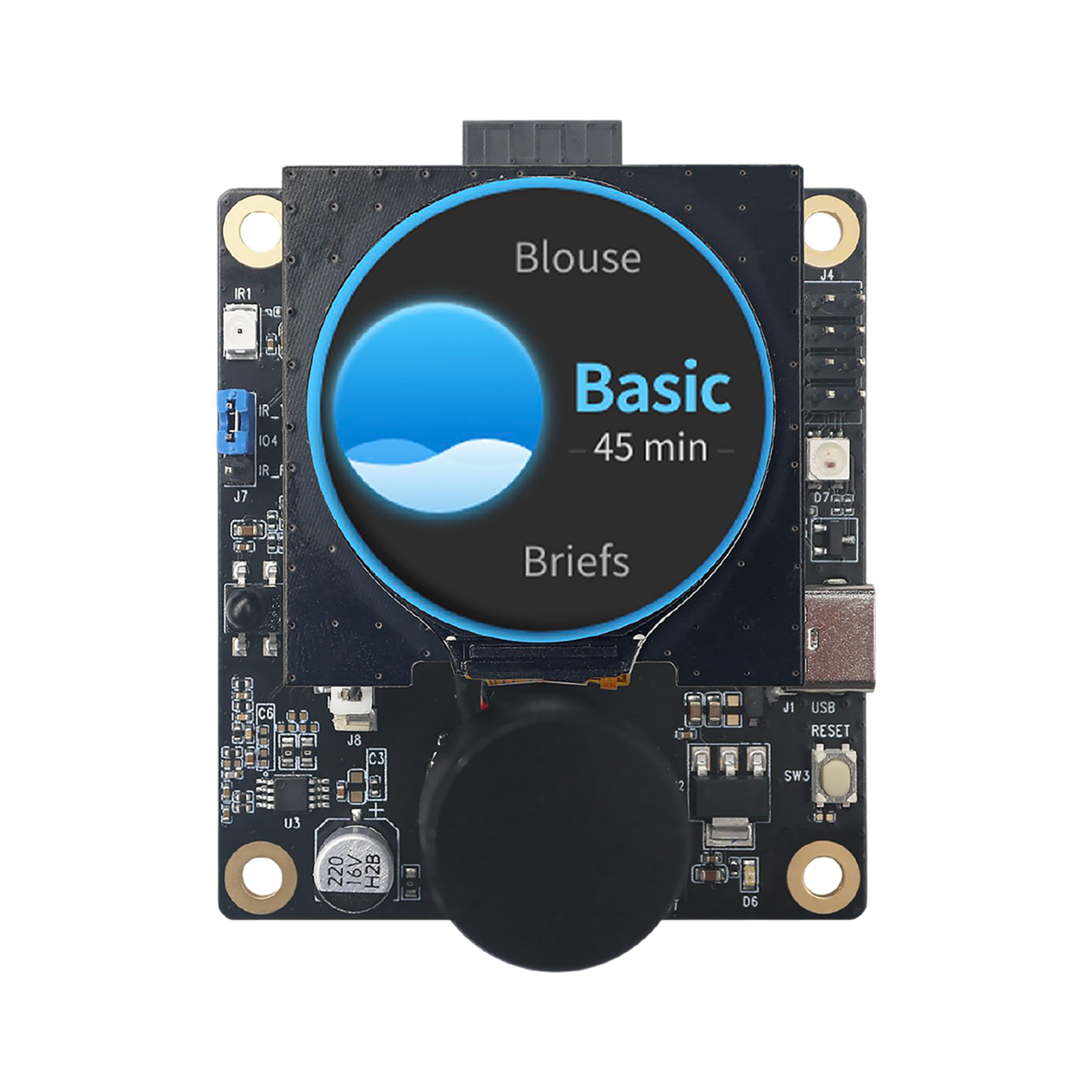

ESP32-C3-LCDKIT
Schukat Part No.
ESP32-C3-LCDKIT
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 108 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- WiFi/Bluetooth Development Board
- Flash
- 4 MB
- Antenna
- PCB
- Interface
- ADC
CAN
Class-D audio amplifier
I/O
I2C
I2S
Infrared TX/RX
Loudspeaker
Rotary coding switch
SPI
UART
USB-C - RoHS-Conform
Specifications
Open all
Electrical Properties
- Supply Voltage Min.
- 5 V
- Supply Voltage Max.
- 5 V
- Program Memory Size
- 384 KB
- Memory Size
- 400 KB
- Flash
- 4 MB
- Antenna
- PCB
- Interface
- ADC
- CAN
- Class-D audio amplifier
- I/O
- I2C
- I2S
- Infrared TX/RX
- Loudspeaker
- Rotary coding switch
- SPI
- UART
- USB-C
- Contained Module/Controller
- ESP32-C3-MINI-1
- CPU Architecture
- RISC-V
- Number of Processor Core
- 1
- Transmission Protocol
- IEEE 802.11 b/g/n
- Bluetooth
- Bluetooth LE v5.0
- Transmission Frequency
- 2.4 GHz
Documents
esp32-c3-mini-1_datasheet_en.pdf
