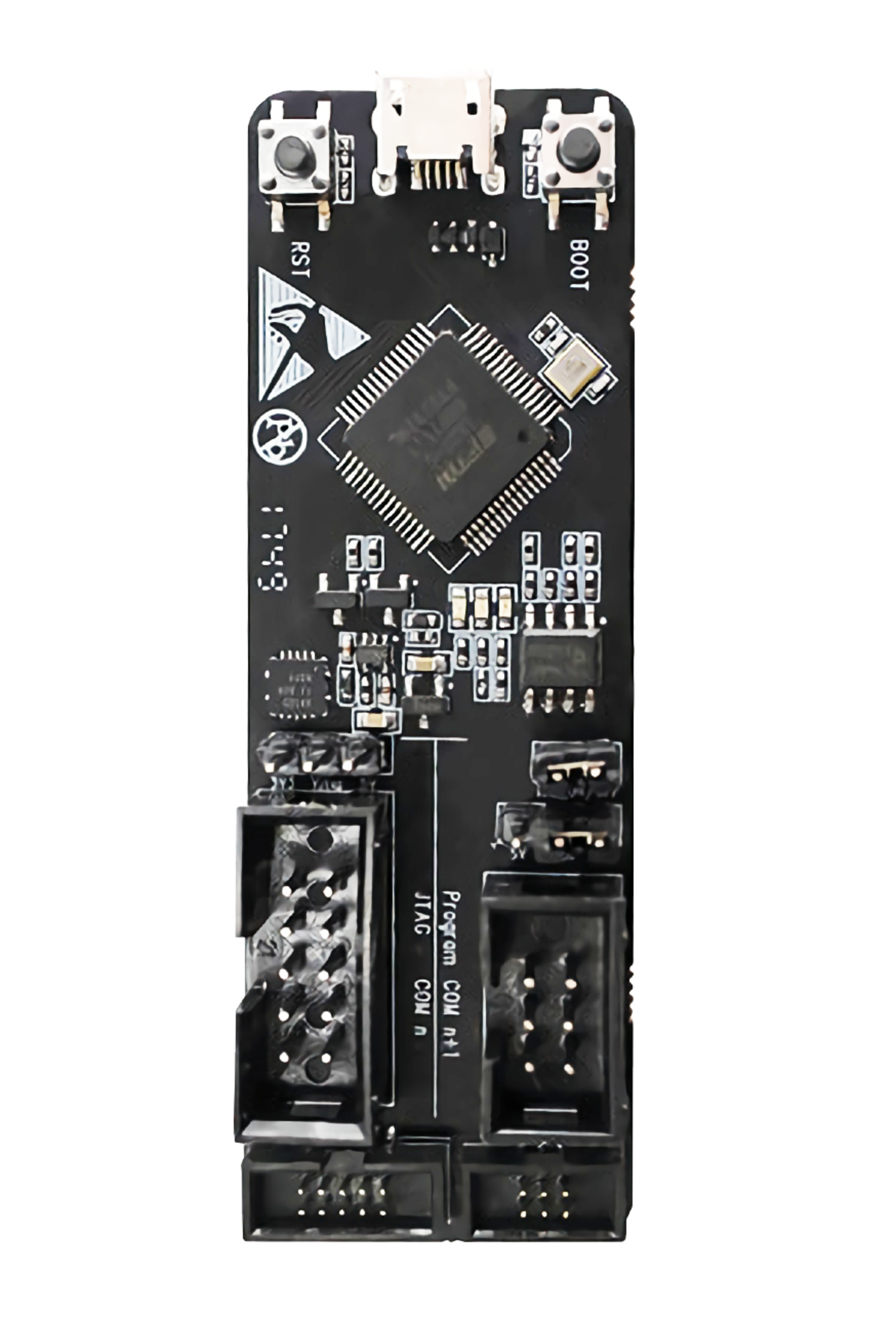

ESP-PROG

Espressif Systems development and debugging tool

NEW
Manufacturer Part No.
ESP-PROG
Schukat Part No.
ESP-PROG
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

99 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Espressif Systems
Type
  • development and debugging tool
Series
  • ESP-PROG
Product group
  • Y5729
Dimension: Length
  • 73.4 mm
Dimension: Width
  • 25.1 mm
Features

  • ESP-Prog is one of Espressif’s development and debugging tools, with functions including automatic firmware downloading, serial communication, and JTAG debugging. ESP-Prog’s automatic firmware downloading and serial communication functions are supported on ESP8266, ESP32, ESP32-S2, ESP32-S3, and ESP32-C3, while the JTAG debugging is supported only on ESP32, ESP32-S2, ESP32-S3, and ESP32-C3.
    ESP-Prog can be easily connected to a PC with the use of only one USB cable. Then, the PC can identify the board’s Program and JTAG interfaces (functions) by their port numbers.
    Given that the power supply voltage may vary on different user boards, either of the ESP-Prog interfaces can provide 5 V or 3.3 V power supply through pin headers, in order to ensure power compatibility. Power on ESP-Prog could be toggled between 3.3 V and 5 V, but the RX/TX & JTAG signals will always be at the 3.3 V level.

Notice
  • Tool for the evaluation of: ESP32, ESP32-C3, ESP32-S2, ESP32-S3, ESP8266

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 65 °C

Electrical Properties

Interface
  • Header connecters
  • I/O
  • USB
