ESP-PROG-2

Espressif Systems development and debugging tool

ESP-PROG-2
NEW
Manufacturer Part No.
ESP-PROG-2
Schukat Part No.
ESP-PROG-2
Manufacturer
Espressif Systems
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 21/2026
500 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
development and debugging tool
Flash
4 MB
PSRAM
2 MB
Antenna
PCB
Interface
I/O USB Extension Connector
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Espressif Systems
Type
  • development and debugging tool
Series
  • ESP-PROG
Product group
  • Y5729
Dimension: Length
  • 62 mm
Dimension: Width
  • 27 mm
Features

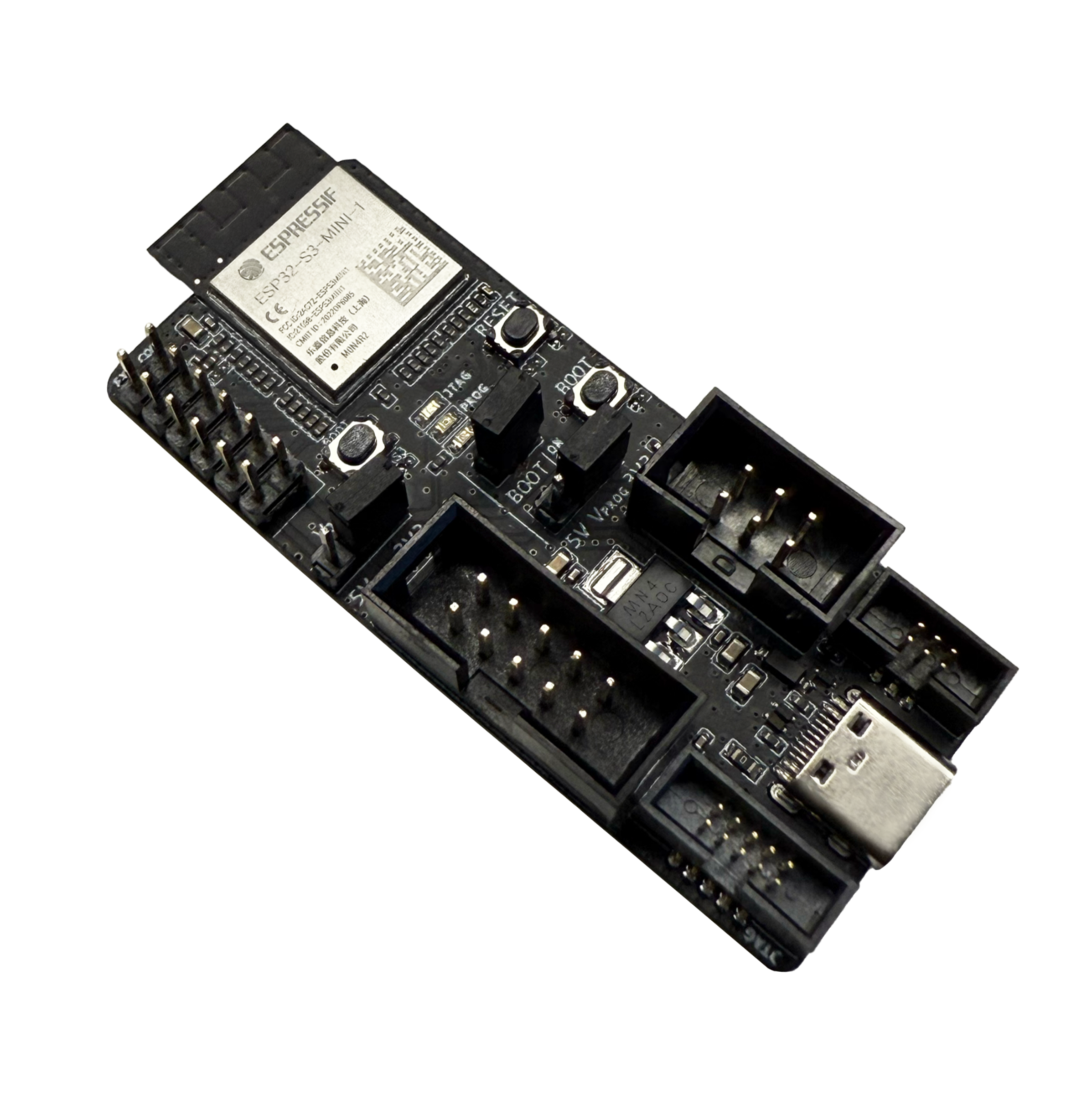

  • ESP-Prog-2 is a development and debugging tool released by Espressif. It supports function such as automatic firmware downloading, serial communication, and JTAG online debugging. Automatic downloading and serial communication are compatible with ESP8266, ESP32, ESP32-S2, ESP32-S3, and ESP32-C3, while JTAG online debugging is supported on ESP32, ESP32-S2, ESP32-S3, and ESP32-C3.
    ESP-Prog-2 is simple in design and easy to use—only one USB cable is needed to connect it to a computer. The computer automatically recognizes two ports, one for downloading and the other for JTAG debugging, based on the port numbers.
    Considering that different target boards may operate at different voltages, both ESP-Prog-2 interfaces support either 5 V or 3.3 V power supply voltage. The voltage can be selected via jumper pins, providing compatibility with a variety of boards. However, while the power supply can switch between 3.3 V and 5 V, the RX/TX and JTAG signal levels are fixed at 3.3 V.

Electrical Properties

Flash
  • 4 MB
PSRAM
  • 2 MB
Antenna
  • PCB
Interface
  • I/O USB Extension Connector
Contained Module/Controller
  • ESP32-S3-MINI-1

Other Products

All Products of the Series
Loading...

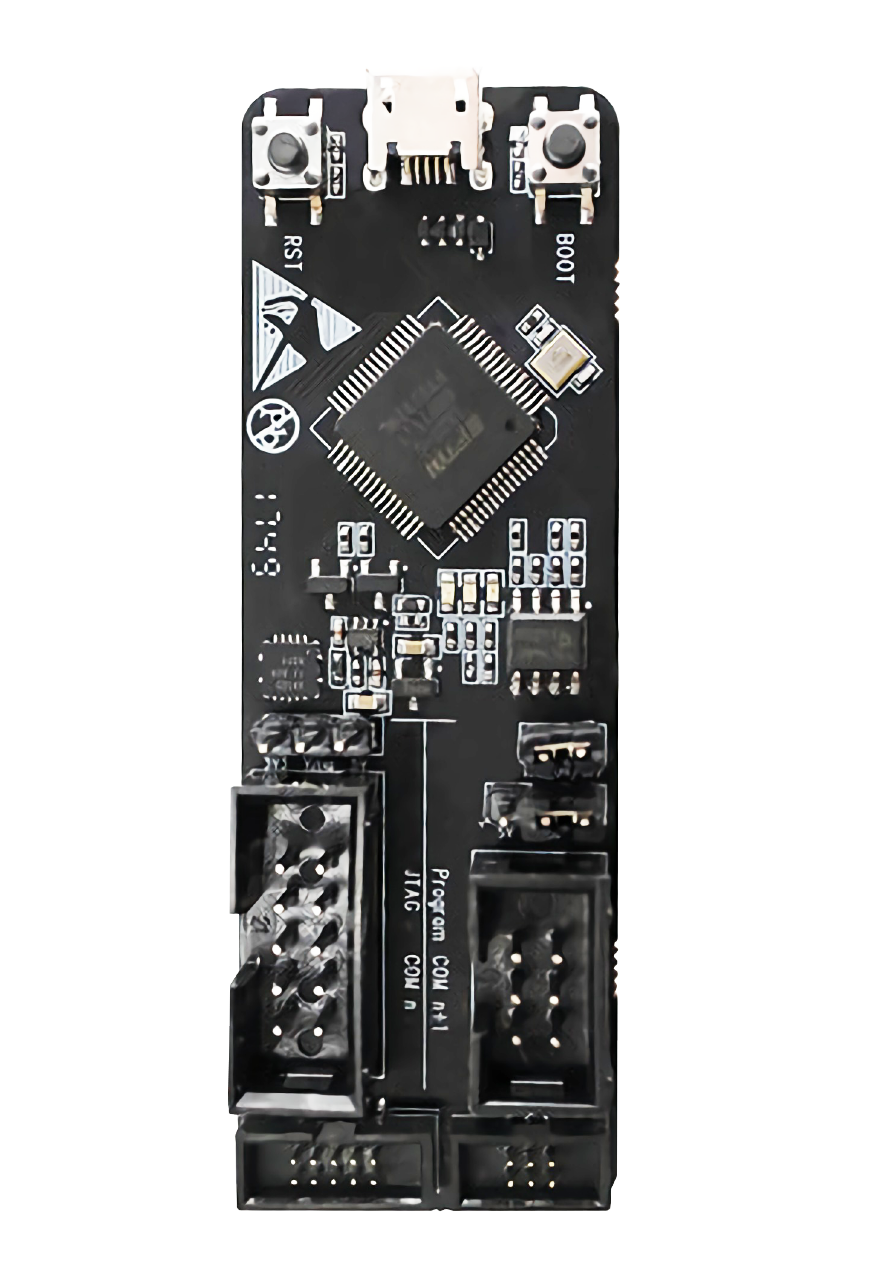

ESP-PROG
