X1G005441030412

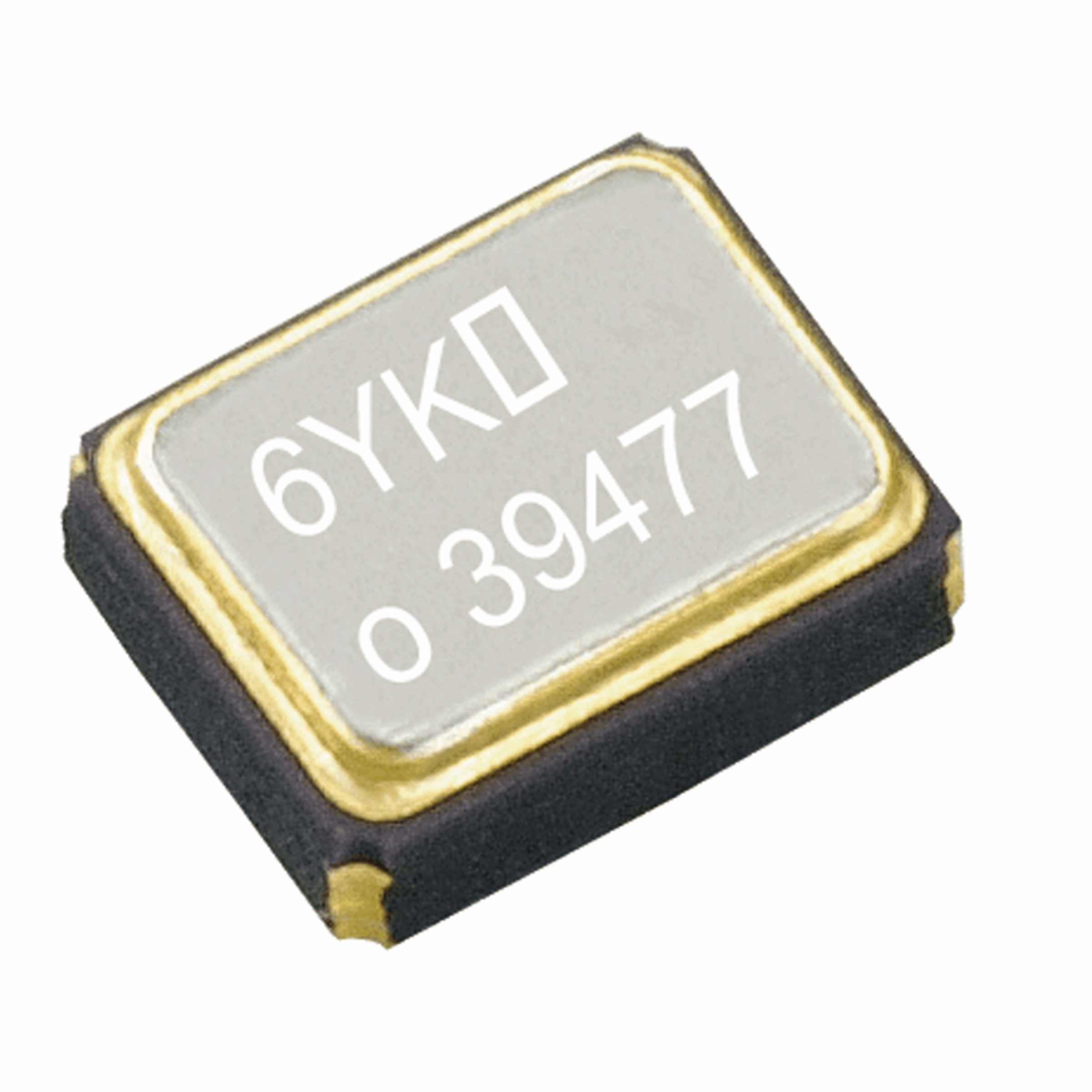

Epson SMD quartz oscillator TCXO TG2016SMN 26MHz ±1,5ppm 2,5mm x 1,6mm x 0,73mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD quartz oscillator
- Series
- TG2016SMN
- Frequency
- 26 MHz
- Frequency tolerance
- ±1,5 ppm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Technical Features
- Frequency
- 26 MHz
- Frequency Value
- 26
- 26
- Frequency Unit
- MHz
- Frequency tolerance
- ±1,5 ppm
- Operating voltage (V)
- 2.66 V
- Power consumption
- 1.5 mA
- Ageing, max.
- 0,5 ppm
Documents
TG2520SMN_en.pdf
