X1G004291003111

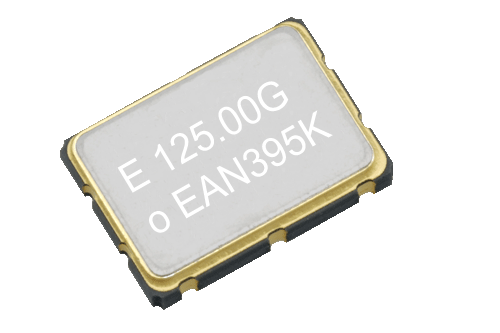

Epson SMD quartz oscillator SPXO SG7050EAN LV-PECL 150MHz ±30ppm 7mm x 5mm x 1,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 19.07.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD quartz oscillator
- Series
- SG7050EAN
- Frequency
- 150 MHz
- Frequency tolerance
- ±30 ppm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 125 °C
Technical Features
- Frequency
- 150 MHz
- Frequency Value
- 150
- 150
- Frequency Unit
- MHz
- Frequency tolerance
- ±30 ppm
- Operating voltage (V)
- 3.63 V
- Power consumption
- 65 mA
- Ageing, max.
- ±5 ppm
- Soldering temperature, max.
- 260 °C
- Rise time/fall time, max.
- 0.35 ns
- Symmetry at 50% VDD, min.
- 45 %
- Symmetry at 50% VDD, max.
- 55 %
Documents
SG3225VAN_en.pdf
