X1G004171001614

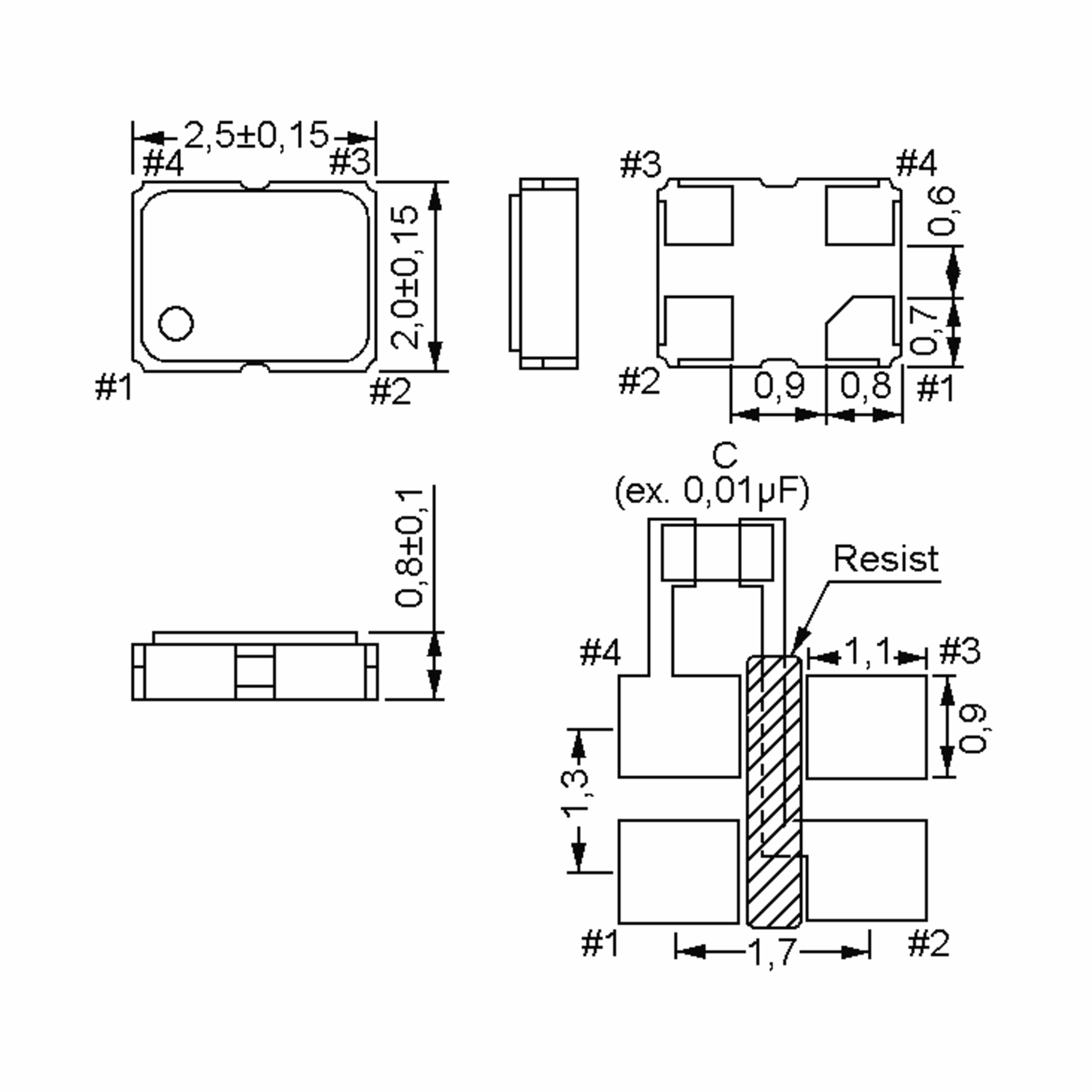

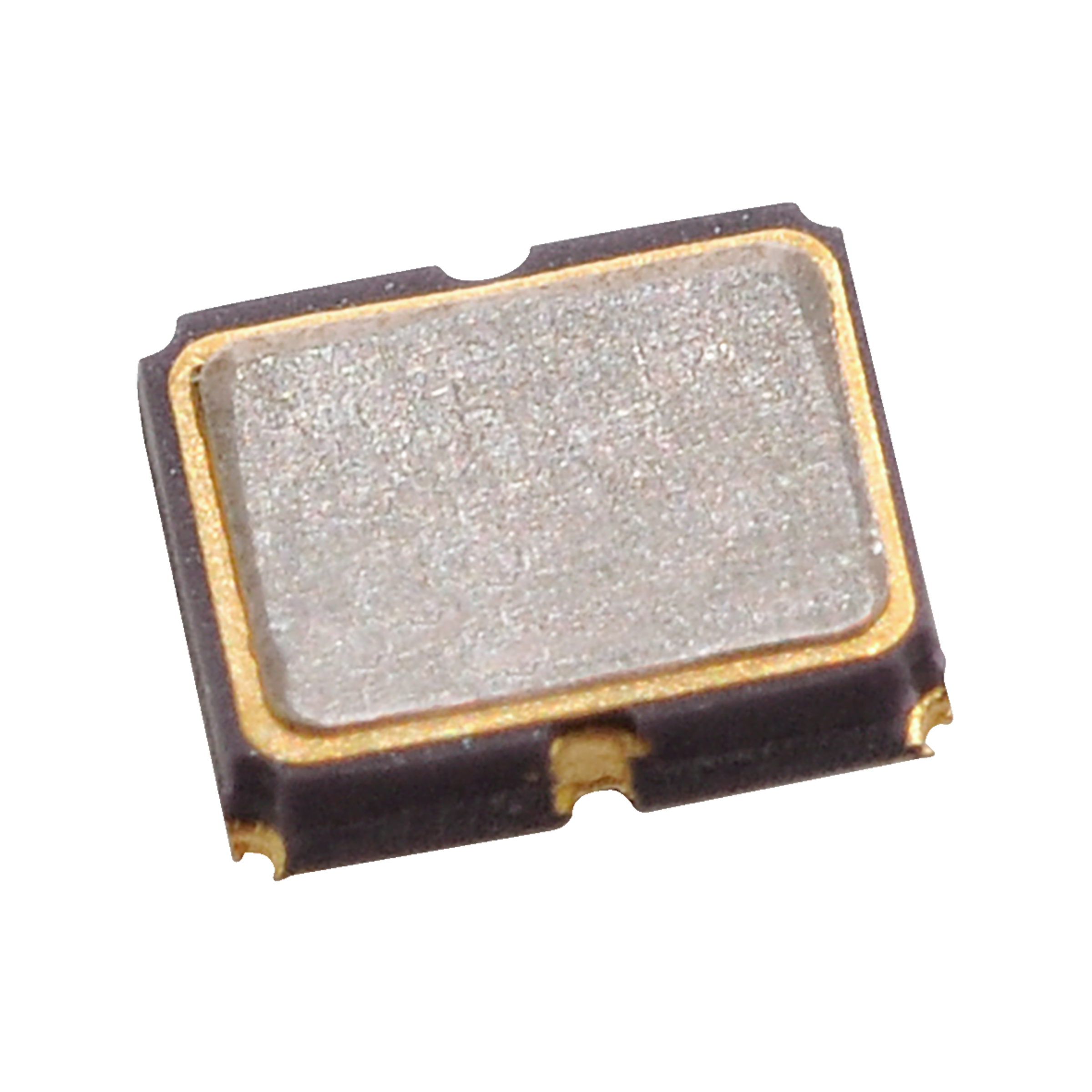

Epson SMD quartz oscillator SG-210STF Ceramic case CMOS 10MHz ±50ppm 2,5mm x 2mm x 0,9mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD quartz oscillator
- Series
- SG-210STF
- Package/Case
- Ceramic case
- Frequency
- 10 MHz
- Frequency tolerance
- ±50 ppm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 125 °C
Technical features
- Frequency
- 10 MHz
- Frequency tolerance
- ±50 ppm
- Operating voltage (V)
- 1.6 V
- Power consumption
- 1.8 mA
- Ageing, max.
- 3 ppm
