X1E000021049612

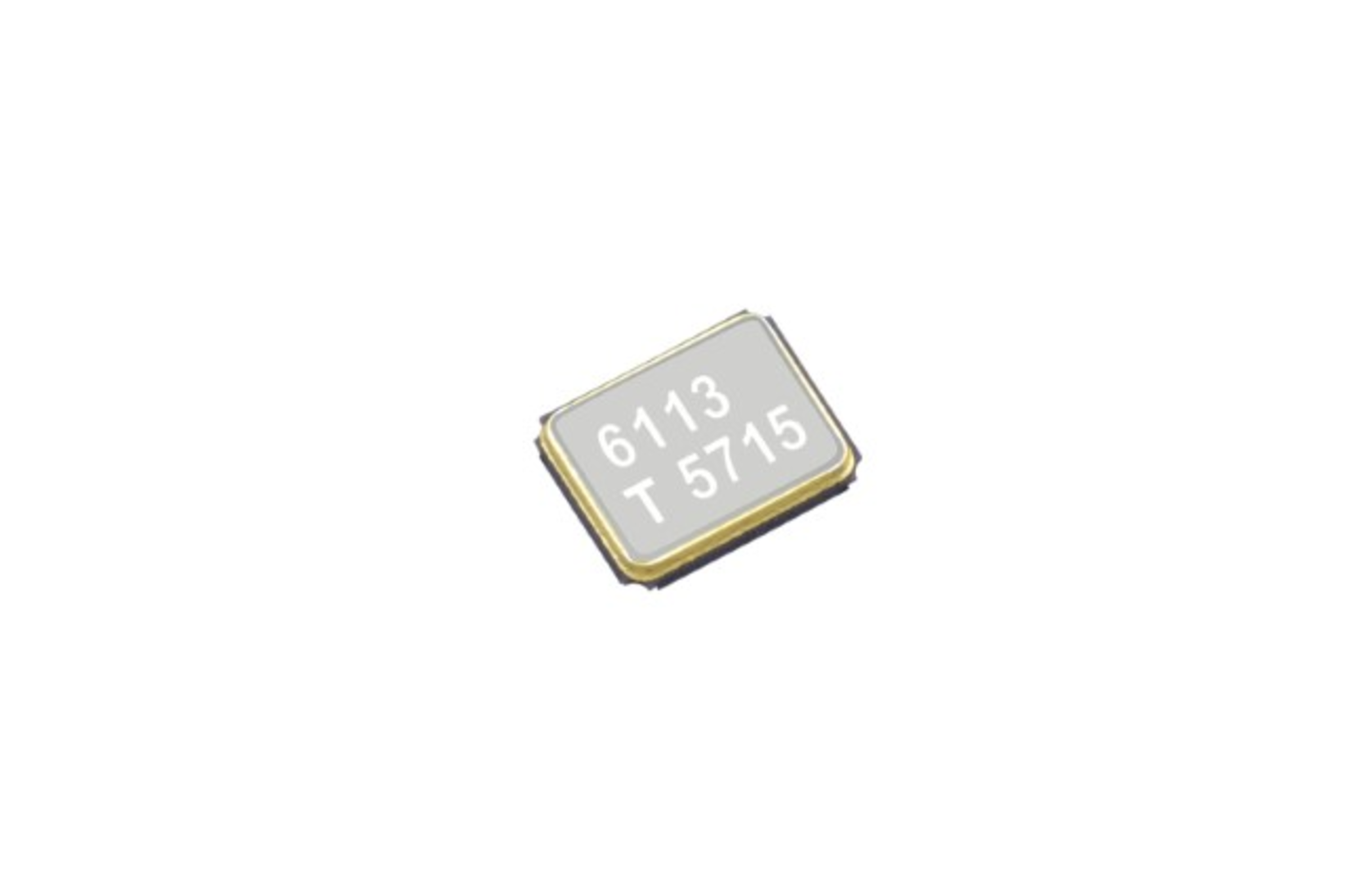

Epson SMD Crystal TSX-3225 Plastic housing 20MHz 10ppm 3,2mm x 2,5mm x 0,6mm 16pF
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- TSX-3225
- Package/Case
- Plastic housing
- Frequency
- 20 MHz
- Frequency tolerance
- 10 ppm
- Load capacity
- 16 pF
- Ageing, max.
- 1 ppm/Jahr
- Load, max.
- 100 µW
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 0.6 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 125 °C
Technical features
- Frequency
- 20 MHz
- Frequency tolerance
- 10 ppm
- Temperature stability
- 20 ppm
- max. Equivalent Series Resistance
- 60 Ohm
- Load capacity
- 16 pF
- Load, max.
- 100 µW
- Ageing, max.
- 1 ppm/Jahr
Safety/Certifications
- Insulation resistance, min.
- 500 MOhm
