X1B000351000212

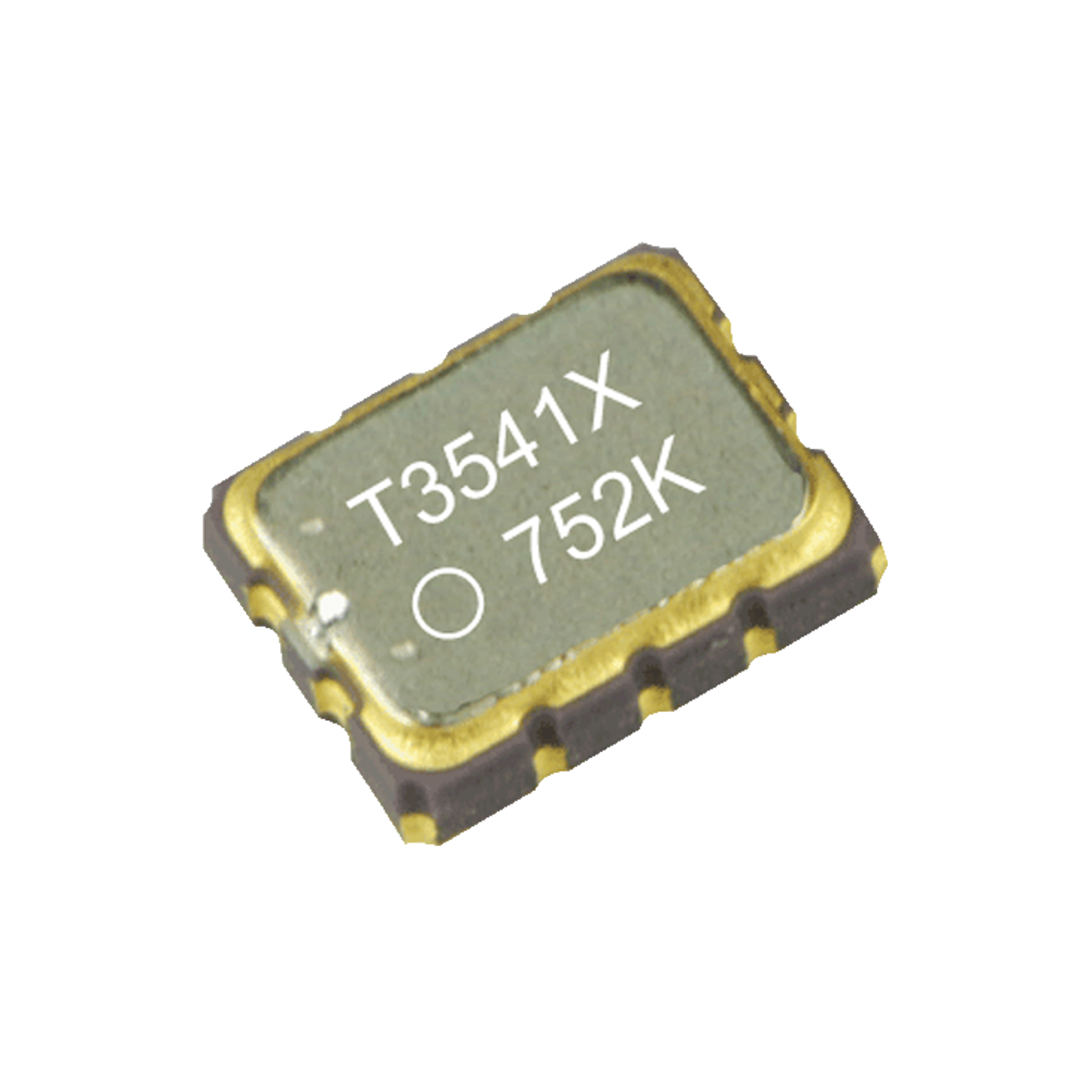

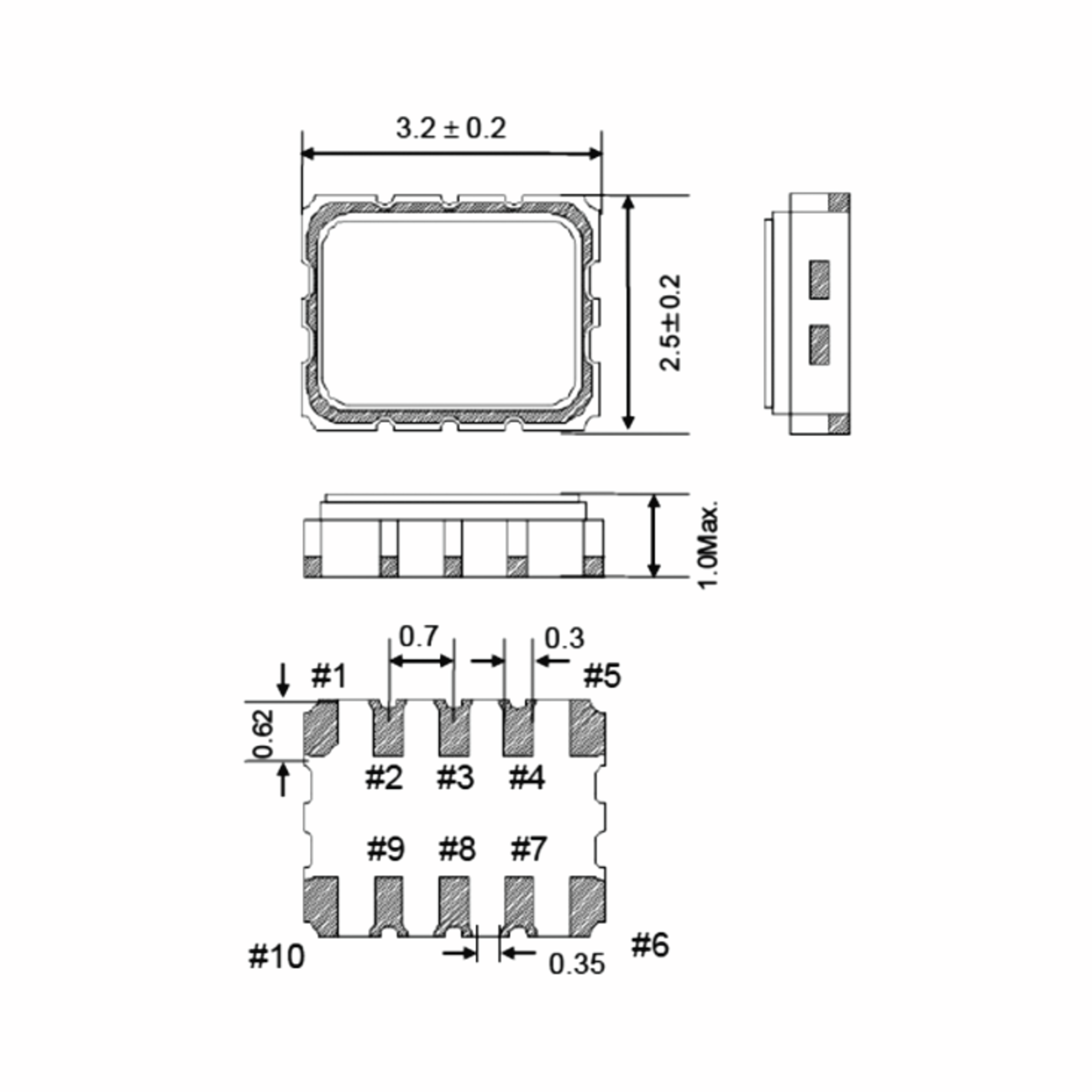

Epson SMD quartz oscillator TCXO TG-3541CE CMOS/TTL 32,768kHz ±5ppm 3,2mm x 2,5mm x 1mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 250 or multiple of 250)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD quartz oscillator
- Series
- TG-3541CE
- Frequency
- 32,768 kHz
- Frequency tolerance
- ±5 ppm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 105 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Technical Features
- Frequency
- 32,768 kHz
- Frequency Value
- 32.768
- 32.768
- Frequency Unit
- kHz
- Frequency tolerance
- ±5 ppm
- Operating voltage (V)
- 5.5 V
- Output voltage (V)
- 0.4 V
- Ageing, max.
- ±5 ppm/Jahr
- Output current
- -0.4 mA
- Soldering heat resistance
- 220 °C / 35 s
- Soldering temperature, max.
- 260 °C
- Load capacity, typ.
- 200 pF
Documents
TG-3541CE_en.pdf
