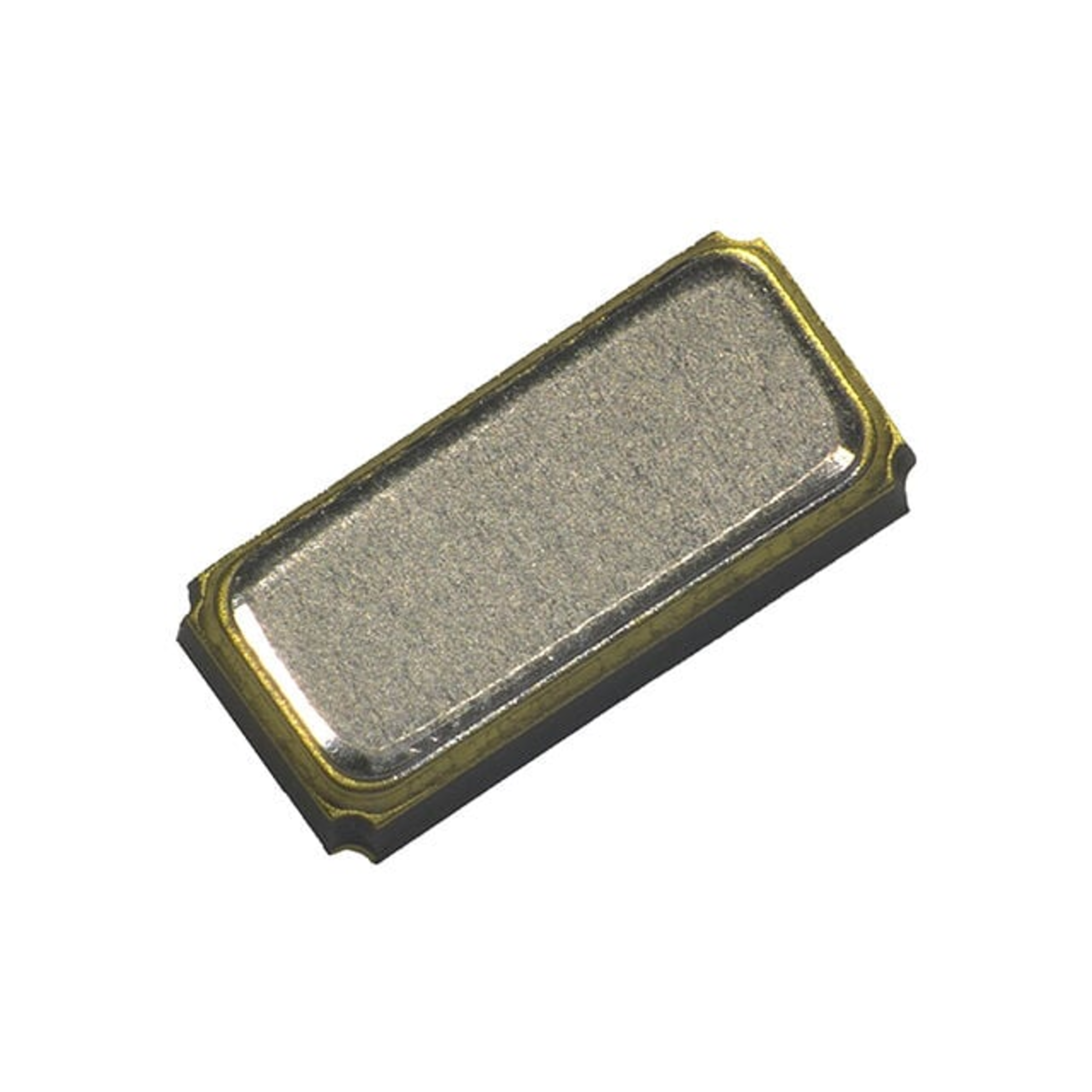

X1A000161000314
Epson FC3215AN 32,768kHz ±20ppm 3,2mm x 1,5mm x 0,9mm 7pF
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.000 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FC3215AN
- Frequency tolerance
- ±20 ppm
- Load capacity
- 7 pF
- Ageing, max.
- ±3 ppm/Jahr
- Load, max.
- 0,5 µW
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 1.5 mm
- Dimension: Height
- 0.9 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
- Minimum Storage Temperature
- -55 °C
- Maximum Storage Temperature
- 125 °C
Technical Features
- Frequency
- 32,768 kHz
- Frequency Value
- 32.768
- 32.768
- Frequency Unit
- kHz
- Frequency tolerance
- ±20 ppm
- Shunt capacity, max.
- 1.6 pF
- Load capacity
- 7 pF
- Load, max.
- 0,5 µW
- Ageing, max.
- ±3 ppm/Jahr
Documents
FC3215AN_en.pdf
