Q32531011001800

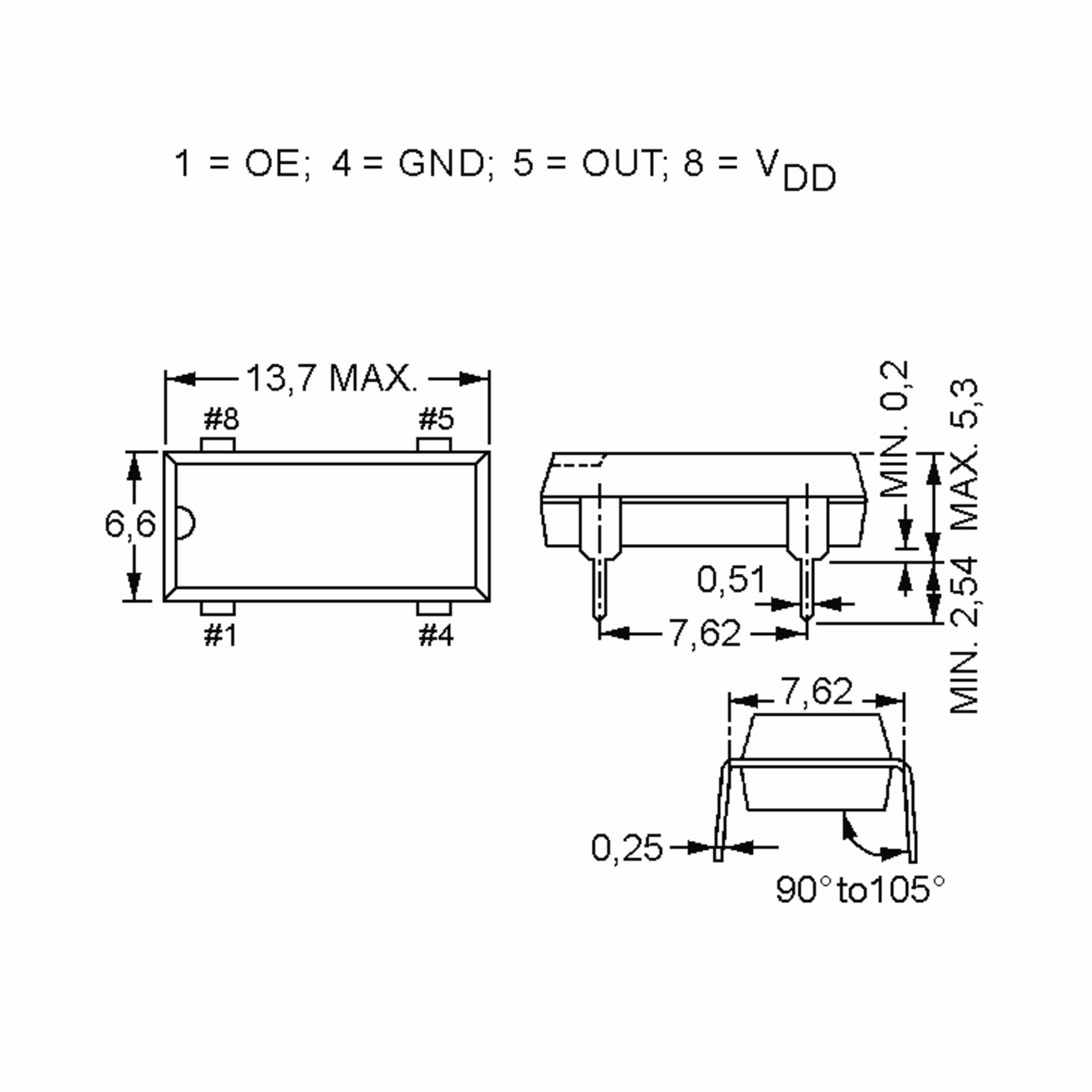

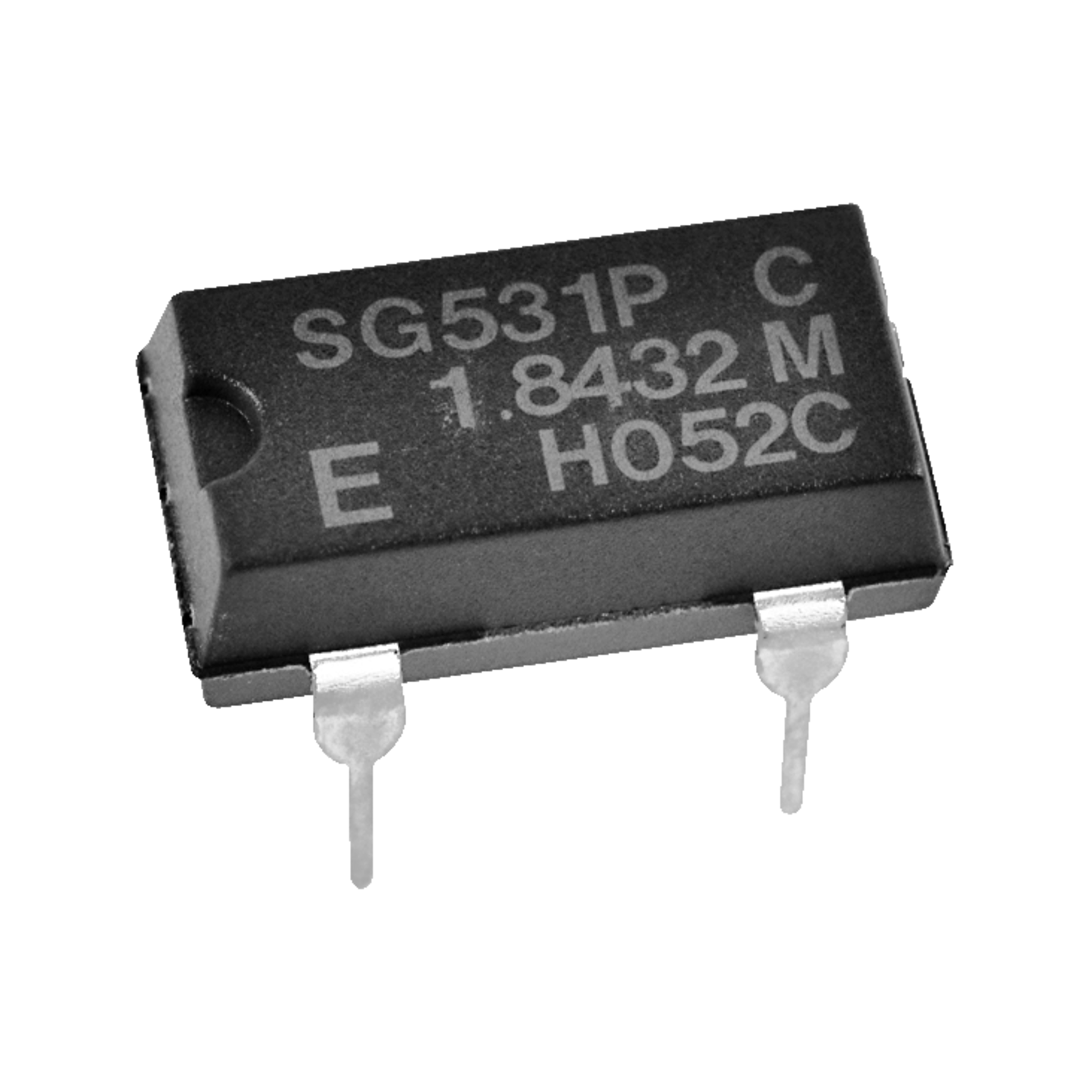

Epson Quartz oscillator SPXO SG-531P CMOS/TTL 4MHz 13,7mm x 6,6mm x 5,3mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
105 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.07.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 35 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Quartz oscillator
- Series
- SG-531P
- Frequency
- 4 MHz
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 70 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Technical Features
- Frequency
- 4 MHz
- Frequency Value
- 4
- Frequency Unit
- MHz
- Frequency stability, min.
- -100 ppm
- Operating voltage (V)
- 5.5 V
- Output voltage (V)
- 0.4 V
- Ageing, max.
- 5 ppm/Jahr
- Output current
- -0.4 mA
- Shock resistance
- 20 ppm
- Soldering heat resistance
- 260 °C / 10 s
- Load capacity, typ.
- 8 pF
- Symmetry at 50% VDD, min.
- 40 %
- Symmetry at 50% VDD, max.
- 60 %
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
