Q22MA5051002000

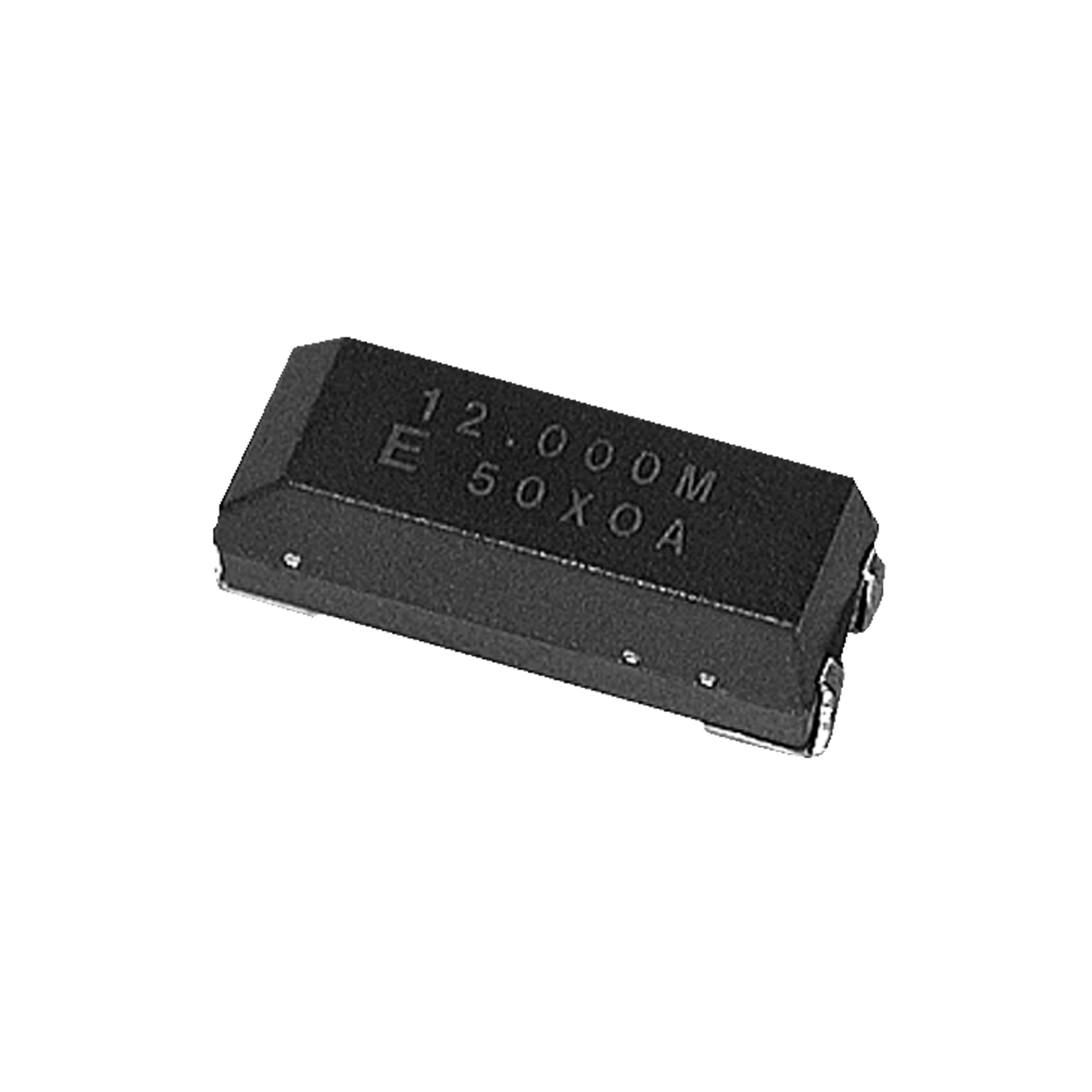

Epson SMD Crystal MA-505 Plastic housing 4.9152MHz
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 20.03.2020
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Plastic housing
- Frequency
- 4.915 MHz
- Series
- MA-505
- Frequency tolerance
- ±50 ppm
- Load capacity
- 16 pF
- Ageing, max.
- ±5 ppm/Jahr
- Load, max.
- 100 µW
- RoHS-Conform
