Q22FA23V0052912

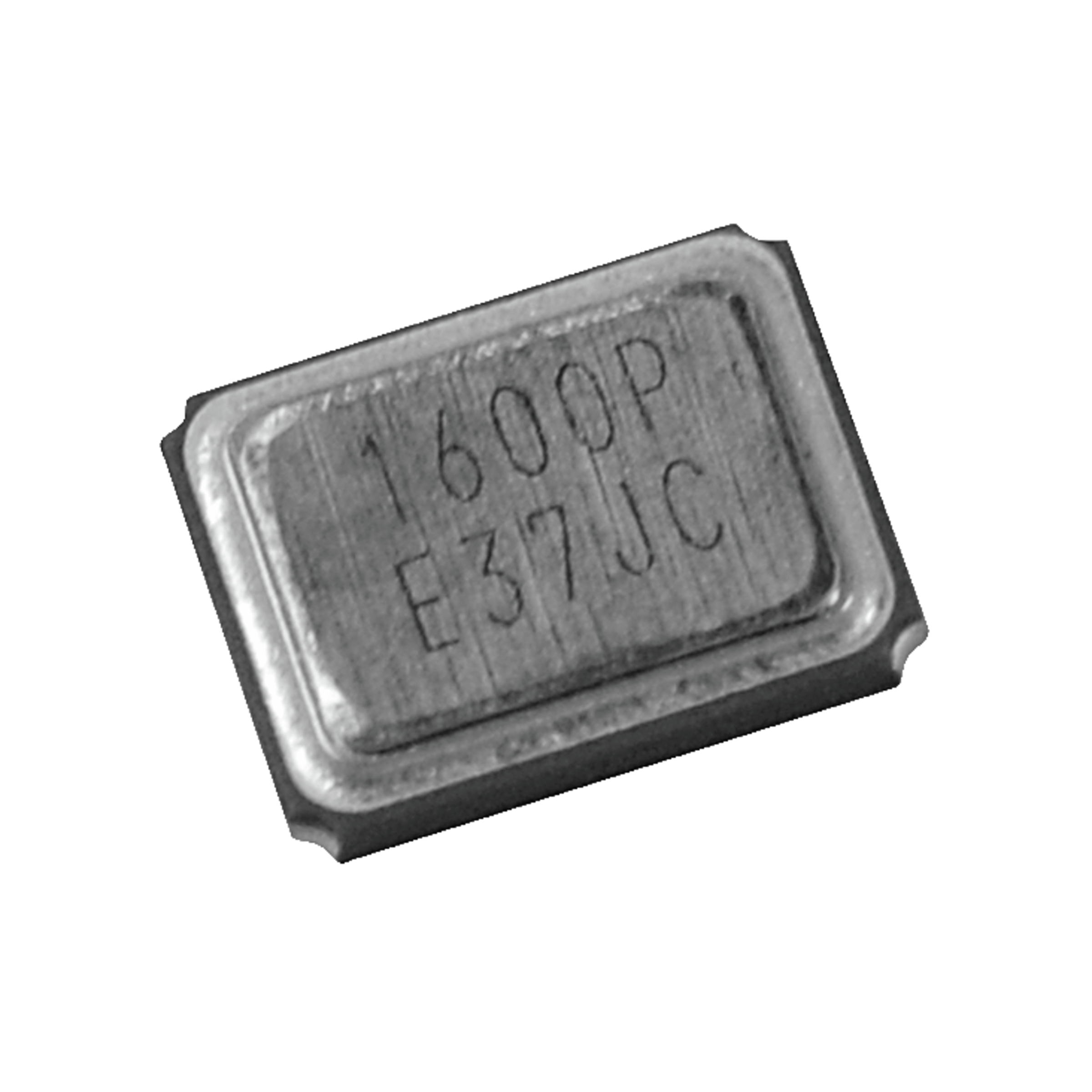

Epson FA-238V 12MHz ±20ppm 3,2mm x 2,5mm x 0,7mm 12pF
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
110 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FA-238V
- Frequency tolerance
- ±20 ppm
- Load capacity
- 12 pF
- Ageing, max.
- ±5 ppm/Jahr
- Load, max.
- 200 µW
- RoHS-Conform
Specifications
Open all

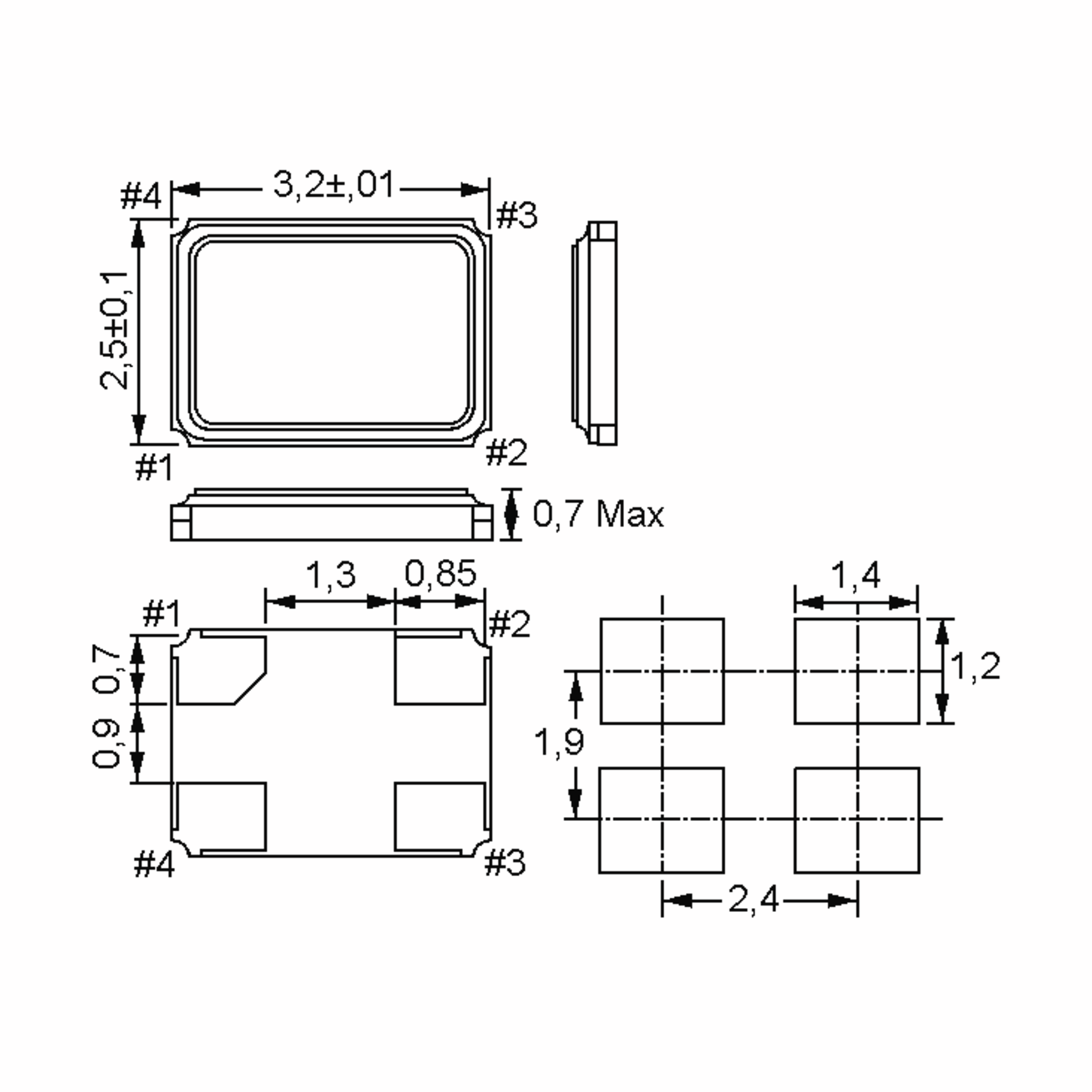

Dimensions and Weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 0.7 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 125 °C
Technical Features
- Frequency
- 12 MHz
- Frequency Value
- 12
- 12
- Frequency Unit
- MHz
- Frequency tolerance
- ±20 ppm
- Temperature stability
- 20 ppm
- max. Equivalent Series Resistance
- 100 Ohm
- Load capacity
- 12 pF
- Load, max.
- 200 µW
- Ageing, max.
- ±5 ppm/Jahr
Safety/Certifications
- Insulation resistance, min.
- 500 MOhm
Documents
FA-238_en.pdf
