| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Characteristic | Specifications | Rated voltage V AC | Rated voltage V DC | Voltage drop | Rated current | Rated breaking capacity | Operating temperature range, min. | Operating temperature range, max. | Dimension: Length | Dimension: Width | Dimension: Height | Qualification | Approvals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

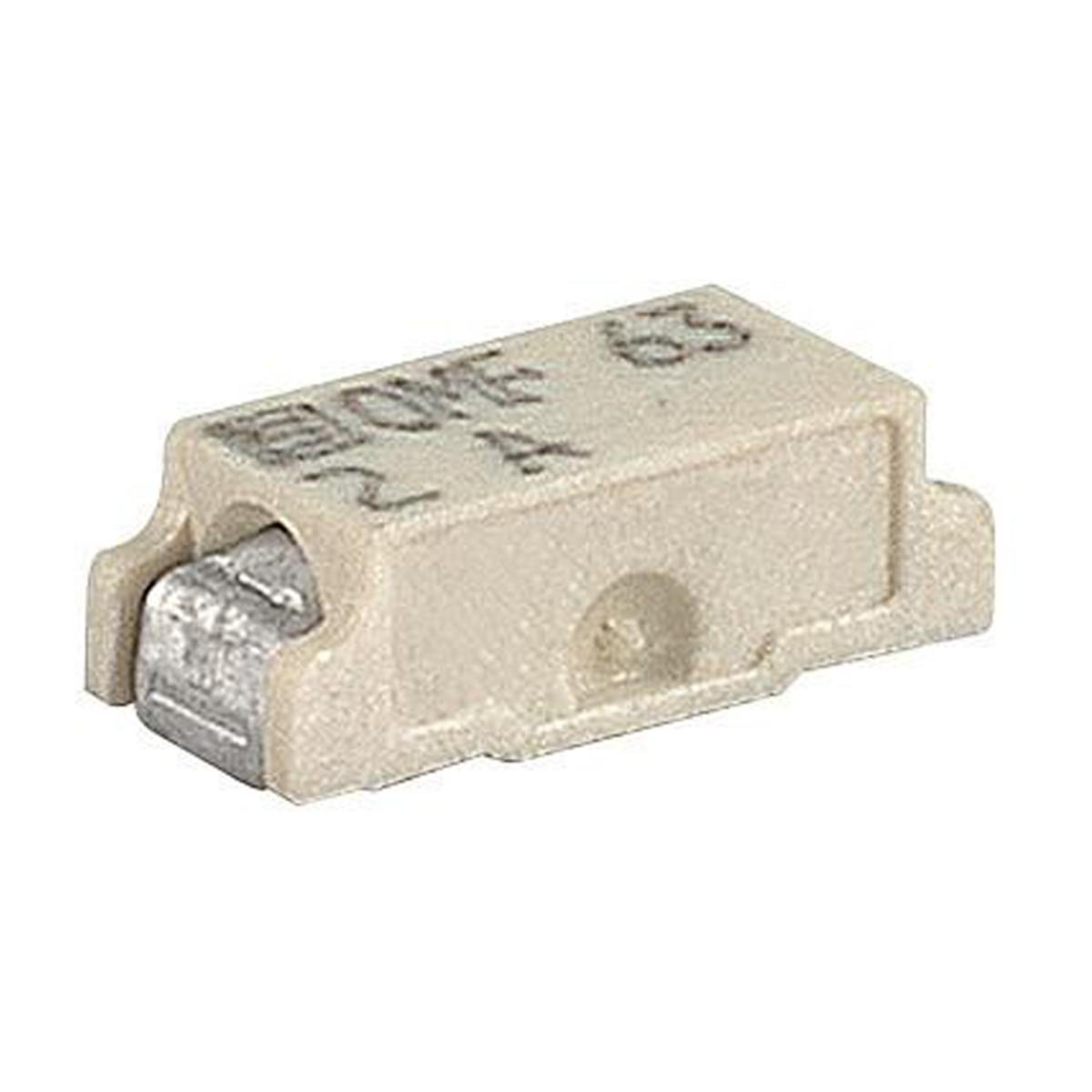

126 |  | Manufacturers Part No. 3402.0045.22(3402.0045.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 0,5A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 350.0 mV | 0.5 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
127 | | Manufacturers Part No. 3402.0008.22(3402.0008.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 0,63A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 290.0 mV | 0.63 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
128 | | Manufacturers Part No. 3402.0009.22(3402.0009.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 1A 7,4x3,1mm | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 220.0 mV | 1.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
129 | | Manufacturers Part No. 3402.0012.22(3402.0012.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 2A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 200.0 mV | 2.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
130 | | Manufacturers Part No. 3402.0013.22(3402.0013.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 2,5A 7,4x3,1mm | Customer Part No. Customer Project No. | 310 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 190.0 mV | 2.5 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
131 | | Manufacturers Part No. 3402.0014.22(3402.0014.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 3A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 190.0 mV | 3.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
132 | | Manufacturers Part No. 3402.0016.22(3402.0016.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 4A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 140.0 mV | 4.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
133 | | Manufacturers Part No. 3402.0017.22(3402.0017.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 5A 7,4x3,1mm | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 140.0 mV | 5.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
134 | | Manufacturers Part No. 3402.0020.22(3402.0020.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 8A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 100.0 mV | 8.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||
135 | | Manufacturers Part No. 3402.0040.22(3402.0040.22) Schurter SMD fuse OMF63 quickacting 50A 63VAC 63VDC 10A 7,4x3,1mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 63.0 V AC | 63.0 V DC | 80.0 mV | 10.0 A | 50 A | -40.0 °C | 125.0 °C | 7.4 mm | 3.1 mm | 2.6 mm | CE cULus | |||||||

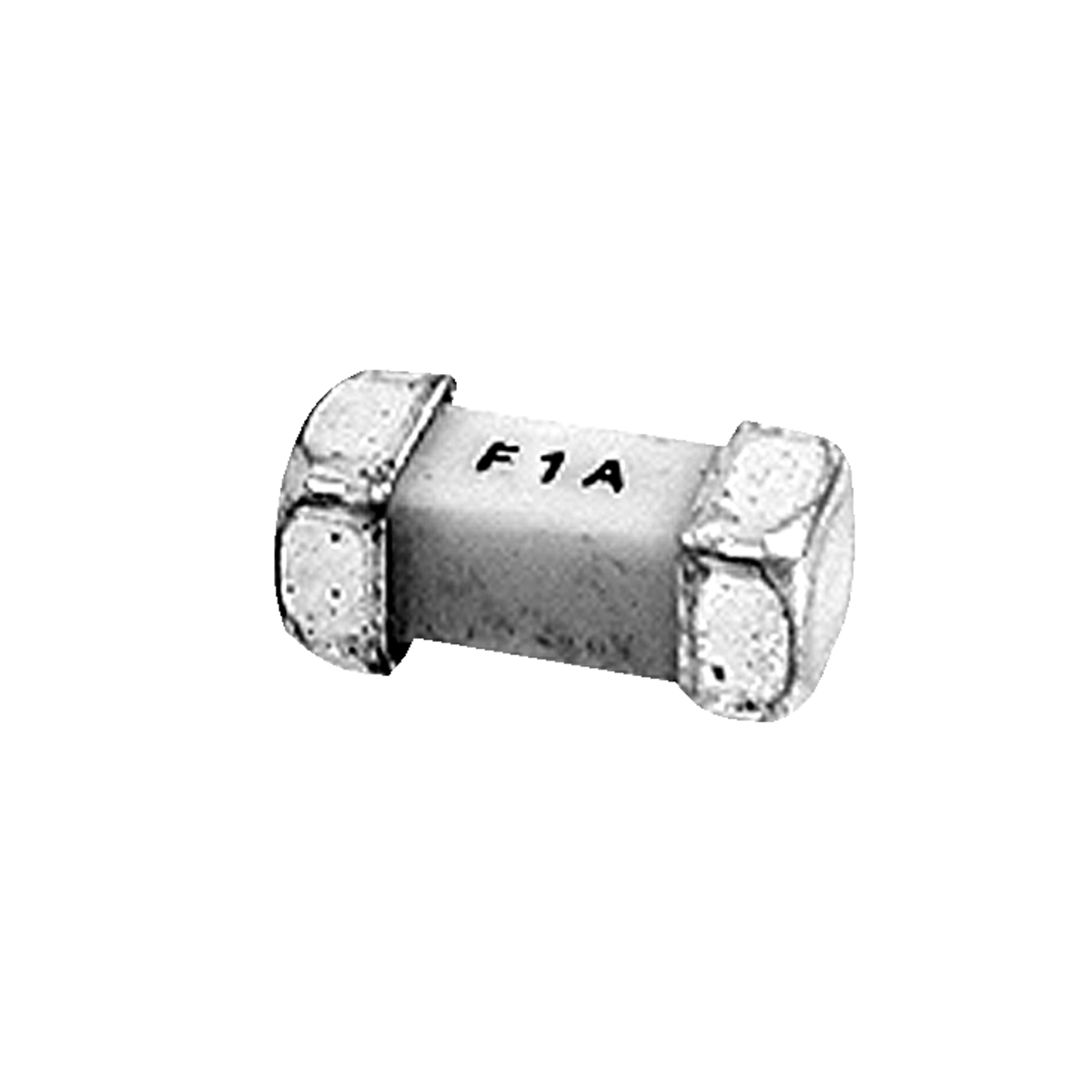

136 | | Manufacturers Part No. 157000.0,25GT(ESF0.25-SMD) SIBA SMD fuse 157000 quickacting 50A 125VAC 125VDC 0,25A 6,1x2,6mm | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | quick acting | 125.0 V AC | 125.0 V DC | 230.0 mV | 0.25 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus | |||||||||
137 | | Manufacturers Part No. 157000.0,5GT(ESF0.5-SMD) SIBA SMD fuse 157000 quickacting 50A 125VAC 125VDC 0,5A 6,1x2,6mm | Customer Part No. Customer Project No. | 2.200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | quick acting | 125.0 V AC | 125.0 V DC | 180.0 mV | 0.5 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus | |||||||||
138 | | Manufacturers Part No. 157000.1GT(ESF1.0-SMD) SIBA SMD fuse 157000 quickacting 50A 125VAC 125VDC 1A 6,1x2,6mm | Customer Part No. Customer Project No. | 1.900 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | quick acting | 125.0 V AC | 125.0 V DC | 150.0 mV | 1.0 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus | |||||||||
139 | | Manufacturers Part No. 157000.2GT(ESF2.0-SMD) SIBA SMD fuse 157000 quickacting 50A 125VAC 125VDC 2A 6,1x2,6mm | Customer Part No. Customer Project No. | 800 Pcs. Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | quick acting | 125.0 V AC | 125.0 V DC | 100.0 mV | 2.0 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus | |||||||||
140 | | Manufacturers Part No. 157000.3GT(ESF3.0-SMD) SIBA SMD fuse 157000 quickacting 50A 125VAC 125VDC 3A 6,1x2,6mm | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | quick acting | 125.0 V AC | 125.0 V DC | 100.0 mV | 3.0 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus | |||||||||
141 | | Manufacturers Part No. 157000.4GT(ESF4.0-SMD) SIBA SMD fuse 157000 quickacting 50A 125VAC 125VDC 4A 6,1x2,6mm | Customer Part No. Customer Project No. | 1.900 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | quick acting | 125.0 V AC | 125.0 V DC | 100.0 mV | 4.0 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus | |||||||||

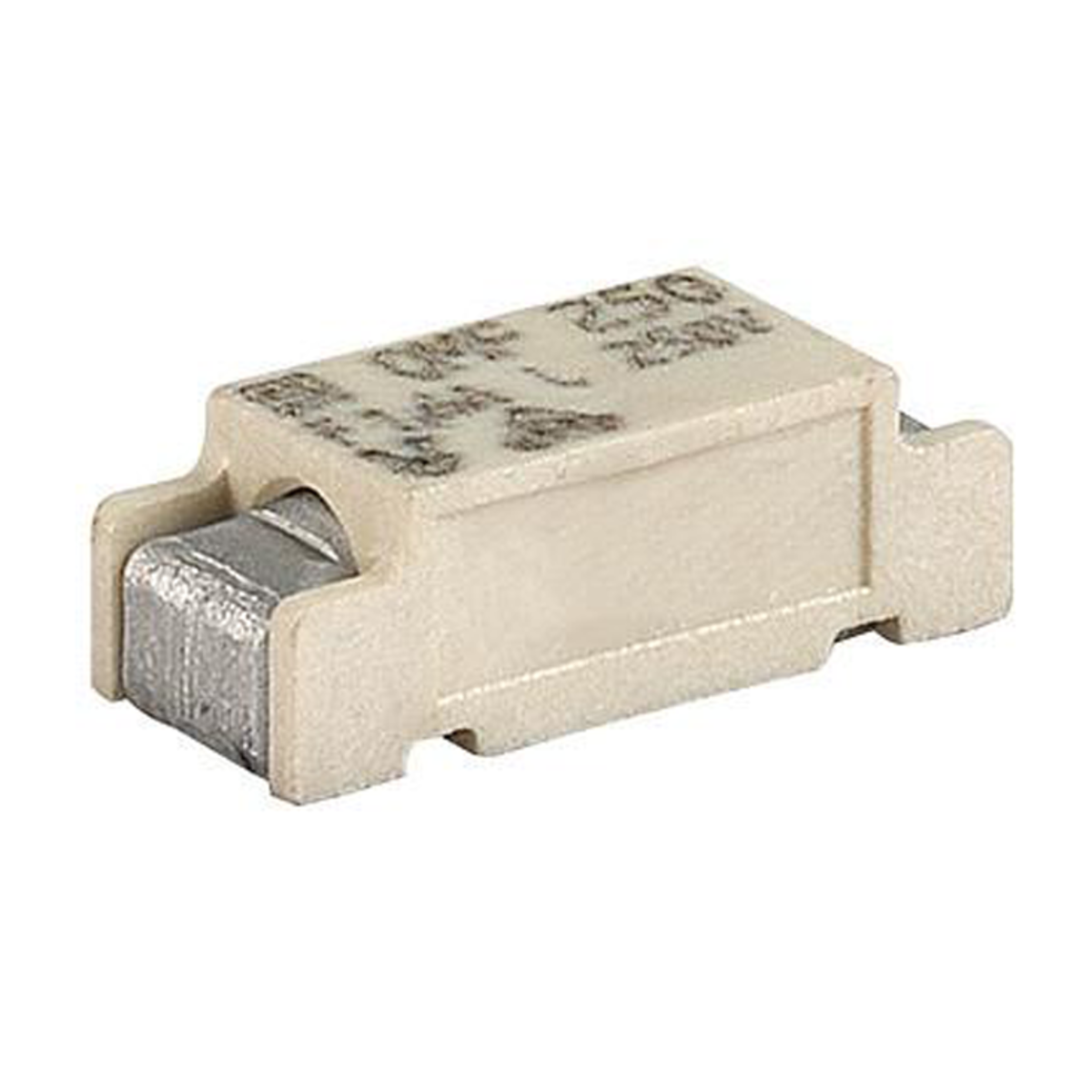

142 | | Manufacturers Part No. 3403.0016.11(3403.0016.11) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 1A 11x4,6mm | Customer Part No. Customer Project No. | 220 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 1.0 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
143 | | Manufacturers Part No. 3403.0019.11(3403.0019.11) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 2A 11x4,6mm | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 2.0 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
144 | | Manufacturers Part No. 3403.0020.11(3403.0020.11) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 2,5A 11x4,6mm | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 2.5 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
145 | | Manufacturers Part No. 3403.0022.11(3403.0022.11) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 4A 11x4,6mm | Customer Part No. Customer Project No. | 290 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 4.0 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
146 | | Manufacturers Part No. 3403.0016.24(3403.0016.24) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 1A 11x4,6mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 1.0 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
147 | | Manufacturers Part No. 3403.0019.24(3403.0019.24) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 2A 11x4,6mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 2.0 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
148 | | Manufacturers Part No. 3403.0020.24(3403.0020.24) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 2,5A 11x4,6mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 2.5 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||
149 | | Manufacturers Part No. 3403.0022.24(3403.0022.24) Schurter SMD fuse OMF250 quickacting 100A 250VAC 250VDC 4A 11x4,6mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 250 or mul. of 250) | SMD fuse | Schurter | quick acting | 250.0 V AC | 250.0 V DC | 300.0 mV | 4.0 A | 100 A | -55.0 °C | 125.0 °C | 11.0 mm | 4.6 mm | 3.9 mm | CE cULus | |||||||

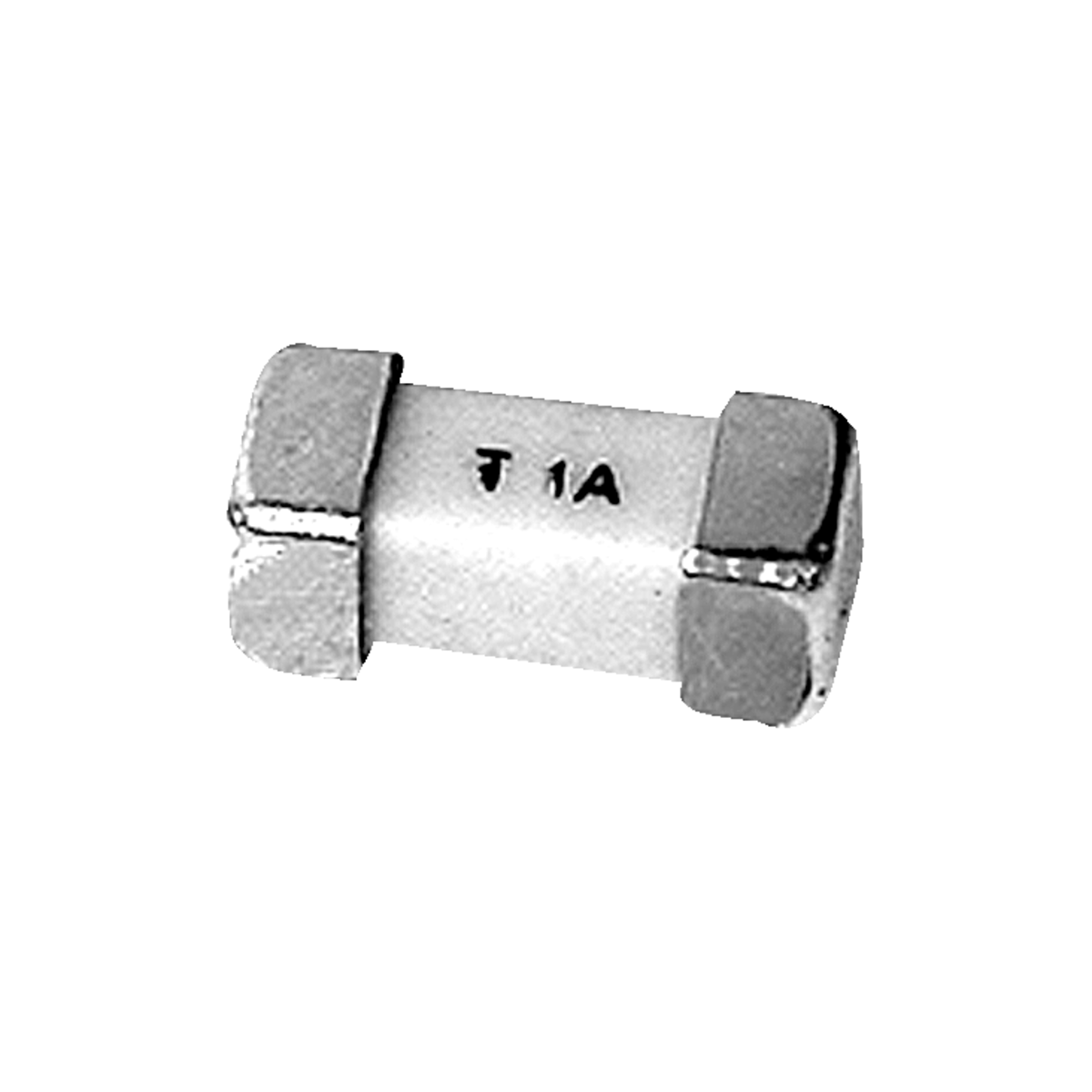

150 | | Manufacturers Part No. 158000.0,25GT(EST0.25-SMD) SIBA SMD fuse 158000 time-lag 50A 125VAC 125VDC 0,25A 6,1x2,6mm | Customer Part No. Customer Project No. | 6.900 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 100 or mul. of 100) | SMD fuse | SIBA | time-lag | 125.0 V AC | 125.0 V DC | 280.0 mV | 0.25 A | 50 A | 6.1 mm | 2.6 mm | 2.6 mm | cULus |
