Results (76)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Specifications | Pitch | Number of switch positions | Number of poles | Dimension: Length | Dimension: Width | Dimension: Height | Switching current, max. | Actuating force, max. | Operating temperature range, min. | Operating temperature range, max. | Material: Terminals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51 |  | Manufacturers Part No. ESD 102 LDZ(ESD102LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 2 Switch position 2 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 2 | 2 | 5.04 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
52 | | Manufacturers Part No. ESD 103 LDZ(ESD103LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 3 Switch position 3 Pole | Customer Part No. Customer Project No. | 1.010 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 3 | 3 | 7.58 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
53 | | Manufacturers Part No. ESD 104 LDZ(ESD104LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 4 Switch position 4 Pole TOP | Customer Part No. Customer Project No. | 1.970 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 4 | 4 | 10.12 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
54 | | Manufacturers Part No. ESD 105 LDZ(ESD105LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 5 Switch position 5 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 5 | 5 | 12.66 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
55 | | Manufacturers Part No. ESD 106 LDZ(ESD106LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 6 Switch position 6 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 6 | 6 | 15.2 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
56 | | Manufacturers Part No. ESD 108 LDZ(ESD108LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 8 Switch position 8 Pole | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 8 | 8 | 20.28 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
57 | | Manufacturers Part No. ESD 110 LDZ(ESD110LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 10 Switch position 10 Pole | Customer Part No. Customer Project No. | 1.160 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 10 | 10 | 25.36 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
58 | | Manufacturers Part No. ESD 112 LDZ(ESD112LDZ) ECE DIP/DIL switches ESD SMD RM2,54mm 12 Switch position 12 Pole | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available on order | (at least 1000 or mul. of 1000) | ECE | DIP/DIL switches | SMD | 2.54 mm | 12 | 12 | 30.43 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
59 | | Manufacturers Part No. EHS104LT(EHS104LT) ECE DIP/DIL switches EHS SMD RM1,27mm 4 Switch position 4 Pole TOP | Customer Part No. Customer Project No. | 3.108 Pcs. Available (from stock) | (at least 21 or mul. of 21) | ECE | DIP/DIL switches | SMD | 1.27 mm | 4 | 4 | 6.2 mm | 6.2 mm | 1.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||

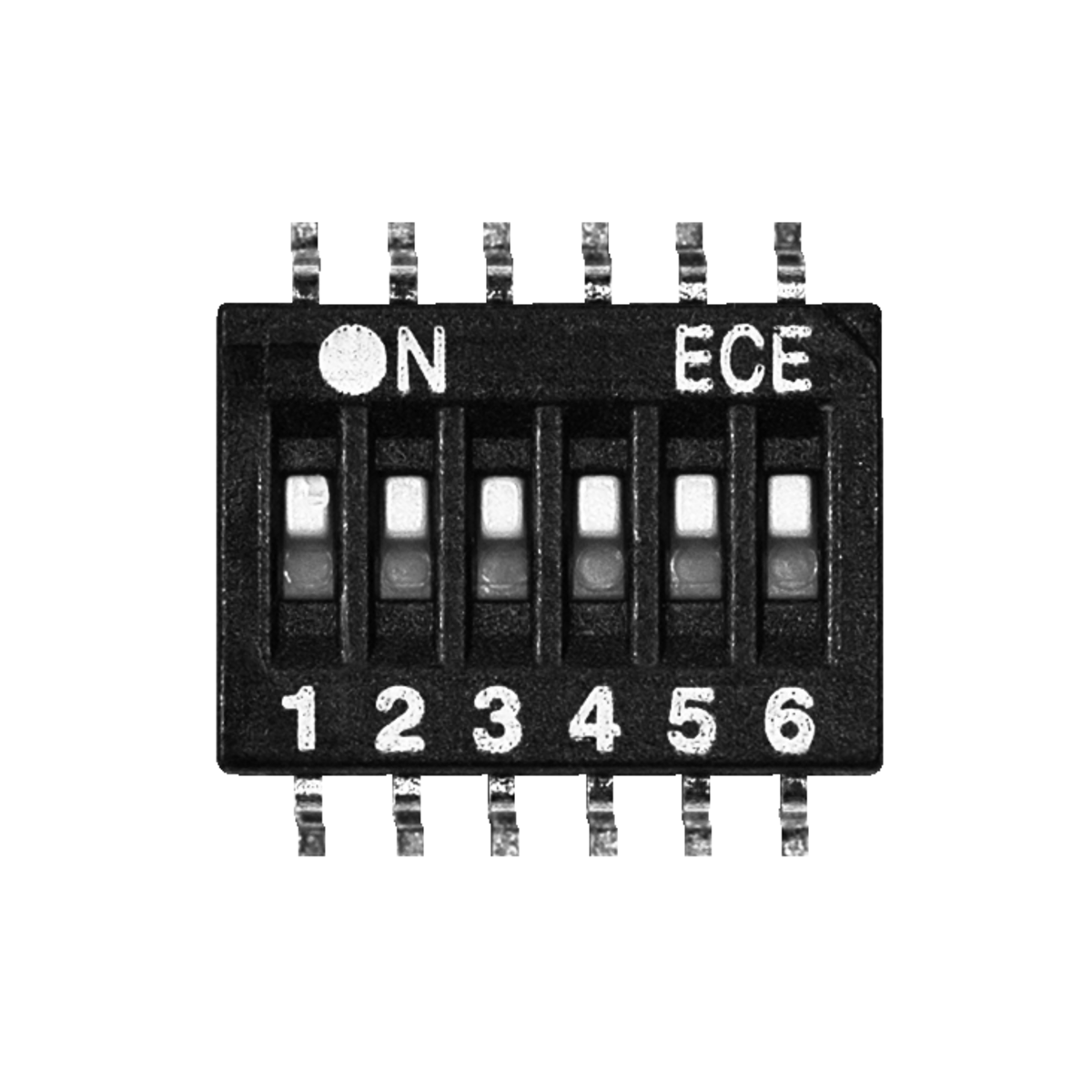

60 | | Manufacturers Part No. EHS106LT(EHS106LT) ECE DIP/DIL switches EHS SMD RM1,27mm 6 Switch position 6 Pole % | Customer Part No. Customer Project No. | 710 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 1.27 mm | 6 | 6 | 8.75 mm | 6.2 mm | 1.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
61 | | Manufacturers Part No. EHS108LT(EHS108LT) ECE DIP/DIL switches EHS SMD RM1,27mm 8 Switch position 8 Pole | Customer Part No. Customer Project No. | 289 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 23 or mul. of 23) | ECE | DIP/DIL switches | SMD | 1.27 mm | 8 | 8 | 11.3 mm | 6.2 mm | 1.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
62 | | Manufacturers Part No. EHS110LT(EHS110LT) ECE DIP/DIL switches EHS SMD RM1,27mm 10 Switch position 10 Pole | Customer Part No. Customer Project No. | 1.140 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 19 or mul. of 19) | ECE | DIP/DIL switches | SMD | 1.27 mm | 10 | 10 | 13.8 mm | 6.2 mm | 1.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
63 | | Manufacturers Part No. DHA-02TQR(DHA-02TQR) Diptronics DIP/DIL switches DHA SMD RM1,27mm 2 Switch position 2 Pole | Customer Part No. Customer Project No. | 1.740 Pcs. Planned Delivery Time Ø 35 Weeks Available (from stock) | (at least 10 or mul. of 10) | Diptronics | DIP/DIL switches | SMD | 1.27 mm | 2 | 2 | 3.67 mm | 6.2 mm | 2.2 mm | 0.025 A | 500 gf | -40.0 °C | 85.0 °C | gold plated | |||||
64 | | Manufacturers Part No. DHA-04TQR(DHA-04TQR) Diptronics DIP/DIL switches DHA SMD RM1,27mm 3 Switch position 4 Pole | Customer Part No. Customer Project No. | 860 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 10) | Diptronics | DIP/DIL switches | SMD | 1.27 mm | 3 | 4 | 6.21 mm | 6.2 mm | 2.2 mm | 0.025 A | 500 gf | -40.0 °C | 85.0 °C | gold plated | |||||
65 | | Manufacturers Part No. DHA-06TQR(DHA-06TQR) Diptronics DIP/DIL switches DHA SMD RM1,27mm 4 Switch position 6 Pole | Customer Part No. Customer Project No. | 770 Pcs. Planned Delivery Time Ø 35 Weeks Available (from stock) | (at least 10 or mul. of 10) | Diptronics | DIP/DIL switches | SMD | 1.27 mm | 4 | 6 | 8.75 mm | 6.2 mm | 2.2 mm | 0.025 A | 500 gf | -40.0 °C | 85.0 °C | gold plated | |||||
66 | | Manufacturers Part No. DHA-08TQR(DHA-08TQR) Diptronics DIP/DIL switches DHA SMD RM1,27mm 8 Switch position 8 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Diptronics | DIP/DIL switches | SMD | 1.27 mm | 8 | 8 | 11.29 mm | 6.2 mm | 2.2 mm | 0.025 A | 500 gf | -40.0 °C | 85.0 °C | gold plated | |||||
67 | | Manufacturers Part No. ERD-110-RSZ(ERD110RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 10 Switch position TOP | Customer Part No. Customer Project No. | 160 Pcs. Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 10 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
68 | | Manufacturers Part No. ERD-110-CSZ(ERD110CSZ) ECE Rotary encoder switches ERD THT RM2,54mm 10 Switch position | Customer Part No. Customer Project No. | 530 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 10 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
69 | | Manufacturers Part No. ERD-116-RSZ(ERD116RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 16 Switch position TOP | Customer Part No. Customer Project No. | 2.655 Pcs. Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
70 | | Manufacturers Part No. ERD-116-CSZ(ERD116CSZ) ECE Rotary encoder switches ERD THT RM2,54mm 16 Switch position | Customer Part No. Customer Project No. | 1.530 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
71 | | Manufacturers Part No. ERD-210-RSZ(ERD210RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 10 Switch position | Customer Part No. Customer Project No. | 1.190 Pcs. Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 10 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
72 | | Manufacturers Part No. ERD-216-RSZ(ERD216RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 16 Switch position | Customer Part No. Customer Project No. | 275 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
73 | | Manufacturers Part No. ERD910RSZ(ERD910RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 10 Switch position | Customer Part No. Customer Project No. | 145 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 10 | 10.0 mm | 10.0 mm | 6.5 mm | 0.2 A | -40.0 °C | 85.0 °C | gold plated | |||||||
74 | | Manufacturers Part No. ERD916RSZ(ERD916RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 16 Switch position | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 6.5 mm | 0.2 A | -40.0 °C | 85.0 °C | gold plated | |||||||
75 | | Manufacturers Part No. ERD116RMZ(ERD116RMZ-SMD) ECE Rotary encoder switches ERD SMD RM2,54mm 16 Switch position | Customer Part No. Customer Project No. | 2.850 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | SMD | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 5.7 mm | 0.1 A | -40.0 °C | 85.0 °C |
