Filter articles
Manufacturer
Manufacturer
Series
Series
Type
Type
Specifications
Specifications
Pitch
Pitch
Number of switch positions
Number of switch positions
Number of poles
Number of poles
Dimension: Length
Dimension: Length
Dimension: Width
Dimension: Width
Dimension: Height
Dimension: Height
Switching current, max.
Switching current, max.
Actuating force, max.
Actuating force, max.
Operating temperature range, min.
Operating temperature range, min.
Operating temperature range, max.
Operating temperature range, max.
Material: Terminals
Material: Terminals
Results (76)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Specifications | Pitch | Number of switch positions | Number of poles | Dimension: Length | Dimension: Width | Dimension: Height | Switching current, max. | Actuating force, max. | Operating temperature range, min. | Operating temperature range, max. | Material: Terminals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 |  | Manufacturers Part No. NDS-03V(NDS-03V) Diptronics Manufacturing Inc. DIP/DIL switches NDS THT RM2,54mm 3 Switch position 3 Pole | Customer Part No. Customer Project No. | 1.530 Pcs. Planned Delivery Time Ø 35 Weeks Available (from stock) | (at least 51 or mul. of 51) | Diptronics Manufacturing Inc. | DIP/DIL switches | THT | 2.54 mm | 3 | 3 | 8.98 mm | 9.9 mm | 7.05 mm | 0.025 A | 1.000 gf | -40.0 °C | 85.0 °C | gold plated | |||||
27 | | Manufacturers Part No. NDS-02V(NDS-02V) Diptronics DIP/DIL switches NDS THT RM2,54mm 2 Switch position 2 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 9 or mul. of 9) | Diptronics | DIP/DIL switches | THT | 2.54 mm | 2 | 2 | 6.44 mm | 9.9 mm | 7.05 mm | 0.025 A | 1.000 gf | -40.0 °C | 85.0 °C | gold plated | |||||
28 | | Manufacturers Part No. EDG106S33(EDG106S33) ECE DIP/DIL switches EDG THT RM2,54mm 6 Switch position 6 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 31 or mul. of 31) | ECE | DIP/DIL switches | THT | 2.54 mm | 6 | 6 | 16.7 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | tinned | |||||
29 | | Manufacturers Part No. EDG110S33(EDG110S33) ECE DIP/DIL switches EDG THT RM2,54mm 10 Switch position 10 Pole | Customer Part No. Customer Project No. | 133 Pcs. Available (from stock) | (at least 19 or mul. of 19) | ECE | DIP/DIL switches | THT | 2.54 mm | 10 | 10 | 26.7 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | tinned | |||||
30 | | Manufacturers Part No. EDG110S(EDG10S) ECE DIP/DIL switches EDG THT RM2,54mm 10 Switch position 10 Pole TOP | Customer Part No. Customer Project No. | 38 Pcs. Available (from stock) | (at least 19 or mul. of 19) | ECE | DIP/DIL switches | THT | 2.54 mm | 10 | 10 | 26.7 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
31 | | Manufacturers Part No. EPG-102-A(EPG102A) ECE DIP/DIL switches EPG THT RM2,54mm 2 Switch position 2 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 41 or mul. of 41) | ECE | DIP/DIL switches | THT | 2.54 mm | 2 | 2 | 6.46 mm | 11.3 mm | 9.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
32 | | Manufacturers Part No. EPG-106-A(EPG106A) ECE DIP/DIL switches EPG THT RM2,54mm 6 Switch position 6 Pole | Customer Part No. Customer Project No. | 62 Pcs. Available (from stock) | (at least 31 or mul. of 31) | ECE | DIP/DIL switches | THT | 2.54 mm | 6 | 6 | 16.62 mm | 11.3 mm | 9.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
33 | | Manufacturers Part No. EPG-108-A(EPG108A) ECE DIP/DIL switches EPG THT RM2,54mm 8 Switch position 8 Pole | Customer Part No. Customer Project No. | 805 Pcs. Available (from stock) | (at least 23 or mul. of 23) | ECE | DIP/DIL switches | THT | 2.54 mm | 8 | 8 | 21.7 mm | 11.3 mm | 9.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
34 | | Manufacturers Part No. EPG-110-A(EPG110A) ECE DIP/DIL switches EPG THT RM2,54mm 10 Switch position 10 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 19 or mul. of 19) | ECE | DIP/DIL switches | THT | 2.54 mm | 10 | 10 | 26.78 mm | 11.3 mm | 9.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||

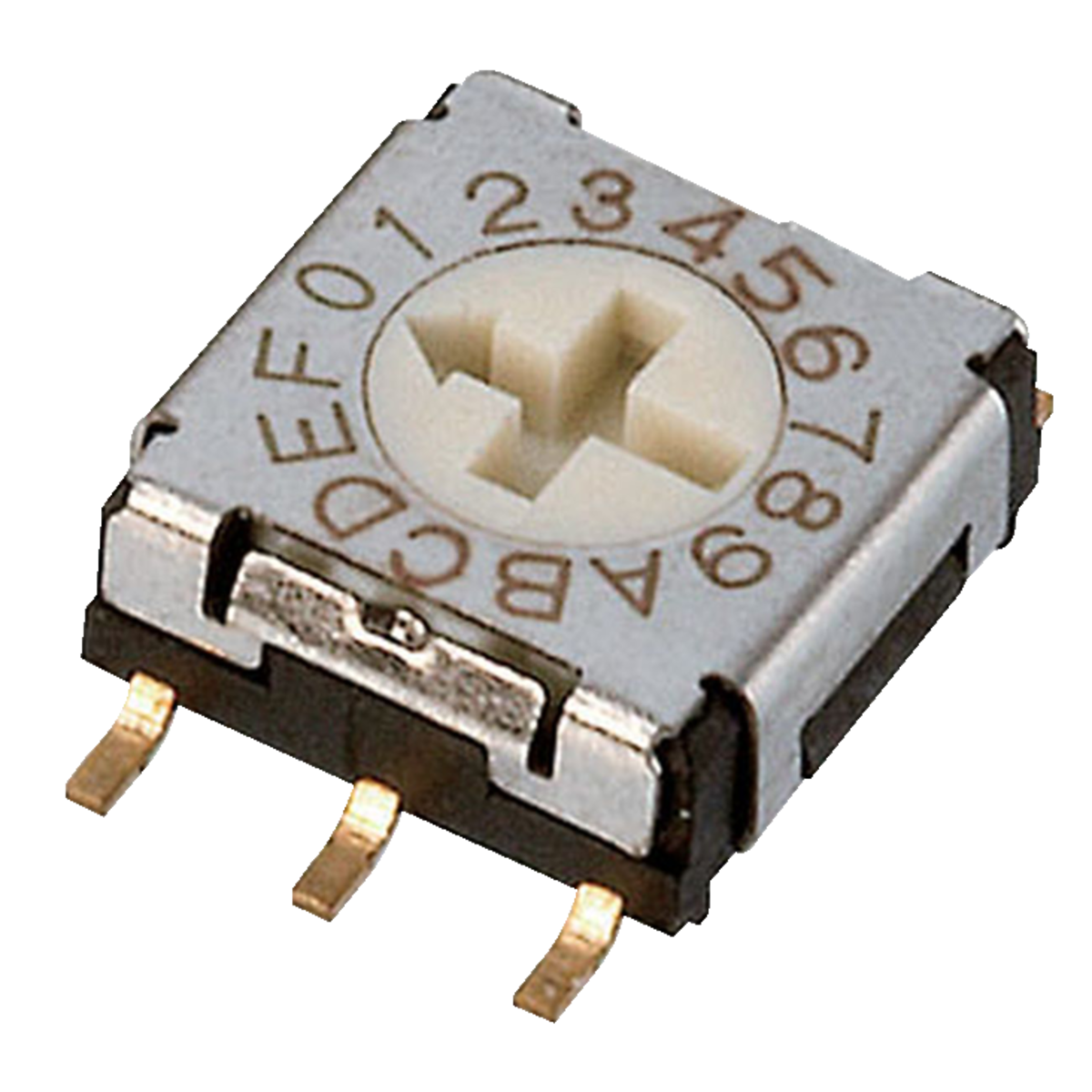

35 | | Manufacturers Part No. ERD716AM06Z(ERD716AM06Z) ECE Rotary encoder switches ERD SMD RM2,54mm 16 Switch position | Customer Part No. Customer Project No. | 1.210 Pcs. Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | SMD | 2.54 mm | 16 | 9.8 mm | 7.2 mm | 3.6 mm | 0.1 A | -40.0 °C | 85.0 °C | ||||||||
36 | | Manufacturers Part No. EHS104LT(EHS104LT) ECE DIP/DIL switches EHS SMD RM1,27mm 4 Switch position 4 Pole TOP | Customer Part No. Customer Project No. | 1.197 Pcs. Available (from stock) | (at least 21 or mul. of 21) | ECE | DIP/DIL switches | SMD | 1.27 mm | 4 | 4 | 6.2 mm | 6.2 mm | 1.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
37 | | Manufacturers Part No. EDG102S(EDG02S) ECE DIP/DIL switches EDG THT RM2,54mm 2 Switch position 2 Pole TOP | Customer Part No. Customer Project No. | 5.600 Pcs. Available (from stock) | (at least 80 or mul. of 80) | ECE | DIP/DIL switches | THT | 2.54 mm | 2 | 2 | 6.7 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||

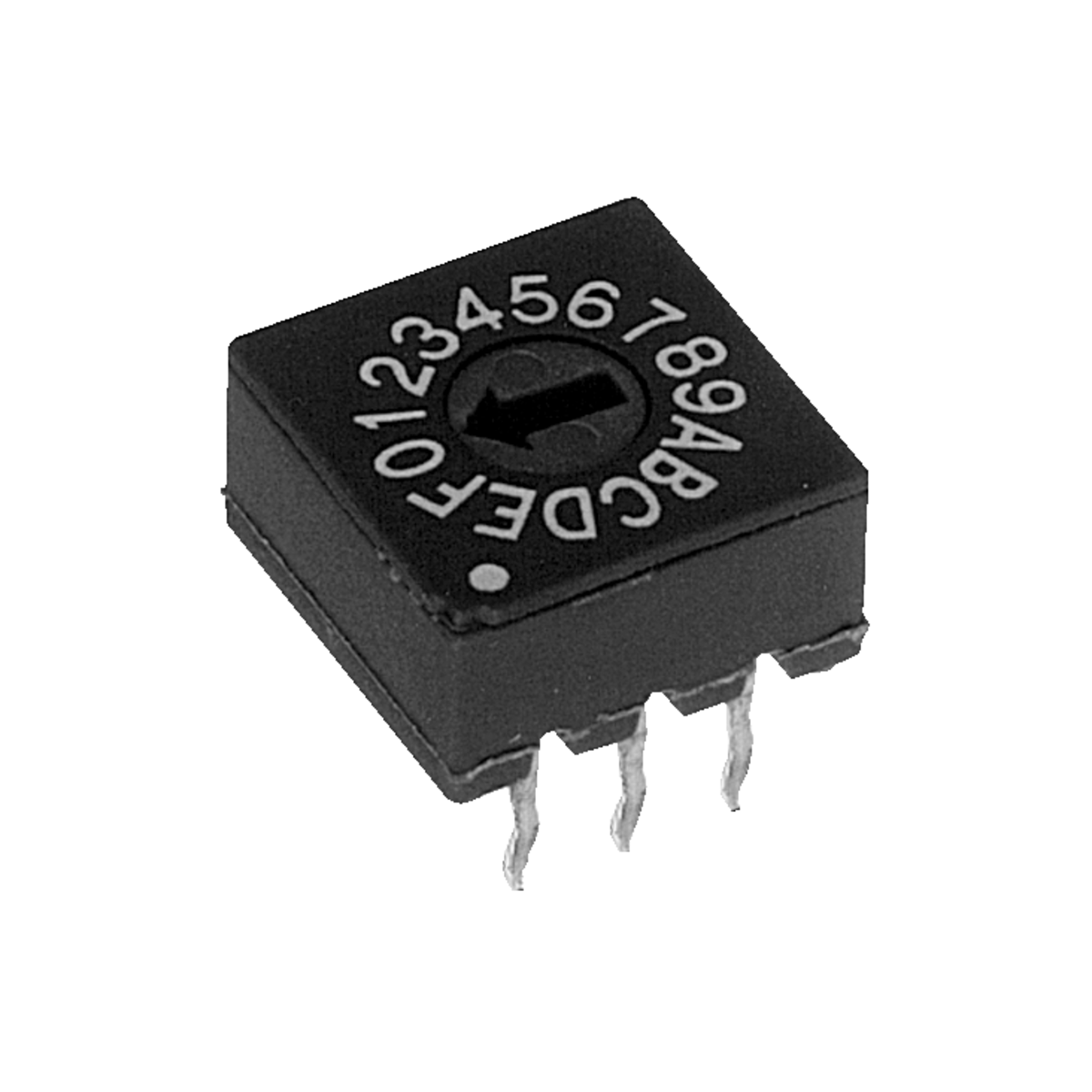

38 | | Manufacturers Part No. ERD-116-RSZ(ERD116RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 16 Switch position TOP | Customer Part No. Customer Project No. | 2.895 Pcs. Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
39 | | Manufacturers Part No. DMR-04-T-V-T/R(DMR-04-T-V-T/R) Diptronics Manufacturing Inc. DIP/DIL switches DM SMD RM2,54mm 4 Switch position 4 Pole | Customer Part No. Customer Project No. | 450 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Diptronics Manufacturing Inc. | DIP/DIL switches | SMD | 2.54 mm | 4 | 4 | 11.1 mm | 6.2 mm | 3.0 mm | 0.025 A | 1.000 gf | -20.0 °C | 85.0 °C | gold plated | |||||
40 | | Manufacturers Part No. ESD-102-EZ(ESD102EZ) ECE DIP/DIL switches ESD SMD RM2,54mm 2 Switch position 2 Pole TOP | Customer Part No. Customer Project No. | 4.690 Pcs. Available (from stock) | (at least 10 or mul. of 10) | ECE | DIP/DIL switches | SMD | 2.54 mm | 2 | 2 | 5.04 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
41 | | Manufacturers Part No. NDS-04V(NDS-04V) Diptronics DIP/DIL switches NDS THT RM2,54mm 4 Switch position 4 Pole | Customer Part No. Customer Project No. | 740 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Diptronics | DIP/DIL switches | THT | 2.54 mm | 4 | 4 | 11.52 mm | 9.9 mm | 7.05 mm | 0.025 A | 1.000 gf | -40.0 °C | 85.0 °C | gold plated | |||||
42 | | Manufacturers Part No. EDG108S(EDG08S) ECE DIP/DIL switches EDG THT RM2,54mm 8 Switch position 8 Pole TOP | Customer Part No. Customer Project No. | 2.415 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 23 or mul. of 23) | ECE | DIP/DIL switches | THT | 2.54 mm | 8 | 8 | 21.7 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
43 | | Manufacturers Part No. EHS110LT(EHS110LT) ECE DIP/DIL switches EHS SMD RM1,27mm 10 Switch position 10 Pole | Customer Part No. Customer Project No. | 1.140 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 19 or mul. of 19) | ECE | DIP/DIL switches | SMD | 1.27 mm | 10 | 10 | 13.8 mm | 6.2 mm | 1.7 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated | |||||
44 | | Manufacturers Part No. EDG104S33(EDG104S33) ECE DIP/DIL switches EDG THT RM2,54mm 4 Switch position 4 Pole | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 44 or mul. of 44) | ECE | DIP/DIL switches | THT | 2.54 mm | 4 | 4 | 11.7 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | tinned | |||||
45 | | Manufacturers Part No. ERD910RSZ(ERD910RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 10 Switch position | Customer Part No. Customer Project No. | 130 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 10 | 10.0 mm | 10.0 mm | 6.5 mm | 0.2 A | -40.0 °C | 85.0 °C | gold plated | |||||||
46 | | Manufacturers Part No. ERD-216-RSZ(ERD216RSZ) ECE Rotary encoder switches ERD THT RM2,54mm 16 Switch position | Customer Part No. Customer Project No. | 270 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 5 or mul. of 5) | ECE | Rotary encoder switches | THT | 2.54 mm | 16 | 10.0 mm | 10.0 mm | 5.4 mm | 0.1 A | -40.0 °C | 85.0 °C | gold plated | |||||||
47 | | Manufacturers Part No. DMR-02-T-V-T/R(DMR-02-T-V-T/R) Diptronics Manufacturing Inc. DIP/DIL switches DM SMD RM2,54mm 2 Switch position 2 Pole | Customer Part No. Customer Project No. | 380 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 10 or mul. of 10) | Diptronics Manufacturing Inc. | DIP/DIL switches | SMD | 2.54 mm | 2 | 2 | 6.02 mm | 6.2 mm | 3.0 mm | 0.025 A | 1.000 gf | -20.0 °C | 85.0 °C | gold plated | |||||
48 | | Manufacturers Part No. ESD-108-EZ(ESD108EZ) ECE DIP/DIL switches ESD SMD RM2,54mm 8 Switch position 8 Pole TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 13 or mul. of 13) | ECE | DIP/DIL switches | SMD | 2.54 mm | 8 | 8 | 20.28 mm | 6.6 mm | 3.1 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | ||||||
49 | | Manufacturers Part No. NDS-05V(NDS-05V) Diptronics Manufacturing Inc. DIP/DIL switches NDS THT RM2,54mm 5 Switch position 5 Pole | Customer Part No. Customer Project No. | 2.304 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 32 or mul. of 32) | Diptronics Manufacturing Inc. | DIP/DIL switches | THT | 2.54 mm | 5 | 5 | 14.06 mm | 9.9 mm | 7.05 mm | 0.025 A | 1.000 gf | -40.0 °C | 85.0 °C | gold plated | |||||
50 | | Manufacturers Part No. EDG103S(EDG03S) ECE DIP/DIL switches EDG THT RM2,54mm 3 Switch position 3 Pole | Customer Part No. Customer Project No. | 58 Pcs. Available (from stock) | (at least 58 or mul. of 58) | ECE | DIP/DIL switches | THT | 2.54 mm | 3 | 3 | 9.2 mm | 9.7 mm | 4.2 mm | 0.1 A | 800 g | -40.0 °C | 85.0 °C | gold plated |
