Relays

(1629 Results)

Filtering by Categories

Industrial- / Interfacerelays (107)

Automotive Relays (35)

PCB Relays (976)

Reed Relays (87)

Safety Relays (11)

Heating Control Relays and Timers (4)

Timer (12)

Solid State Relays (332)

Relays Accesories (65)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Type	Manufacturer	contacts	Assembly Type	Coil: Nominal Voltage AC	Coil: Nominal Voltage DC	Contact: Switching Current (min/typ/max)	Coil resistance	Dimension: Length	Dimension: Width	Dimension: Height	Contact material	Protection Class	Protection class RT	Operating Temperature Min.	Operating Temperature Max.

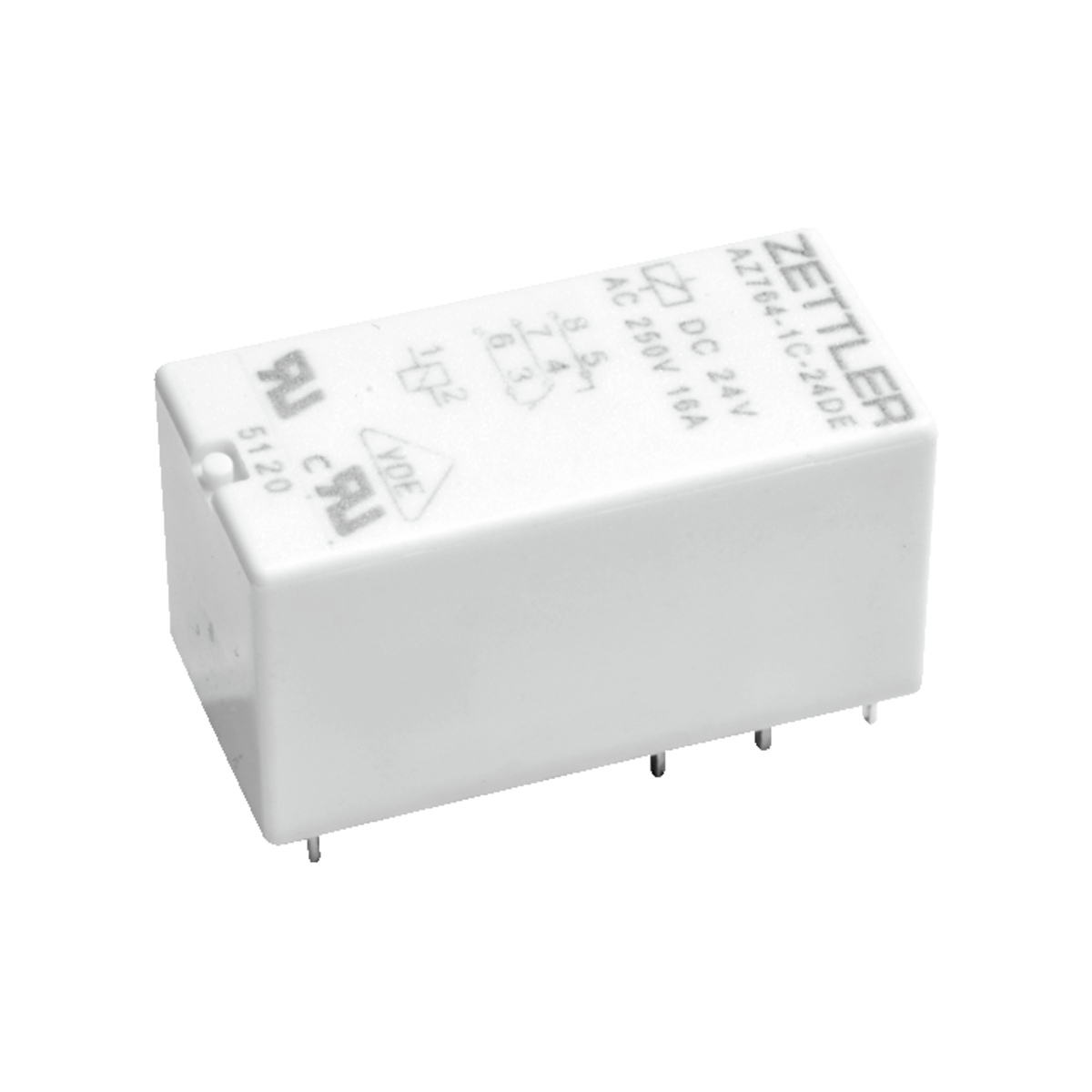

826	Manufacturers Part No. AZ764-1CE-24D (AZ764-1CE-24D) Zettler PC relay AZ764 THT SPDT 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	300 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ764	PC relay	Zettler	SPDT	THT		24.0 V DC	16.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
827	Manufacturers Part No. AZ764-1CE-230A (AZ764-1CE-230A) Zettler PC relay AZ764 THT SPDT 16A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	720 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ764	PC relay	Zettler	SPDT	THT	230.0 V AC		16.0 A	38500.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2			-40.0 °C	70.0 °C

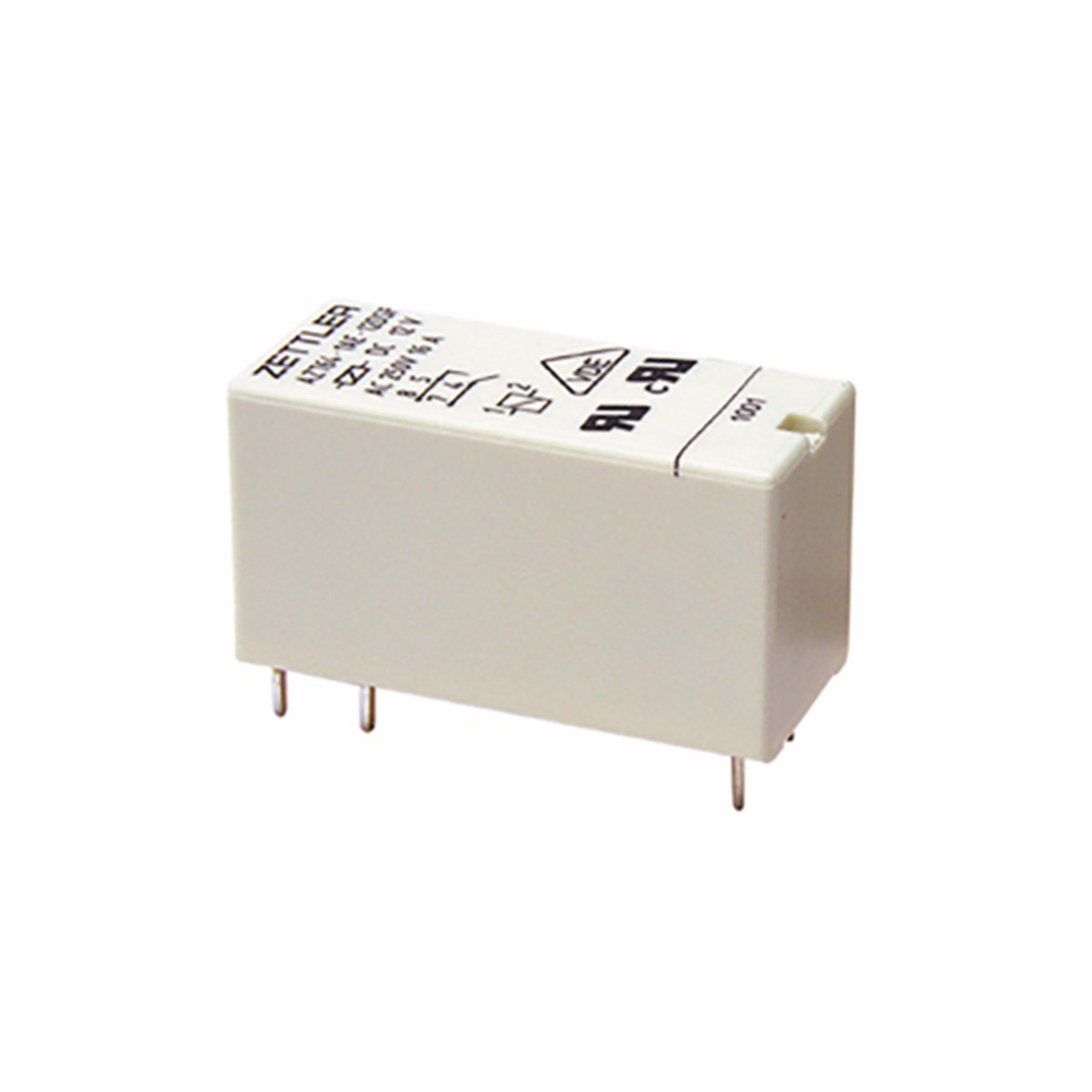

828	Manufacturers Part No. AZ764H-1A-5DS (AZ764H-1A-5DS) Zettler PC relay AZ764H THT SPST-NO 16A 5VDC 102Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ764H	PC relay	Zettler	SPST-NO	THT		5.0 V DC	16.0 A	102.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	105.0 °C
829	Manufacturers Part No. AZ764H-1A-12DS (AZ764H-1A-12DS) Zettler PC relay AZ764H THT SPST-NO 16A 12VDC 580Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ764H	PC relay	Zettler	SPST-NO	THT		12.0 V DC	16.0 A	580.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	105.0 °C
830	Manufacturers Part No. AZ764H-1A-24DS (AZ764H-1A-24DS) Zettler PC relay AZ764H THT SPST-NO 16A 24VDC 2.300Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ764H	PC relay	Zettler	SPST-NO	THT		24.0 V DC	16.0 A	2300.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	105.0 °C

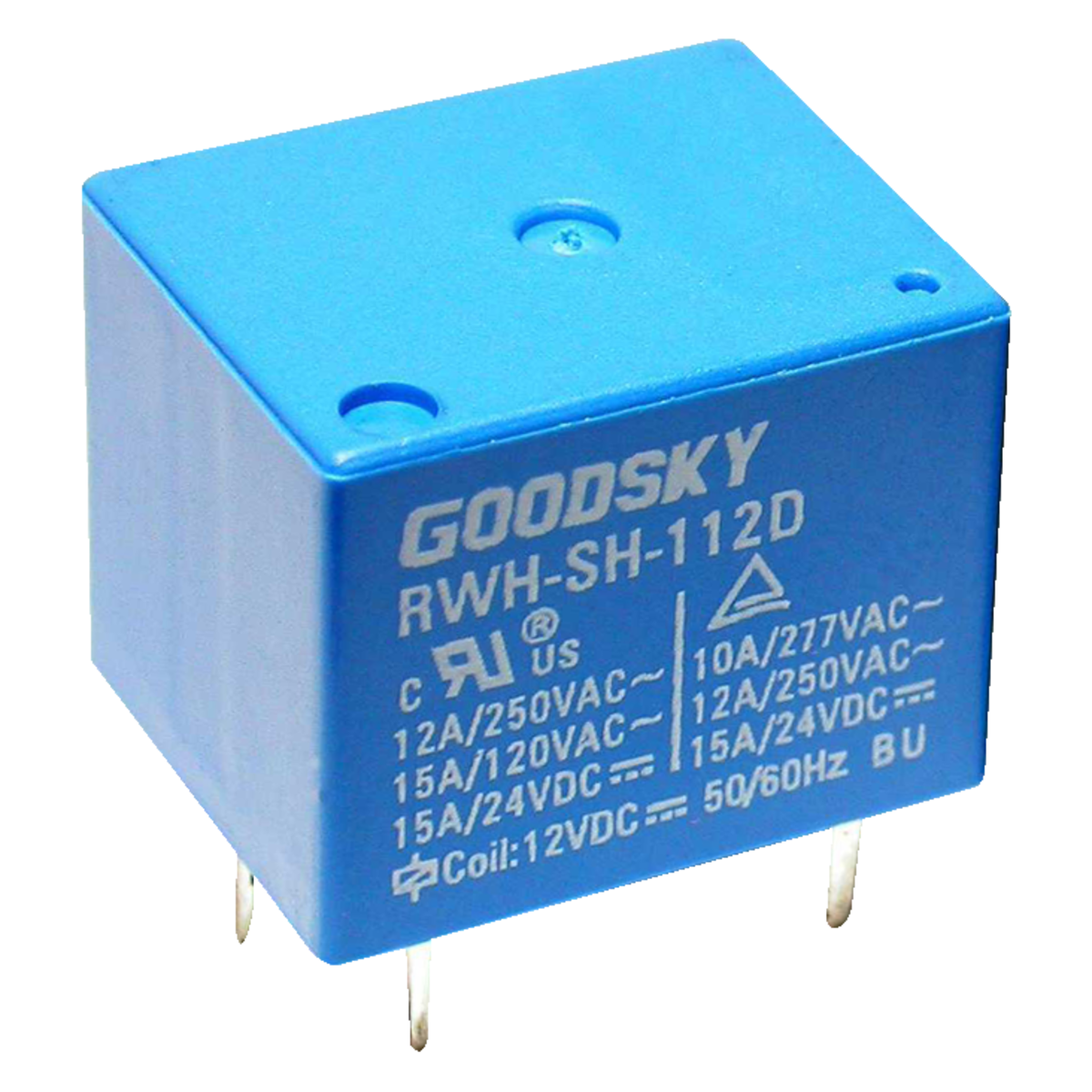

831	Manufacturers Part No. RWH-SS-105D (RWH-SS-105D) GoodSky PC relay RWH THT SPDT 15A 5VDC 70Ohm 19mmx15,4mmx15mm RTII	Customer Part No. Customer Project No.	GoodSky	0 Pcs. Next Stock Receipt Week 31/2026 (940 Pcs.) Available (from stock)	(at least 10 or mul. of 10)	RWH	PC relay	GoodSky	SPDT	THT		5.0 V DC	15.0 A	70.0 Ohm	19.0 mm	15.4 mm	15.0 mm	AgSnO2		RTII	-30.0 °C	85.0 °C
832	Manufacturers Part No. RWH-SS-112D (RWH-SS-112D) GoodSky PC relay RWH THT SPDT 15A 12VDC 400Ohm 19mmx15,4mmx15mm RTII	Customer Part No. Customer Project No.	GoodSky	710 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 10 or mul. of 10)	RWH	PC relay	GoodSky	SPDT	THT		12.0 V DC	15.0 A	400.0 Ohm	19.0 mm	15.4 mm	15.0 mm	AgSnO2		RTII	-30.0 °C	85.0 °C
833	Manufacturers Part No. RWH-SS-124D (RWH-SS-124D) GoodSky PC relay RWH THT SPDT 15A 24VDC 1.600Ohm 19mmx15,4mmx15mm RTII	Customer Part No. Customer Project No.	GoodSky	1.130 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 10 or mul. of 10)	RWH	PC relay	GoodSky	SPDT	THT		24.0 V DC	15.0 A	1600.0 Ohm	19.0 mm	15.4 mm	15.0 mm	AgSnO2		RTII	-30.0 °C	85.0 °C
834	Manufacturers Part No. RM85-2021-35-1012 (RM85-2021-35-1012) RELPOL PC relay RM85 THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	240 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPST-NO	THT		12.0 V DC	16.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
835	Manufacturers Part No. RM85-2021-35-1024 (RM85-2021-35-1024) RELPOL PC relay RM85 THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	950 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPST-NO	THT		24.0 V DC	16.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
836	Manufacturers Part No. RM85-3021-35-1012 (RM85-3021-35-1012) RELPOL PC relay RM85 THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	530 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPST-NO	THT		12.0 V DC	16.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C
837	Manufacturers Part No. RM85-3021-35-1024 (RM85-3021-35-1024) RELPOL PC relay RM85 THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	1.040 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPST-NO	THT		24.0 V DC	16.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C

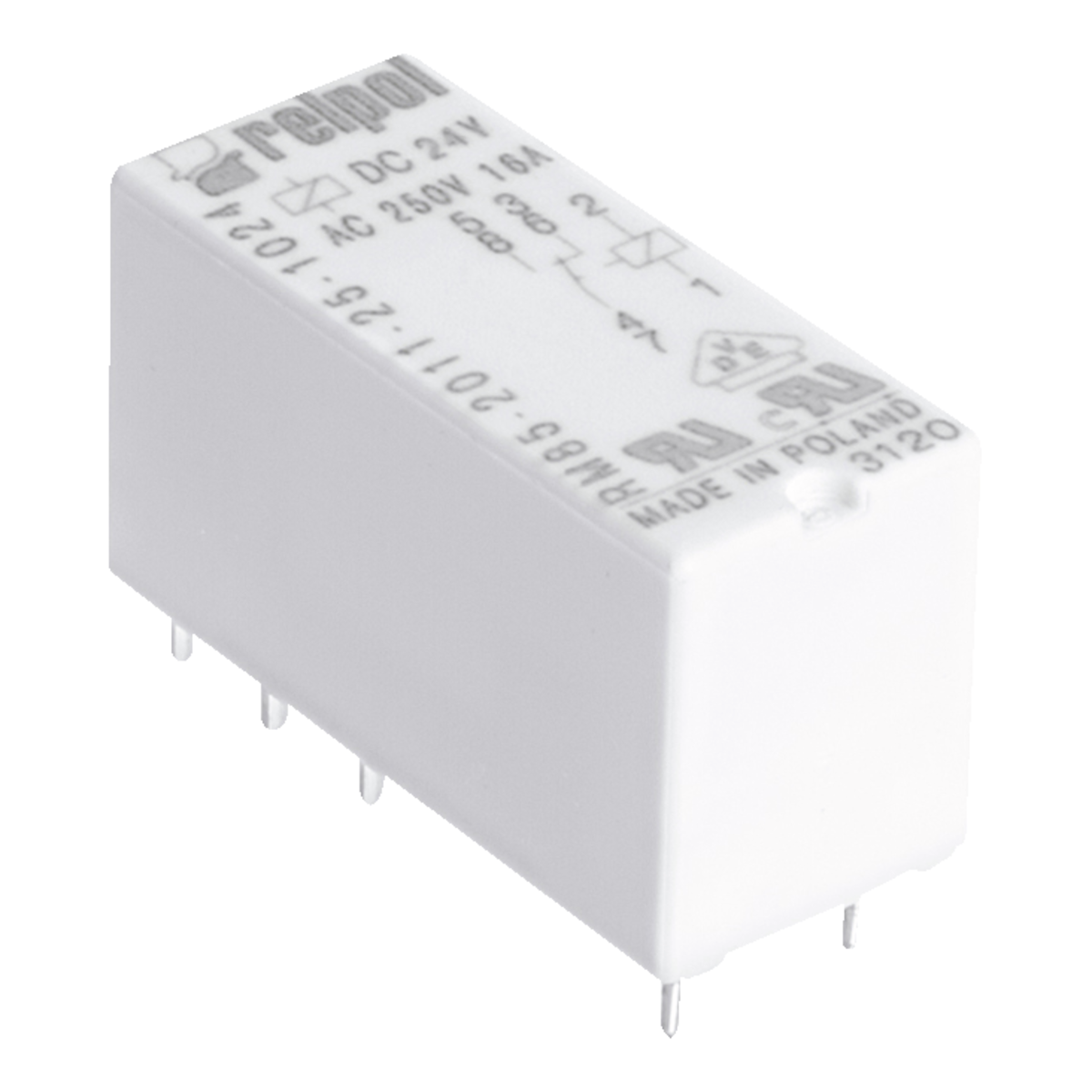

838	Manufacturers Part No. RM85-5021-25-1012 (RM85-5021-25-1012) RELPOL PC relay RM85 Inrush THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII	Customer Part No. Customer Project No.	RELPOL	710 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85 Inrush	PC relay	RELPOL	SPST-NO	THT		12.0 V DC	16.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP40	RTII	-40.0 °C	85.0 °C
839	Manufacturers Part No. RM85-5021-25-1024 (RM85-5021-25-1024) RELPOL PC relay RM85 Inrush THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII	Customer Part No. Customer Project No.	RELPOL	780 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85 Inrush	PC relay	RELPOL	SPST-NO	THT		24.0 V DC	16.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP40	RTII	-40.0 °C	85.0 °C
840	Manufacturers Part No. RM85-2011-35-1012 (RM85-2011-35-1012) RELPOL PC relay RM85 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	1.220 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPDT	THT		12.0 V DC	16.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
841	Manufacturers Part No. RM85-2011-35-1024 (RM85-2011-35-1024) RELPOL PC relay RM85 THT SPDT 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	160 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPDT	THT		24.0 V DC	16.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
842	Manufacturers Part No. RM85-2011-35-5230 (RM85-2011-35-5230) RELPOL PC relay RM85 THT SPDT 16A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	460 Pcs. Next Stock Receipt Week 21/2026 (1.000 Pcs.) Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPDT	THT	230.0 V AC		16.0 A	38500.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi	IP67	RTIII	-40.0 °C	70.0 °C
843	Manufacturers Part No. RM85-3011-35-1012 (RM85-3011-35-1012) RELPOL PC relay RM85 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	990 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPDT	THT		12.0 V DC	16.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C
844	Manufacturers Part No. RM85-3011-35-1024 (RM85-3011-35-1024) RELPOL PC relay RM85 THT SPDT 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	2.160 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPDT	THT		24.0 V DC	16.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C
845	Manufacturers Part No. RM85-3011-35-5230 (RM85-3011-35-5230) RELPOL PC relay RM85 THT SPDT 16A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm RTIII	Customer Part No. Customer Project No.	RELPOL	340 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM85	PC relay	RELPOL	SPDT	THT	230.0 V AC		16.0 A	38500.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgSnO2	IP67	RTIII	-40.0 °C	70.0 °C

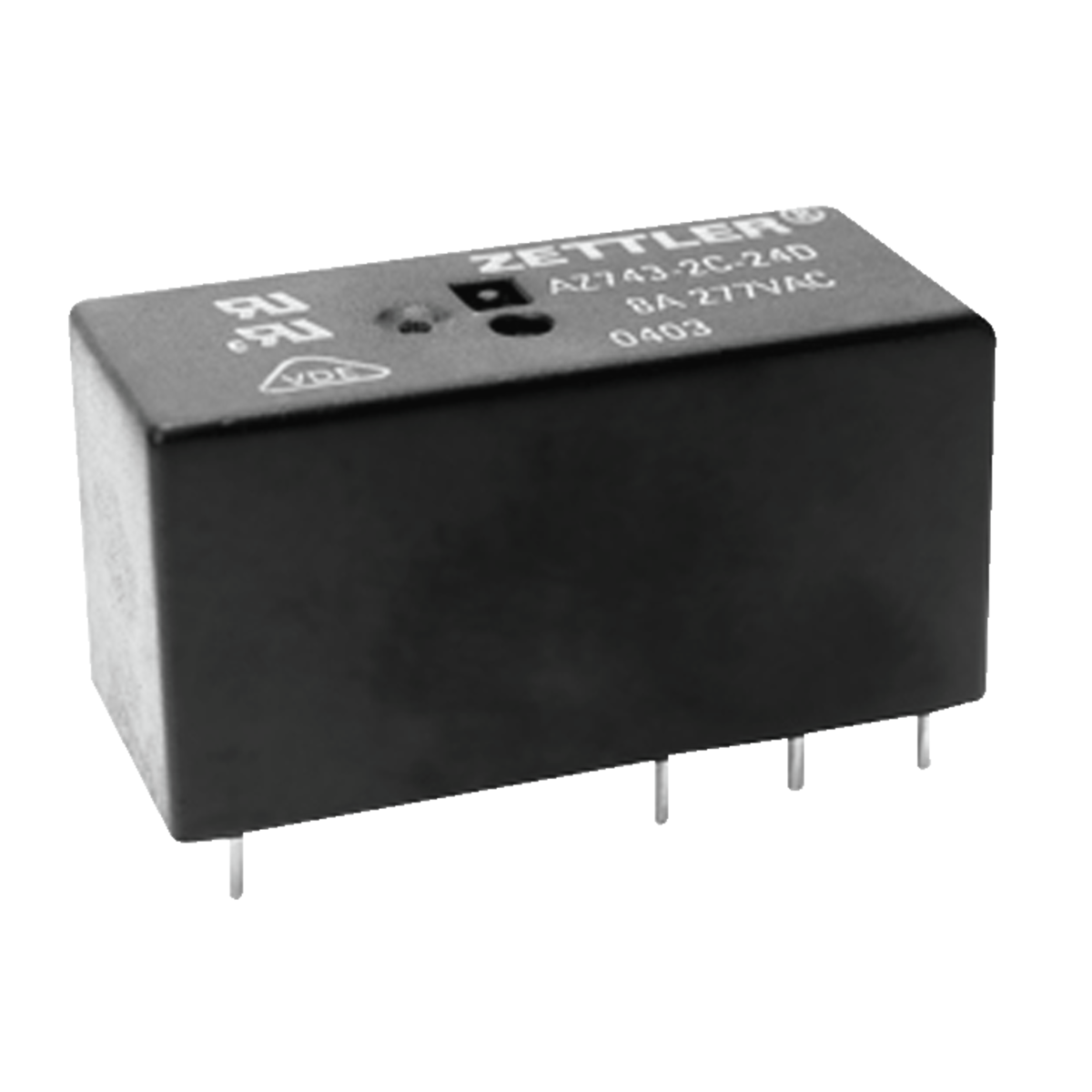

846	Manufacturers Part No. AZ743-2AB-12DEF (AZ743-2AB-12DEF) Zettler PC relay AZ743 THT DPST-NO 10A 12VDC 360Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ743	PC relay	Zettler	DPST-NO	THT		12.0 V DC	10.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	85.0 °C
847	Manufacturers Part No. AZ743-2AB-24DEF (AZ743-2AB-24DEF) Zettler PC relay AZ743 THT DPST-NO 10A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ743	PC relay	Zettler	DPST-NO	THT		24.0 V DC	10.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	85.0 °C
848	Manufacturers Part No. AZ743-2CB-12DEF (AZ743-2CB-12DEF) Zettler PC relay AZ743 THT DPDT 10A 12VDC 360Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ743	PC relay	Zettler	DPDT	THT		12.0 V DC	10.0 A	360.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	85.0 °C
849	Manufacturers Part No. AZ743-2CB-24DEF (AZ743-2CB-24DEF) Zettler PC relay AZ743 THT DPDT 10A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order	(at least 1000 or mul. of 1000)	AZ743	PC relay	Zettler	DPDT	THT		24.0 V DC	10.0 A	1440.0 Ohm	29.0 mm	12.7 mm	15.7 mm	AgNi			-40.0 °C	85.0 °C
850	Manufacturers Part No. SG3100E5W (SG3100E5W) NF PC relay SG3 THT SPST-NO 5A 5VDC 125Ohm 17,5mmx6,5mmx12,5mm	Customer Part No. Customer Project No.	NF	0 Pcs. Planned Delivery Time Ø 25 Weeks Available on order	(at least 800 or mul. of 800)	SG3	PC relay	NF	SPST-NO	THT		5.0 V DC	5.0 A	125.0 Ohm	17.5 mm	6.5 mm	12.5 mm	AgSnO			-25.0 °C	70.0 °C

‹ 1 ··· 32 33 34 35 36 ··· 66 ›
