Results (1629)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | contacts | Assembly Type | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Contact: Switching Current (min/typ/max) | Coil resistance | Dimension: Length | Dimension: Width | Dimension: Height | Contact material | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
701 |  | Manufacturers Part No. 6-1393243-8(RT424-24) TE Connectivity PC relay RT2 THT DPDT 8A 24VDC 1.440Ohm 29mmx12,5mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 7.060 Pcs. Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 24.0 V DC | 8.0 A | 1440.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
702 | | Manufacturers Part No. 7-1393243-0(RT424-48) TE Connectivity PC relay RT2 THT DPDT 8A 48VDC 5.520Ohm 29mmx12,5mmx15,7mm RTII | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 48.0 V DC | 8.0 A | 5520.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
703 | | Manufacturers Part No. 7-1393243-9(RT424-AC230) TE Connectivity PC relay RT2 THT DPDT 8A 230VAC 32.500Ohm 29mmx12,5mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 2.000 Pcs. Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 230.0 V AC | 8.0 A | 32500.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 70.0 °C | |||||||
704 | | Manufacturers Part No. 9-1393243-7(RT444-12) TE Connectivity PC relay RT2 THT DPST-NO 8A 12VDC 360Ohm 29mmx12,5mmx15,7mm RTII | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPST-NO | THT | 12.0 V DC | 8.0 A | 360.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
705 | | Manufacturers Part No. 9-1393243-9(RT444-24) TE Connectivity PC relay RT2 THT DPST-NO 8A 24VDC 1.440Ohm 29mmx12,5mmx15,7mm RTII | Customer Part No. Customer Project No. | 240 Pcs. Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPST-NO | THT | 24.0 V DC | 8.0 A | 1440.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
706 | | Manufacturers Part No. 1393243-4(RTE24-12) TE Connectivity PC relay RT2 THT DPDT 8A 12VDC 360Ohm 29mmx12,5mmx15,7mm RTIII | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 12.0 V DC | 8.0 A | 360.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTIII | -40.0 °C | 85.0 °C | |||||||
707 | | Manufacturers Part No. 1-1393243-0(RTE24-24) TE Connectivity PC relay RT2 THT DPDT 8A 24VDC 1.440Ohm 29mmx12,5mmx15,7mm RTIII | Customer Part No. Customer Project No. | 20 Pcs. Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 24.0 V DC | 8.0 A | 1440.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi | RTIII | -40.0 °C | 85.0 °C | |||||||
708 | | Manufacturers Part No. 2-1393243-0(RTE25-12) TE Connectivity PC relay RT2 THT DPDT 8A 12VDC 360Ohm 29mmx12,5mmx15,7mm RTIII % | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 12.0 V DC | 8.0 A | 360.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi/Au | RTIII | -40.0 °C | 85.0 °C | |||||||
709 | | Manufacturers Part No. 2-1393243-1(RTE25-24) TE Connectivity PC relay RT2 THT DPDT 8A 24VDC 1.440Ohm 29mmx12,5mmx15,7mm RTIII | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | DPDT | THT | 24.0 V DC | 8.0 A | 1440.0 Ohm | 29.0 mm | 12.5 mm | 15.7 mm | AgNi/Au | RTIII | -40.0 °C | 85.0 °C | |||||||
710 | | Manufacturers Part No. 3-1393240-3(RT33L012) TE Connectivity PC relay RT1 Inrush THT SPDT-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 1.750 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPDT-NO | THT | 12.0 V DC | 16.0 A | 360.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgSnO2 | RTII | -40.0 °C | 85.0 °C | |||||||
711 | | Manufacturers Part No. 3-1393240-5(RT33L024) TE Connectivity PC relay RT1 Inrush THT SPDT-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 280 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPDT-NO | THT | 24.0 V DC | 16.0 A | 1440.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgSnO2 | RTII | -40.0 °C | 85.0 °C | |||||||
712 | | Manufacturers Part No. 2-1393240-3(RT33K012) TE Connectivity PC relay RT1 Inrush THT SPDT-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 510 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPDT-NO | THT | 12.0 V DC | 16.0 A | 360.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
713 | | Manufacturers Part No. 2-1393240-4(RT33K024) TE Connectivity PC relay RT1 Inrush THT SPDT-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 390 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPDT-NO | THT | 24.0 V DC | 16.0 A | 1440.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
714 | | Manufacturers Part No. 1415898(RTS3T012) TE Connectivity PC relay RT Inrush THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | SPST-NO | THT | 12.0 V DC | 16.0 A | 360.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgSnO2 | RTII | -40.0 °C | 105.0 °C | |||||||
715 | | Manufacturers Part No. 1415898-1(RTS3T024) TE Connectivity PC relay RT Inrush THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 280 Pcs. Planned Delivery Time Ø 1 Week Available (from stock) | (at least 20 or mul. of 20) | PC relay | TE Connectivity | SPST-NO | THT | 24.0 V DC | 16.0 A | 1440.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgSnO2 | RTII | -40.0 °C | 105.0 °C | |||||||
716 | | Manufacturers Part No. 8-1393239-7(RT314F12B) TE Connectivity PC relay RT1 Bistabil THT SPDT 16A 12VDC 240Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 375 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | TE Connectivity | SPDT | THT | 12.0 V DC | 16.0 A | 240.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
717 | | Manufacturers Part No. 8-1393239-8(RT314F24B) TE Connectivity PC relay RT1 Bistabil THT SPDT 16A 24VDC 886Ohm 29mmx12,7mmx15,7mm RTII % | Customer Part No. Customer Project No. | 1.305 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | TE Connectivity | SPDT | THT | 24.0 V DC | 16.0 A | 886.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
718 | | Manufacturers Part No. 5-1393243-4(RT424F12B) TE Connectivity PC relay RT2 Bistabil THT DPDT 8A 12VDC 240Ohm 29mmx12,7mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 375 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | TE Connectivity | DPDT | THT | 12.0 V DC | 8.0 A | 240.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
719 | | Manufacturers Part No. 5-1393243-6(RT424F24B) TE Connectivity PC relay RT2 Bistabil THT DPDT 8A 24VDC 886Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | TE Connectivity | DPDT | THT | 24.0 V DC | 8.0 A | 886.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||

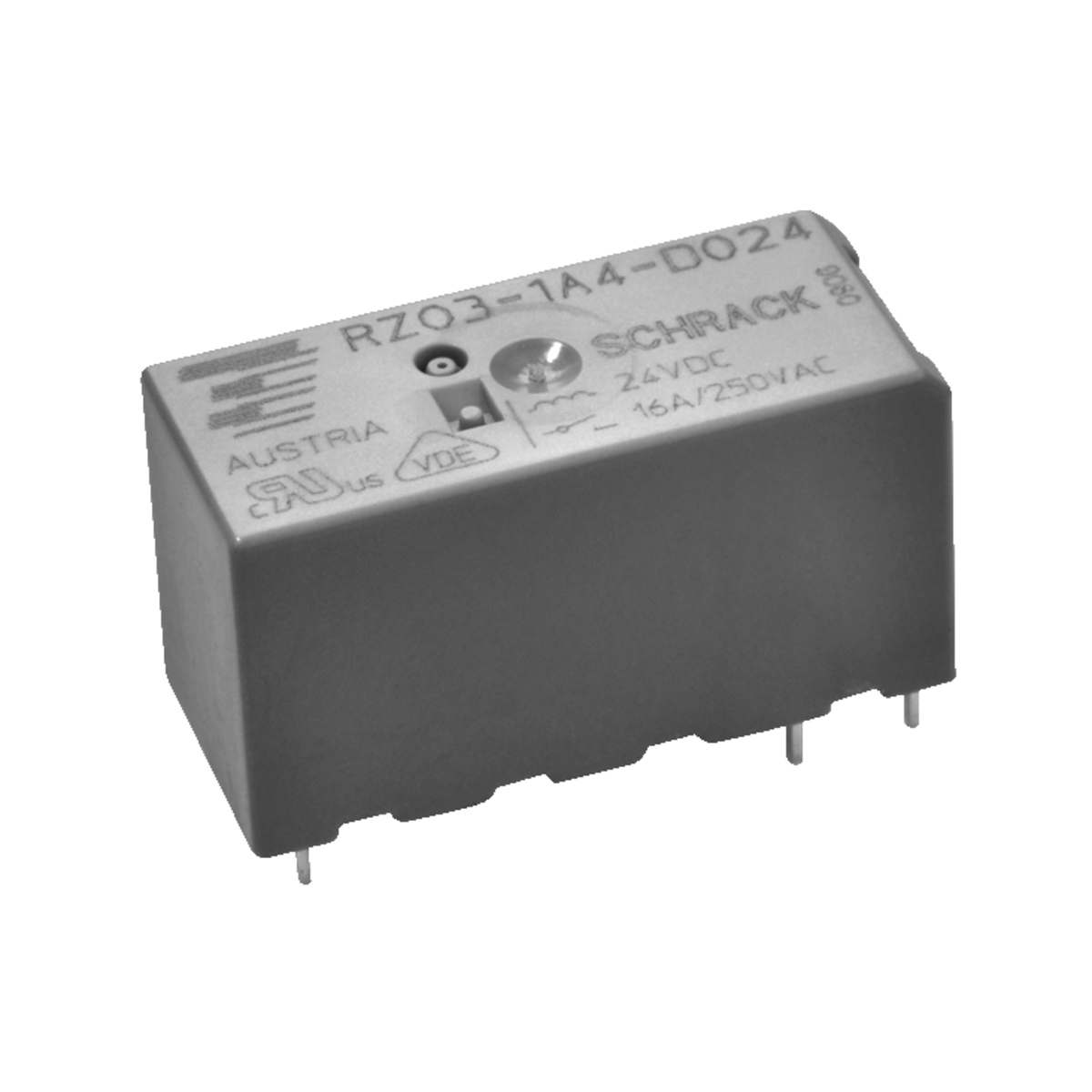

720 | | Manufacturers Part No. 3-2158000-5(RZ011A4D005R) TE Connectivity PC relay RZ THT SPST-NO 12A 5VDC 60Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 1500 or mul. of 1500) | PC relay | TE Connectivity | SPST-NO | THT | 5.0 V DC | 12.0 A | 60.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
721 | | Manufacturers Part No. 9-1415899-3(RZ011A4D012R) TE Connectivity PC relay RZ THT SPST-NO 12A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 3000 or mul. of 3000) | PC relay | TE Connectivity | SPST-NO | THT | 12.0 V DC | 12.0 A | 360.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
722 | | Manufacturers Part No. 0-1415899-4(RZ011A4D012) TE Connectivity PC relay RZ THT SPST-NO 12A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 160 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPST-NO | THT | 12.0 V DC | 12.0 A | 360.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
723 | | Manufacturers Part No. 0-1415899-5(RZ011A4D024) TE Connectivity PC relay RZ THT SPST-NO 12A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPST-NO | THT | 24.0 V DC | 12.0 A | 1440.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
724 | | Manufacturers Part No. 1-1415899-0(RZ011C4D012) TE Connectivity PC relay RZ THT SPDT 12A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 220 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPDT | THT | 12.0 V DC | 12.0 A | 360.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C | |||||||
725 | | Manufacturers Part No. 1-1415899-1(RZ011C4D024) TE Connectivity PC relay RZ THT SPDT 12A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 80 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | TE Connectivity | SPDT | THT | 24.0 V DC | 12.0 A | 1440.0 Ohm | 29.0 mm | 12.7 mm | 15.7 mm | AgNi | RTII | -40.0 °C | 85.0 °C |
