Results (1629)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | contacts | Assembly Type | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Contact: Switching Current (min/typ/max) | Coil resistance | Dimension: Length | Dimension: Width | Dimension: Height | Contact material | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
626 |  | Manufacturers Part No. DK1A-12V-F(DK1A-12V-F) Panasonic PC relay DK THT SPST-NO 10A 12VDC 720Ohm 20mmx12,5mmx10mm RTIII | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | Panasonic | SPST-NO | THT | 12.0 V DC | 10.0 A | 720.0 Ohm | 20.0 mm | 12.5 mm | 10.0 mm | AgSnO2/Au | RTIII | -40.0 °C | 65.0 °C | |||||||
627 | | Manufacturers Part No. DK1A-24V-F(DK1A-24V-F) Panasonic PC relay DK THT SPST-NO 10A 24VDC 2.880Ohm 20mmx12,5mmx10mm RTIII | Customer Part No. Customer Project No. | 130 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | Panasonic | SPST-NO | THT | 24.0 V DC | 10.0 A | 2880.0 Ohm | 20.0 mm | 12.5 mm | 10.0 mm | AgSnO2/Au | RTIII | -40.0 °C | 65.0 °C | |||||||
628 | | Manufacturers Part No. DK1A1B-12V(DK1A1B-12V) Panasonic PC relay DK THT DPDT 8A 12VDC 720Ohm 20mmx12,5mmx10mm RTIII | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | Panasonic | DPDT | THT | 12.0 V DC | 8.0 A | 720.0 Ohm | 20.0 mm | 12.5 mm | 10.0 mm | AgNi/Au | RTIII | -40.0 °C | 65.0 °C | |||||||
629 | | Manufacturers Part No. DK1A1B-24V(DK1A1B-24V) Panasonic PC relay DK THT DPDT 8A 24VDC 2.880Ohm 20mmx12,5mmx10mm RTIII | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 29 Weeks Available (from stock) | (at least 5 or mul. of 5) | PC relay | Panasonic | DPDT | THT | 24.0 V DC | 8.0 A | 2880.0 Ohm | 20.0 mm | 12.5 mm | 10.0 mm | AgNi/Au | RTIII | -40.0 °C | 65.0 °C | |||||||
630 | | Manufacturers Part No. AZ888-1A-5DE(AZ888-1A-5DE) Zettler PC relay AZ888 THT SPST-NO 8A 5VDC 83Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPST-NO | THT | 5.0 V DC | 8.0 A | 83.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
631 | | Manufacturers Part No. AZ888-1A-12DE(AZ888-1A-12DE) Zettler PC relay AZ888 THT SPST-NO 8A 12VDC 480Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPST-NO | THT | 12.0 V DC | 8.0 A | 480.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
632 | | Manufacturers Part No. AZ888-1A-24DE(AZ888-1A-24DE) Zettler PC relay AZ888 THT SPST-NO 8A 24VDC 1.920Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPST-NO | THT | 24.0 V DC | 8.0 A | 1920.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
633 | | Manufacturers Part No. AZ888-1AB-5DE(AZ888-1AB-5DE) Zettler PC relay AZ888 THT SPST-NO/SPST-NC 5A 5VDC 83Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPST-NO/SPST-NC | THT | 5.0 V DC | 5.0 A | 83.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
634 | | Manufacturers Part No. AZ888-1AB-12DE(AZ888-1AB-12DE) Zettler PC relay AZ888 THT SPST-NO/SPST-NC 5A 12VDC 480Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPST-NO/SPST-NC | THT | 12.0 V DC | 5.0 A | 480.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
635 | | Manufacturers Part No. AZ888-1AB-24DE(AZ888-1AB-24DE) Zettler PC relay AZ888 THT SPST-NO/SPST-NC 5A 24VDC 1.920Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPST-NO/SPST-NC | THT | 24.0 V DC | 5.0 A | 1920.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
636 | | Manufacturers Part No. AZ888-2A-5DE(AZ888-2A-5DE) Zettler PC relay AZ888 THT DPST-NO 5A 5VDC 83Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | DPST-NO | THT | 5.0 V DC | 5.0 A | 83.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
637 | | Manufacturers Part No. AZ888-2A-12DE(AZ888-2A-12DE) Zettler PC relay AZ888 THT DPST-NO 5A 12VDC 480Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | DPST-NO | THT | 12.0 V DC | 5.0 A | 480.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
638 | | Manufacturers Part No. AZ888-2A-24DE(AZ888-2A-24DE) Zettler PC relay AZ888 THT DPST-NO 5A 24VDC 1.920Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | DPST-NO | THT | 24.0 V DC | 5.0 A | 1920.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
639 | | Manufacturers Part No. AZ888P1-1AB-5DE(AZ888P1-1AB-5DE) Zettler PC relay AZ888 THT SPST-NO/SPST-NC 5A 5VDC 167Ohm 20,2mmx11,3mmx10,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPST-NO/SPST-NC | THT | 5.0 V DC | 5.0 A | 167.0 Ohm | 20.2 mm | 11.3 mm | 10.5 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
640 | | Manufacturers Part No. AZ963-1AE-5DE(AZ963-1AE-5DE) Zettler PC relay AZ963 THT SPST-NO 6A 5VDC 125Ohm 20,3mmx10,2mmx10,7mm | Customer Part No. Customer Project No. | 840 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPST-NO | THT | 5.0 V DC | 6.0 A | 125.0 Ohm | 20.3 mm | 10.2 mm | 10.7 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
641 | | Manufacturers Part No. AZ963-1AE-12DE(AZ963-1AE-12DE) Zettler PC relay AZ963 THT SPST-NO 6A 12VDC 720Ohm 20,3mmx10,2mmx10,7mm | Customer Part No. Customer Project No. | 500 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPST-NO | THT | 12.0 V DC | 6.0 A | 720.0 Ohm | 20.3 mm | 10.2 mm | 10.7 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
642 | | Manufacturers Part No. AZ963-1AE-24DE(AZ963-1AE-24DE) Zettler PC relay AZ963 THT SPST-NO 6A 24VDC 2.880Ohm 20,3mmx10,2mmx10,7mm | Customer Part No. Customer Project No. | 650 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPST-NO | THT | 24.0 V DC | 6.0 A | 2880.0 Ohm | 20.3 mm | 10.2 mm | 10.7 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
643 | | Manufacturers Part No. AZ963-1CE-5DE(AZ963-1CE-5DE) Zettler PC relay AZ963 THT SPDT 6A 5VDC 125Ohm 20,3mmx10,2mmx10,7mm | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPDT | THT | 5.0 V DC | 6.0 A | 125.0 Ohm | 20.3 mm | 10.2 mm | 10.7 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
644 | | Manufacturers Part No. AZ963-1CE-12DE(AZ963-1CE-12DE) Zettler PC relay AZ963 THT SPDT 6A 12VDC 720Ohm 20,3mmx10,2mmx10,7mm | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPDT | THT | 12.0 V DC | 6.0 A | 720.0 Ohm | 20.3 mm | 10.2 mm | 10.7 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||
645 | | Manufacturers Part No. AZ963-1CE-24DE(AZ963-1CE-24DE) Zettler PC relay AZ963 THT SPDT 6A 24VDC 2.880Ohm 20,3mmx10,2mmx10,7mm | Customer Part No. Customer Project No. | 2.240 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | PC relay | Zettler | SPDT | THT | 24.0 V DC | 6.0 A | 2880.0 Ohm | 20.3 mm | 10.2 mm | 10.7 mm | AgSnO2 | -40.0 °C | 85.0 °C | ||||||||

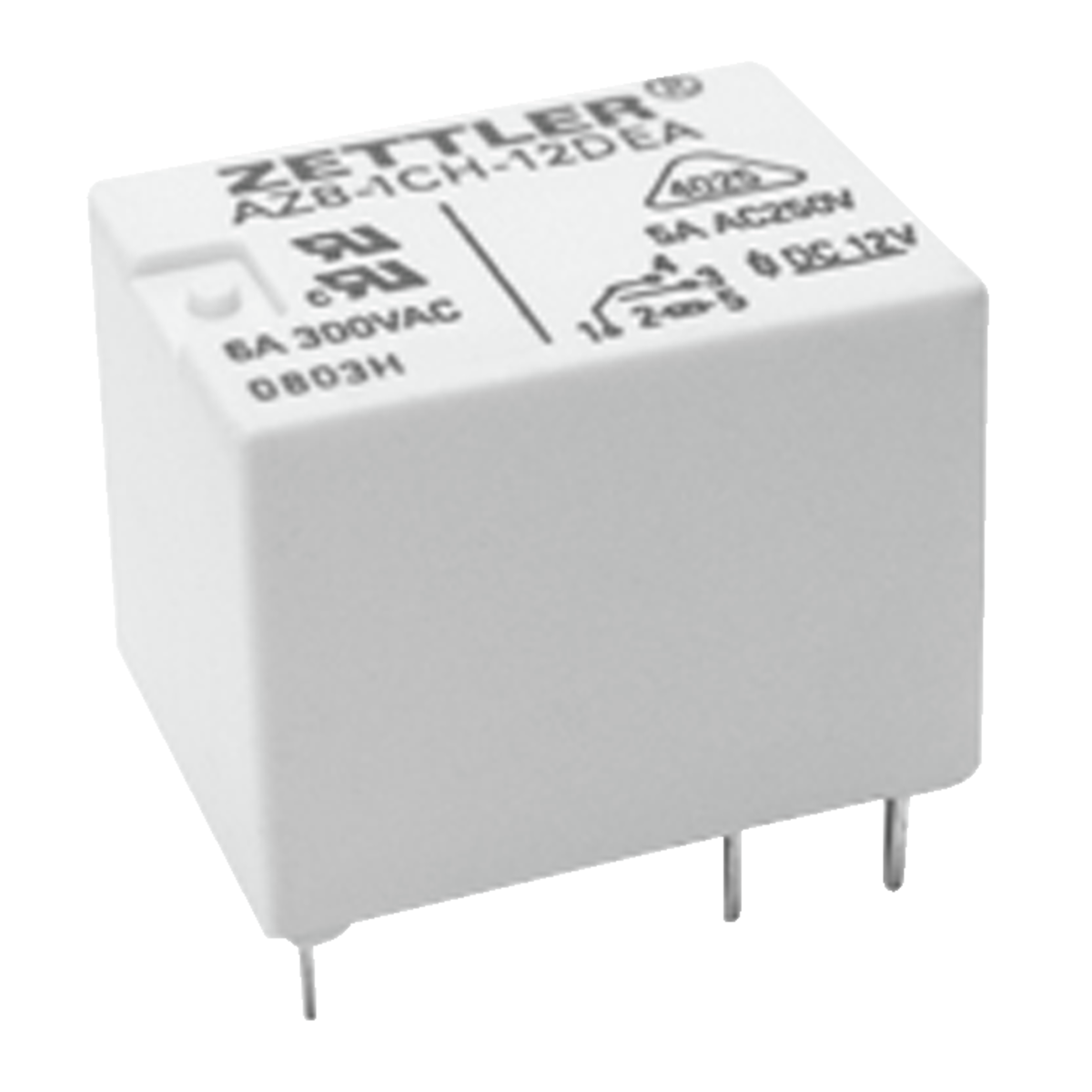

646 | | Manufacturers Part No. AZ8-1CH-12DA(AZ8-1CH-12DA) Zettler PC relay AZ8 THT SPDT 6A 12VDC 320Ohm 21,6mmx16,5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 27 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPDT | THT | 12.0 V DC | 6.0 A | 320.0 Ohm | 21.6 mm | 16.5 mm | 15.0 mm | AgNi | IP40 | -40.0 °C | 70.0 °C | |||||||
647 | | Manufacturers Part No. AZ8-1CH-24DA(AZ8-1CH-24DA) Zettler PC relay AZ8 THT SPDT 6A 24VDC 1.280Ohm 21,6mmx16,5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPDT | THT | 24.0 V DC | 6.0 A | 1280.0 Ohm | 21.6 mm | 16.5 mm | 15.0 mm | AgNi | IP40 | -40.0 °C | 70.0 °C | |||||||
648 | | Manufacturers Part No. AZ8-1CH-12DSEA(AZ8-1CH-12DSEA) Zettler PC relay AZ8 THT SPDT 6A 12VDC 440Ohm 21,6mmx16,5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPDT | THT | 12.0 V DC | 6.0 A | 440.0 Ohm | 21.6 mm | 16.5 mm | 15.0 mm | AgNi | IP40 | -40.0 °C | 70.0 °C | |||||||
649 | | Manufacturers Part No. AZ8-1CH-24DSEA(AZ8-1CH-24DSEA) Zettler PC relay AZ8 THT SPDT 6A 24VDC 1.780Ohm 21,6mmx16,5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 1000 or mul. of 1000) | PC relay | Zettler | SPDT | THT | 24.0 V DC | 6.0 A | 1780.0 Ohm | 21.6 mm | 16.5 mm | 15.0 mm | AgNi | IP40 | -40.0 °C | 70.0 °C | |||||||
650 | | Manufacturers Part No. AZ6962-1AE-5DEA(AZ6962-1AE-5DEA) Zettler PC relay AZ6962 THT SPST-NO 10A 5VDC 113Ohm 28,5mmx10,1mmx12,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks Available on order | (at least 1000 or mul. of 20) | PC relay | Zettler | SPST-NO | THT | 5.0 V DC | 10.0 A | 113.0 Ohm | 28.5 mm | 10.1 mm | 12.5 mm | AgNi/Au | -40.0 °C | 85.0 °C |
