Relays

(1629 Results)

Filtering by Categories

Industrial- / Interfacerelays (107)

Automotive Relays (35)

PCB Relays (976)

Reed Relays (87)

Safety Relays (11)

Heating Control Relays and Timers (4)

Timer (12)

Solid State Relays (332)

Relays Accesories (65)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Type	Manufacturer	contacts	Assembly Type	Coil: Nominal Voltage DC	Contact: Switching Current (min/typ/max)	Coil resistance	Dimension: Length	Dimension: Width	Dimension: Height	Contact material	Protection Class	Protection class RT	Operating Temperature Min.	Operating Temperature Max.
476	Manufacturers Part No. AZ943-1CH-24DEGW (AZ943-1CH-24DEGW) Zettler PC relay AZ943 THT SPDT 10A 24VDC 1.600Ohm 19mmx15,3mmx15,7mm	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 20 Weeks Available on order	(at least 5000 or mul. of 1000)	AZ943	PC relay	Zettler	SPDT	THT	24.0 V DC	10.0 A	1600.0 Ohm	19.0 mm	15.3 mm	15.7 mm	AgSnO2			-40.0 °C	70.0 °C
477	Manufacturers Part No. AZ943-1CH-12DEFGW (AZ943-1CH-12DEFGW) Zettler PC relay AZ943 THT SPDT 10A 12VDC 400Ohm 19mmx15,3mmx15,7mm	Customer Part No. Customer Project No.	Zettler	920 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ943	PC relay	Zettler	SPDT	THT	12.0 V DC	10.0 A	400.0 Ohm	19.0 mm	15.3 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
478	Manufacturers Part No. AZ943-1CH-24DEFGW (AZ943-1CH-24DEFGW) Zettler PC relay AZ943 THT SPDT 10A 24VDC 1.600Ohm 19mmx15,3mmx15,7mm	Customer Part No. Customer Project No.	Zettler	390 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ943	PC relay	Zettler	SPDT	THT	24.0 V DC	10.0 A	1600.0 Ohm	19.0 mm	15.3 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C

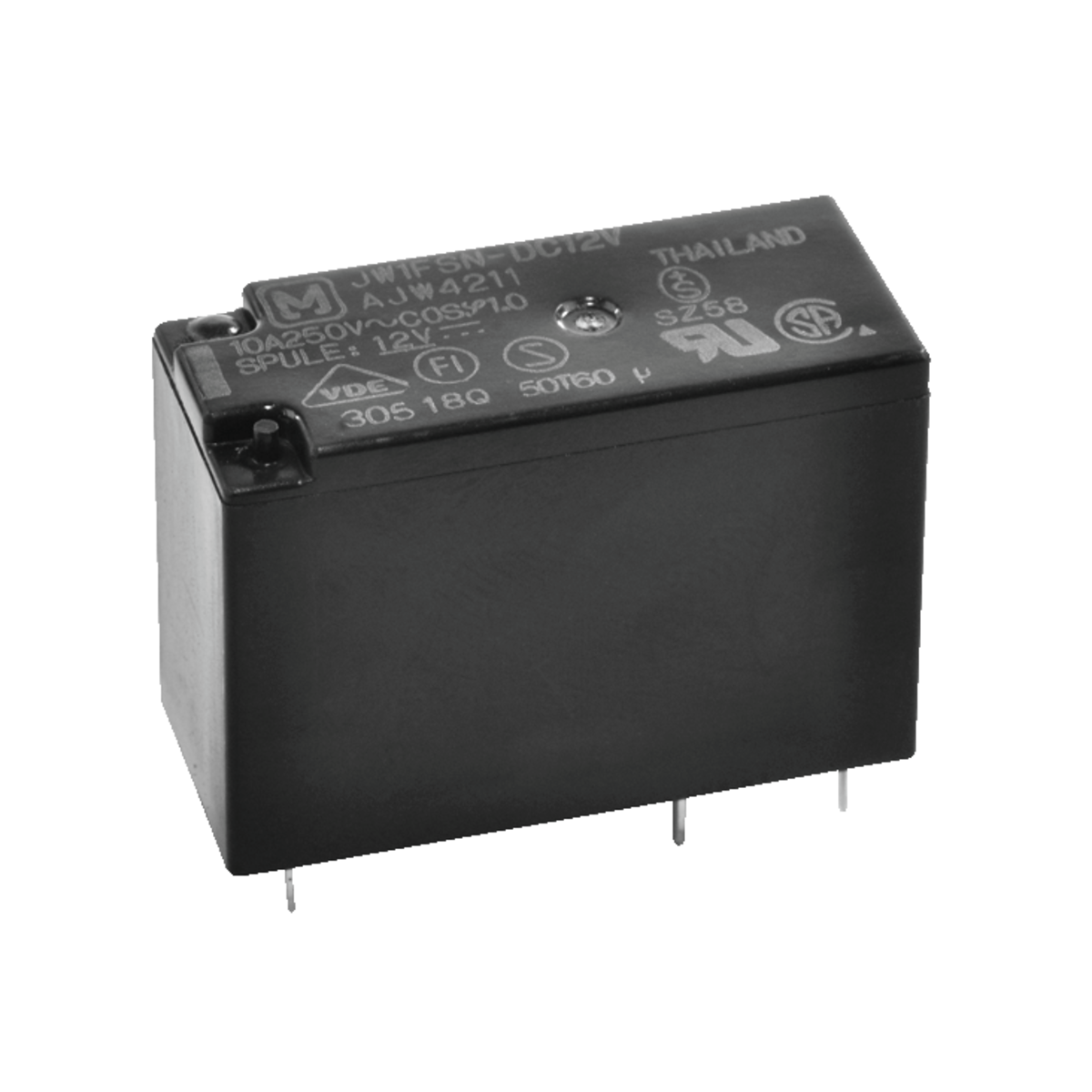

479	Manufacturers Part No. JW1FSN-12 (JW1FSN-12) Panasonic PC relay JW THT SPDT 10A 12VDC 270Ohm 28,6mmx12,8mmx20mm	Customer Part No. Customer Project No.	Panasonic	85 Pcs. Next Stock Receipt Week 19/2026 (200 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	JW	PC relay	Panasonic	SPDT	THT	12.0 V DC	10.0 A	270.0 Ohm	28.6 mm	12.8 mm	20.0 mm	AgSnO2			-40.0 °C	85.0 °C
480	Manufacturers Part No. JW1FSN-24 (JW1FSN-24) Panasonic PC relay JW THT SPDT 10A 24VDC 1.100Ohm 28,6mmx12,8mmx20mm	Customer Part No. Customer Project No.	Panasonic	0 Pcs. Next Stock Receipt Week 20/2026 (170 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	JW	PC relay	Panasonic	SPDT	THT	24.0 V DC	10.0 A	1100.0 Ohm	28.6 mm	12.8 mm	20.0 mm	AgSnO2			-40.0 °C	85.0 °C
481	Manufacturers Part No. JW2SNDC12V (JW2SN-12V) Panasonic PC relay JW THT DPDT 5A 12VDC 270Ohm 28,6mmx12,8mmx20mm	Customer Part No. Customer Project No.	Panasonic	210 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 5 or mul. of 5)	JW	PC relay	Panasonic	DPDT	THT	12.0 V DC	5.0 A	270.0 Ohm	28.6 mm	12.8 mm	20.0 mm	AgSnO2			-40.0 °C	85.0 °C
482	Manufacturers Part No. JW2SNDC24V (JW2SN-24V) Panasonic PC relay JW THT DPDT 5A 24VDC 1.100Ohm 28,6mmx12,8mmx20mm	Customer Part No. Customer Project No.	Panasonic	640 Pcs. Next Stock Receipt Week 20/2026 (470 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	JW	PC relay	Panasonic	DPDT	THT	24.0 V DC	5.0 A	1100.0 Ohm	28.6 mm	12.8 mm	20.0 mm	AgSnO2			-40.0 °C	85.0 °C

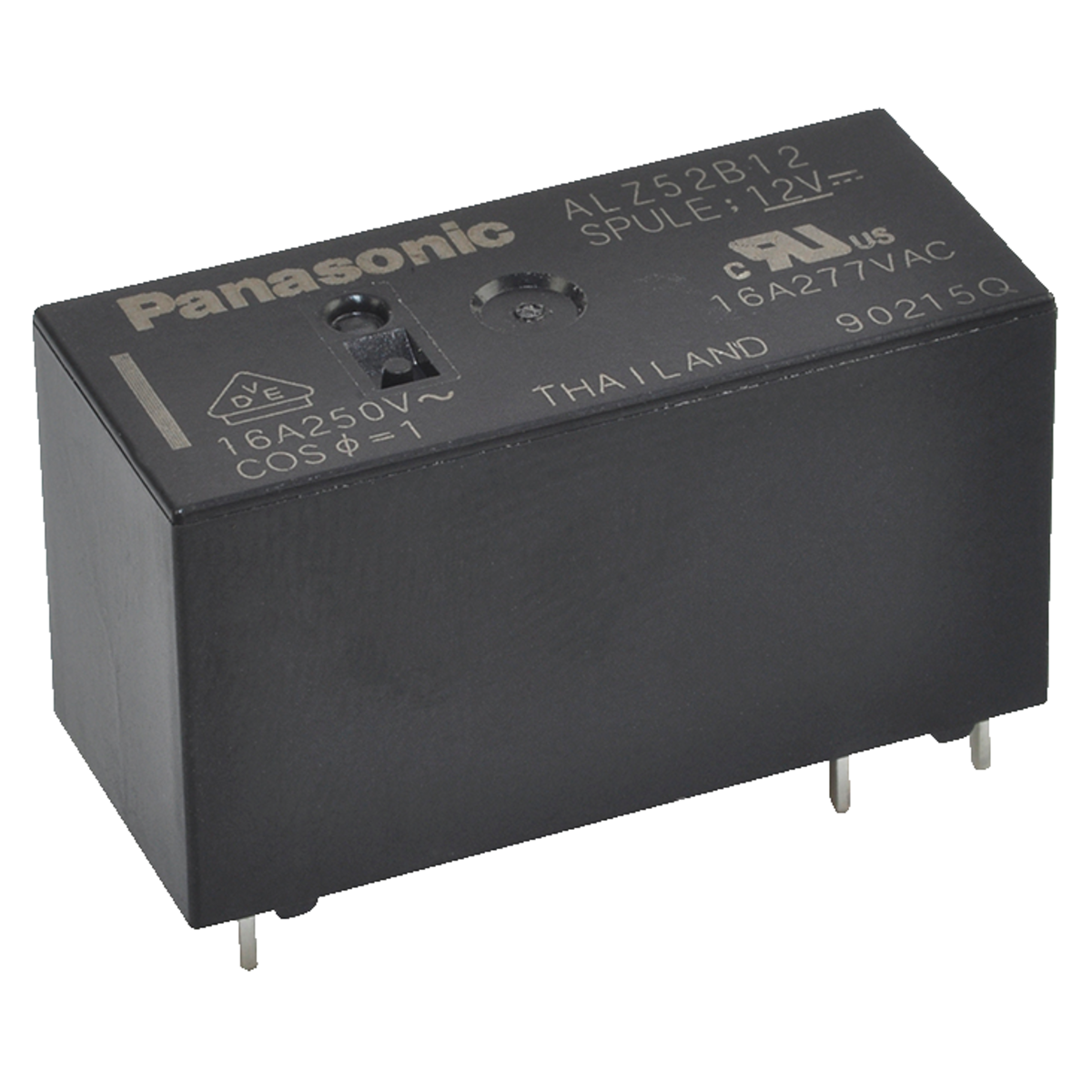

483	Manufacturers Part No. ALZ52B05 (ALZ52B05) Panasonic PC relay ALZ THT SPST-NO 16A 5VDC 63Ohm 28,8mmx12,5mmx15,7mm	Customer Part No. Customer Project No.	Panasonic	0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order	(at least 20 or mul. of 20)	ALZ	PC relay	Panasonic	SPST-NO	THT	5.0 V DC	16.0 A	63.0 Ohm	28.8 mm	12.5 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
484	Manufacturers Part No. ALZ52B12 (ALZ52B12) Panasonic PC relay ALZ THT SPST-NO 16A 12VDC 360Ohm 28,8mmx12,5mmx15,7mm	Customer Part No. Customer Project No.	Panasonic	10 Pcs. Next Stock Receipt Week 21/2026 (100 Pcs.) Available (from stock)	(at least 10 or mul. of 10)	ALZ	PC relay	Panasonic	SPST-NO	THT	12.0 V DC	16.0 A	360.0 Ohm	28.8 mm	12.5 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
485	Manufacturers Part No. ALZ52B24 (ALZ52B24) Panasonic PC relay ALZ THT SPST-NO 16A 24VDC 1.440Ohm 28,8mmx12,5mmx15,7mm	Customer Part No. Customer Project No.	Panasonic	320 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 10 or mul. of 10)	ALZ	PC relay	Panasonic	SPST-NO	THT	24.0 V DC	16.0 A	1440.0 Ohm	28.8 mm	12.5 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
486	Manufacturers Part No. ALZ52F05 (ALZ52F05) Panasonic PC relay ALZ THT SPST-NO 16A 5VDC 63Ohm 28,8mmx12,5mmx15,7mm	Customer Part No. Customer Project No.	Panasonic	0 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 10 or mul. of 10)	ALZ	PC relay	Panasonic	SPST-NO	THT	5.0 V DC	16.0 A	63.0 Ohm	28.8 mm	12.5 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
487	Manufacturers Part No. ALZ52F12 (ALZ52F12) Panasonic PC relay ALZ THT SPST-NO 16A 12VDC 360Ohm 28,8mmx12,5mmx15,7mm	Customer Part No. Customer Project No.	Panasonic	380 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock)	(at least 10 or mul. of 10)	ALZ	PC relay	Panasonic	SPST-NO	THT	12.0 V DC	16.0 A	360.0 Ohm	28.8 mm	12.5 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C
488	Manufacturers Part No. ALZ52F24 (ALZ52F24) Panasonic PC relay ALZ THT SPST-NO 16A 24VDC 1.440Ohm 28,8mmx12,5mmx15,7mm	Customer Part No. Customer Project No.	Panasonic	120 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 10 or mul. of 10)	ALZ	PC relay	Panasonic	SPST-NO	THT	24.0 V DC	16.0 A	1440.0 Ohm	28.8 mm	12.5 mm	15.7 mm	AgSnO2			-40.0 °C	85.0 °C

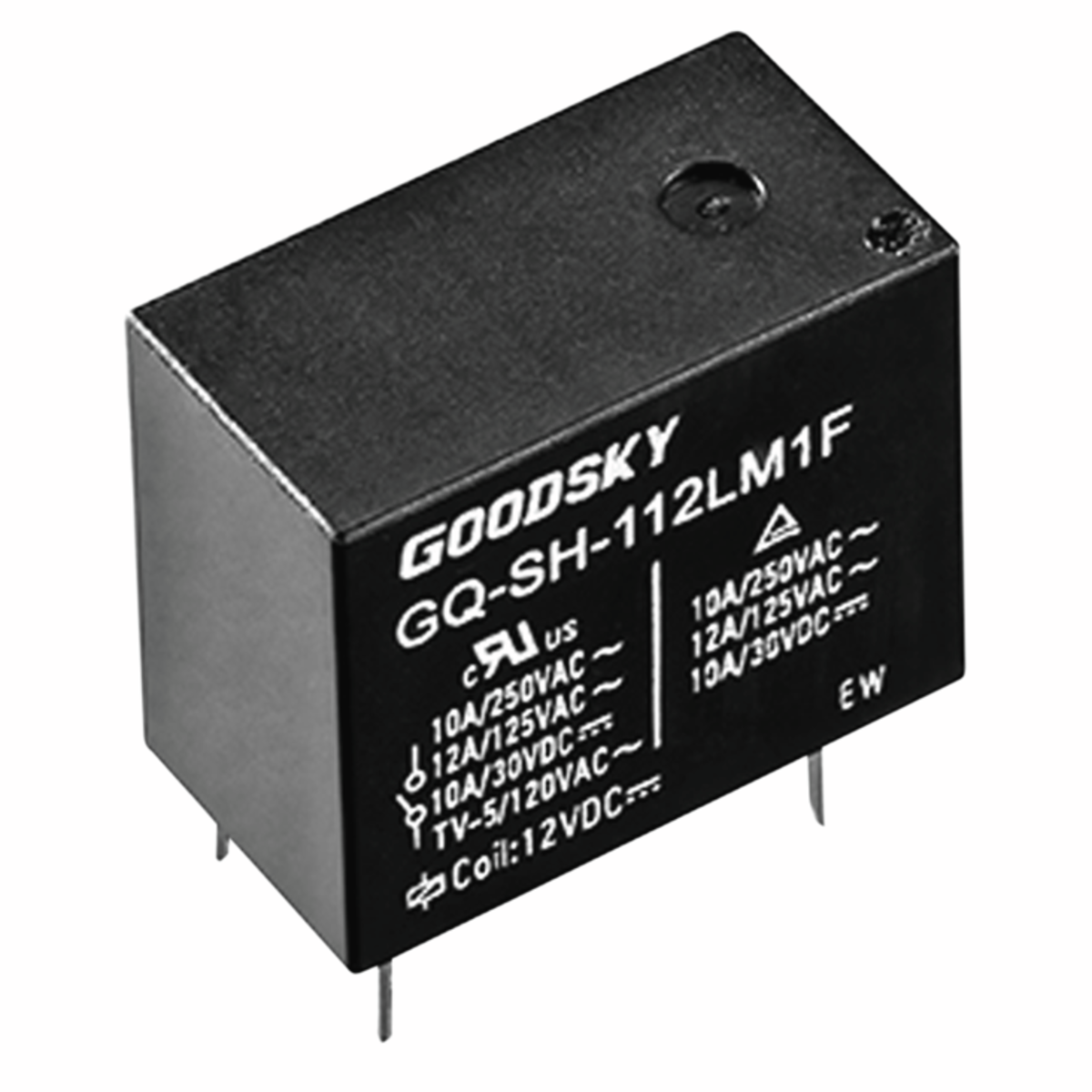

489	Manufacturers Part No. GQ-SS-105LM1F (GQ-SS-105LM1F) GoodSky PC relay GQ THT SPST-NO 12A 5VDC 125Ohm 18,2mmx10mmx14,9mm RTII	Customer Part No. Customer Project No.	GoodSky	1.060 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 5 or mul. of 5)	GQ	PC relay	GoodSky	SPST-NO	THT	5.0 V DC	12.0 A	125.0 Ohm	18.2 mm	10.0 mm	14.9 mm	Ag alloy		RTII	-40.0 °C	105.0 °C
490	Manufacturers Part No. GQ-SS-112LM1F (GQ-SS-112LM1F) GoodSky PC relay GQ THT SPST-NO 12A 12VDC 720Ohm 18,2mmx10mmx14,9mm RTII	Customer Part No. Customer Project No.	GoodSky	2.910 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 5 or mul. of 5)	GQ	PC relay	GoodSky	SPST-NO	THT	12.0 V DC	12.0 A	720.0 Ohm	18.2 mm	10.0 mm	14.9 mm	Ag alloy		RTII	-40.0 °C	105.0 °C
491	Manufacturers Part No. GQ-SS-124LM1F (GQ-SS-124LM1F) GoodSky PC relay GQ THT SPST-NO 12A 24VDC 2.880Ohm 18,2mmx10mmx14,9mm RTII %	Customer Part No. Customer Project No.	GoodSky	1.575 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 5 or mul. of 5)	GQ	PC relay	GoodSky	SPST-NO	THT	24.0 V DC	12.0 A	2880.0 Ohm	18.2 mm	10.0 mm	14.9 mm	Ag alloy		RTII	-40.0 °C	105.0 °C

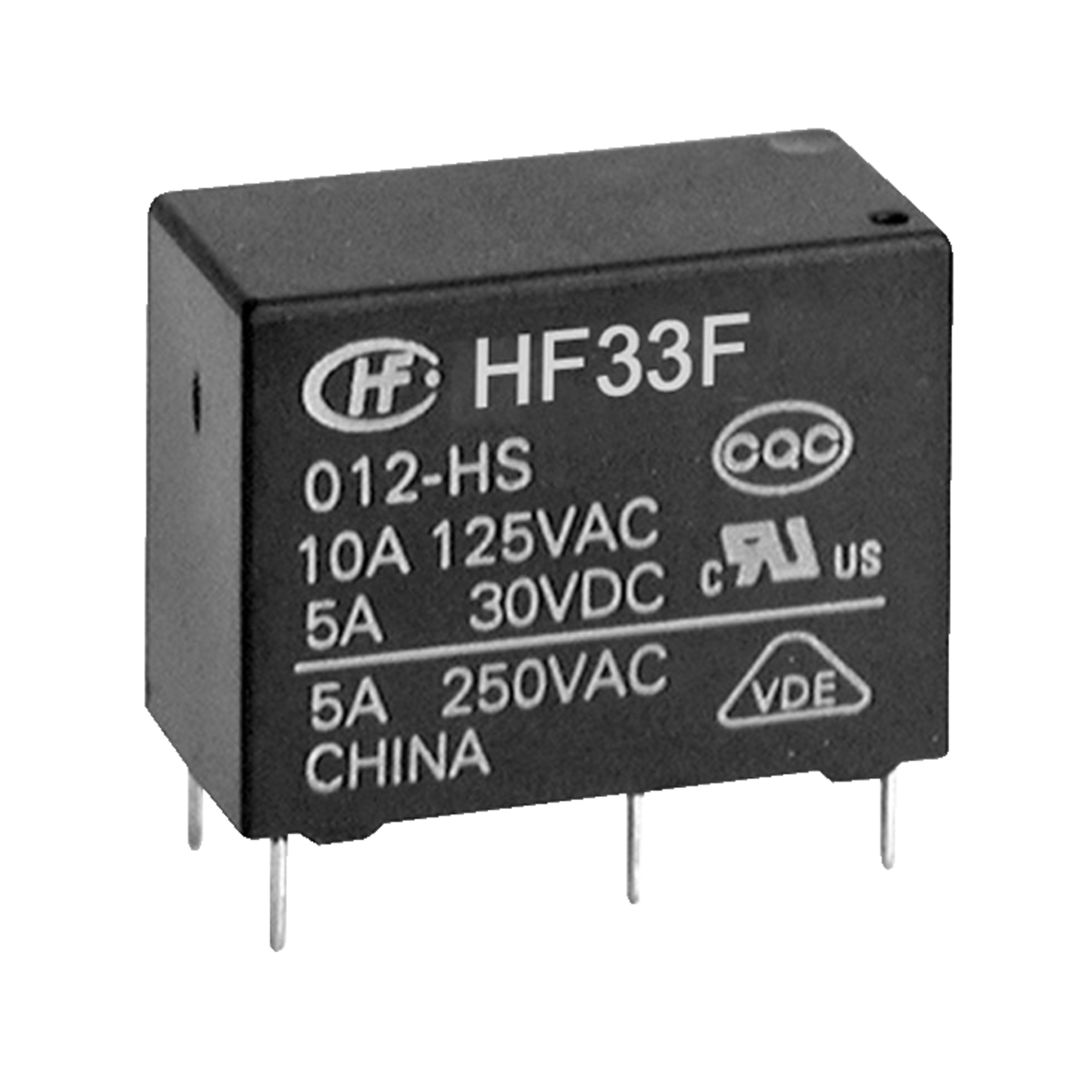

492	Manufacturers Part No. HF33F/012-HSL3F (HF33F-012-HSL3F) Hongfa PC relay HF33F THT SPST-NO 10A 12VDC 720Ohm 20,5mmx10,2mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	1.040 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF33F	PC relay	Hongfa	SPST-NO	THT	12.0 V DC	10.0 A	720.0 Ohm	20.5 mm	10.2 mm	15.3 mm	AgNi			-40.0 °C	85.0 °C
493	Manufacturers Part No. HF33F/024-HSL3F (HF33F-024-HSL3F) Hongfa PC relay HF33F THT SPST-NO 10A 24VDC 2.800Ohm 20,5mmx10,2mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	4.460 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF33F	PC relay	Hongfa	SPST-NO	THT	24.0 V DC	10.0 A	2800.0 Ohm	20.5 mm	10.2 mm	15.3 mm	AgNi			-40.0 °C	85.0 °C
494	Manufacturers Part No. HF33F/012-ZS3F (HF33F-012-ZS3F) Hongfa PC relay HF33F THT SPDT 10A 12VDC 320Ohm 20,5mmx10,2mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	375 Pcs. Next Stock Receipt Week 25/2026 (100 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	HF33F	PC relay	Hongfa	SPDT	THT	12.0 V DC	10.0 A	320.0 Ohm	20.5 mm	10.2 mm	15.3 mm	AgNi			-40.0 °C	85.0 °C
495	Manufacturers Part No. HF33F/024-ZS3F (HF33F-024-ZS3F) Hongfa PC relay HF33F THT SPDT 10A 24VDC 1.280Ohm 20,5mmx10,2mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	0 Pcs. Next Stock Receipt Week 33/2026 (450 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	HF33F	PC relay	Hongfa	SPDT	THT	24.0 V DC	10.0 A	1280.0 Ohm	20.5 mm	10.2 mm	15.3 mm	AgNi			-40.0 °C	85.0 °C
496	Manufacturers Part No. 8-1415029-1 (PB114012) TE Connectivity PC relay PB THT SPST 10A 12VDC 400Ohm 15mmx15mmx20mm RTII	Customer Part No. Customer Project No.	TE Connectivity	910 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 35 or mul. of 35)	PB	PC relay	TE Connectivity	SPST	THT	12.0 V DC	10.0 A	400.0 Ohm	15.0 mm	15.0 mm	20.0 mm	AgNi		RTII	-40.0 °C	85.0 °C
497	Manufacturers Part No. 9-1415029-1 (PB114024) TE Connectivity PC relay PB THT SPST 10A 24VDC 1.600Ohm 15mmx15mmx20mm RTII	Customer Part No. Customer Project No.	TE Connectivity	1.095 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock)	(at least 35 or mul. of 35)	PB	PC relay	TE Connectivity	SPST	THT	24.0 V DC	10.0 A	1600.0 Ohm	15.0 mm	15.0 mm	20.0 mm	AgNi		RTII	-40.0 °C	85.0 °C
498	Manufacturers Part No. 2-1415030-1 (PB134012) TE Connectivity PC relay PB THT SPST-NO 10A 12VDC 400Ohm 15mmx15mmx20mm RTII	Customer Part No. Customer Project No.	TE Connectivity	840 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock)	(at least 35 or mul. of 35)	PB	PC relay	TE Connectivity	SPST-NO	THT	12.0 V DC	10.0 A	400.0 Ohm	15.0 mm	15.0 mm	20.0 mm	AgNi		RTII	-40.0 °C	85.0 °C
499	Manufacturers Part No. 3-1415030-1 (PB134024) TE Connectivity PC relay PB THT SPST-NO 10A 24VDC 1.600Ohm 15mmx15mmx20mm RTII	Customer Part No. Customer Project No.	TE Connectivity	170 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock)	(at least 35 or mul. of 35)	PB	PC relay	TE Connectivity	SPST-NO	THT	24.0 V DC	10.0 A	1600.0 Ohm	15.0 mm	15.0 mm	20.0 mm	AgNi		RTII	-40.0 °C	85.0 °C

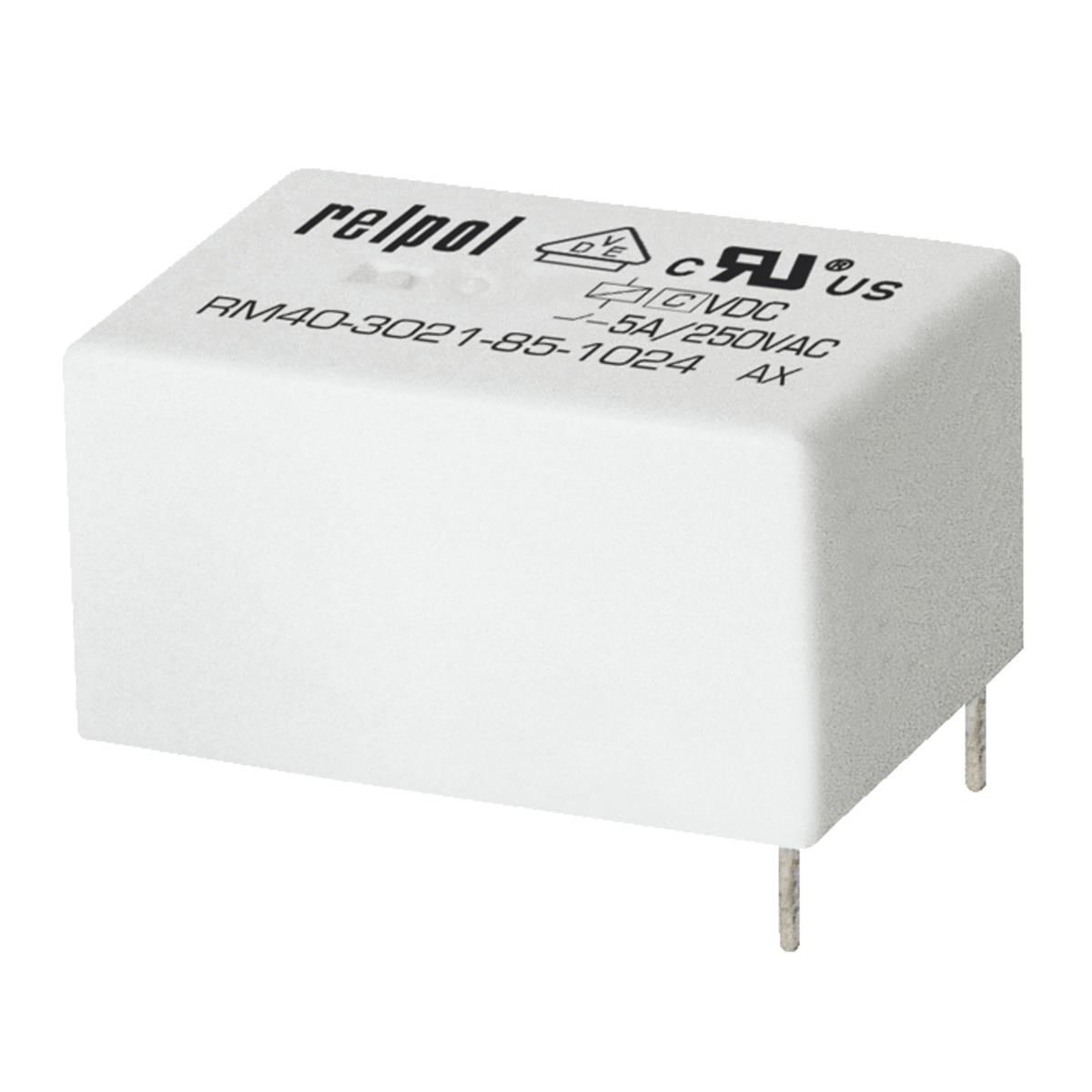

500	Manufacturers Part No. RM40-3021-85-1012 (RM40-3021-85-1012) RELPOL PC relay RM40 THT SPST-NO 8A 12VDC 720Ohm 20mmx10mmx10,5mm RTIII	Customer Part No. Customer Project No.	RELPOL	200 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock)	(at least 10 or mul. of 10)	RM40	PC relay	RELPOL	SPST-NO	THT	12.0 V DC	8.0 A	720.0 Ohm	20.0 mm	10.0 mm	10.5 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C

‹ 1 ··· 18 19 20 21 22 ··· 66 ›
