Relays

(1629 Results)

Filtering by Categories

Industrial- / Interfacerelays (107)

Automotive Relays (35)

PCB Relays (976)

Reed Relays (87)

Safety Relays (11)

Heating Control Relays and Timers (4)

Timer (12)

Solid State Relays (332)

Relays Accesories (65)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Type	Manufacturer	contacts	Assembly Type	Coil: Nominal Voltage DC	Contact: Switching Current (min/typ/max)	Coil resistance	Dimension: Length	Dimension: Width	Dimension: Height	Contact material	Protection Class	Protection class RT	Operating Temperature Min.	Operating Temperature Max.
401	Manufacturers Part No. ALDP112V (ALDP112V) Panasonic PC relay LD-P THT SPST-NO 5A 12VDC 720Ohm 20,5mmx7,2mmx15,3mm RTIII	Customer Part No. Customer Project No.	Panasonic	990 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 10 or mul. of 10)	LD-P	PC relay	Panasonic	SPST-NO	THT	12.0 V DC	5.0 A	720.0 Ohm	20.5 mm	7.2 mm	15.3 mm	AgNi		RTIII	-40.0 °C	85.0 °C
402	Manufacturers Part No. ALDP124 (ALDP124V) Panasonic PC relay LD-P THT SPST-NO 5A 24VDC 2.880Ohm 20,5mmx7,2mmx15,3mm RTIII	Customer Part No. Customer Project No.	Panasonic	1.130 Pcs. Next Stock Receipt Week 21/2026 (1.000 Pcs.) Available (from stock)	(at least 10 or mul. of 10)	LD-P	PC relay	Panasonic	SPST-NO	THT	24.0 V DC	5.0 A	2880.0 Ohm	20.5 mm	7.2 mm	15.3 mm	AgNi		RTIII	-40.0 °C	85.0 °C

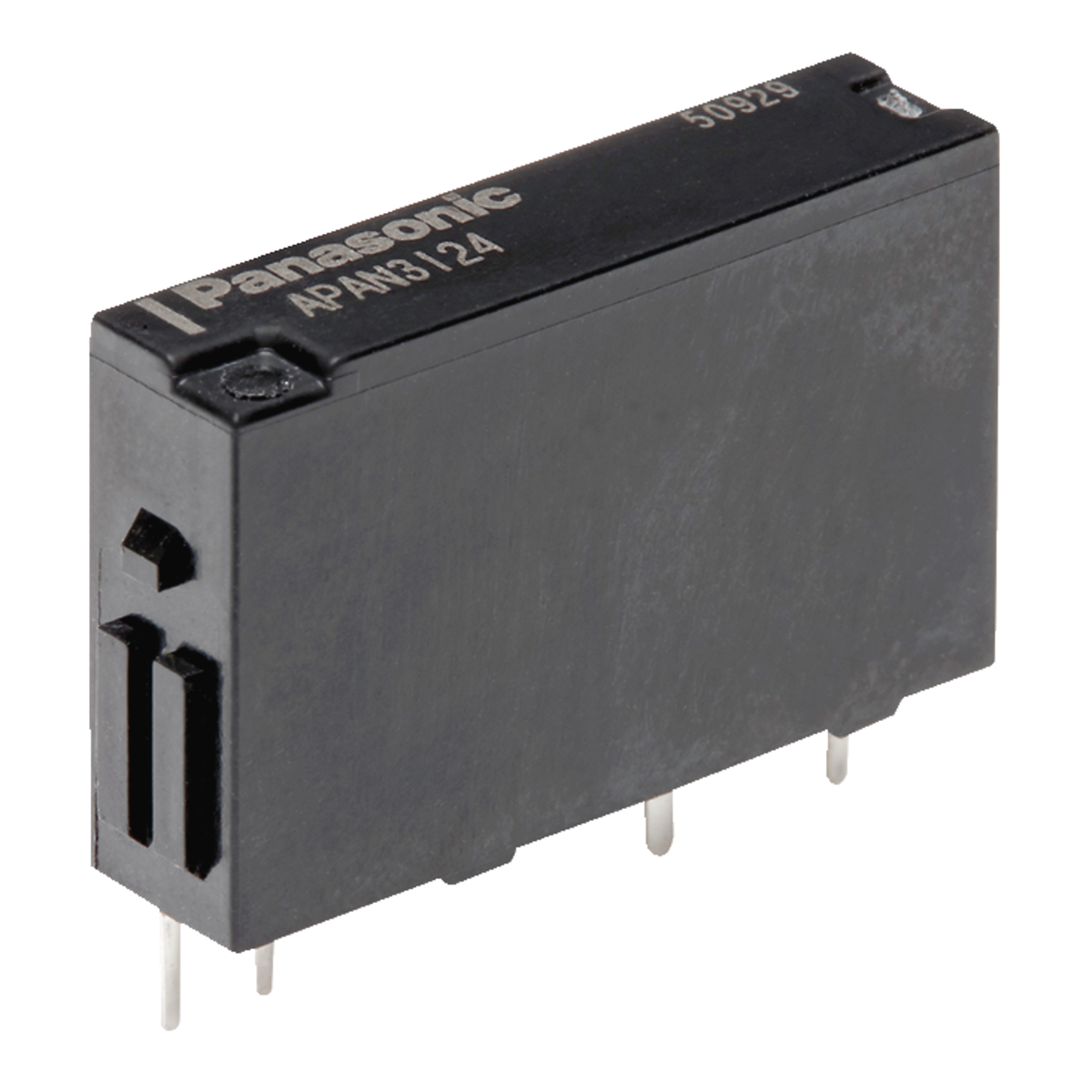

403	Manufacturers Part No. APAN314H (APAN314H) Panasonic PC relay APAN-N THT SPST-NO 5A 4,5VDC 184Ohm 20mmx5mmx12,5mm	Customer Part No. Customer Project No.	Panasonic	25 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 1 or mul. of 1)	APAN-N	PC relay	Panasonic	SPST-NO	THT	4.5 V DC	5.0 A	184.0 Ohm	20.0 mm	5.0 mm	12.5 mm	AgNi			-40.0 °C	90.0 °C
404	Manufacturers Part No. APAN3105 (APAN3105) Panasonic PC relay APAN-N THT SPST-NO 5A 5VDC 227Ohm 20mmx5mmx12,5mm	Customer Part No. Customer Project No.	Panasonic	128 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock)	(at least 1 or mul. of 1)	APAN-N	PC relay	Panasonic	SPST-NO	THT	5.0 V DC	5.0 A	227.0 Ohm	20.0 mm	5.0 mm	12.5 mm	AgNi			-40.0 °C	90.0 °C
405	Manufacturers Part No. APAN3112 (APAN3112) Panasonic PC relay APAN-N THT SPST-NO 5A 12VDC 1.309Ohm 20mmx5mmx12,5mm	Customer Part No. Customer Project No.	Panasonic	195 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 1 or mul. of 1)	APAN-N	PC relay	Panasonic	SPST-NO	THT	12.0 V DC	5.0 A	1309.0 Ohm	20.0 mm	5.0 mm	12.5 mm	AgNi			-40.0 °C	90.0 °C
406	Manufacturers Part No. APAN3124 (APAN3124) Panasonic PC relay APAN-N THT SPST-NO 5A 24VDC 5.236Ohm 20mmx5mmx12,5mm	Customer Part No. Customer Project No.	Panasonic	520 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock)	(at least 1 or mul. of 1)	APAN-N	PC relay	Panasonic	SPST-NO	THT	24.0 V DC	5.0 A	5236.0 Ohm	20.0 mm	5.0 mm	12.5 mm	AgNi			-40.0 °C	90.0 °C

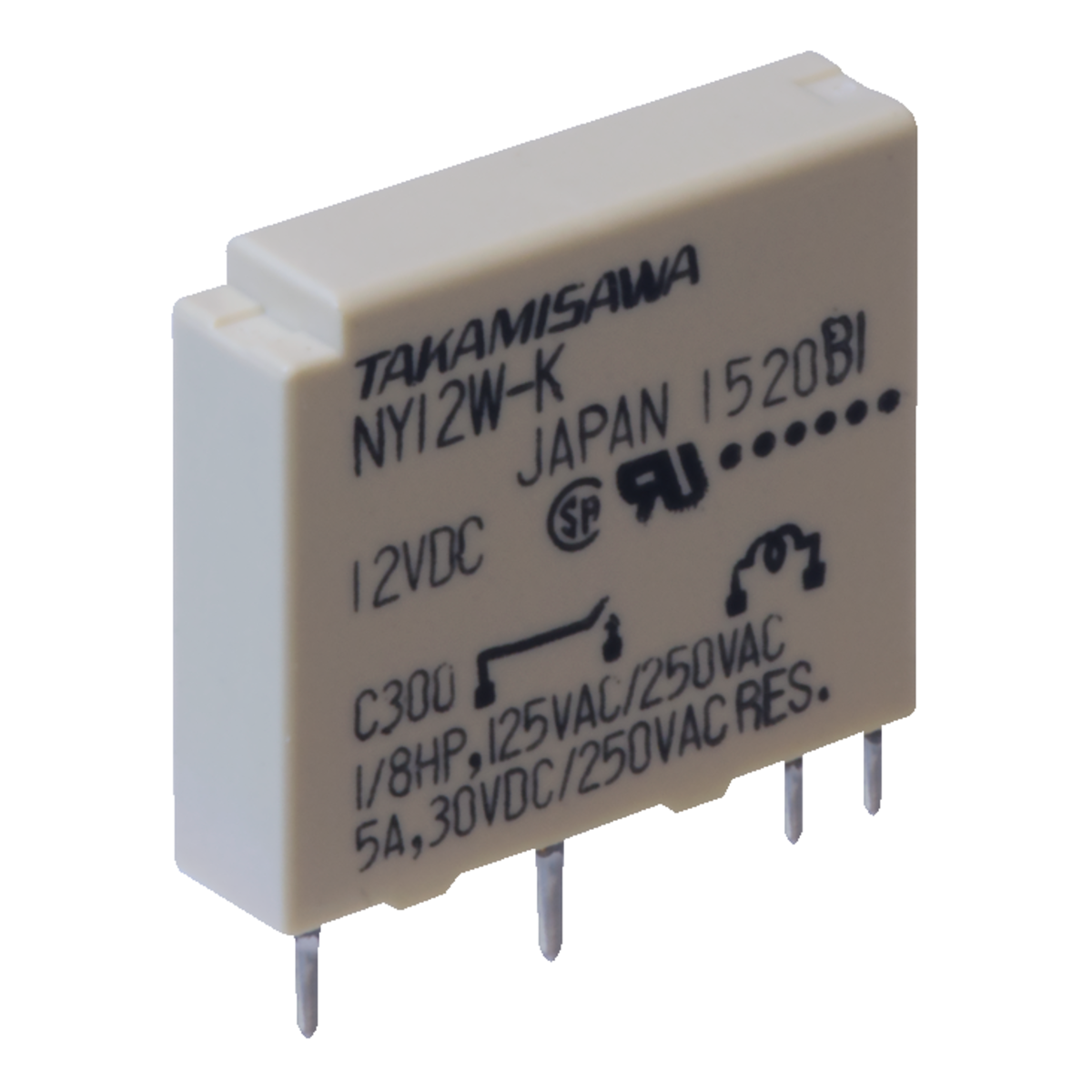

407	Manufacturers Part No. NY-5W-K-IE (NY-5W-K-IE) FCL Components PC relay NY THT SPST-NO 5A 5VDC 208Ohm 20,1mmx5mmx17,5mm RTIII	Customer Part No. Customer Project No.	FCL Components	1.035 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 10 or mul. of 5)	NY	PC relay	FCL Components	SPST-NO	THT	5.0 V DC	5.0 A	208.0 Ohm	20.1 mm	5.0 mm	17.5 mm	AgNi/Au		RTIII	-40.0 °C	90.0 °C
408	Manufacturers Part No. NY-12W-K-IE (NY12WKIE) FCL Components PC relay NY THT SPST-NO 5A 12VDC 1.200Ohm 20,1mmx5mmx17,5mm RTIII	Customer Part No. Customer Project No.	FCL Components	360 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 10 or mul. of 5)	NY	PC relay	FCL Components	SPST-NO	THT	12.0 V DC	5.0 A	1200.0 Ohm	20.1 mm	5.0 mm	17.5 mm	AgNi/Au		RTIII	-40.0 °C	90.0 °C
409	Manufacturers Part No. NY-24W-K-IE (NY24WKIE) FCL Components PC relay NY THT SPST-NO 5A 24VDC 4.800Ohm 20,1mmx5mmx17,5mm RTIII	Customer Part No. Customer Project No.	FCL Components	810 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 10 or mul. of 5)	NY	PC relay	FCL Components	SPST-NO	THT	24.0 V DC	5.0 A	4800.0 Ohm	20.1 mm	5.0 mm	17.5 mm	AgNi/Au		RTIII	-40.0 °C	90.0 °C

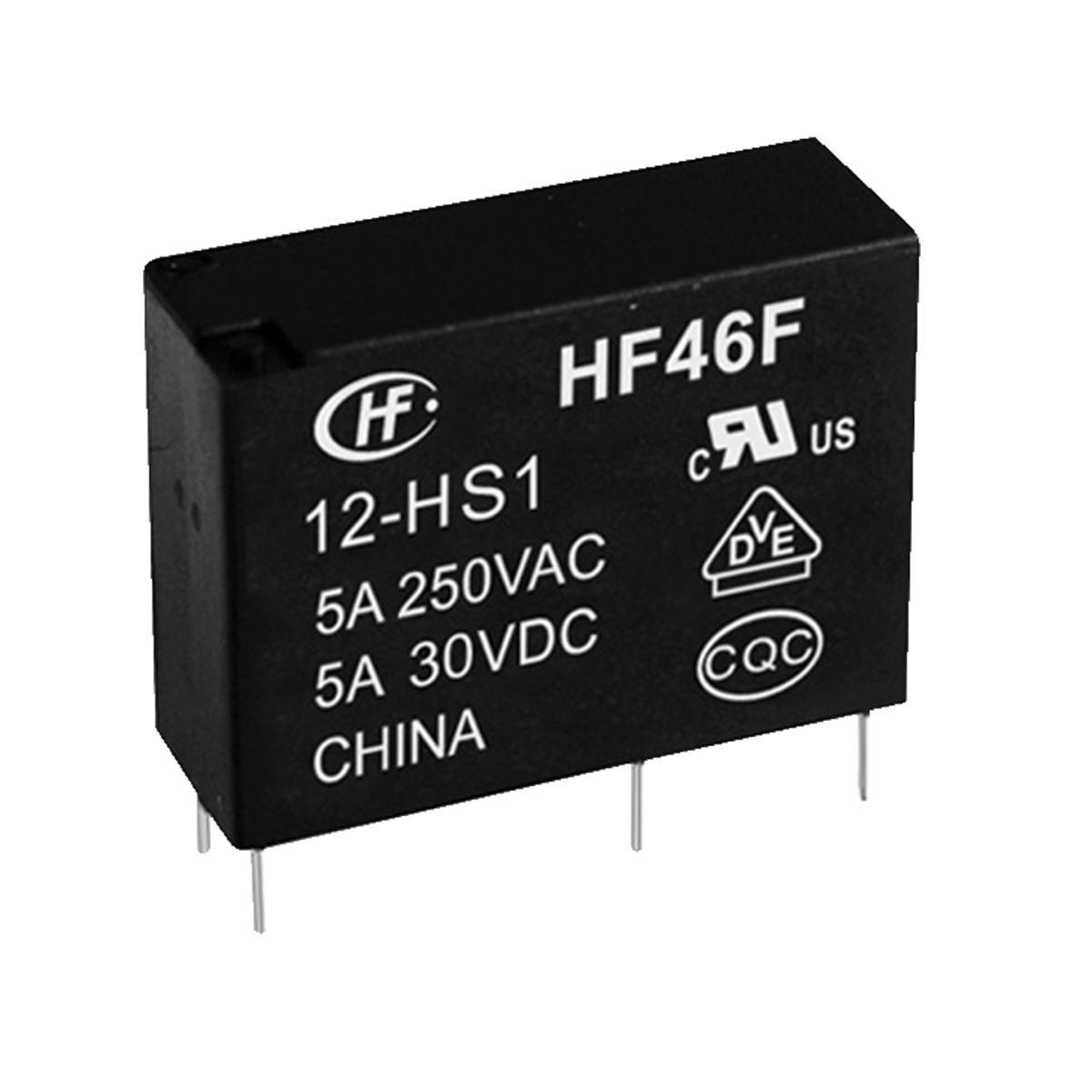

410	Manufacturers Part No. HF46F/12-HS1 (HF46F-12-HS1) Hongfa PC relay HF46F THT SPST-NO 5A 12VDC 720Ohm 20,5mmx7mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	1.140 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF46F	PC relay	Hongfa	SPST-NO	THT	12.0 V DC	5.0 A	720.0 Ohm	20.5 mm	7.0 mm	15.3 mm	AgNi			-40.0 °C	85.0 °C
411	Manufacturers Part No. HF46F/24-HS1T (HF46F-24-HS1T) Hongfa PC relay HF46F THT SPST-NO 5A 24VDC 2.880Ohm 20,5mmx7mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	615 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF46F	PC relay	Hongfa	SPST-NO	THT	24.0 V DC	5.0 A	2880.0 Ohm	20.5 mm	7.0 mm	15.3 mm	AgSnO2			-40.0 °C	85.0 °C
412	Manufacturers Part No. HF46F-G/5-HS1T (HF46F-G-5-HS1T) Hongfa PC relay HF46F THT SPST-NO 10A 5VDC 125Ohm 20,5mmx7mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	465 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF46F	PC relay	Hongfa	SPST-NO	THT	5.0 V DC	10.0 A	125.0 Ohm	20.5 mm	7.0 mm	15.3 mm	AgSnO2			-40.0 °C	85.0 °C
413	Manufacturers Part No. HF46F-G/12-HS1 (HF46F-G-12-HS1) Hongfa PC relay HF46F THT SPST-NO 10A 12VDC 720Ohm 20,5mmx7mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	725 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF46F	PC relay	Hongfa	SPST-NO	THT	12.0 V DC	10.0 A	720.0 Ohm	20.5 mm	7.0 mm	15.3 mm	AgNi			-40.0 °C	85.0 °C
414	Manufacturers Part No. HF46F-G/12-HS1T (HF46F-G-12-HS1T) Hongfa PC relay HF46F THT SPST-NO 10A 24VDC 2.880Ohm 20,5mmx7mmx15,3mm	Customer Part No. Customer Project No.	Hongfa	345 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock)	(at least 5 or mul. of 5)	HF46F	PC relay	Hongfa	SPST-NO	THT	24.0 V DC	10.0 A	2880.0 Ohm	20.5 mm	7.0 mm	15.3 mm	AgSnO2			-40.0 °C	85.0 °C
415	Manufacturers Part No. RM699BV-2011-85-1012 (RM699BV2011-851012) RELPOL PC relay RM699B THT SPST 10A 12VDC 848Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order	(at least 2000 or mul. of 2000)	RM699B	PC relay	RELPOL	SPST	THT	12.0 V DC	10.0 A	848.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
416	Manufacturers Part No. RM699BV-2011-85-1024 (RM699BV2011-851024) RELPOL PC relay RM699B THT SPST 10A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order	(at least 2000 or mul. of 2000)	RM699B	PC relay	RELPOL	SPST	THT	24.0 V DC	10.0 A	3390.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
417	Manufacturers Part No. RM699BV-2011-85-1060 (RM699BV2011-851060) RELPOL PC relay RM699B THT SPST 10A 60VDC 16.600Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order	(at least 2000 or mul. of 2000)	RM699B	PC relay	RELPOL	SPST	THT	60.0 V DC	10.0 A	16600.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgNi	IP67	RTIII	-40.0 °C	85.0 °C
418	Manufacturers Part No. RM699BV-3011-85-1012 (RM699BV3011-851012) RELPOL PC relay RM699B THT SPST 10A 12VDC 848Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	1.995 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 5 or mul. of 5)	RM699B	PC relay	RELPOL	SPST	THT	12.0 V DC	10.0 A	848.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C
419	Manufacturers Part No. RM699BV-3011-85-1024 (RM699BV3011-851024) RELPOL PC relay RM699B THT SPST 10A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	1.435 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 5 or mul. of 5)	RM699B	PC relay	RELPOL	SPST	THT	24.0 V DC	10.0 A	3390.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgSnO2	IP67	RTIII	-40.0 °C	85.0 °C
420	Manufacturers Part No. RM699BV-3211-85-1012 (RM699BV3211-851012) RELPOL PC relay RM699B THT SPST 5A 12VDC 848Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	90 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 5 or mul. of 5)	RM699B	PC relay	RELPOL	SPST	THT	12.0 V DC	5.0 A	848.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgSnO2/Au	IP67	RTIII	-40.0 °C	85.0 °C
421	Manufacturers Part No. RM699BV-3211-85-1024 (RM699BV3211-851024) RELPOL PC relay RM699B THT SPST 5A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII	Customer Part No. Customer Project No.	RELPOL	1.895 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock)	(at least 5 or mul. of 5)	RM699B	PC relay	RELPOL	SPST	THT	24.0 V DC	5.0 A	3390.0 Ohm	28.0 mm	5.0 mm	15.0 mm	AgSnO2/Au	IP67	RTIII	-40.0 °C	85.0 °C

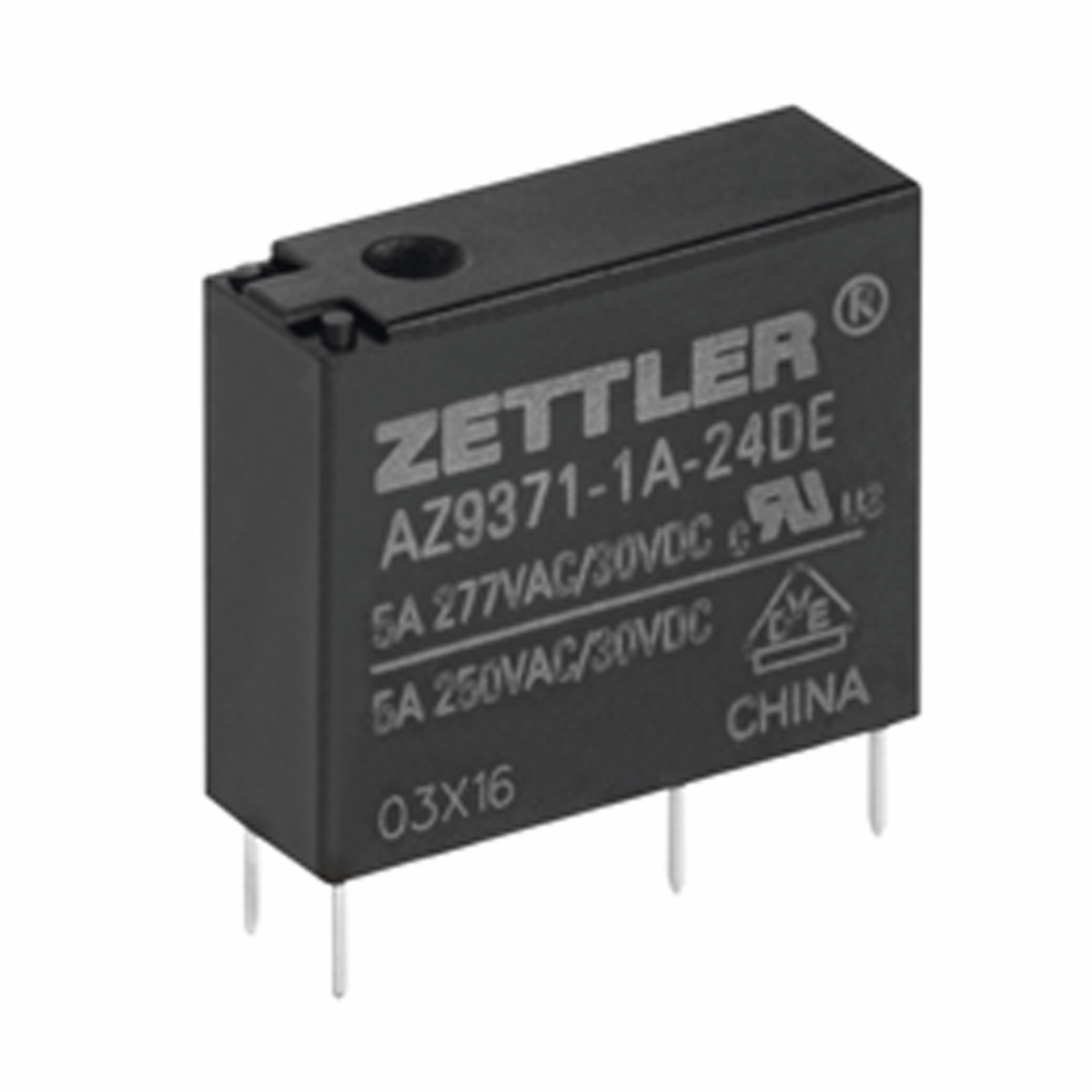

422	Manufacturers Part No. AZ9371-1A-5DE (AZ9371-1A-5DE) Zettler PC relay AZ9371 THT SPST-NO 5A 5VDC 125Ohm 20,5mmx7,2mmx15,3mm	Customer Part No. Customer Project No.	Zettler	240 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ9371	PC relay	Zettler	SPST-NO	THT	5.0 V DC	5.0 A	125.0 Ohm	20.5 mm	7.2 mm	15.3 mm	AgNi			-40.0 °C	105.0 °C
423	Manufacturers Part No. AZ9371-1A-12DE (AZ9371-1A-12DE) Zettler PC relay AZ9371 THT SPST-NO 5A 12VDC 720Ohm 20,5mmx7,2mmx15,3mm	Customer Part No. Customer Project No.	Zettler	1.020 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ9371	PC relay	Zettler	SPST-NO	THT	12.0 V DC	5.0 A	720.0 Ohm	20.5 mm	7.2 mm	15.3 mm	AgNi			-40.0 °C	105.0 °C
424	Manufacturers Part No. AZ9371-1A-24DE (AZ9371-1A-24DE) Zettler PC relay AZ9371 THT SPST-NO 5A 24VDC 2.880Ohm 20,5mmx7,2mmx15,3mm	Customer Part No. Customer Project No.	Zettler	1.220 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ9371	PC relay	Zettler	SPST-NO	THT	24.0 V DC	5.0 A	2880.0 Ohm	20.5 mm	7.2 mm	15.3 mm	AgNi			-40.0 °C	105.0 °C

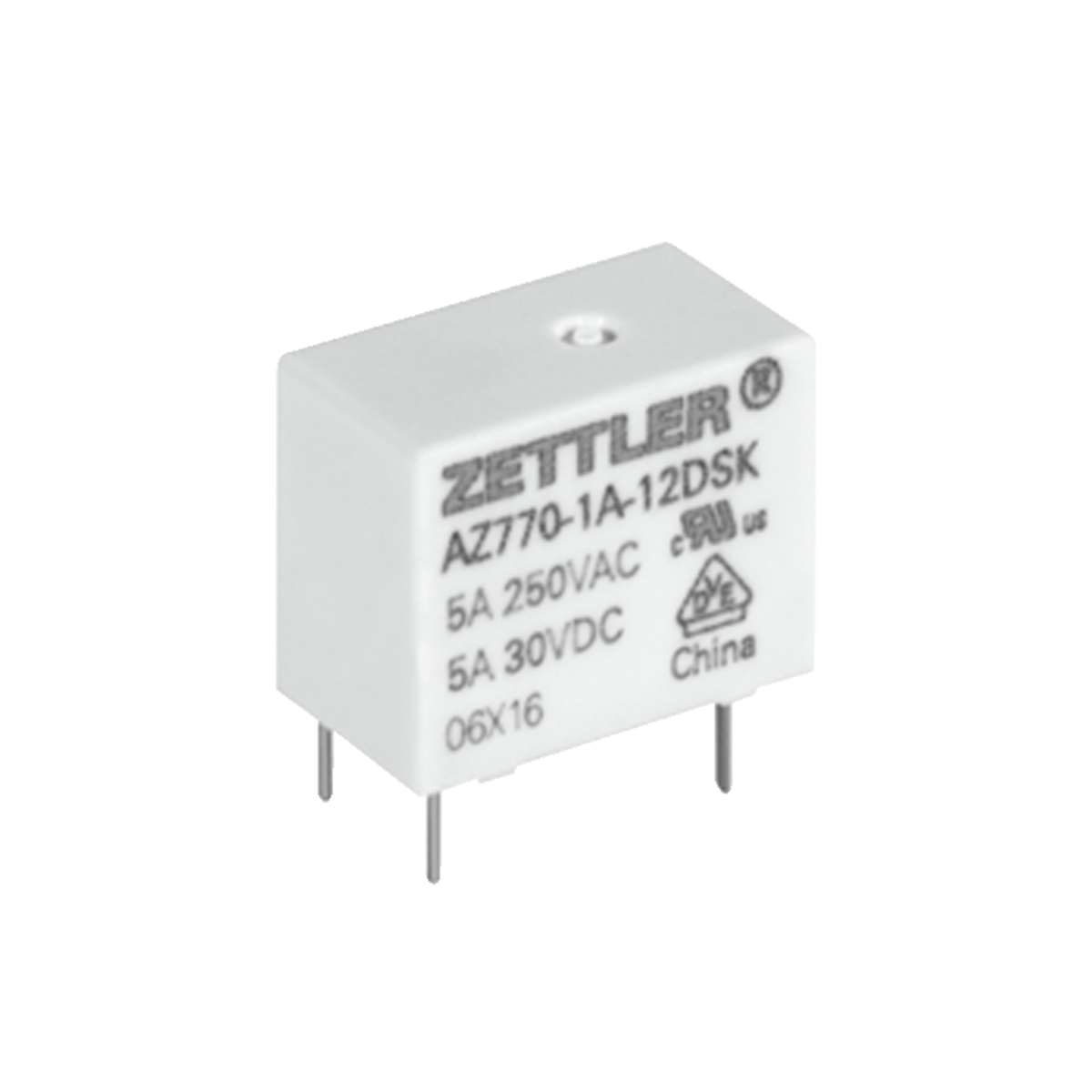

425	Manufacturers Part No. AZ770-1C-12DE (AZ770-1C-12DE) Zettler PC relay AZ770 THT SPST-NO 5A 12VDC 320Ohm 17,85mmx10,35mmx12,55mm	Customer Part No. Customer Project No.	Zettler	2.350 Pcs. Planned Delivery Time Ø 36 Weeks Available (from stock)	(at least 10 or mul. of 10)	AZ770	PC relay	Zettler	SPST-NO	THT	12.0 V DC	5.0 A	320.0 Ohm	17.85 mm	10.35 mm	12.55 mm	AgNi			-40.0 °C	85.0 °C

‹ 1 ··· 15 16 17 18 19 ··· 66 ›
