Results (9)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Rated voltage, min. AC | Rated voltage, max. AC | Rated voltage, min. DC | Rated voltage, max. DC | Switching current | Switching capacity (VA) | contacts | Contact material | Time functions | Dimension: Length | Dimension: Width | Dimension: Height | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

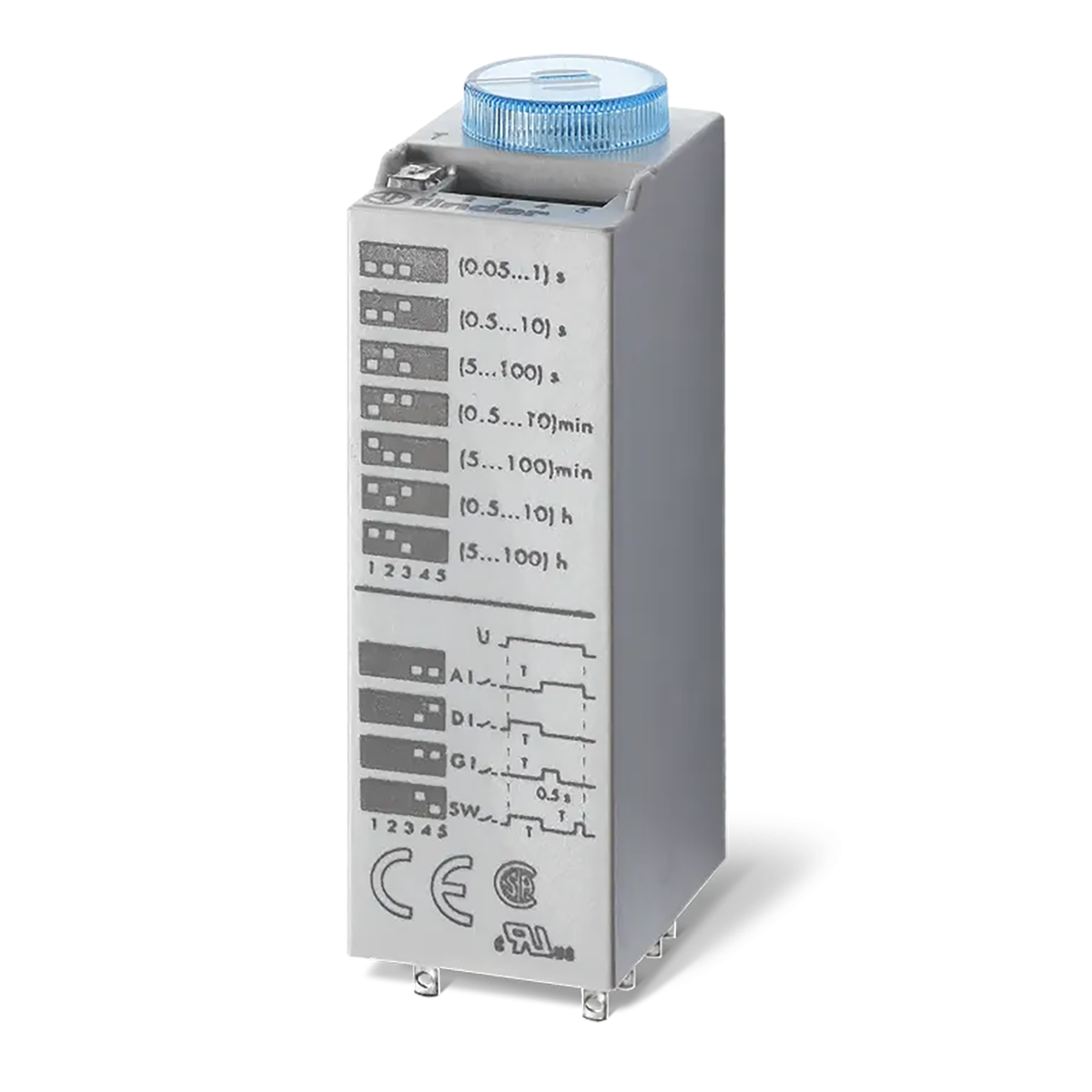

01 | Manufacturers Part No. 85.04.8.240.0000(FZR8504-230) Finder Time relay, multifunction 85 DIN rail 4PDT 5A | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, multifunction | Finder | DIN rail | 230.0 V AC | 240.0 V AC | 5.0 A | 1750.0 VA | 4PDT | AgNi | Fixed pulse (0 5s) Interval ON delay Symmetrical flasher (Starting Pulse ON) | 20.6 mm | 27.4 mm | 59.5 mm | -20.0 °C | 60.0 °C | ||||||||

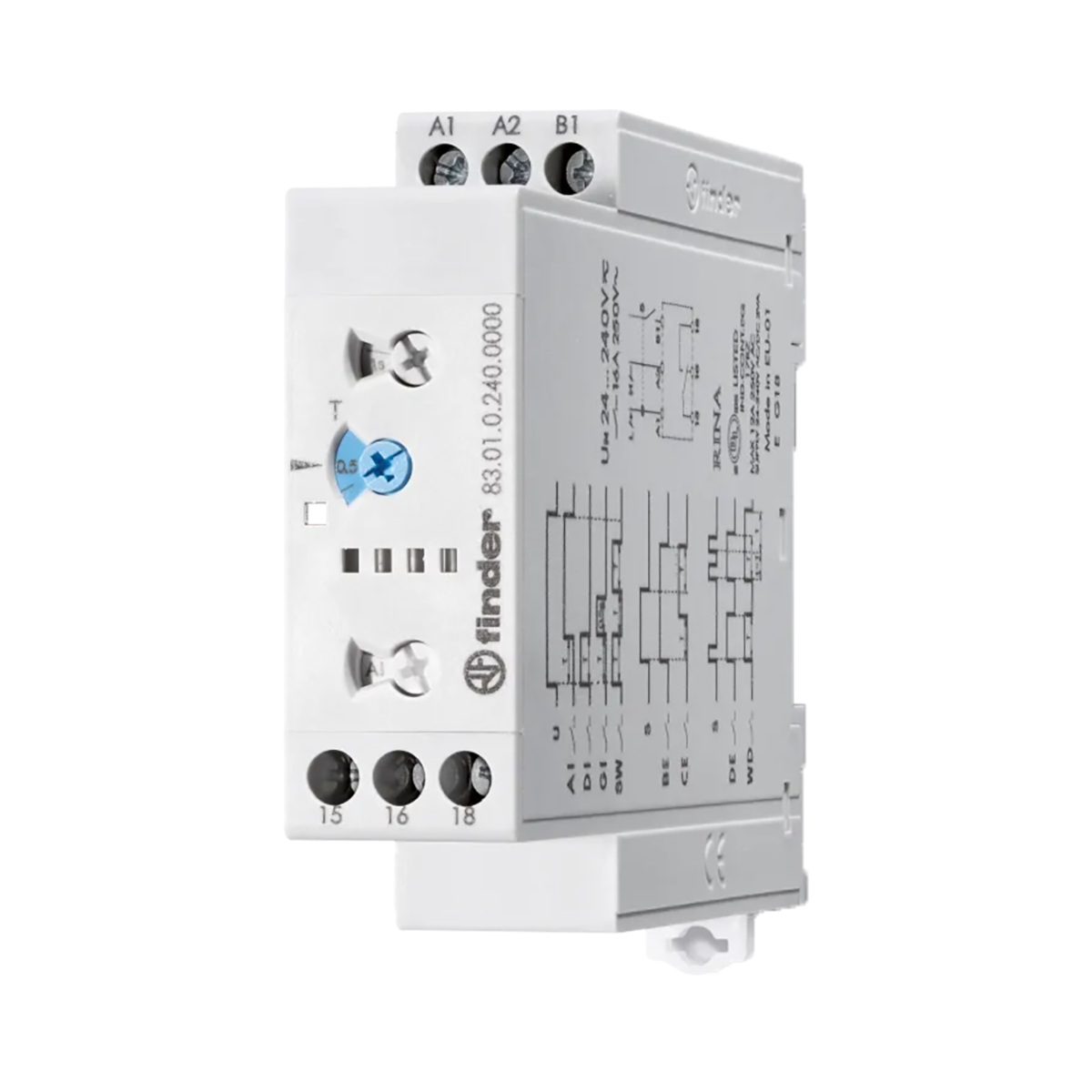

02 | Manufacturers Part No. 83.01.0.240.0000(FZR8301-240) Finder Time relay, multifunction 83 DIN rail SPDT 16A | Customer Part No. Customer Project No. | 1 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, multifunction | Finder | DIN rail | 24.0 V AC | 240.0 V AC | 24.0 V DC | 240.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | Fixed pulse (0 5s) delayed Interval Interval with control signal ON OFF delay with control signal ON and OFF delay with control signal ON delay Symmetrical recycler ON start Watchdog | 100.3 mm | 22.5 mm | 86.2 mm | -20.0 °C | 60.0 °C | ||||||
03 | Manufacturers Part No. 85.02.0.024.0000(FZR8502-24) Finder Time relay, multifunction 85 DIN rail DPDT 10A | Customer Part No. Customer Project No. | 2 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, multifunction | Finder | DIN rail | 24.0 V AC | 24.0 V AC | 24.0 V DC | 24.0 V DC | 10.0 A | 2500.0 VA | DPDT | AgNi | Fixed pulse (0 5s) Interval ON delay Symmetrical flasher (Starting Pulse ON) | 20.6 mm | 27.4 mm | 59.5 mm | -20.0 °C | 60.0 °C | ||||||

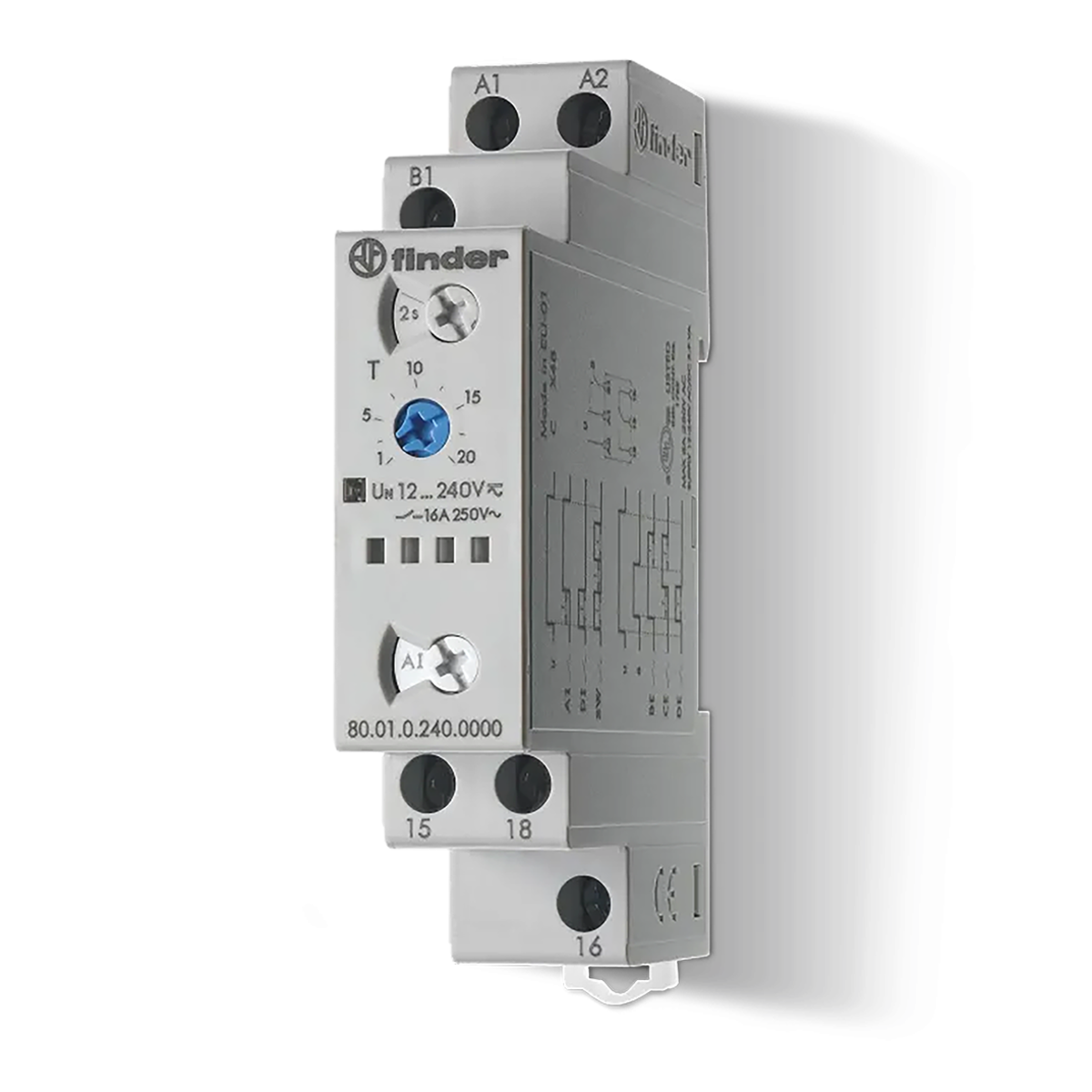

04 | Manufacturers Part No. 80.01.0.240.0000(FZR8001-230) Finder Time relay, multifunction 80 DIN rail SPDT 16A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, multifunction | Finder | DIN rail | 12.0 V AC | 240.0 V AC | 12.0 V DC | 240.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | Fixed pulse (0 5s) Interval ON delay Symmetrical flasher (Starting Pulse ON) | 84.0 mm | 17.5 mm | 68.0 mm | -20.0 °C | 60.0 °C | ||||||

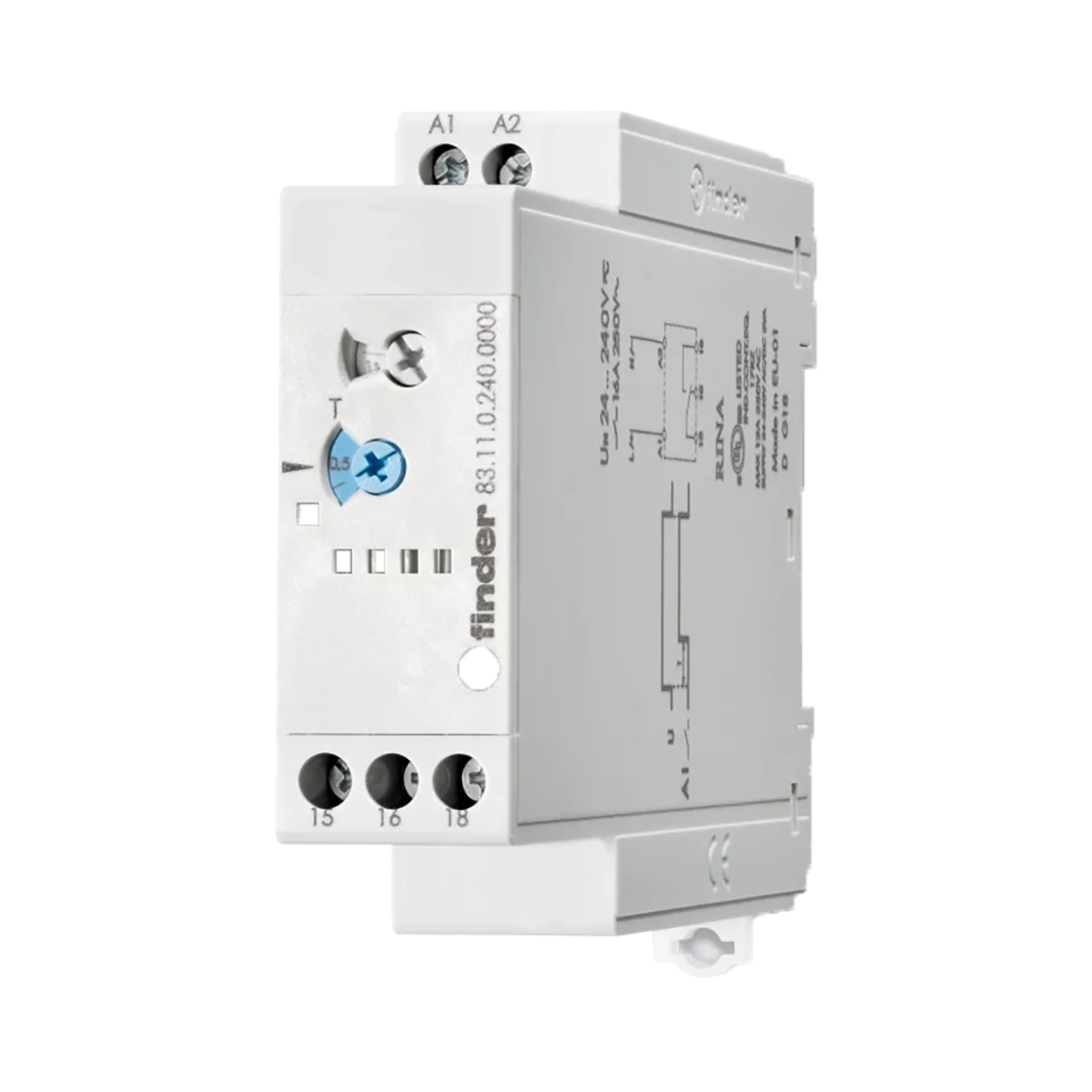

05 | Manufacturers Part No. 83.11.0.240.0000(FZR8311-240) Finder Time relay, multifunction 83 DIN rail SPDT 16A | Customer Part No. Customer Project No. | 1 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, multifunction | Finder | DIN rail | 24.0 V AC | 240.0 V AC | 24.0 V DC | 240.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | ON delay | 100.3 mm | 22.5 mm | 86.2 mm | -20.0 °C | 60.0 °C | ||||||

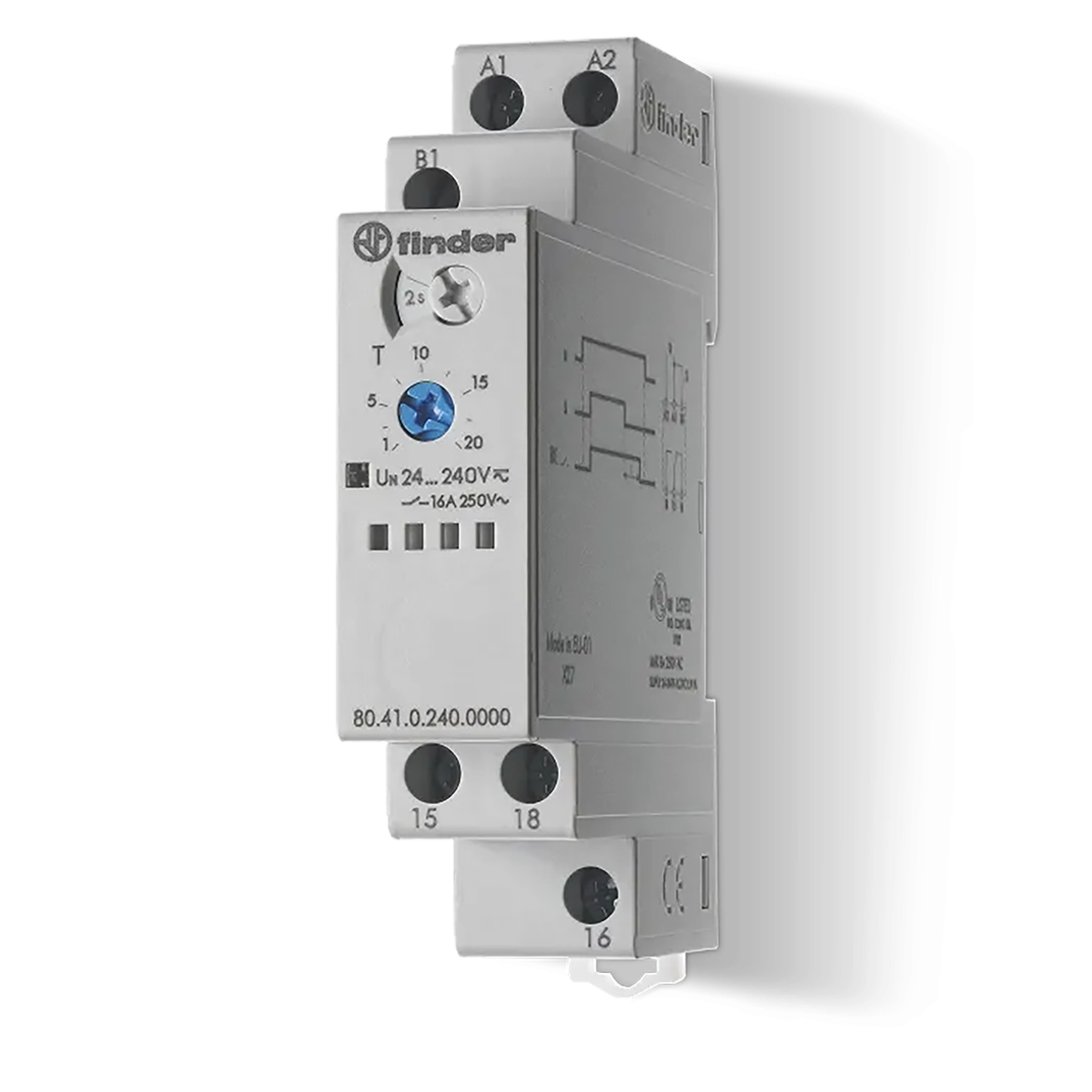

06 | Manufacturers Part No. 80.41.0.240.0000(FZR8041-240) Finder Time relay, mono function 80 DIN rail SPDT 16A | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, mono function | Finder | DIN rail | 24.0 V AC | 240.0 V AC | 24.0 V DC | 240.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | Fixed pulse (0 5s) Interval ON delay Symmetrical flasher (Starting Pulse ON) | 84.0 mm | 17.5 mm | 68.0 mm | -20.0 °C | 60.0 °C | ||||||

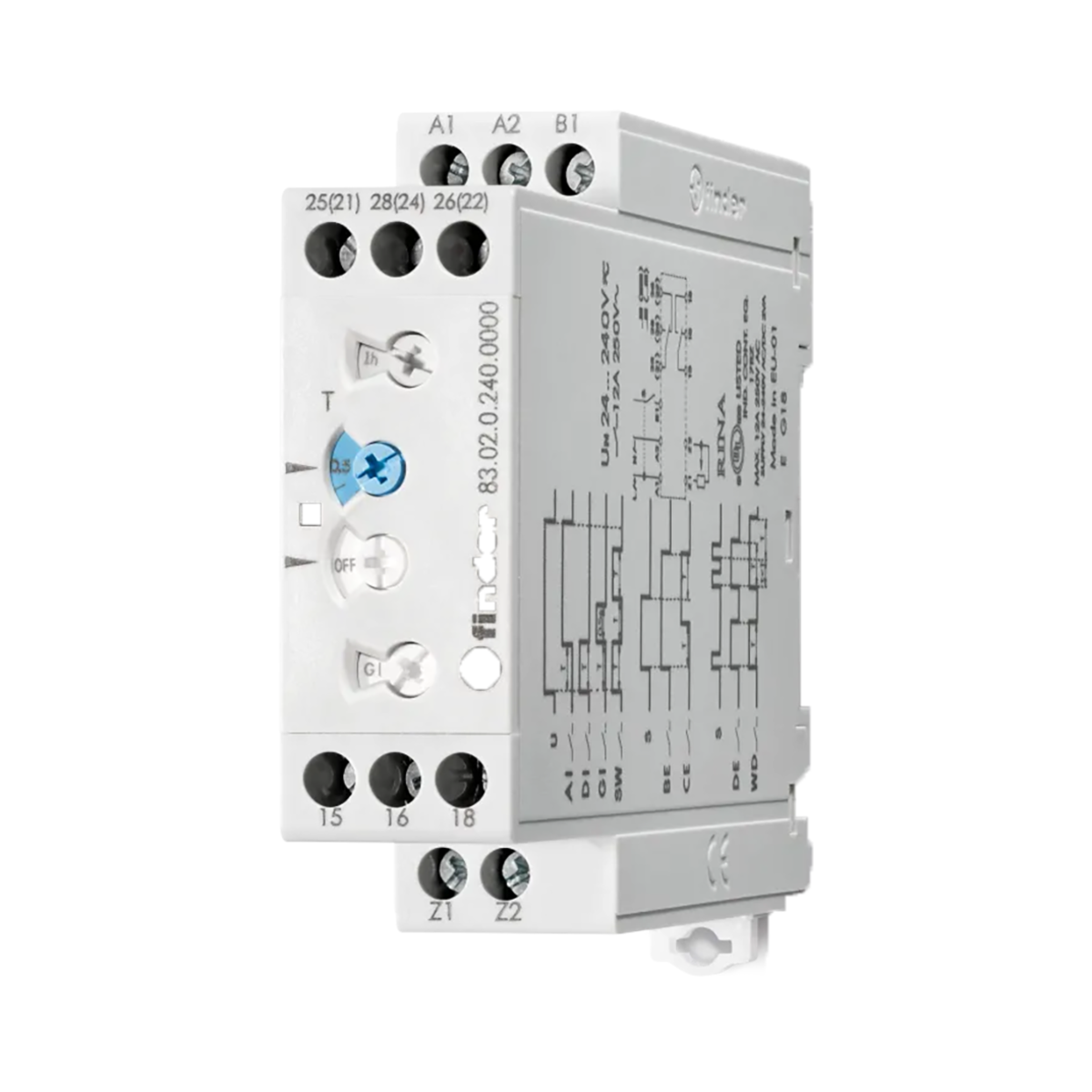

07 | Manufacturers Part No. 83.02.0.240.0000(FZR8302-240) Finder Time relay, multifunction 83 DIN rail DPDT 12A | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, multifunction | Finder | DIN rail | 24.0 V AC | 240.0 V AC | 24.0 V DC | 240.0 V DC | 12.0 A | 3000.0 VA | DPDT | AgNi | Fixed pulse (0 5s) delayed Interval Interval with control signal ON OFF delay with control signal ON and OFF delay with control signal ON delay Symmetrical recycler ON start Watchdog | 100.3 mm | 22.5 mm | 86.2 mm | -20.0 °C | 60.0 °C | ||||||

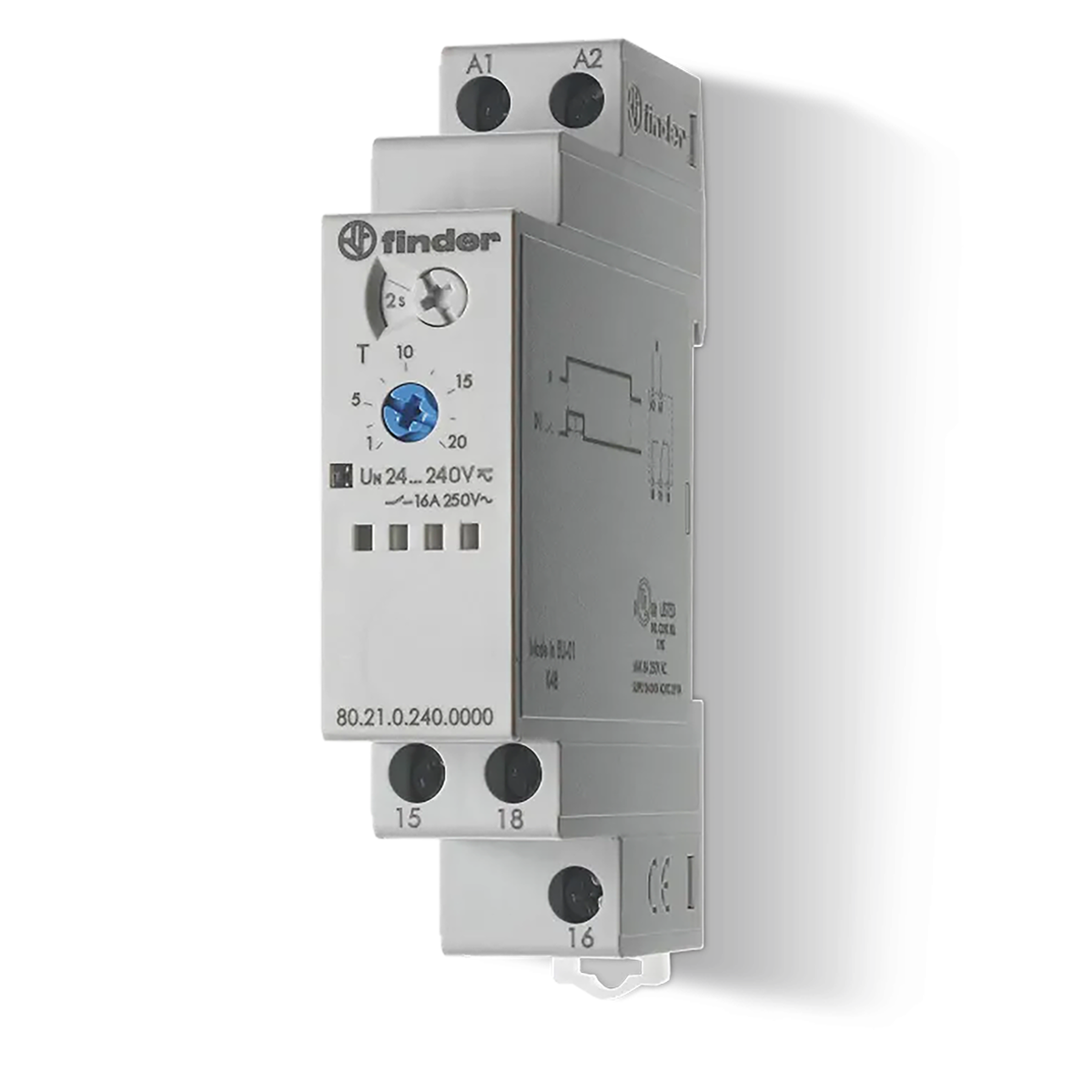

08 | Manufacturers Part No. 80.21.0.240.0000(FZR8021-240) Finder Time relay, mono function 80 DIN rail SPDT 16A | Customer Part No. Customer Project No. | 1 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 1 or mul. of 1) | Time relay, mono function | Finder | DIN rail | 24.0 V AC | 240.0 V AC | 24.0 V DC | 240.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | Fixed pulse (0 5s) Interval ON delay Symmetrical flasher (Starting Pulse ON) | 84.0 mm | 17.5 mm | 68.0 mm | -20.0 °C | 60.0 °C | ||||||

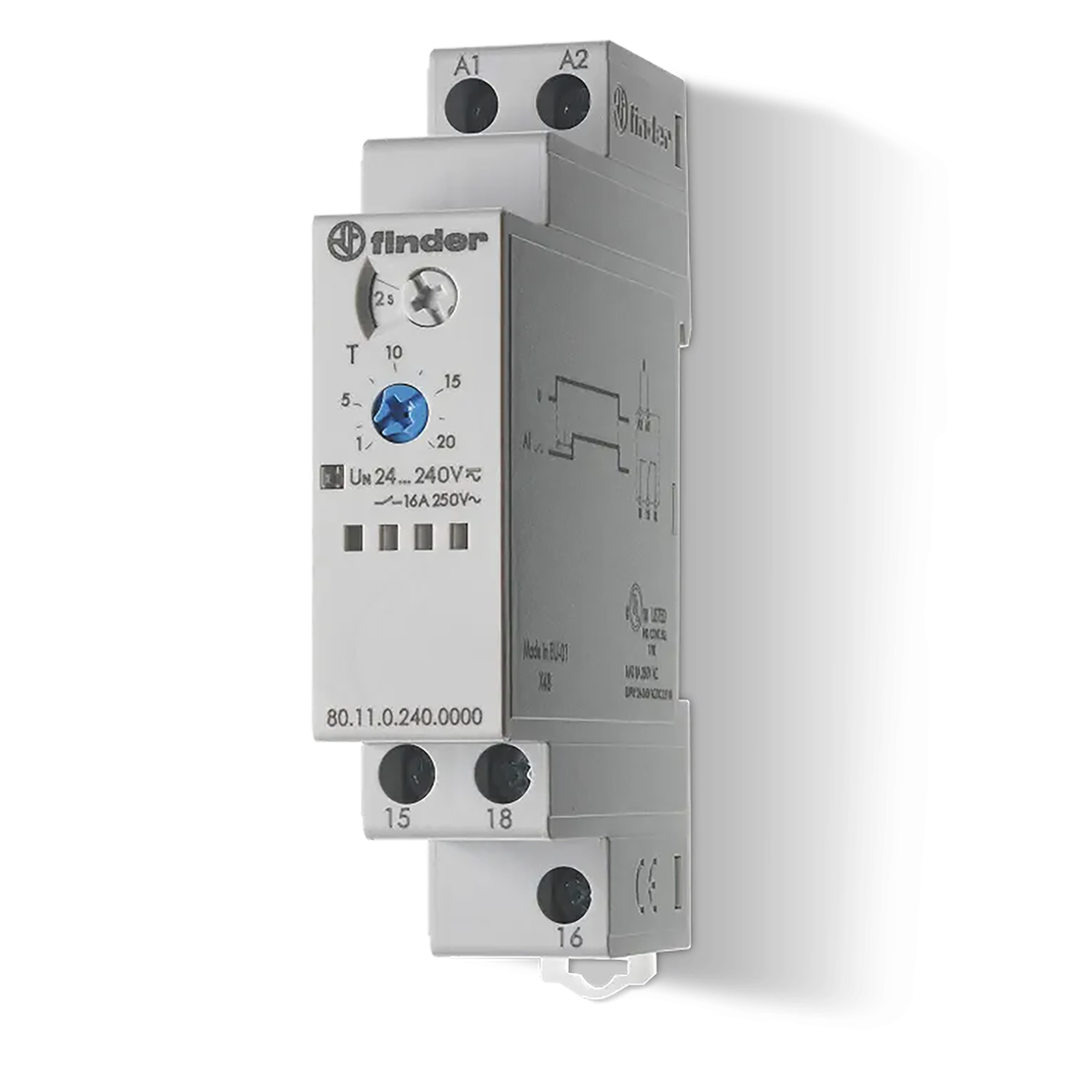

09 | Manufacturers Part No. 80.11.0.240.0000(FZR8011-240) Finder Time relay, mono function 80 DIN rail SPDT 16A | Customer Part No. Customer Project No. | 7 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 1 or mul. of 1) | Time relay, mono function | Finder | DIN rail | 24.0 V AC | 240.0 V AC | 24.0 V DC | 240.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | Fixed pulse (0 5s) Interval ON delay Symmetrical flasher (Starting Pulse ON) | 84.0 mm | 17.5 mm | 68.0 mm | -20.0 °C | 60.0 °C |
