Results (110)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Contact: Breakdown Voltage, min. DC | Coil: Nominal Voltage DC | Coil Resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Dimension: Length | Dimension: Width | Dimension: Height | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

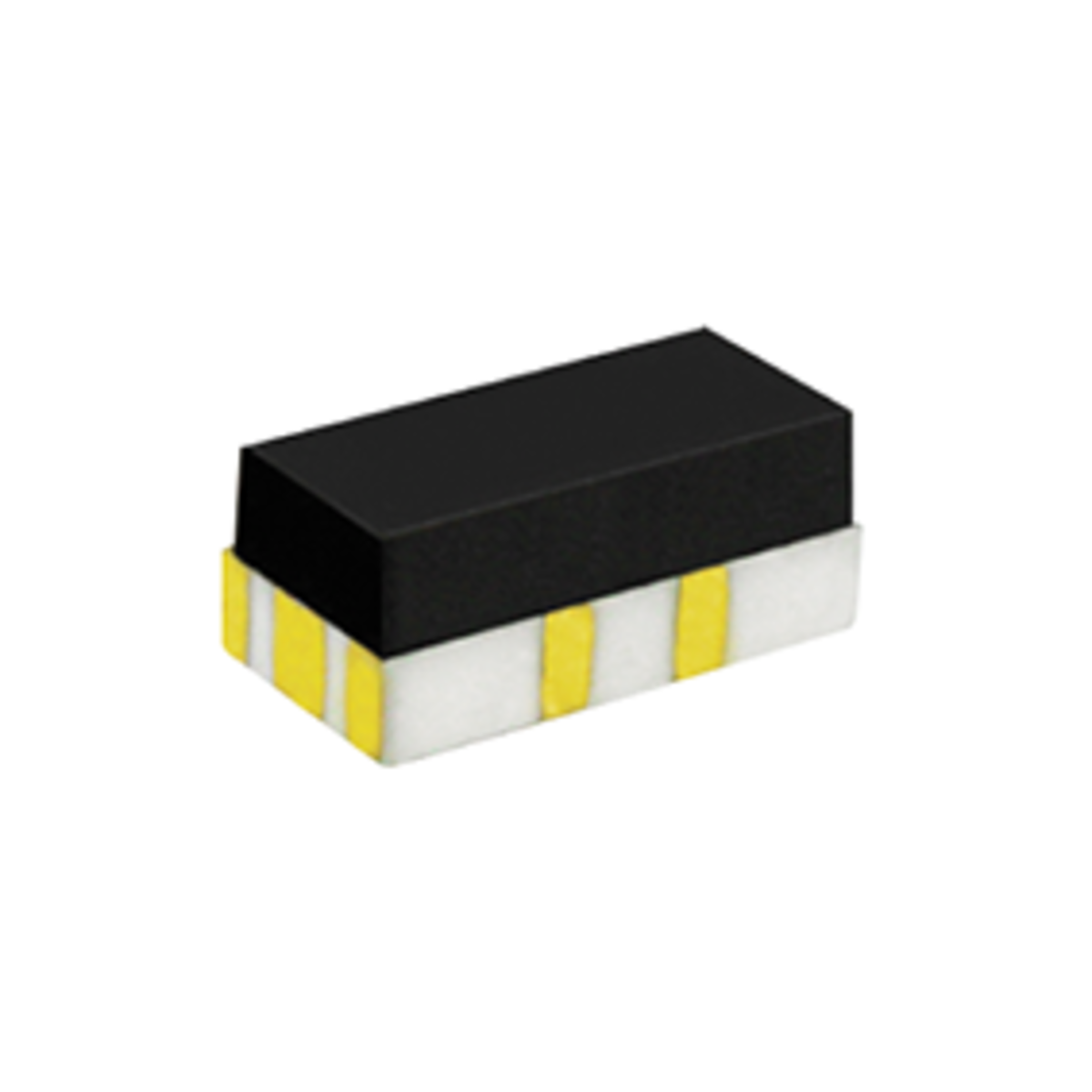

51 |  | Manufacturers Part No. CRR03-1AS(CRR03-1AS) Standex Electronics SMD Reed relay Series CRR SPST-NO 3VDC 0,5A 70Ohm with solder balls | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 1000 or mul. of 1000) | Standex Electronics | SMD | SPST-NO | 0.5 A | 210.0 V DC | 3.0 V DC | 70.0 Ohm | 10.0 W | 8.6 mm | 4.4 mm | 3.6 mm | -40.0 °C | 125.0 °C | ||||||

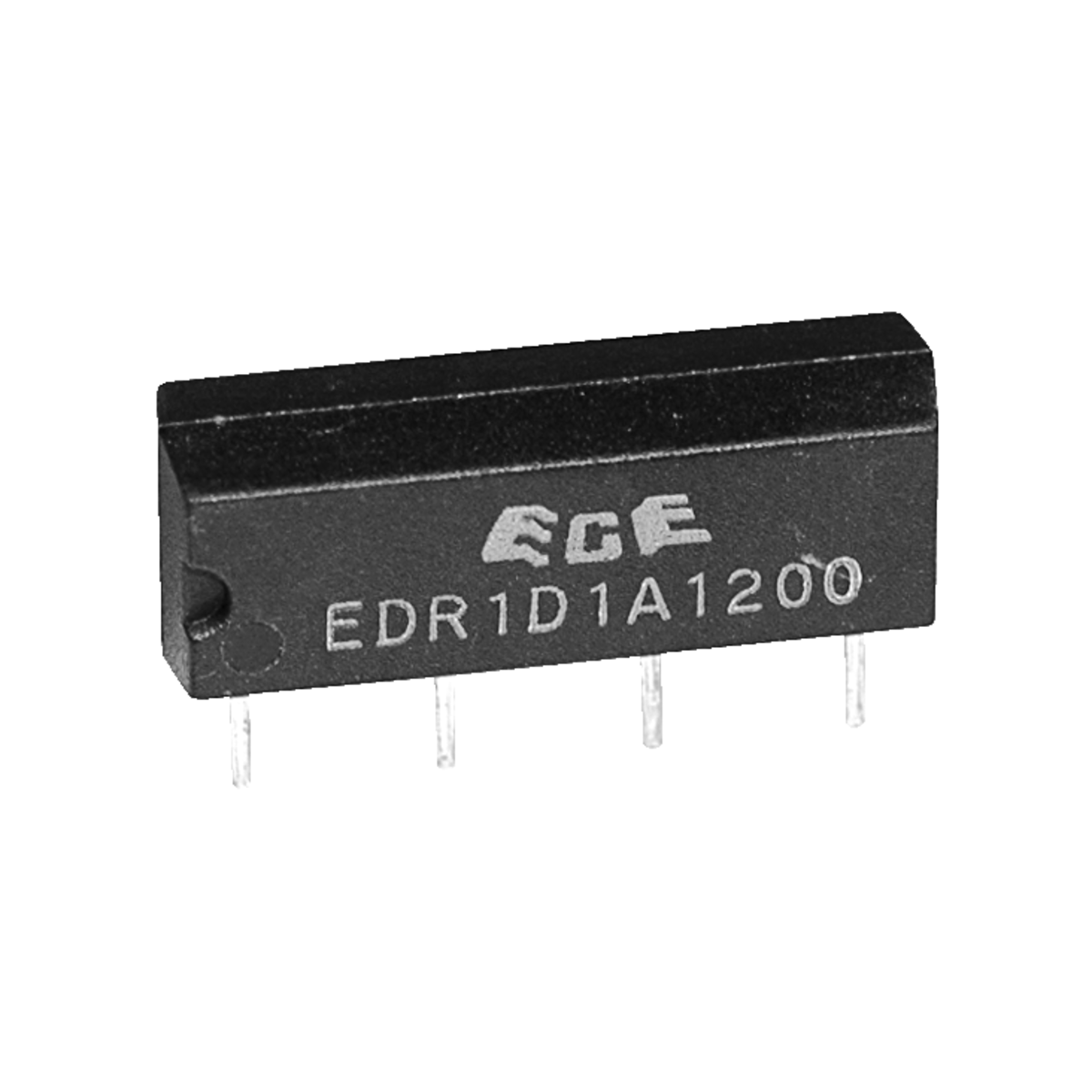

52 | | Manufacturers Part No. EDR101A0500Z(EDR101A0500Z) ECE THT Reed relay SIP SIL Series EDR1 SPST-NO SIP/SIL07 5VDC 0,5A 500Ohm Solder connection | Customer Part No. Customer Project No. | 280 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 14 or mul. of 14) | ECE | THT | SPST-NO | 0.5 A | 5.0 V DC | 500.0 Ohm | 10.0 VA | 10.0 W | 19.0 mm | 5.0 mm | 7.0 mm | -40.0 °C | 85.0 °C | ||||||
53 | | Manufacturers Part No. KT05-1A-40L-SMD(KT05-1A-40L-SMD) Standex Electronics SMD Reed relay Series KT SPST-NO 5VDC 1A 80Ohm Solder connection AEC-Q200 | Customer Part No. Customer Project No. | 260 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 5 or mul. of 5) | Standex Electronics | SMD | SPST-NO | 1.0 A | 3000.0 V DC | 5.0 V DC | 80.0 Ohm | 100.0 W | 30.2 mm | 10.2 mm | 8.7 mm | -40.0 °C | 100.0 °C | ||||||
54 | | Manufacturers Part No. SIL05-1A72-71DHR(SIL05-1A72-71DHR) Standex Electronics THT Reed relay SIP SIL Series SIL SPST-NO SIP/SIL07 5VDC 0,5A 500Ohm Solder connection | Customer Part No. Customer Project No. | 75 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 25 or mul. of 25) | Standex Electronics | THT | SPST-NO | 0.5 A | 250.0 V DC | 5.0 V DC | 500.0 Ohm | 10.0 W | 19.8 mm | 5.08 mm | 7.8 mm | -20.0 °C | 70.0 °C | ||||||
55 | | Manufacturers Part No. LI05-1A85(LI05-1A85) Standex Electronics THT Reed relay Series LI SPST-NO 5VDC 1A 200Ohm Solder connection | Customer Part No. Customer Project No. | 35 Pcs. Planned Delivery Time Ø 36 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST-NO | 1.0 A | 3000.0 V DC | 5.0 V DC | 200.0 Ohm | 100.0 W | 30.0 mm | 10.0 mm | 10.4 mm | -40.0 °C | 100.0 °C | ||||||
56 | | Manufacturers Part No. SIL24-1A75-71L(SIL24-1A75-71L) Standex Electronics THT Reed relay SIP SIL Series SIL SPST-NO SIP/SIL07 24VDC 0,5A 2.000Ohm Solder connection | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 25 or mul. of 25) | Standex Electronics | THT | SPST-NO | 0.5 A | 600.0 V DC | 24.0 V DC | 2000.0 Ohm | 10.0 W | 19.8 mm | 5.08 mm | 7.8 mm | -40.0 °C | 100.0 °C | ||||||
57 | | Manufacturers Part No. DIP12-1A72-12L(DIP121A7212L) Standex Electronics THT Reed relay DIP DIL Series DIP SPST-NO DIP/DIL14 12VDC 0,5A 1.000Ohm Solder connection | Customer Part No. Customer Project No. | 550 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 25 or mul. of 25) | Standex Electronics | THT | SPST-NO | 0.5 A | 250.0 V DC | 12.0 V DC | 1000.0 Ohm | 10.0 W | 19.3 mm | 6.5 mm | 5.1 mm | -20.0 °C | 70.0 °C | ||||||
58 | | Manufacturers Part No. HM12-1A69-20-6(HM12-1A69-20-6) Standex Electronics THT Reed relay Series HM SPST-NO 12VDC 3A 150Ohm Connection cable | Customer Part No. Customer Project No. | 6 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST-NO | 3.0 A | 1500.0 V DC | 12.0 V DC | 150.0 Ohm | 50.0 W | 68.0 mm | 19.0 mm | 19.8 mm | -20.0 °C | 70.0 °C | ||||||
59 | | Manufacturers Part No. HM24-1A69-06(HM24-1A69-06) Standex Electronics THT Reed relay Series HM SPST-NO 24VDC 3A 600Ohm Solder connection | Customer Part No. Customer Project No. | 23 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST-NO | 3.0 A | 1500.0 V DC | 24.0 V DC | 600.0 Ohm | 50.0 W | 68.0 mm | 19.0 mm | 19.8 mm | -20.0 °C | 70.0 °C | ||||||
60 | | Manufacturers Part No. HM24-1A69-150-UL(HM24-1A69-150-UL) Standex Electronics THT Reed relay Series HM SPST-NO 24VDC 3A 600Ohm Connection cable | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST-NO | 3.0 A | 1500.0 V DC | 24.0 V DC | 600.0 Ohm | 50.0 W | 68.0 mm | 19.0 mm | 19.8 mm | -20.0 °C | 70.0 °C | ||||||
61 | | Manufacturers Part No. HM24-1A83-02(HM24-1A83-02) Standex Electronics THT Reed relay Series HM SPST-NO 24VDC 3A 1.000Ohm Solder connection | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST-NO | 3.0 A | 1500.0 V DC | 24.0 V DC | 1000.0 Ohm | 50.0 W | 68.0 mm | 19.0 mm | 19.8 mm | -20.0 °C | 70.0 °C | ||||||
62 | | Manufacturers Part No. HM24-1B69-06(HM24-1B69-06) Standex Electronics THT Reed relay Series HM SPST 24VDC 3A 1.000Ohm Solder connection | Customer Part No. Customer Project No. | 21 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST | 3.0 A | 1500.0 V DC | 24.0 V DC | 1000.0 Ohm | 50.0 W | 68.0 mm | 19.0 mm | 19.8 mm | -20.0 °C | 70.0 °C | ||||||
63 | | Manufacturers Part No. H12-1A83(H12-1A83) Standex Electronics Reed relay Serie H SPST-NO 12VDC 3A 230Ohm Connection cable Screw Mount | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | Screw Mount | SPST-NO | 3.0 A | 1500.0 V DC | 12.0 V DC | 230.0 Ohm | 50.0 W | 54.0 mm | 18.0 mm | 30.0 mm | -20.0 °C | 70.0 °C | ||||||
64 | | Manufacturers Part No. H12-1B69(H12-1B69) Standex Electronics Reed relay Serie H SPST 12VDC 3A 180Ohm Connection cable Screw Mount | Customer Part No. Customer Project No. | 12 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | Screw Mount | SPST | 3.0 A | 1500.0 V DC | 12.0 V DC | 180.0 Ohm | 50.0 W | 54.0 mm | 18.0 mm | 30.0 mm | -20.0 °C | 70.0 °C | ||||||
65 | | Manufacturers Part No. H12-1B83(H12-1B83) Standex Electronics Reed relay Serie H SPST 12VDC 3A 180Ohm Connection cable Screw Mount | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | Screw Mount | SPST | 3.0 A | 1500.0 V DC | 12.0 V DC | 180.0 Ohm | 50.0 W | 54.0 mm | 18.0 mm | 30.0 mm | -20.0 °C | 70.0 °C | ||||||
66 | | Manufacturers Part No. H24-1A69(H24-1A69) Standex Electronics Reed relay Serie H SPST-NO 24VDC 3A 700Ohm Connection cable Screw Mount | Customer Part No. Customer Project No. | 6 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | Screw Mount | SPST-NO | 3.0 A | 1500.0 V DC | 24.0 V DC | 700.0 Ohm | 50.0 W | 54.0 mm | 18.0 mm | 30.0 mm | -20.0 °C | 70.0 °C | ||||||
67 | | Manufacturers Part No. H24-1B69(H24-1B69) Standex Electronics Reed relay Serie H SPST 24VDC 3A 360Ohm Connection cable Screw Mount | Customer Part No. Customer Project No. | 9 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | Screw Mount | SPST | 3.0 A | 1500.0 V DC | 24.0 V DC | 360.0 Ohm | 50.0 W | 54.0 mm | 18.0 mm | 30.0 mm | -20.0 °C | 70.0 °C | ||||||
68 | | Manufacturers Part No. H24-1B83(H24-1B83) Standex Electronics Reed relay Serie H SPST 24VDC 3A 360Ohm Connection cable Screw Mount | Customer Part No. Customer Project No. | 7 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | Screw Mount | SPST | 3.0 A | 1500.0 V DC | 24.0 V DC | 360.0 Ohm | 50.0 W | 54.0 mm | 18.0 mm | 30.0 mm | -20.0 °C | 70.0 °C | ||||||
69 | | Manufacturers Part No. SIL05-1A72-71LHR(SIL05-1A72-71LHR) Standex Electronics THT Reed relay SIP SIL Series SIL SPST-NO SIP/SIL07 5VDC 0,5A 500Ohm Solder connection | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 25 or mul. of 25) | Standex Electronics | THT | SPST-NO | 0.5 A | 250.0 V DC | 5.0 V DC | 500.0 Ohm | 10.0 W | 19.8 mm | 5.08 mm | 7.8 mm | -20.0 °C | 70.0 °C | ||||||
70 | | Manufacturers Part No. SIL05-1A72-74L(SIL05-1A72-74L) Standex Electronics THT Reed relay SIP SIL Series SIL SPST-NO SIP/SIL07 5VDC 0,5A 500Ohm Solder connection | Customer Part No. Customer Project No. | 75 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 25 or mul. of 25) | Standex Electronics | THT | SPST-NO | 0.5 A | 250.0 V DC | 5.0 V DC | 500.0 Ohm | 10.0 W | 19.8 mm | 5.08 mm | 7.8 mm | -20.0 °C | 70.0 °C | ||||||
71 | | Manufacturers Part No. DIP05-1A72-13L(DIP051A7213L) Standex Electronics THT Reed relay DIP DIL Series DIP SPST-NO DIP/DIL14 5VDC 0,5A 500Ohm Solder connection | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 5 or mul. of 5) | Standex Electronics | THT | SPST-NO | 0.5 A | 250.0 V DC | 5.0 V DC | 500.0 Ohm | 10.0 W | 19.3 mm | 6.5 mm | 5.1 mm | -20.0 °C | 70.0 °C | ||||||
72 | | Manufacturers Part No. DIP24-1A72-13L(DIP241A7213L) Standex Electronics THT Reed relay DIP DIL Series DIP SPST-NO DIP/DIL14 24VDC 0,5A 2.000Ohm Solder connection | Customer Part No. Customer Project No. | 55 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 5 or mul. of 5) | Standex Electronics | THT | SPST-NO | 0.5 A | 250.0 V DC | 24.0 V DC | 2000.0 Ohm | 10.0 W | 19.3 mm | 7.0 mm | 7.5 mm | -20.0 °C | 70.0 °C | ||||||
73 | | Manufacturers Part No. HE24-1A69-03(HE24-1A69-03) Standex Electronics THT Reed relay Series HE SPST-NO 24VDC 3A 465Ohm Solder connection | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Standex Electronics | THT | SPST-NO | 3.0 A | 1500.0 V DC | 24.0 V DC | 465.0 Ohm | 50.0 W | 65.0 mm | 14.5 mm | 15.5 mm | -20.0 °C | 70.0 °C | ||||||
74 | | Manufacturers Part No. HE06-1B83-150(HE06-1B83-150) Standex Electronics THT Reed relay Series HE SPST 6VDC 3A 105Ohm Connection cable | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 20 or mul. of 20) | Standex Electronics | THT | SPST | 3.0 A | 1500.0 V DC | 6.0 V DC | 105.0 Ohm | 50.0 W | 65.0 mm | 22.7 mm | 15.8 mm | -20.0 °C | 70.0 °C | ||||||
75 | | Manufacturers Part No. DIP05-1C90-51L(DIP051C9051L) Standex Electronics THT Reed relay DIP DIL Series DIP SPDT DIP/DIL14 5VDC 0,5A 200Ohm Solder connection | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Standex Electronics | THT | SPDT | 0.5 A | 200.0 V DC | 5.0 V DC | 200.0 Ohm | 10.0 W | 19.3 mm | 6.5 mm | 5.1 mm | -20.0 °C | 70.0 °C |
