Results (1085)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
801 |  | Manufacturers Part No. DK1A1B-12V(DK1A1B-12V) Panasonic PC relay DK THT DPDT 8A 12VDC 720Ohm 20mmx12,5mmx10mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Panasonic | THT | DPDT | 8.0 A | 12.0 V DC | 720.0 Ohm | 2000.0 VA | 125.0 W | AgNi/Au | 20.0 mm | 12.5 mm | 10.0 mm | RTIII | -40.0 °C | 65.0 °C | |||||||
802 | | Manufacturers Part No. AZ6962-1CE-24DE(AZ6962-1CE-24DE) Zettler PC relay AZ6962 THT SPDT 10A 24VDC 2.350Ohm 28,5mmx10,1mmx12,5mm | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 10.0 A | 24.0 V DC | 2350.0 Ohm | 2500.0 VA | 300.0 W | AgSnO2 | 28.5 mm | 10.1 mm | 12.5 mm | -40.0 °C | 85.0 °C | ||||||||
803 | | Manufacturers Part No. FTR-K1AK005T(FTRK1AK005W) FCL Components PC relay FTR-K1 THT SPST-NO 16A 5VDC 62Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPST-NO | 16.0 A | 5.0 V DC | 62.0 Ohm | 4000.0 VA | 384.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | |||||||
804 | | Manufacturers Part No. FTR-K1AK012T(FTRK1AK012W) FCL Components PC relay FTR-K1 THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPST-NO | 16.0 A | 12.0 V DC | 360.0 Ohm | 4000.0 VA | 384.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | |||||||
805 | | Manufacturers Part No. FTR-K1CK012W(FTRK1CK012W) FCL Components PC relay FTR-K1 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 2.045 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPDT | 16.0 A | 12.0 V DC | 360.0 Ohm | 4000.0 VA | 384.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | |||||||
806 | | Manufacturers Part No. AZ763-1C-12DE(AZ763-1C-12DE) Zettler PC relay AZ763 THT SPDT 12A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 1.300 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 12.0 A | 12.0 V DC | 360.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
807 | | Manufacturers Part No. AZ763-1C-24D(AZ763-1C-24D) Zettler PC relay AZ763 THT SPDT 12A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 850 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 12.0 A | 24.0 V DC | 1440.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
808 | | Manufacturers Part No. AZ763-1C-5D(AZ763-1C-5D) Zettler PC relay AZ763 THT SPDT 12A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPDT | 12.0 A | 5.0 V DC | 60.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
809 | | Manufacturers Part No. AZ763-1C-5DE(AZ763-1C-5DE) Zettler PC relay AZ763 THT SPDT 12A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 850 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 12.0 A | 5.0 V DC | 60.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
810 | | Manufacturers Part No. AZ763-1C-6D(AZ763-1C-6D) Zettler PC relay AZ763 THT SPDT 12A 6VDC 90Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPDT | 12.0 A | 6.0 V DC | 90.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
811 | | Manufacturers Part No. AZ763-1A-5D(AZ763-1A-5D) Zettler PC relay AZ763 THT SPST-NO 12A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 780 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 12.0 A | 5.0 V DC | 60.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
812 | | Manufacturers Part No. 5-1393243-6(RT424F24B) TE Connectivity PC relay RT2 Bistabil THT DPDT 8A 24VDC 886Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 435 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 5 or mul. of 5) | TE Connectivity | THT | DPDT | 8.0 A | 24.0 V DC | 886.0 Ohm | 2000.0 VA | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
813 | | Manufacturers Part No. 3-1393240-5(RT33L024) TE Connectivity PC relay RT1 Inrush THT SPDT-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII TOP | Customer Part No. Customer Project No. | 880 Pcs. Available (from stock) | (at least 10 or mul. of 10) | TE Connectivity | THT | SPDT-NO | 16.0 A | 24.0 V DC | 1440.0 Ohm | 4000.0 VA | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
814 | | Manufacturers Part No. AZ743-2AB-24DEF(AZ743-2AB-24DEF) Zettler PC relay AZ743 THT DPST-NO 10A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 51 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | DPST-NO | 10.0 A | 24.0 V DC | 1440.0 Ohm | 2500.0 VA | 240.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
815 | | Manufacturers Part No. RM85-3021-35-1012(RM85-3021-35-1012) RELPOL PC relay RM85 THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 420 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | RELPOL | THT | SPST-NO | 16.0 A | 12.0 V DC | 360.0 Ohm | 4000.0 VA | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | |||||||
816 | | Manufacturers Part No. RM85-2011-35-1012(RM85-2011-35-1012) RELPOL PC relay RM85 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 1.220 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | RELPOL | THT | SPDT | 16.0 A | 12.0 V DC | 360.0 Ohm | 4000.0 VA | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | |||||||
817 | | Manufacturers Part No. AZ743-2CB-12DEF(AZ743-2CB-12DEF) Zettler PC relay AZ743 THT DPDT 10A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 51 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | DPDT | 10.0 A | 12.0 V DC | 360.0 Ohm | 2500.0 VA | 240.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
818 | | Manufacturers Part No. RM85-2021-35-1024(RM85-2021-35-1024) RELPOL PC relay RM85 THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 950 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | RELPOL | THT | SPST-NO | 16.0 A | 24.0 V DC | 1440.0 Ohm | 4000.0 VA | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | |||||||
819 | | Manufacturers Part No. AZ762-1AE-12DIF(AZ762-1AE-12DIF) Zettler PC relay AZ762 THT SPST-NO 20A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 74 Weeks Available on order | (at least 1000 or mul. of 500) | Zettler | THT | SPST-NO | 20.0 A | 12.0 V DC | 360.0 Ohm | 5540.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
820 | | Manufacturers Part No. AZ762-1AE-24DIF(AZ762-1AE-24DIF) Zettler PC relay AZ762 THT SPST-NO 20A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 74 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPST-NO | 20.0 A | 24.0 V DC | 1440.0 Ohm | 5540.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||

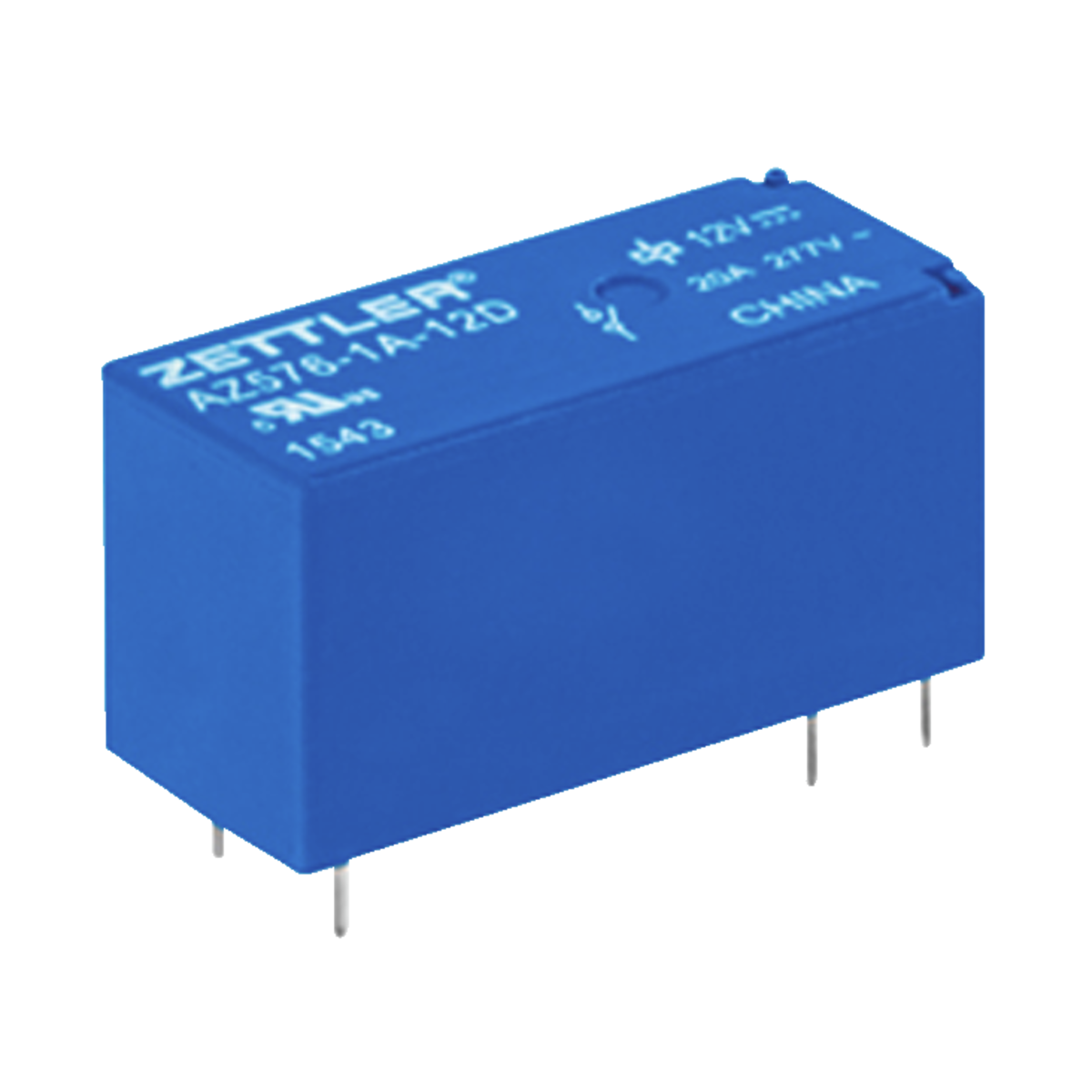

821 | | Manufacturers Part No. AZ576-1C-12D(AZ576-1C-12D) Zettler PC relay AZ576 THT SPDT 20A 12VDC 360Ohm 29,3mmx12,7mmx15,3mm | Customer Part No. Customer Project No. | 4.440 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 20.0 A | 12.0 V DC | 360.0 Ohm | 5540.0 VA | 510.0 W | AgSnO2 | 29.3 mm | 12.7 mm | 15.3 mm | -40.0 °C | 105.0 °C | ||||||||
822 | | Manufacturers Part No. HF115F/24-2ZS4A(HF115F-24-2ZS-4A) Hongfa PC relay HF115F THT DPDT 8A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 325 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | DPDT | 8.0 A | 24.0 V DC | 1440.0 Ohm | 2000.0 VA | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
823 | | Manufacturers Part No. AZ764H-1A-5DS(AZ764H-1A-5DS) Zettler PC relay AZ764H THT SPST-NO 16A 5VDC 102Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPST-NO | 16.0 A | 5.0 V DC | 102.0 Ohm | 4000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 105.0 °C | ||||||||
824 | | Manufacturers Part No. RM87N-2011-35-5230(RM87N-2011-35-5230) RELPOL PC relay RM87 THT SPDT 12A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | RELPOL | THT | SPDT | 12.0 A | 230.0 V AC | 38500.0 Ohm | 3000.0 VA | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | IP67 | RTIII | -40.0 °C | 70.0 °C | |||||||
825 | | Manufacturers Part No. 36.11.9.012.4011(F36119-012A) Finder PC relay 36.11 THT SPDT 10A 12VDC 400Ohm 18,8mmx15,2mmx15,5mm RTIII TOP | Customer Part No. Customer Project No. | 825 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 25 or mul. of 25) | Finder | THT | SPDT | 10.0 A | 12.0 V DC | 400.0 Ohm | 2500.0 VA | AgSnO2 | 18.8 mm | 15.2 mm | 15.5 mm | RTIII | -40.0 °C | 85.0 °C |
