Results (1085)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
751 |  | Manufacturers Part No. AZ763-1C-24DE(AZ763-1C-24DE) Zettler PC relay AZ763 THT SPDT 12A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 12.0 A | 24.0 V DC | 1440.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
752 | | Manufacturers Part No. AZ764-1A-5D(AZ764-1A-5D) Zettler PC relay AZ764 THT SPST-NO 16A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPST-NO | 16.0 A | 5.0 V DC | 60.0 Ohm | 5000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
753 | | Manufacturers Part No. AZ764-1AE-12D(AZ764-1AE-12D) Zettler PC relay AZ764 THT SPST-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 740 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 16.0 A | 12.0 V DC | 360.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
754 | | Manufacturers Part No. AZ764-1AE-24D(AZ764-1AE-24D) Zettler PC relay AZ764 THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 16.0 A | 24.0 V DC | 1440.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
755 | | Manufacturers Part No. AZ764-1AE-5D(AZ764-1AE-5D) Zettler PC relay AZ764 THT SPST-NO 16A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPST-NO | 16.0 A | 5.0 V DC | 60.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
756 | | Manufacturers Part No. AZ764-1AT-12D(AZ764-1AT-12D) Zettler PC relay AZ764 THT SPST-NO 16A 12VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 870 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 16.0 A | 12.0 V DC | 60.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
757 | | Manufacturers Part No. AZ764-1AT-24D(AZ764-1AT-24D) Zettler PC relay AZ764 THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 16.0 A | 24.0 V DC | 1440.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
758 | | Manufacturers Part No. AZ764-1C-12DE(AZ764-1C-12DE) Zettler PC relay AZ764 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 970 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 16.0 A | 12.0 V DC | 360.0 Ohm | 5000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
759 | | Manufacturers Part No. AZ764-1C-24D(AZ764-1C-24D) Zettler PC relay AZ764 THT SPDT 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 830 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 16.0 A | 24.0 V DC | 1440.0 Ohm | 5000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
760 | | Manufacturers Part No. AZ764-1C-24DE(AZ764-1C-24DE) Zettler PC relay AZ764 THT SPDT 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 910 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 16.0 A | 24.0 V DC | 1440.0 Ohm | 5000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
761 | | Manufacturers Part No. AZ764-1C-5D(AZ764-1C-5D) Zettler PC relay AZ764 THT SPDT 16A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPDT | 16.0 A | 5.0 V DC | 60.0 Ohm | 5000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
762 | | Manufacturers Part No. AZ764-1CE-12D(AZ764-1CE-12D) Zettler PC relay AZ764 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 690 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 16.0 A | 12.0 V DC | 360.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
763 | | Manufacturers Part No. AZ764-1CE-230A(AZ764-1CE-230A) Zettler PC relay AZ764 THT SPDT 16A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 16.0 A | 230.0 V AC | 38500.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
764 | | Manufacturers Part No. AZ764-1CE-5D(AZ764-1CE-5D) Zettler PC relay AZ764 THT SPDT 16A 5VDC 60Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPDT | 16.0 A | 5.0 V DC | 60.0 Ohm | 5000.0 VA | 480.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
765 | | Manufacturers Part No. RM85-2011-35-1024(RM85-2011-35-1024) RELPOL PC relay RM85 THT SPDT 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 160 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | RELPOL | THT | SPDT | 16.0 A | 24.0 V DC | 1440.0 Ohm | 4000.0 VA | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | |||||||
766 | | Manufacturers Part No. AZ763-1A-24D(AZ763-1A-24D) Zettler PC relay AZ763 THT SPST-NO 12A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 410 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 12.0 A | 24.0 V DC | 1440.0 Ohm | 3000.0 VA | 300.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
767 | | Manufacturers Part No. RM85-3021-35-1024(RM85-3021-35-1024) RELPOL PC relay RM85 THT SPST-NO 16A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | RELPOL | THT | SPST-NO | 16.0 A | 24.0 V DC | 1440.0 Ohm | 4000.0 VA | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | |||||||
768 | | Manufacturers Part No. FTR-K1CK005W(FTRK1CK005W) FCL Components PC relay FTR-K1 THT SPDT 16A 5VDC 62Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 480 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPDT | 16.0 A | 5.0 V DC | 62.0 Ohm | 4000.0 VA | 384.0 W | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | |||||||

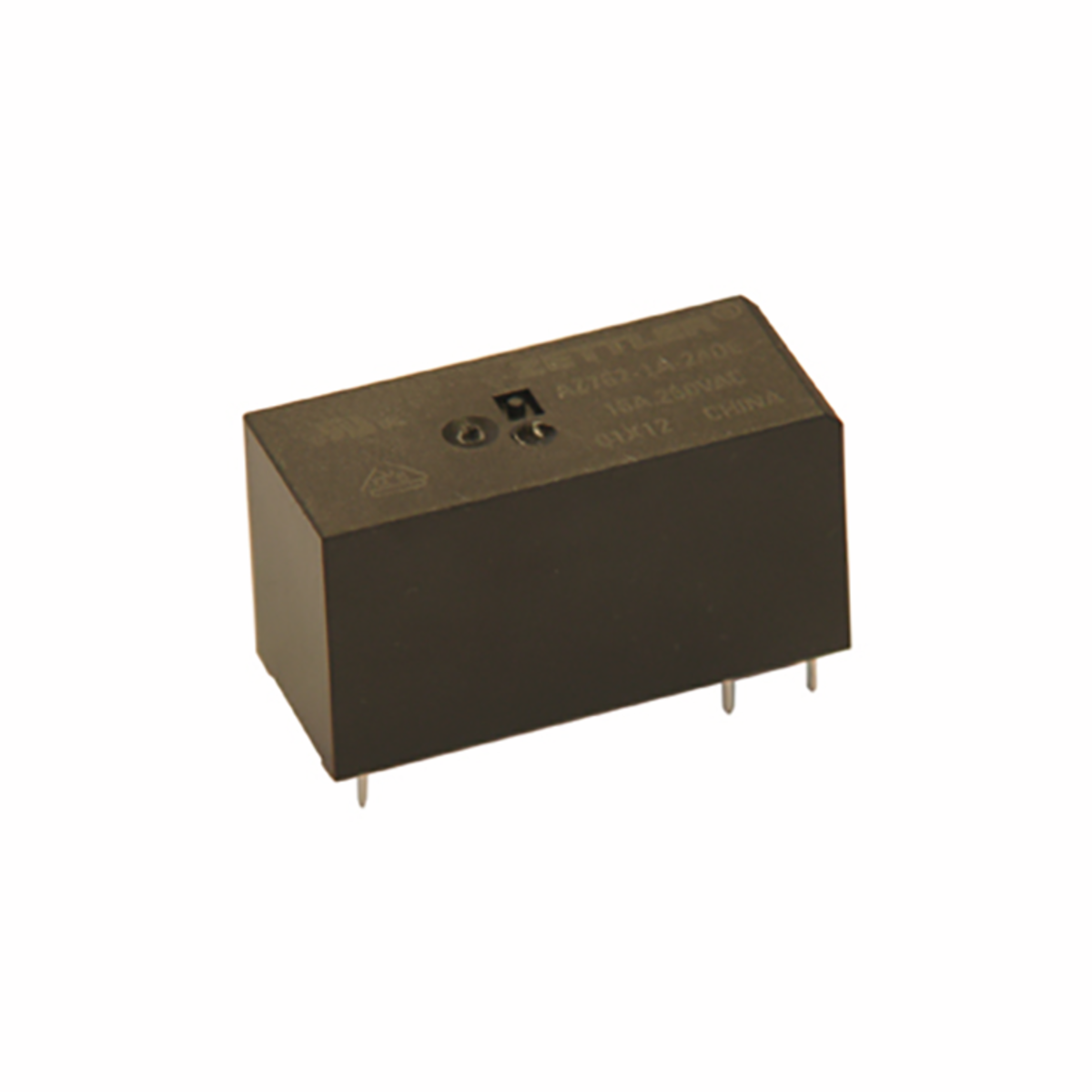

769 | | Manufacturers Part No. AZ762-1CB-12DEF(AZ762-1CB-12DEF) Zettler PC relay AZ762 THT SPDT 20A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 74 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPDT | 20.0 A | 12.0 V DC | 360.0 Ohm | 5540.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
770 | | Manufacturers Part No. AZ743-2AB-12DEF(AZ743-2AB-12DEF) Zettler PC relay AZ743 THT DPST-NO 10A 12VDC 360Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 51 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | DPST-NO | 10.0 A | 12.0 V DC | 360.0 Ohm | 2500.0 VA | 240.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
771 | | Manufacturers Part No. 8-1415546-8(RP314-24) TE Connectivity PC relay RPII/1 THT SPDT 16A 24VDC 1.100Ohm 29mmx12,6mmx25,5mm RTII | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 39 Weeks Available (from stock) | (at least 10 or mul. of 10) | TE Connectivity | THT | SPDT | 16.0 A | 24.0 V DC | 1100.0 Ohm | 4000.0 VA | AgNi | 29.0 mm | 12.6 mm | 25.5 mm | RTII | -40.0 °C | 70.0 °C | ||||||||
772 | | Manufacturers Part No. AZ576-1A-24D(AZ576-1A-24D) Zettler PC relay AZ576 THT SPST-NO 20A 24VDC 1.440Ohm 29,3mmx12,7mmx15,3mm | Customer Part No. Customer Project No. | 1.960 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 20.0 A | 24.0 V DC | 1440.0 Ohm | 5540.0 VA | 510.0 W | AgSnO2 | 29.3 mm | 12.7 mm | 15.3 mm | -40.0 °C | 105.0 °C | ||||||||
773 | | Manufacturers Part No. HF115F/012-2ZS4A(HF115F-12-2ZS-4A) Hongfa PC relay HF115F THT DPDT 8A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | DPDT | 8.0 A | 12.0 V DC | 360.0 Ohm | 2000.0 VA | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||

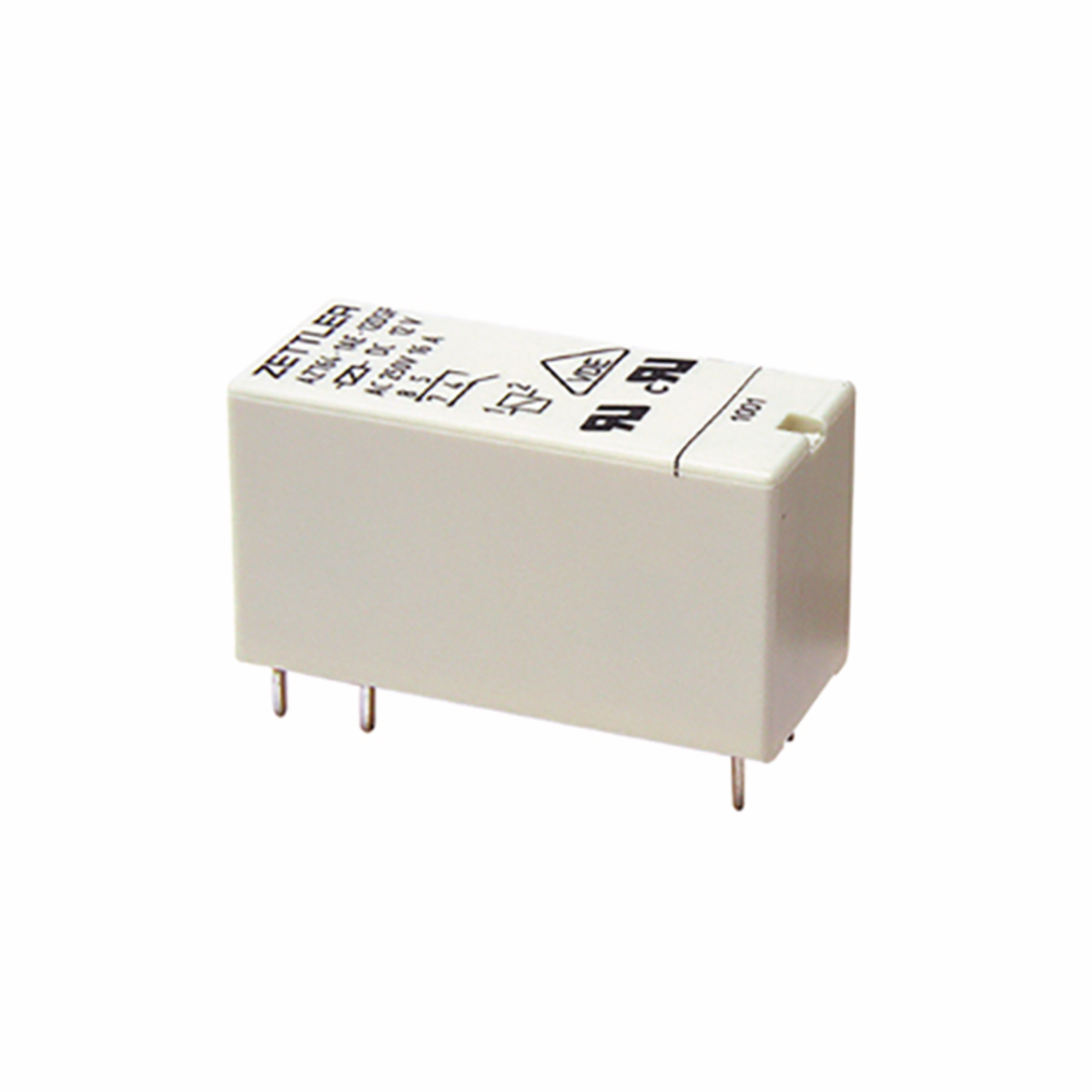

774 | | Manufacturers Part No. AZ764H-1A-24DS(AZ764H-1A-24DS) Zettler PC relay AZ764H THT SPST-NO 16A 24VDC 2.300Ohm 29mmx12,7mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | SPST-NO | 16.0 A | 24.0 V DC | 2300.0 Ohm | 4000.0 VA | 480.0 W | AgNi | 29.0 mm | 12.7 mm | 15.7 mm | -40.0 °C | 105.0 °C | ||||||||
775 | | Manufacturers Part No. HF115FK/24-2Z4T(HF115FK-24-2Z4T) Hongfa PC relay HF115FK THT DPDT 8A 24VDC 1.440Ohm 29mmx12,7mmx15,7mm RTII | Customer Part No. Customer Project No. | 735 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | DPDT | 8.0 A | 24.0 V DC | 1440.0 Ohm | 4000.0 VA | AgSnO2 | 29.0 mm | 12.7 mm | 15.7 mm | RTII | -40.0 °C | 85.0 °C |
