Results (1085)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

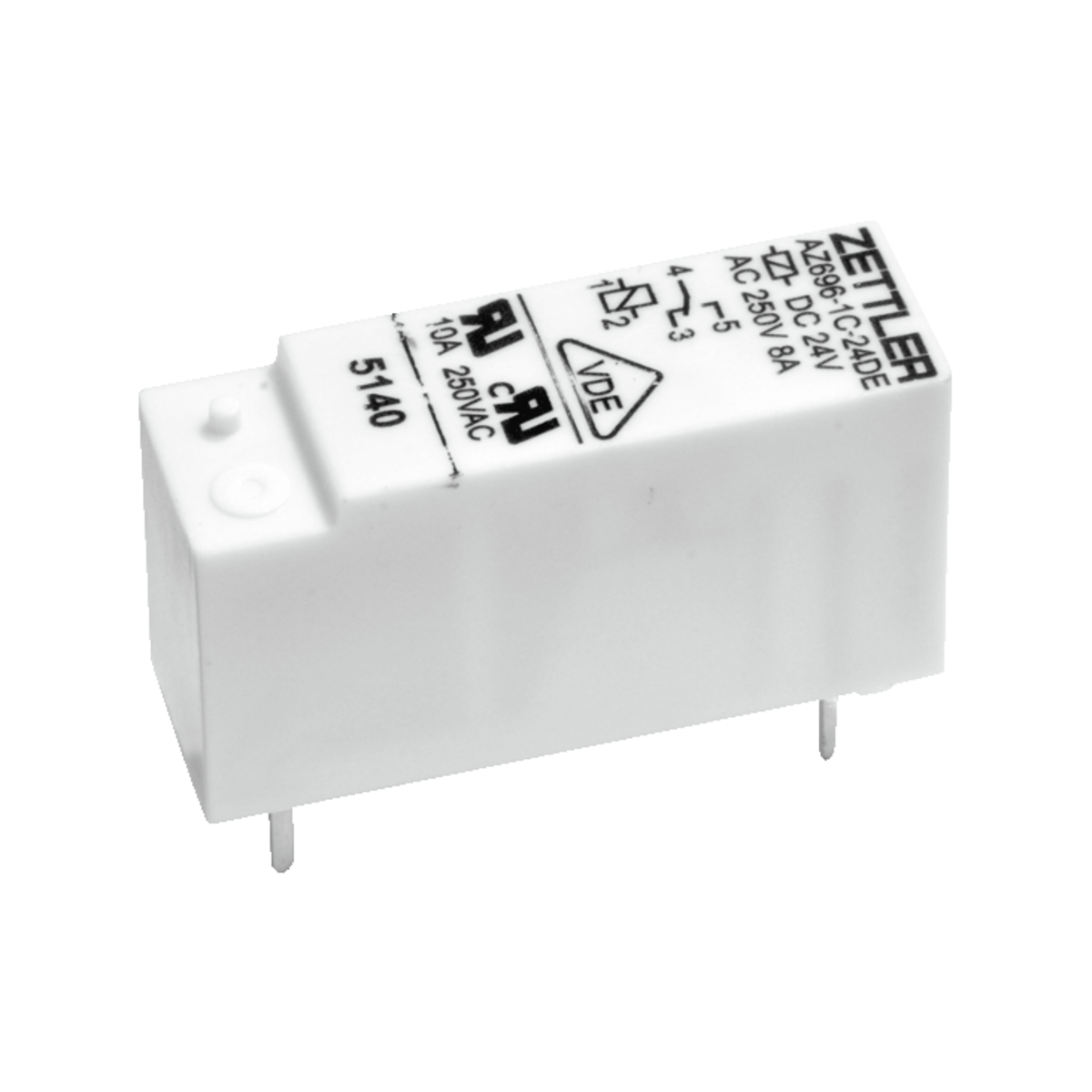

476 |  | Manufacturers Part No. AZ6991-1A-24DA(AZ6991-1A-24DA) Zettler PC relay AZ6991 THT SPST-NO 8A 24VDC 3.390Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 2000 or mul. of 2000) | Zettler | THT | SPST-NO | 8.0 A | 24.0 V DC | 3390.0 Ohm | 2216.0 VA | 180.0 W | AgSnO2/Au | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
477 | | Manufacturers Part No. AZ6991-1C-12D(AZ6991-1C-12D) Zettler PC relay AZ6991 THT SPDT 8A 12VDC 848Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 2000 or mul. of 2000) | Zettler | THT | SPDT | 8.0 A | 12.0 V DC | 848.0 Ohm | 2216.0 VA | 180.0 W | AgNi | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
478 | | Manufacturers Part No. AZ6991-1C-12DA(AZ6991-1C-12DA) Zettler PC relay AZ6991 THT SPDT 8A 12VDC 848Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 8.0 A | 12.0 V DC | 848.0 Ohm | 2216.0 VA | 180.0 W | AgSnO2/Au | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
479 | | Manufacturers Part No. AZ6991-1C-12DE(AZ6991-1C-12DE) Zettler PC relay AZ6991 THT SPDT 8A 2VDC 848Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 1.460 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 8.0 A | 2.0 V DC | 848.0 Ohm | 2216.0 VA | 180.0 W | AgNi | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
480 | | Manufacturers Part No. AZ6991-1C-24D(AZ6991-1C-24D) Zettler PC relay AZ6991 THT SPDT 8A 24VDC 3.390Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 2000 or mul. of 2000) | Zettler | THT | SPDT | 8.0 A | 24.0 V DC | 3390.0 Ohm | 2216.0 VA | 180.0 W | AgNi | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
481 | | Manufacturers Part No. AZ6991-1C-5DA(AZ6991-1C-5DA) Zettler PC relay AZ6991 THT SPDT 8A 5VDC 147Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 2000 or mul. of 2000) | Zettler | THT | SPDT | 8.0 A | 5.0 V DC | 147.0 Ohm | 2216.0 VA | 180.0 W | AgSnO2/Au | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
482 | | Manufacturers Part No. AZ6991-1CE-24DEA(AZ6991-1CE-24DEA) Zettler PC relay AZ6991 THT SPDT 8A 24VDC 3.390Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 2.870 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 8.0 A | 24.0 V DC | 3390.0 Ohm | 2216.0 VA | 180.0 W | AgSnO2/Au | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
483 | | Manufacturers Part No. AZ943-1AH-12DEFGW(AZ943-1AH-12DEFGW) Zettler PC relay AZ943 THT SPST-NO 10A 12VDC 400Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 12.0 V DC | 400.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
484 | | Manufacturers Part No. AZ943-1CH-12DEGW(AZ943-1CH-12DEGW) Zettler PC relay AZ943 THT SPDT 10A 12VDC 400Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 5000 or mul. of 1000) | Zettler | THT | SPDT | 10.0 A | 12.0 V DC | 400.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
485 | | Manufacturers Part No. FTR-C1CB024G(FTR-C1CB024G) FCL Components PC relay FTR-C1 THT DPDT 2A 24VDC 3.200Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | FCL Components | THT | DPDT | 2.0 A | 24.0 V DC | 3200.0 Ohm | 62.5 VA | 30.0 W | AgPd/Au | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
486 | | Manufacturers Part No. FRT5-DC05V(FRT5-DC05V) Forward Industrial Co. PC relay FRT5 THT DPDT 2A 5VDC 178Ohm 14,3mmx9,3mmx5mm RTIII TOP | Customer Part No. Customer Project No. | 1.935 Pcs. Planned Delivery Time Ø 52 Weeks Available (from stock) | (at least 5 or mul. of 5) | Forward Industrial Co. | THT | DPDT | 2.0 A | 5.0 V DC | 178.0 Ohm | 62.5 VA | 60.0 W | AgPd | 14.3 mm | 9.3 mm | 5.0 mm | IP67 | RTIII | -40.0 °C | 70.0 °C | ||||||
487 | | Manufacturers Part No. FRT5-DC12V(FRT5-DC12V) Forward Industrial Co. PC relay FRT5 THT DPDT 2A 12VDC 1.028Ohm 14,3mmx9,3mmx5mm RTIII | Customer Part No. Customer Project No. | 1.770 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Forward Industrial Co. | THT | DPDT | 2.0 A | 12.0 V DC | 1028.0 Ohm | 62.5 VA | 60.0 W | AgPd | 14.3 mm | 9.3 mm | 5.0 mm | IP67 | RTIII | -40.0 °C | 70.0 °C | ||||||
488 | | Manufacturers Part No. FRT5-DC24V(FRT5-DC24V) Forward Industrial Co. PC relay FRT5 THT DPDT 2A 24VDC 2.880Ohm 14,3mmx9,3mmx5mm RTIII TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Forward Industrial Co. | THT | DPDT | 2.0 A | 24.0 V DC | 2880.0 Ohm | 62.5 VA | 60.0 W | AgPd | 14.3 mm | 9.3 mm | 5.0 mm | IP67 | RTIII | -40.0 °C | 70.0 °C | ||||||
489 | | Manufacturers Part No. FRS1B-S-DC12V(FRS1B12) Forward Industrial Co. PC relay FRS1 THT SPDT 1A 12VDC 320Ohm 15,7mmx11mmx12mm | Customer Part No. Customer Project No. | 1.000 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Forward Industrial Co. | THT | SPDT | 1.0 A | 12.0 V DC | 320.0 Ohm | 625.0 VA | 150.0 W | Ag alloy/Au | 15.7 mm | 11.0 mm | 12.0 mm | IP67 | -25.0 °C | 75.0 °C | |||||||
490 | | Manufacturers Part No. FRS1B-S-DC24V(FRS1B24) Forward Industrial Co. PC relay FRS1 THT SPDT 1A 24VDC 1.280Ohm 15,7mmx11mmx12mm | Customer Part No. Customer Project No. | 2.470 Pcs. Planned Delivery Time Ø 52 Weeks Available (from stock) | (at least 25 or mul. of 25) | Forward Industrial Co. | THT | SPDT | 1.0 A | 24.0 V DC | 1280.0 Ohm | 625.0 VA | 150.0 W | Ag alloy/Au | 15.7 mm | 11.0 mm | 12.0 mm | IP67 | -25.0 °C | 75.0 °C | |||||||
491 | | Manufacturers Part No. FRS1H-S-DC12V(FRS1H12) Forward Industrial Co. PC relay FRS1 THT SPDT 1A 12VDC 700Ohm 15,7mmx11mmx12mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Forward Industrial Co. | THT | SPDT | 1.0 A | 12.0 V DC | 700.0 Ohm | 625.0 VA | 150.0 W | Ag alloy/Au | 15.7 mm | 11.0 mm | 12.0 mm | IP67 | -25.0 °C | 75.0 °C | |||||||
492 | | Manufacturers Part No. FRS1H-S-DC24V(FRS1H24) Forward Industrial Co. PC relay FRS1 THT SPDT 1A 24VDC 2.800Ohm 15,7mmx11mmx12mm | Customer Part No. Customer Project No. | 875 Pcs. Planned Delivery Time Ø 52 Weeks Available (from stock) | (at least 25 or mul. of 25) | Forward Industrial Co. | THT | SPDT | 1.0 A | 24.0 V DC | 2800.0 Ohm | 625.0 VA | 150.0 W | Ag alloy/Au | 15.7 mm | 11.0 mm | 12.0 mm | IP67 | -25.0 °C | 75.0 °C | |||||||
493 | | Manufacturers Part No. HFD23/024-1ZS(HFD23-024-1ZS) Hongfa PC relay HFD23 THT SPDT 2A 24VDC 3.840Ohm 12,5mmx7,5mmx10mm | Customer Part No. Customer Project No. | 1.865 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 2.0 A | 24.0 V DC | 3840.0 Ohm | 62.5 VA | 30.0 W | AgNi/Au | 12.5 mm | 7.5 mm | 10.0 mm | -40.0 °C | 70.0 °C | ||||||||
494 | | Manufacturers Part No. HFD23/005-1ZS(HFD23-005-1ZS) Hongfa PC relay HFD23 THT SPDT 2A 5VDC 167Ohm 12,5mmx7,5mmx10mm | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 2.0 A | 5.0 V DC | 167.0 Ohm | 62.5 VA | 30.0 W | AgNi/Au | 12.5 mm | 7.5 mm | 10.0 mm | -40.0 °C | 70.0 °C | ||||||||
495 | | Manufacturers Part No. HFD23/009-1ZS(HFD23-009-1ZS) Hongfa PC relay HFD23 THT SPDT 2A 9VDC 540Ohm 12,5mmx7,5mmx10mm | Customer Part No. Customer Project No. | 605 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 2.0 A | 9.0 V DC | 540.0 Ohm | 62.5 VA | 30.0 W | AgNi/Au | 12.5 mm | 7.5 mm | 10.0 mm | -40.0 °C | 70.0 °C | ||||||||
496 | | Manufacturers Part No. HFD23/012-1ZS(HFD23-012-1ZS) Hongfa PC relay HFD23 THT SPDT 2A 12VDC 960Ohm 12,5mmx7,5mmx10mm | Customer Part No. Customer Project No. | 770 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 2.0 A | 12.0 V DC | 960.0 Ohm | 62.5 VA | 30.0 W | AgNi/Au | 12.5 mm | 7.5 mm | 10.0 mm | -40.0 °C | 70.0 °C | ||||||||
497 | | Manufacturers Part No. 2-1416010-6(RE340-12) TE Connectivity PC relay RE THT SPST-NO 6A 12VDC 720Ohm 20mmx10mmx10,6mm | Customer Part No. Customer Project No. | 2.275 Pcs. Available (from stock) | (at least 25 or mul. of 25) | TE Connectivity | THT | SPST-NO | 6.0 A | 12.0 V DC | 720.0 Ohm | 1500.0 VA | AgNi | 20.0 mm | 10.0 mm | 10.6 mm | -40.0 °C | 70.0 °C | |||||||||
498 | | Manufacturers Part No. 2-1416010-7(RE340-24) TE Connectivity PC relay RE THT SPST-NO 6A 24VDC 2.880Ohm 20mmx10mmx10,6mm | Customer Part No. Customer Project No. | 2.275 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 25 or mul. of 25) | TE Connectivity | THT | SPST-NO | 6.0 A | 24.0 V DC | 2880.0 Ohm | 1500.0 VA | AgNi | 20.0 mm | 10.0 mm | 10.6 mm | -40.0 °C | 70.0 °C | |||||||||
499 | | Manufacturers Part No. 2-1416010-3(RE340-5) TE Connectivity PC relay RE THT SPST-NO 6A 5VDC 125Ohm 20mmx10mmx10,6mm | Customer Part No. Customer Project No. | 650 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 25 or mul. of 25) | TE Connectivity | THT | SPST-NO | 6.0 A | 5.0 V DC | 125.0 Ohm | 1500.0 VA | AgNi | 20.0 mm | 10.0 mm | 10.6 mm | -40.0 °C | 70.0 °C | |||||||||
500 | | Manufacturers Part No. HFD3/012(HFD3-012) Hongfa PC relay HFD3 THT DPDT 4A 12VDC 1.028Ohm 15mmx7,5mmx9mm | Customer Part No. Customer Project No. | 2.025 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | DPDT | 4.0 A | 12.0 V DC | 1028.0 Ohm | 62.5 VA | 90.0 W | AgNi/Au | 15.0 mm | 7.5 mm | 9.0 mm | -40.0 °C | 85.0 °C |
