Results (1017)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
376 |  | Manufacturers Part No. 1393219-4(PE140-6) TE Connectivity PC relay PE THT SPDT 5A 6VDC 172Ohm 20mmx10mmx10mm RTII | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 25 or mul. of 25) | TE Connectivity | THT | SPDT | 5.0 A | 6.0 V DC | 172.0 Ohm | 1250.0 VA | AgNi | 20.0 mm | 10.0 mm | 10.0 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
377 | | Manufacturers Part No. 0-1393219-6(PE140-12) TE Connectivity PC relay PE THT SPDT 5A 12VDC 685Ohm 20mmx10mmx10mm RTII TOP | Customer Part No. Customer Project No. | 1.625 Pcs. Available (from stock) | (at least 25 or mul. of 25) | TE Connectivity | THT | SPDT | 5.0 A | 12.0 V DC | 685.0 Ohm | 1250.0 VA | AgNi | 20.0 mm | 10.0 mm | 10.0 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
378 | | Manufacturers Part No. 1-1393219-0(PE140-24) TE Connectivity PC relay PE THT SPDT 5A 24VDC 2.725Ohm 20mmx10mmx10mm RTII TOP | Customer Part No. Customer Project No. | 7.750 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 25 or mul. of 25) | TE Connectivity | THT | SPDT | 5.0 A | 24.0 V DC | 2725.0 Ohm | 1250.0 VA | AgNi | 20.0 mm | 10.0 mm | 10.0 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
379 | EOL 28.08.2024 | Manufacturers Part No. AZ7709-1AE-12D(AZ7709-1AE-12D) Zettler PC relay AZ7709 THT SPST-NO 5A 12VDC 320Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | 1.000 Pcs. Discontinued by manufacturer without replacement | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 12.0 V DC | 320.0 Ohm | 1250.0 VA | 150.0 W | AgSnO2 | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
380 | EOL 28.08.2024 | Manufacturers Part No. AZ7709-1AE-24D(AZ7709-1AE-24D) Zettler PC relay AZ7709 THT SPST-NO 5A 24VDC 1.280Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | 800 Pcs. Discontinued by manufacturer without replacement | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 24.0 V DC | 1280.0 Ohm | 1250.0 VA | 150.0 W | AgSnO2 | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
381 | EOL 28.08.2024 | Manufacturers Part No. AZ7709-1AE-12DSEF(AZ7709-1AE-12DSEF) Zettler PC relay AZ7709 THT SPST-NO 5A 12VDC 720Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | 930 Pcs. Discontinued by manufacturer without replacement | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 12.0 V DC | 720.0 Ohm | 1250.0 VA | 150.0 W | AgSnO2 | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
382 | EOL 28.08.2024 | Manufacturers Part No. AZ7709-1AE-24DSEF(AZ7709-1AE-24DSEF) Zettler PC relay AZ7709 THT SPST-NO 5A 24VDC 2.800Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | 850 Pcs. Discontinued by manufacturer without replacement | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 24.0 V DC | 2800.0 Ohm | 1250.0 VA | 150.0 W | AgSnO2 | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
383 | EOL 28.08.2024 | Manufacturers Part No. AZ7709T-1AE-12DSEF(AZ7709T-1AE-12DSEF) Zettler PC relay AZ7709 THT SPST-NO 10A 12VDC 720Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | 110 Pcs. Discontinued by manufacturer without replacement | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 12.0 V DC | 720.0 Ohm | 2500.0 VA | 300.0 W | AgSnO2 | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
384 | EOL 28.08.2024 | Manufacturers Part No. AZ7709T-1AE-24DSEF(AZ7709T-1AE-24DSEF) Zettler PC relay AZ7709 THT SPST-NO 10A 24VDC 2.800Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | 30 Pcs. Discontinued by manufacturer without replacement | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 24.0 V DC | 2800.0 Ohm | 2500.0 VA | 300.0 W | AgSnO2 | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
385 | EOL 28.08.2024 | Manufacturers Part No. AZ7709-1A-12D(AZ7709-1A-12D) Zettler PC relay AZ7709 THT SPST-NO 5A 12VDC 720Ohm 18,9mmx10,7mmx15,7mm | Customer Part No. Customer Project No. | No longer available | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 12.0 V DC | 720.0 Ohm | 1250.0 VA | 150.0 W | AgCdO | 18.9 mm | 10.7 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||

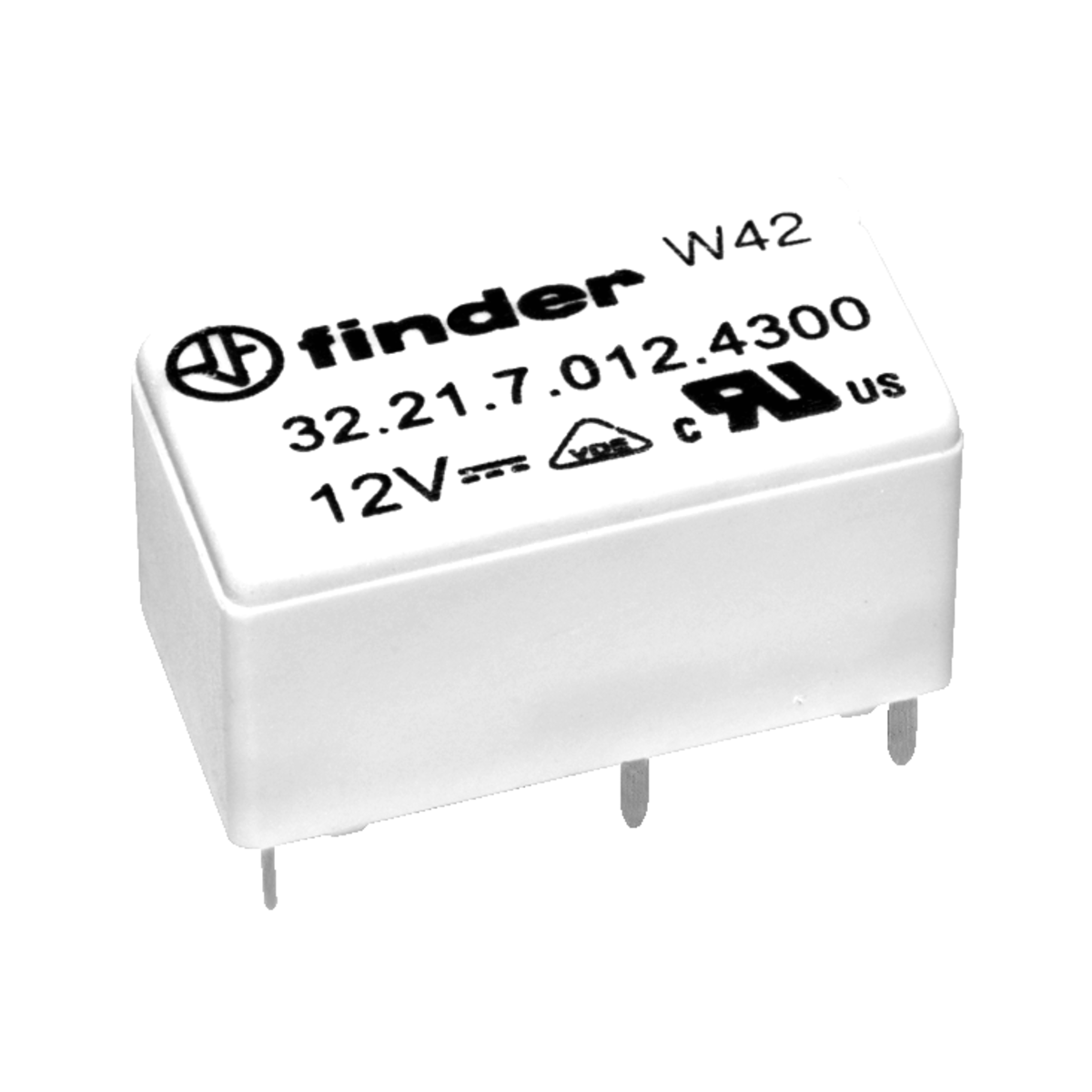

386 | | Manufacturers Part No. 32.21.7.012.4300(F3221-12A) Finder PC relay 32.21 THT SPST-NO 6A 12VDC 720Ohm 20mmx10mmx10,7mm RTII | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | Finder | THT | SPST-NO | 6.0 A | 12.0 V DC | 720.0 Ohm | 1500.0 VA | AgSnO2 | 20.0 mm | 10.0 mm | 10.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
387 | | Manufacturers Part No. 32.21.7.024.4300(F3221-24A) Finder PC relay 32.21 THT SPST-NO 6A 24VDC 2.800Ohm 20mmx10mmx10,7mm RTII | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | Finder | THT | SPST-NO | 6.0 A | 24.0 V DC | 2800.0 Ohm | 1500.0 VA | AgSnO2 | 20.0 mm | 10.0 mm | 10.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
388 | | Manufacturers Part No. 32.21.7.012.4000(F3221-12U) Finder PC relay 32.21 THT SPDT 6A 12VDC 720Ohm 20mmx10mmx10,7mm RTII | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | Finder | THT | SPDT | 6.0 A | 12.0 V DC | 720.0 Ohm | 1500.0 VA | AgSnO2 | 20.0 mm | 10.0 mm | 10.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
389 | | Manufacturers Part No. 32.21.7.024.4000(F3221-24U) Finder PC relay 32.21 THT SPDT 6A 24VDC 2.800Ohm 20mmx10mmx10,7mm RTII | Customer Part No. Customer Project No. | 400 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Finder | THT | SPDT | 6.0 A | 24.0 V DC | 2800.0 Ohm | 1500.0 VA | AgSnO2 | 20.0 mm | 10.0 mm | 10.7 mm | RTII | -40.0 °C | 85.0 °C | ||||||||
390 | | Manufacturers Part No. AZ940-1AB-12DS(AZ940-1AB-12DS) Zettler PC relay AZ940 THT SPST-NO 10A 12VDC 720Ohm 20,5mmx10,2mmx15,7mm % | Customer Part No. Customer Project No. | 1.340 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 12.0 V DC | 720.0 Ohm | 2770.0 VA | 150.0 W | AgNi | 20.5 mm | 10.2 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
391 | | Manufacturers Part No. AZ940-1AB-24DS(AZ940-1AB-24DS) Zettler PC relay AZ940 THT SPST-NO 10A 24VDC 2.800Ohm 20,5mmx10,2mmx15,7mm | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 24.0 V DC | 2800.0 Ohm | 2770.0 VA | 150.0 W | AgNi | 20.5 mm | 10.2 mm | 15.7 mm | -40.0 °C | 85.0 °C | ||||||||
392 | | Manufacturers Part No. HF3FA/005-ZTF(HF3FA/005-ZTF) Hongfa PC relay HF3FA THT SPDT 10A 5VDC 70Ohm 19mmx15,2mmx15,5mm | Customer Part No. Customer Project No. | 280 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 10.0 A | 5.0 V DC | 70.0 Ohm | 2770.0 VA | 280.0 W | AgSnO2 | 19.0 mm | 15.2 mm | 15.5 mm | -40.0 °C | 105.0 °C | ||||||||
393 | | Manufacturers Part No. HF3FA/012-ZTF(HF3FA-012-ZTF) Hongfa PC relay HF3FA THT SPDT 10A 12VDC 400Ohm 19mmx15,2mmx15,5mm | Customer Part No. Customer Project No. | 20 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 10.0 A | 12.0 V DC | 400.0 Ohm | 2770.0 VA | 280.0 W | AgSnO2 | 19.0 mm | 15.2 mm | 15.5 mm | -40.0 °C | 105.0 °C | ||||||||
394 | | Manufacturers Part No. HF3FA/024-ZTF(HF3FA-024-ZTF) Hongfa PC relay HF3FA THT SPDT 10A 24VDC 1.600Ohm 19mmx15,2mmx15,5mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 10.0 A | 24.0 V DC | 1600.0 Ohm | 2770.0 VA | 280.0 W | AgSnO2 | 19.0 mm | 15.2 mm | 15.5 mm | -40.0 °C | 105.0 °C | ||||||||
395 | | Manufacturers Part No. AZ943-1AH-12D(AZ943-1AH-12D) Zettler PC relay AZ943 THT SPST-NO 10A 12VDC 400Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 12.0 V DC | 400.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
396 | | Manufacturers Part No. AZ943-1AH-24D(AZ943-1AH-24D) Zettler PC relay AZ943 THT SPST-NO 10A 24VDC 1.600Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 550 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 24.0 V DC | 1600.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
397 | | Manufacturers Part No. AZ943-1AH-5DE(AZ943-1AH-5DE) Zettler PC relay AZ943 THT SPST-NO 10A 5VDC 70Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 870 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 5.0 V DC | 70.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
398 | | Manufacturers Part No. AZ943-1AH-12DE(AZ943-1AH-12DE) Zettler PC relay AZ943 THT SPST-NO 10A 12VDC 400Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 260 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 12.0 V DC | 400.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
399 | | Manufacturers Part No. AZ943-1AH-24DE(AZ943-1AH-24DE) Zettler PC relay AZ943 THT SPST-NO 10A 24VDC 1.600Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 450 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 24.0 V DC | 1600.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C | ||||||||
400 | | Manufacturers Part No. AZ943-1AH-5DEGW(AZ943-1AH-5DEGW) Zettler PC relay AZ943 THT SPST-NO 10A 5VDC 70Ohm 19mmx15,3mmx15,7mm | Customer Part No. Customer Project No. | 380 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 10.0 A | 5.0 V DC | 70.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 19.0 mm | 15.3 mm | 15.7 mm | -40.0 °C | 70.0 °C |
