Results (49)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Rated voltage AC | Rated voltage DC | Switching current | Switching capacity (VA) | contacts | Contact material | Coil resistance | Dimension: Length | Dimension: Width | Dimension: Height | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 | Manufacturers Part No. 46.52.9.012.0040(F4652-12) Finder Industrial relay 46.52 DPDT 8A 12VDC 300Ohm | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 12.0 V DC | 8.0 A | 2000.0 VA | DPDT | AgNi | 300.0 Ohm | 29.0 mm | 12.4 mm | 32.8 mm | RTII | -40.0 °C | 70.0 °C | |||||||

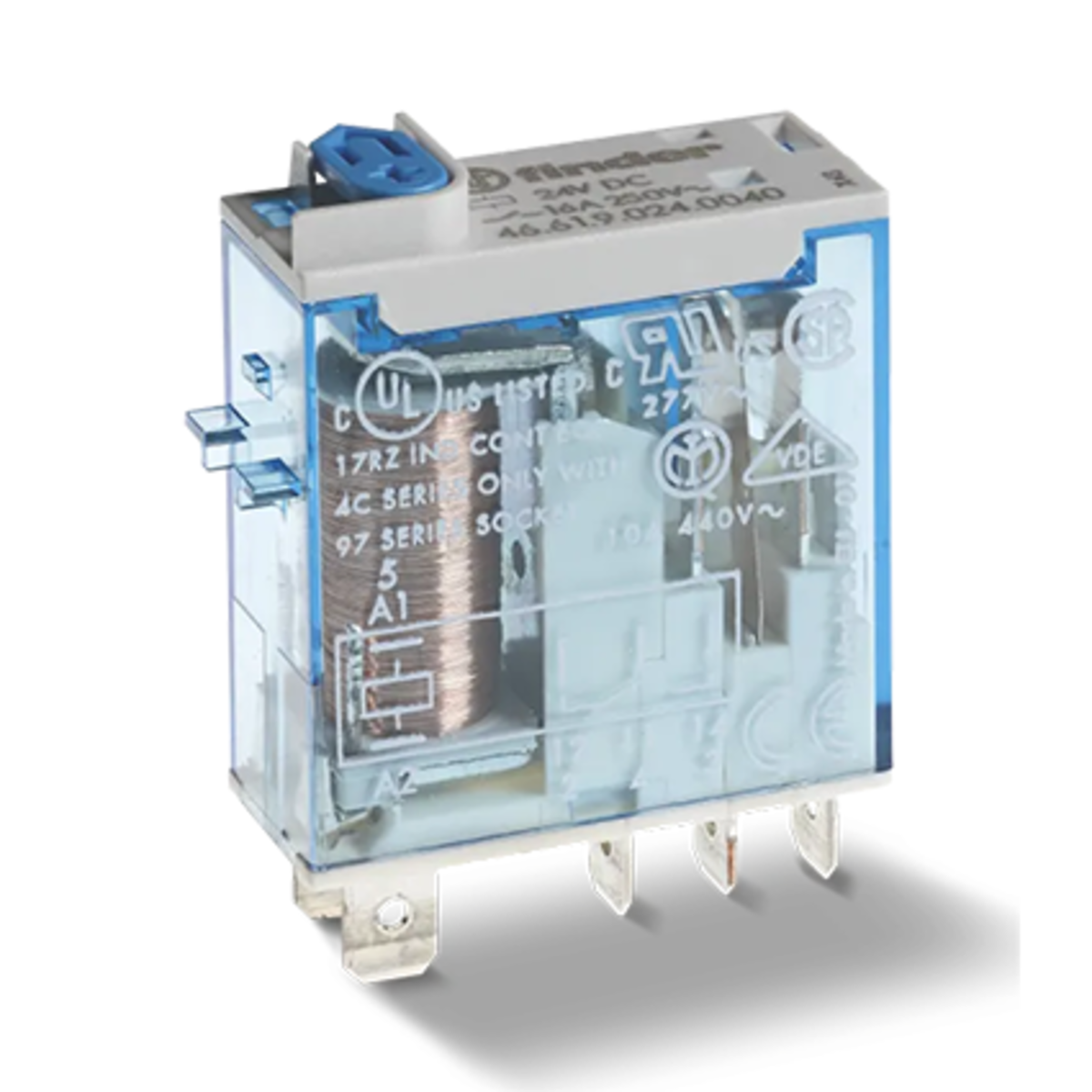

02 | Manufacturers Part No. 46.61.9.012.0040(F4661-12) Finder Industrial relay 46.61 SPDT 16A 12VDC 300Ohm | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 12.0 V DC | 16.0 A | 4000.0 VA | SPDT | AgNi | 300.0 Ohm | 29.0 mm | 12.4 mm | 32.8 mm | RTII | -40.0 °C | 70.0 °C | |||||||
03 | Manufacturers Part No. R15-2013-23-1024-WT(R15-2013-23-1024WT) RELPOL Industrial relay R15 3PDT 10A 24VDC 430Ohm | Customer Part No. Customer Project No. | 110 Pcs. Planned Delivery Time Ø 9 Weeks | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 24.0 V DC | 10.0 A | 2500.0 VA | 3PDT | AgNi | 430.0 Ohm | 35.0 mm | 35.0 mm | 54.4 mm | RTI | -40.0 °C | 70.0 °C | |||||||
04 | Manufacturers Part No. 55.34.9.012.0040(F5534-12) Finder Industrial relay 55.34 4PDT 7A 12VDC 140Ohm | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 12.0 V DC | 7.0 A | 1750.0 VA | 4PDT | AgNi | 140.0 Ohm | 27.7 mm | 20.7 mm | 37.2 mm | RTI | -40.0 °C | 85.0 °C | |||||||
05 | Manufacturers Part No. 55.34.9.024.0040(F5534-24) Finder Industrial relay 55.34 4PDT 7A 24VDC 600Ohm | Customer Part No. Customer Project No. | 15 Pcs. | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 24.0 V DC | 7.0 A | 1750.0 VA | 4PDT | AgNi | 600.0 Ohm | 27.7 mm | 20.7 mm | 37.2 mm | RTI | -40.0 °C | 85.0 °C | |||||||
06 | Manufacturers Part No. 55.34.9.024.0090(F5534-24LD) Finder Industrial relay 55.34 4PDT 7A 24VDC 600Ohm | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 24.0 V DC | 7.0 A | 1750.0 VA | 4PDT | AgNi | 600.0 Ohm | 27.7 mm | 20.7 mm | 37.2 mm | RTI | -40.0 °C | 85.0 °C | |||||||
07 | Manufacturers Part No. 55.34.8.230.0040(F5534-AC230) Finder Industrial relay 55.34 4PDT 7A 230VAC 17.000Ohm | Customer Part No. Customer Project No. | 130 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 230.0 V AC | 7.0 A | 1750.0 VA | 4PDT | AgNi | 17000.0 Ohm | 27.7 mm | 20.7 mm | 37.2 mm | RTI | -40.0 °C | 85.0 °C | |||||||
08 | Manufacturers Part No. 55.34.8.230.5040(F5534-AC230G) Finder Industrial relay 55.34 4PDT 7A 230VAC 17.000Ohm | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 230.0 V AC | 7.0 A | 1750.0 VA | 4PDT | AgNi/Au | 17000.0 Ohm | 27.7 mm | 20.7 mm | 37.2 mm | RTI | -40.0 °C | 85.0 °C | |||||||
09 | Manufacturers Part No. 60.13.9.012.0040(F6013-12) Finder Industrial relay 60.13 3PDT 10A 12VDC 110Ohm | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 12.0 V DC | 10.0 A | 2500.0 VA | 3PDT | AgNi | 110.0 Ohm | 36.4 mm | 32.5 mm | 54.2 mm | RTI | -40.0 °C | 70.0 °C | |||||||
10 | Manufacturers Part No. 60.13.9.024.0040(F6013-24) Finder Industrial relay 60.13 3PDT 10A 24VDC 445Ohm | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 24.0 V DC | 10.0 A | 2500.0 VA | 3PDT | AgNi | 445.0 Ohm | 36.4 mm | 32.5 mm | 54.2 mm | RTI | -40.0 °C | 70.0 °C | |||||||
11 | Manufacturers Part No. 60.13.9.048.0040(F6013-48) Finder Industrial relay 60.13 3PDT 10A 48VDC 1.770Ohm | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 48.0 V DC | 10.0 A | 2500.0 VA | 3PDT | AgNi | 1770.0 Ohm | 36.4 mm | 32.5 mm | 54.2 mm | RTI | -40.0 °C | 70.0 °C | |||||||
12 | Manufacturers Part No. 60.13.8.230.0040(F6013-AC230) Finder Industrial relay 60.13 3PDT 10A 230VAC 7.250Ohm | Customer Part No. Customer Project No. | 15 Pcs. | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 230.0 V AC | 10.0 A | 500.0 VA | 3PDT | AgNi | 7250.0 Ohm | 36.4 mm | 32.5 mm | 54.2 mm | RTI | -40.0 °C | 70.0 °C | |||||||
13 | Manufacturers Part No. R2N-2012-23-1012-WTL(R2N2012-23-1012WTL) RELPOL Industrial relay R2N DPDT 0,005A 12VDC 160Ohm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 12.0 V DC | 0.005 A | 3000.0 VA | DPDT | AgNi | 160.0 Ohm | 27.4 mm | 21.0 mm | 35.5 mm | RTI | -40.0 °C | 70.0 °C | |||||||
14 | Manufacturers Part No. R2N-2012-23-5024-WTL(R2N2012-23-5024WTL) RELPOL Industrial relay R2N DPDT 0,005A 24VAC 158Ohm | Customer Part No. Customer Project No. | 65 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 24.0 V AC | 0.005 A | 3000.0 VA | DPDT | AgNi | 158.0 Ohm | 27.4 mm | 21.0 mm | 35.5 mm | RTI | -40.0 °C | 55.0 °C | |||||||
15 | Manufacturers Part No. PIR6W-1P-12VDC-01(PIR6W-1P-12VDC-01) RELPOL Coupling relay PIR6W SPDT 0,01A 12VDC 840Ohm | Customer Part No. Customer Project No. | 49 Pcs. Planned Delivery Time Ø 22 Weeks | (at least 1 or mul. of 1) | Coupling relay | RELPOL | DIN rail | 12.0 V DC | 0.01 A | 1.2 VA | SPDT | AgSnO2/Au | 840.0 Ohm | 98.5 mm | 6.2 mm | 85.5 mm | RTI | -40.0 °C | 60.0 °C | |||||||
16 | Manufacturers Part No. PIR6W-1P-230VAC/DC-01(PIR6W1P230VAC/DC01) RELPOL Coupling relay PIR6W SPDT 0,01A 230VAC 230VDC 74.000Ohm | Customer Part No. Customer Project No. | 82 Pcs. Planned Delivery Time Ø 22 Weeks | (at least 1 or mul. of 1) | Coupling relay | RELPOL | DIN rail | 230.0 V AC | 230.0 V DC | 0.01 A | 1.2 VA | SPDT | AgSnO2/Au | 74000.0 Ohm | 98.5 mm | 6.2 mm | 85.5 mm | RTI | -40.0 °C | 50.0 °C | ||||||
17 | Manufacturers Part No. R4N-2014-23-1012-WT(R4N2014-23-1012WT) RELPOL Industrial relay R4N 4PDT 0,005A 12VDC 160Ohm | Customer Part No. Customer Project No. | 290 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 12.0 V DC | 0.005 A | 1500.0 VA | 4PDT | AgNi | 160.0 Ohm | 27.4 mm | 21.0 mm | 35.5 mm | RTI | -40.0 °C | 70.0 °C | |||||||
18 | Manufacturers Part No. R4N-2014-23-5024-WTL(R4N2014-23-5024WTL) RELPOL Industrial relay R4N 4PDT 0,005A 24VAC 158Ohm | Customer Part No. Customer Project No. | 5 Pcs. | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 24.0 V AC | 0.005 A | 1500.0 VA | 4PDT | AgNi | 158.0 Ohm | 27.4 mm | 21.0 mm | 35.5 mm | RTI | -40.0 °C | 55.0 °C | |||||||
19 | Manufacturers Part No. R4N-2014-23-1024-WTLD(R4N2014-231024WTLD) RELPOL Industrial relay R4N 4PDT 0,005A 24VDC 640Ohm | Customer Part No. Customer Project No. | 0 Pcs. | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 24.0 V DC | 0.005 A | 1500.0 VA | 4PDT | AgNi | 640.0 Ohm | 27.4 mm | 21.0 mm | 35.5 mm | RTI | -40.0 °C | 70.0 °C | |||||||
20 | Manufacturers Part No. 55.32.9.024.0040(F5532-24) Finder Industrial relay 55.32 DPDT 10A 24VDC 600Ohm | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 24.0 V DC | 10.0 A | 2500.0 VA | DPDT | AgNi | 600.0 Ohm | 27.7 mm | 20.7 mm | 37.2 mm | RTI | -40.0 °C | 85.0 °C | |||||||
21 | Manufacturers Part No. 46.52.9.024.0040(F4652-24) Finder Industrial relay 46.52 DPDT 8A 24VDC 1.200Ohm | Customer Part No. Customer Project No. | 5 Pcs. | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 24.0 V DC | 8.0 A | 2000.0 VA | DPDT | AgNi | 1200.0 Ohm | 29.0 mm | 12.4 mm | 32.8 mm | RTII | -40.0 °C | 70.0 °C | |||||||
22 | Manufacturers Part No. 46.61.8.024.0040(F4661-AC24) Finder Industrial relay 46.61 SPDT 16A 24VAC 320Ohm | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Industrial relay | Finder | Solder or Plug-in terminals | 24.0 V AC | 16.0 A | 4000.0 VA | SPDT | AgNi | 320.0 Ohm | 29.0 mm | 12.4 mm | 32.8 mm | RTII | -40.0 °C | 70.0 °C | |||||||
23 | Manufacturers Part No. R15-2013-23-1048-WT(R15-2013-23-1048WT) RELPOL Industrial relay R15 3PDT 10A 48VDC 1.750Ohm | Customer Part No. Customer Project No. | 75 Pcs. Planned Delivery Time Ø 9 Weeks | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 48.0 V DC | 10.0 A | 2500.0 VA | 3PDT | AgNi | 1750.0 Ohm | 35.0 mm | 35.0 mm | 54.4 mm | RTI | -40.0 °C | 70.0 °C | |||||||
24 | Manufacturers Part No. PIR6W-1P-230VAC/DC(PIR6W-1P-230VAC/DC) RELPOL Coupling relay PIR6W SPDT 0,1A 230VAC 230VDC 74.000Ohm | Customer Part No. Customer Project No. | 46 Pcs. Planned Delivery Time Ø 22 Weeks | (at least 1 or mul. of 1) | Coupling relay | RELPOL | DIN rail | 230.0 V AC | 230.0 V DC | 0.1 A | 1500.0 VA | SPDT | AgSnO2 | 74000.0 Ohm | 98.5 mm | 6.2 mm | 85.5 mm | RTI | -40.0 °C | 50.0 °C | ||||||
25 | Manufacturers Part No. R4N-2014-23-1012-WTL(R4N2014-23-1012WTL) RELPOL Industrial relay R4N 4PDT 0,005A 12VDC 160Ohm | Customer Part No. Customer Project No. | 65 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 5 or mul. of 5) | Industrial relay | RELPOL | Solder or Plug-in terminals | 12.0 V DC | 0.005 A | 1500.0 VA | 4PDT | AgNi | 160.0 Ohm | 27.4 mm | 21.0 mm | 35.5 mm | RTI | -40.0 °C | 70.0 °C |
