Results (38)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | Rated voltage DC | Rated power | Switching current | contacts | Contact material | Coil resistance | Dimension: Length | Dimension: Width | Dimension: Height | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 | Manufacturers Part No. FBR53ND12-Y-LE(FBR53ND12YLE) FCL Components Automotive relay FBR53-LE SPDT 40A 12VDC 225Ohm New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 22 Weeks | (at least 1800 or mul. of 1800) | FCL Components | THR | 12.0 V DC | 640.0 mW | 40.0 A | SPDT | AgSnO2 | 225.0 Ohm | 15.5 mm | 12.1 mm | 13.7 mm | -40.0 °C | 125.0 °C | |||||||
02 | Manufacturers Part No. FBR53ND12-Y-LE-RW(FBR53ND12YLERW) FCL Components Automotive relay FBR53-LE SPDT 40A 12VDC 225Ohm New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 22 Weeks | (at least 1800 or mul. of 1800) | FCL Components | THR | 12.0 V DC | 640.0 mW | 40.0 A | SPDT | AgSnO2 | 225.0 Ohm | 15.5 mm | 12.1 mm | 13.7 mm | -40.0 °C | 125.0 °C | |||||||
03 | Manufacturers Part No. FTR-P3CN012W1(FTR-P3CN012W1) FCL Components Automotive relay FTR-P3 SPDT 25A 12VDC 240Ohm | Customer Part No. Customer Project No. | 0 Pcs. | (at least 10 or mul. of 10) | FCL Components | THT | 12.0 V DC | 600.0 mW | 25.0 A | SPDT | AgSnO2/In | 240.0 Ohm | 17.4 mm | 7.2 mm | 13.5 mm | -40.0 °C | 85.0 °C | |||||||

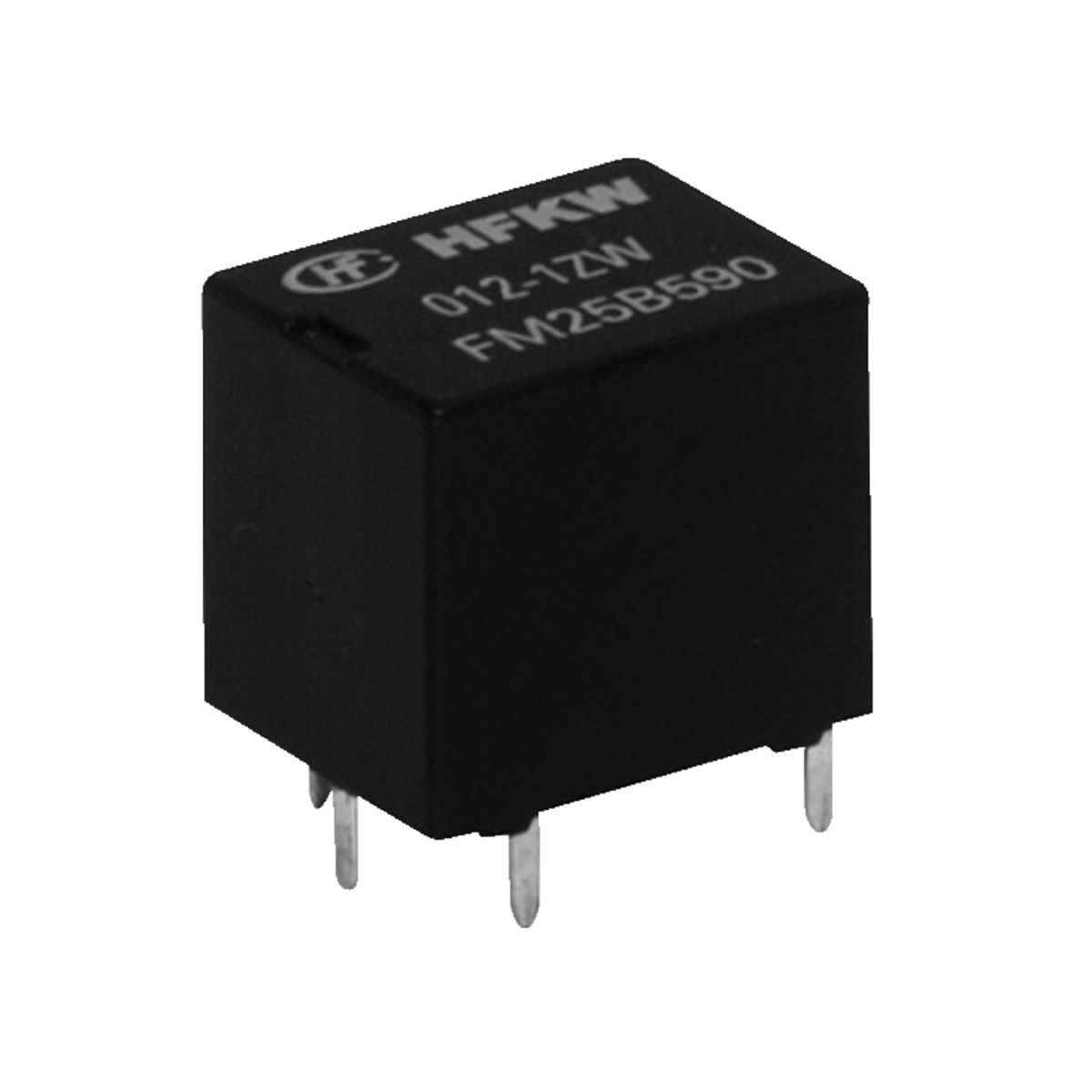

04 | Manufacturers Part No. HFKW/012-1ZW(HFKW-012-1ZW) Hongfa Automotive relay HFKW SPDT 25A 12VDC 240Ohm | Customer Part No. Customer Project No. | 25 Pcs. | (at least 5 or mul. of 5) | Hongfa | THT | 12.0 V DC | 600.0 mW | 25.0 A | SPDT | AgSnO2 | 240.0 Ohm | 15.7 mm | 12.5 mm | 14.0 mm | -40.0 °C | 85.0 °C | |||||||
05 | Manufacturers Part No. HFKW/024-1ZW(HFKW-024-1ZW) Hongfa Automotive relay HFKW SPDT 25A 24VDC 960Ohm | Customer Part No. Customer Project No. | 1.605 Pcs. Planned Delivery Time Ø 27 Weeks | (at least 5 or mul. of 5) | Hongfa | THT | 24.0 V DC | 600.0 mW | 25.0 A | SPDT | AgSnO2 | 960.0 Ohm | 15.7 mm | 12.5 mm | 14.0 mm | -40.0 °C | 85.0 °C | |||||||

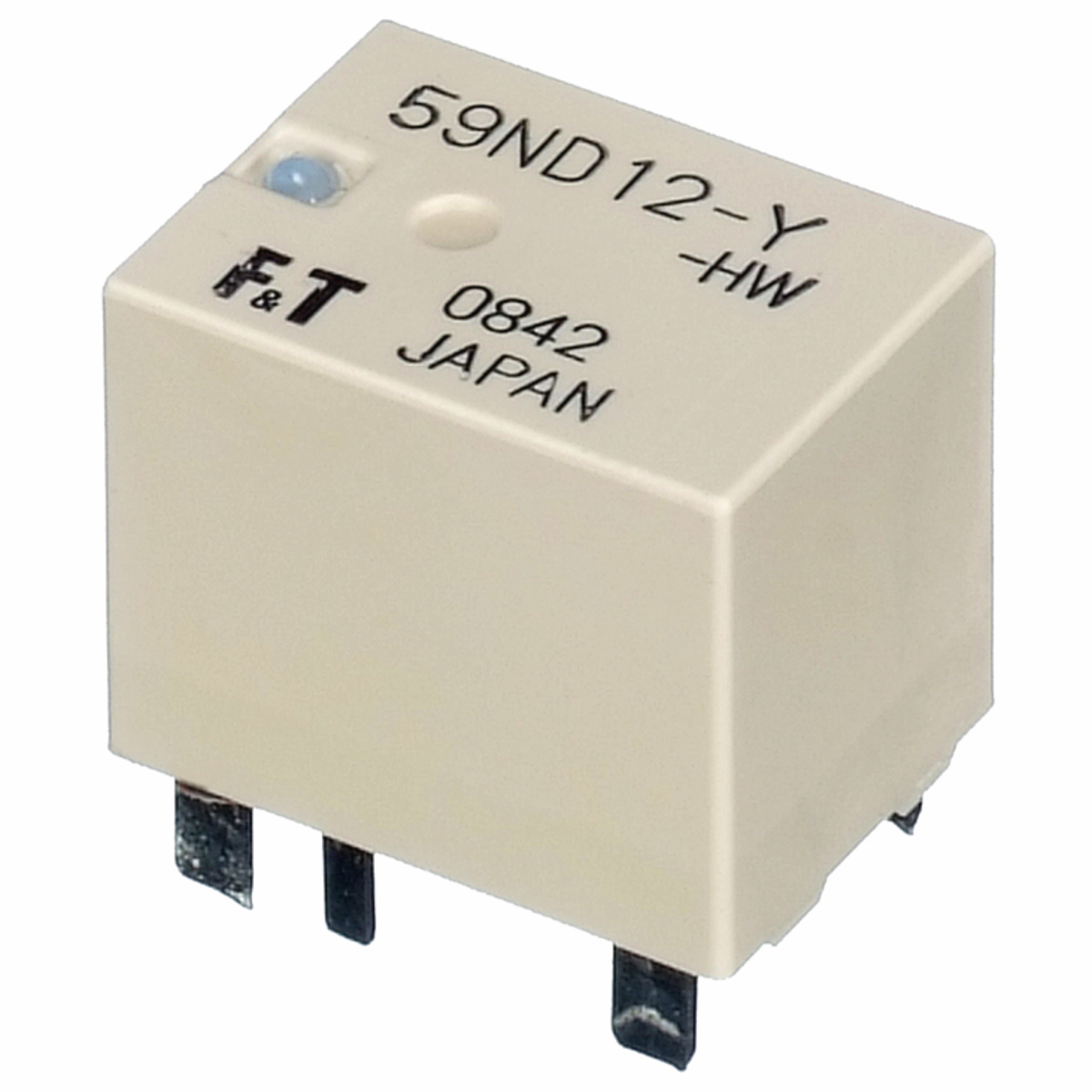

06 | Manufacturers Part No. FBR59ND12-Y-HW-M(FBR59ND12-Y-HW) FCL Components Automotive relay FBR59 SPST-NO 70A 12VDC 320Ohm | Customer Part No. Customer Project No. | 1.170 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | FCL Components | THT | 12.0 V DC | 70.0 A | SPST-NO | AgSnO2/Au | 320.0 Ohm | 20.0 mm | 15.0 mm | 16.8 mm | -40.0 °C | 125.0 °C | ||||||||

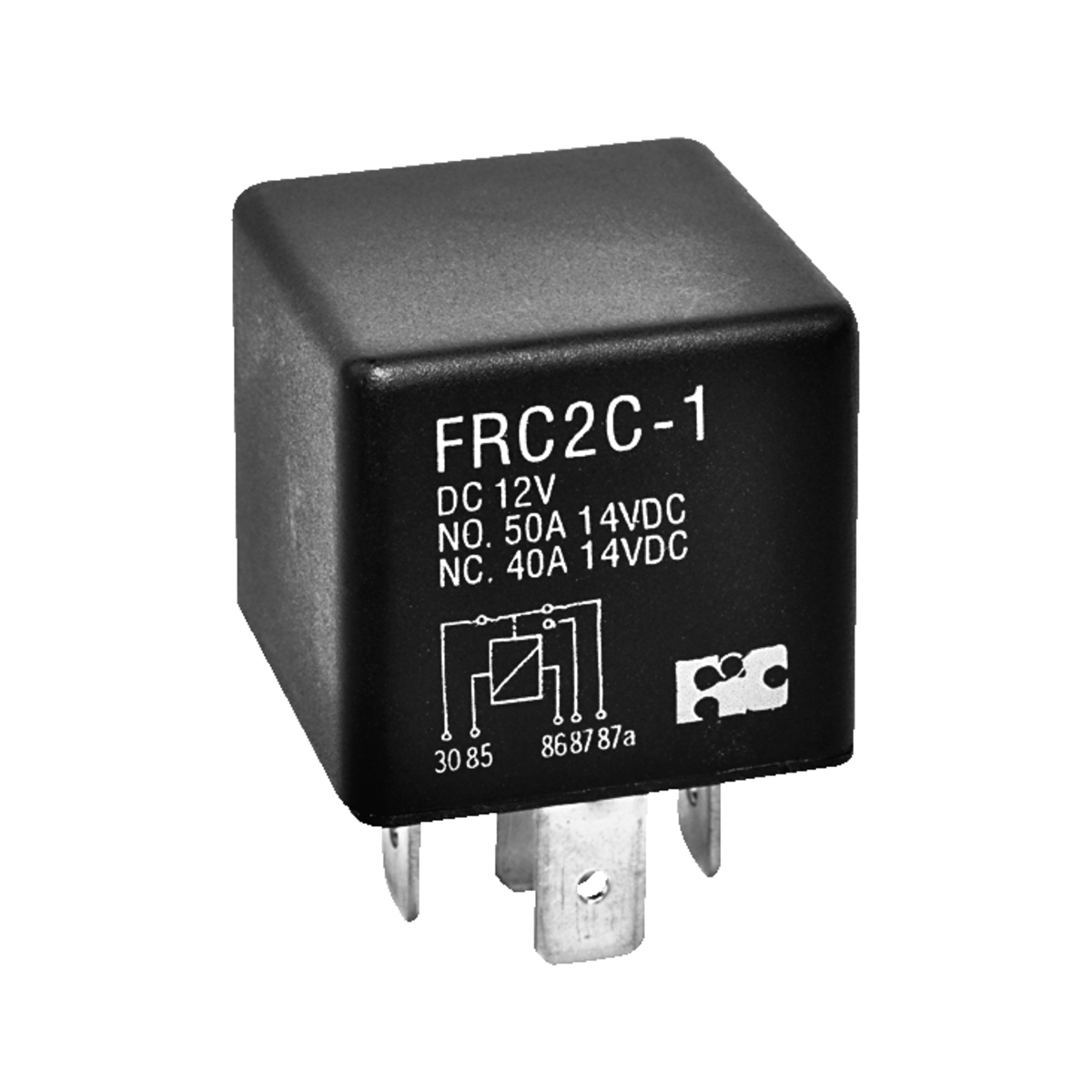

07 | Manufacturers Part No. FRC2C-1-DC12V(FRC2C-1-DC12V) Forward Industrial Co. Automotive relay FRC2 SPDT 50A 12VDC 80Ohm | Customer Part No. Customer Project No. | 3.801 Pcs. Planned Delivery Time Ø 24 Weeks | (at least 1 or mul. of 1) | Forward Industrial Co. | THT | 12.0 V DC | 1800.0 mW | 50.0 A | SPDT | AgSnO2 | 80.0 Ohm | 29.0 mm | 29.0 mm | 26.5 mm | -40.0 °C | 85.0 °C | |||||||
08 | Manufacturers Part No. FRC2C-1-DC24V(FRC2C-1-DC24V) Forward Industrial Co. Automotive relay FRC2 SPDT 50A 24VDC 320Ohm | Customer Part No. Customer Project No. | 378 Pcs. | (at least 1 or mul. of 1) | Forward Industrial Co. | THT | 24.0 V DC | 1800.0 mW | 50.0 A | SPDT | AgSnO2 | 320.0 Ohm | 29.0 mm | 29.0 mm | 26.5 mm | -40.0 °C | 85.0 °C | |||||||

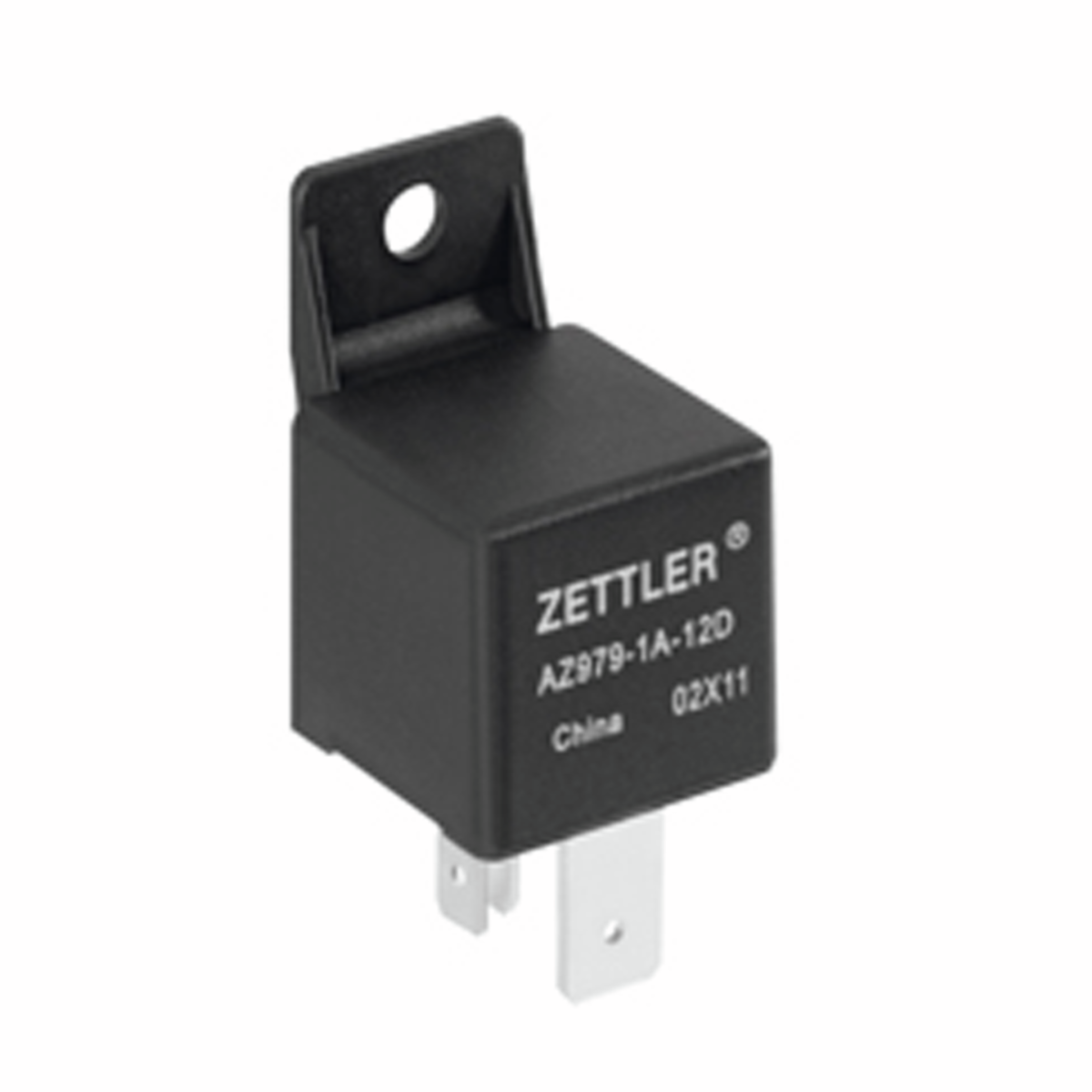

09 | Manufacturers Part No. AZ979-1A-12D(AZ979-1A-12D) Zettler Automotive relay AZ979 SPST-NO 80A 12VDC 90Ohm | Customer Part No. Customer Project No. | 0 Pcs. | (at least 10 or mul. of 10) | Zettler | THT | 12.0 V DC | 760.0 mW | 80.0 A | SPST-NO | AgSnO2 | 90.0 Ohm | 29.8 mm | 29.8 mm | 26.5 mm | -40.0 °C | 85.0 °C | |||||||
10 | Manufacturers Part No. AZ979-1A-24D(AZ979-1A-24D) Zettler Automotive relay AZ979 SPST-NO 80A 24VDC 360Ohm | Customer Part No. Customer Project No. | 380 Pcs. Planned Delivery Time Ø 15 Weeks | (at least 10 or mul. of 10) | Zettler | THT | 24.0 V DC | 760.0 mW | 80.0 A | SPST-NO | AgSnO2 | 360.0 Ohm | 29.8 mm | 29.8 mm | 26.5 mm | -40.0 °C | 85.0 °C | |||||||
11 | Manufacturers Part No. 1393280-5(V23086C1001A402) TE Connectivity Automotive relay K SPST-NO 30A 12VDC 254Ohm | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 26 Weeks | (at least 5 or mul. of 5) | TE Connectivity | THT | 12.0 V DC | 567.0 mW | 30.0 A | SPST-NO | AgSnO2 | 254.0 Ohm | 12.0 mm | 12.9 mm | 9.9 mm | RTIII | -40.0 °C | 105.0 °C | ||||||

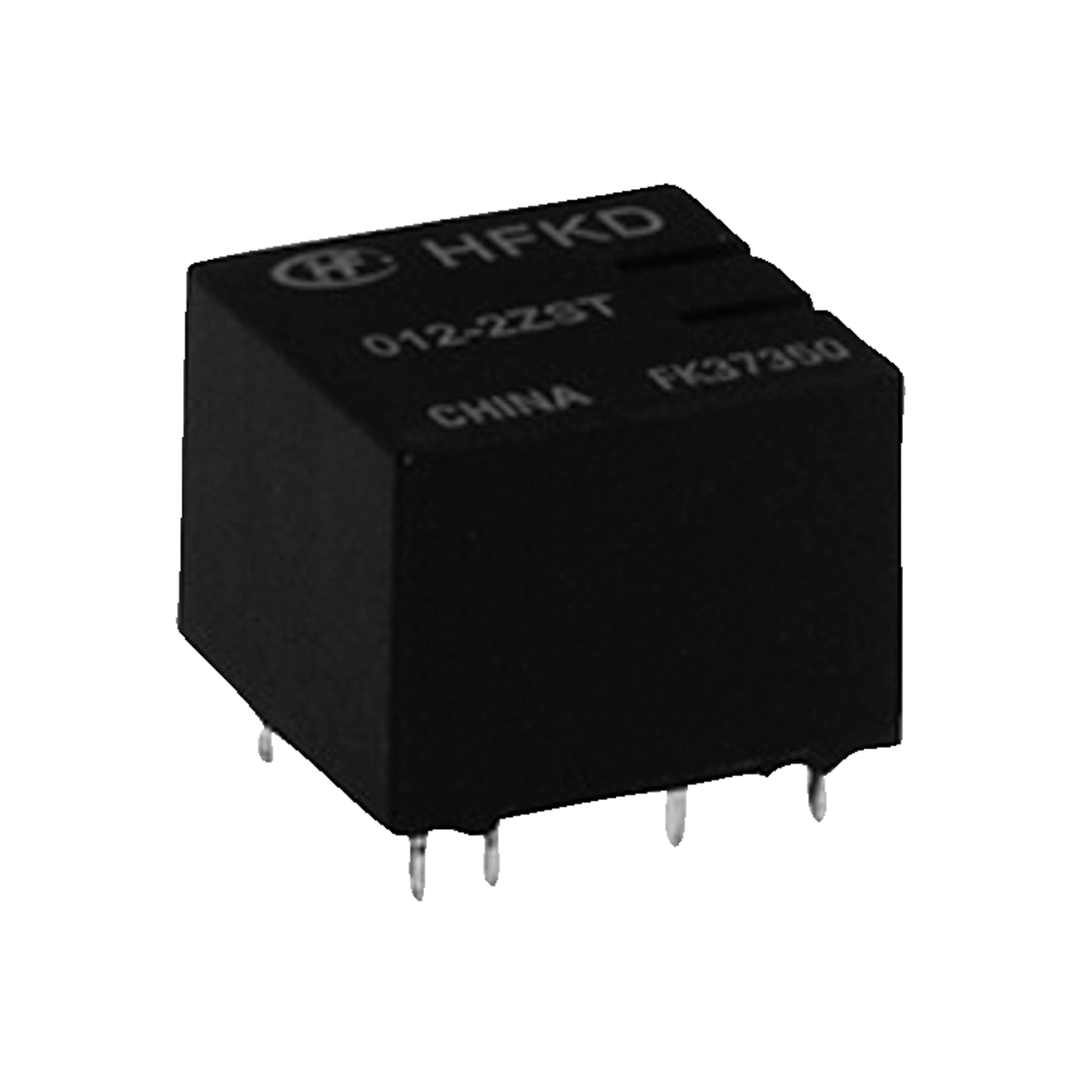

12 | Manufacturers Part No. HFKD/012-2ZST(HFKD012-2ZST) Hongfa Automotive relay HFKD DPDT 25A 12VDC 255Ohm | Customer Part No. Customer Project No. | 985 Pcs. Planned Delivery Time Ø 27 Weeks | (at least 5 or mul. of 5) | Hongfa | THT | 12.0 V DC | 560.0 mW | 25.0 A | DPDT | AgSnO2 | 255.0 Ohm | 17.5 mm | 9.2 mm | 13.2 mm | RTIII | -40.0 °C | 85.0 °C | ||||||
13 | TOP | Customer Part No. Customer Project No. | 7.600 Pcs. | (at least 25 or mul. of 25) | Tianbo | THT | 12.0 V DC | 570.0 mW | 30.0 A | SPDT | Ag alloy | 253.0 Ohm | 13.2 mm | 12.3 mm | 9.8 mm | -40.0 °C | 105.0 °C | |||||||

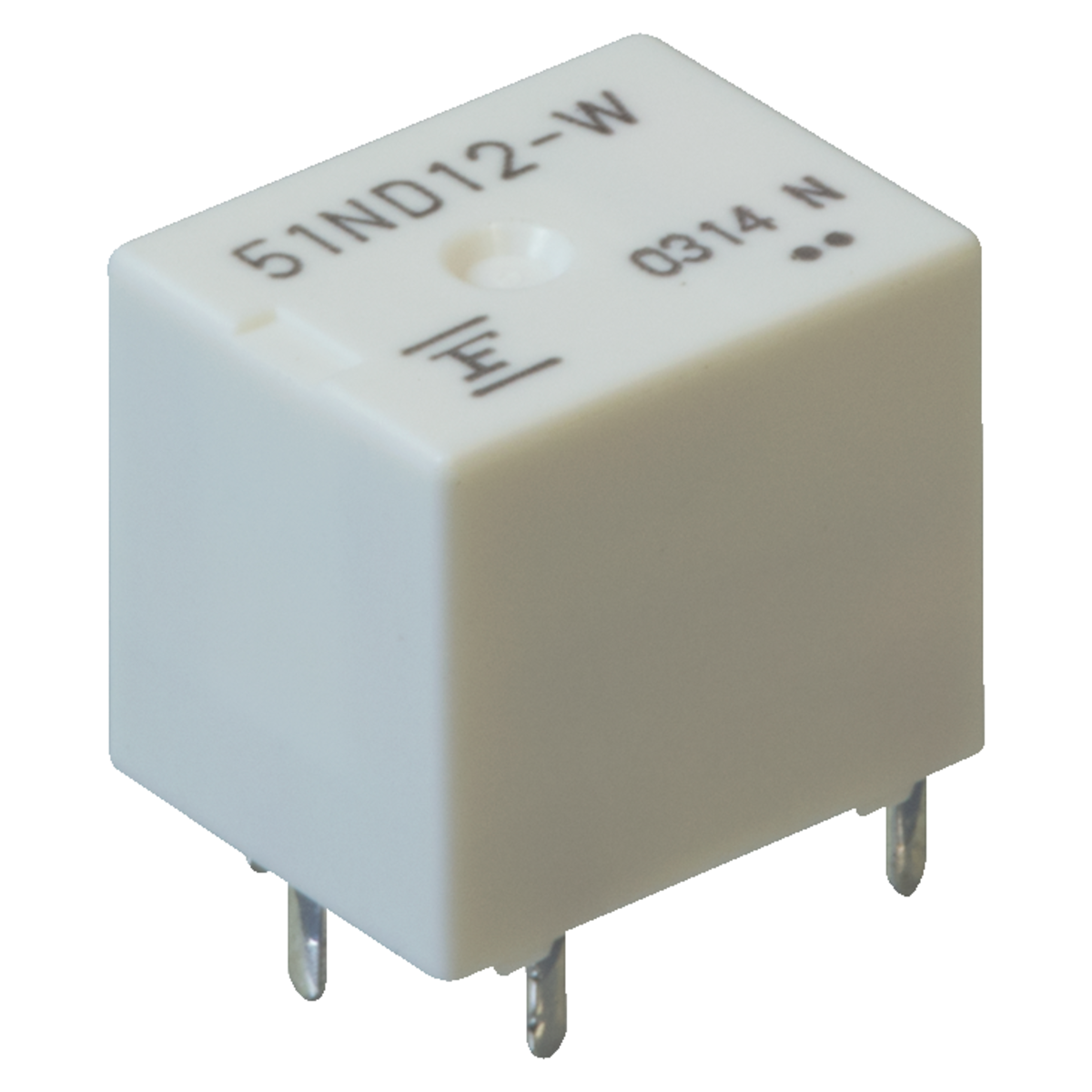

14 | Manufacturers Part No. FBR51ND10-W1(FBR51ND10W1) FCL Components Automotive relay FBR51 SPDT 25A 10VDC 180Ohm | Customer Part No. Customer Project No. | 290 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 5) | FCL Components | THT | 10.0 V DC | 25.0 A | SPDT | AgSnO2/In | 180.0 Ohm | 15.5 mm | 12.1 mm | 13.7 mm | -40.0 °C | 85.0 °C | ||||||||

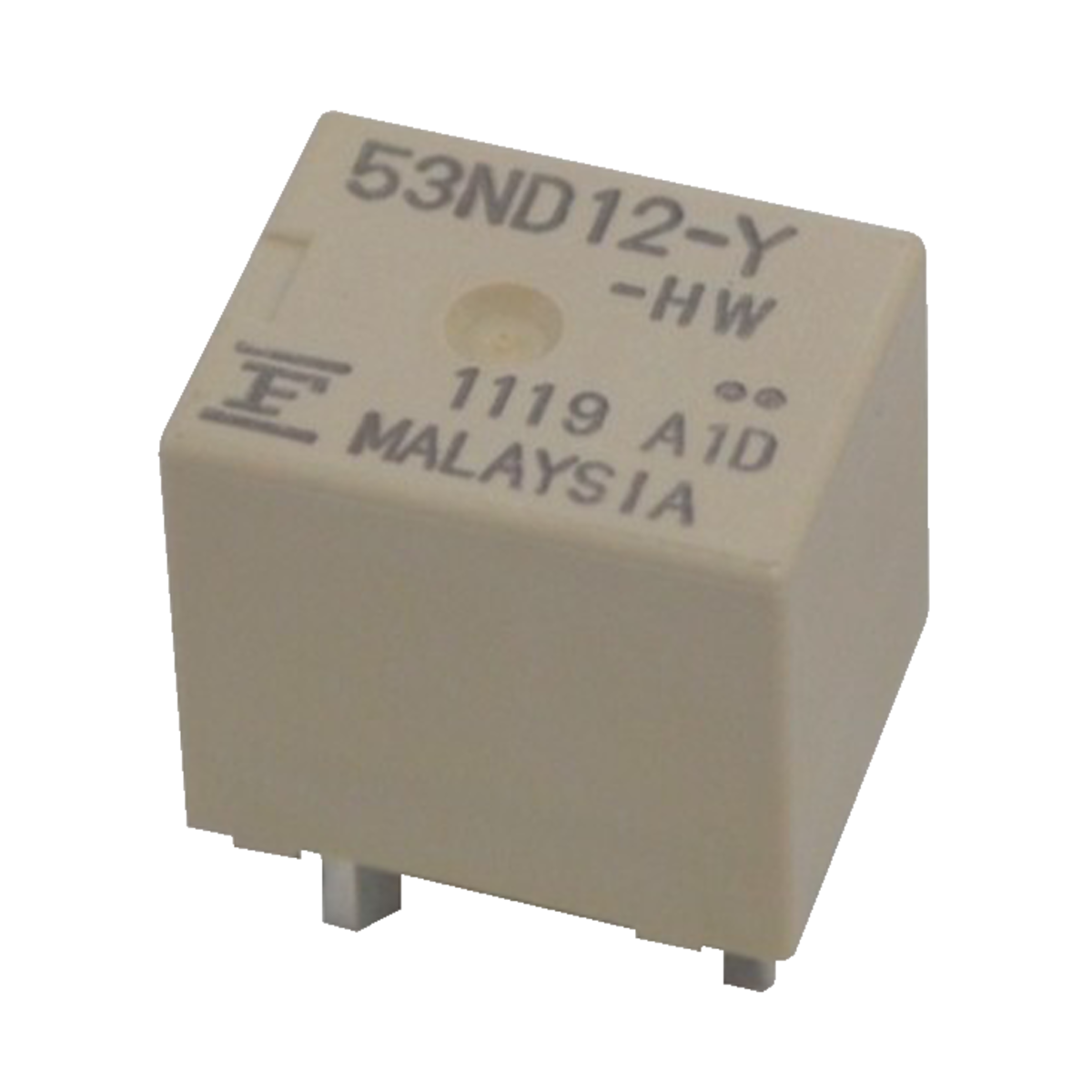

15 | Manufacturers Part No. FBR53ND12-Y-HW(FBR53ND12Y-HW) FCL Components Automotive relay FBR53 SPST-NO 60A 12VDC 240Ohm | Customer Part No. Customer Project No. | 460 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | FCL Components | THT | 12.0 V DC | 600.0 mW | 60.0 A | SPST-NO | AgSnO2/In | 240.0 Ohm | 15.7 mm | 12.3 mm | 14.0 mm | -40.0 °C | 125.0 °C | |||||||
16 | Manufacturers Part No. FBR53ND12-Y(FBR53ND12-Y) FCL Components Automotive relay FBR53 SPST-NO 30A 12VDC 240Ohm | Customer Part No. Customer Project No. | 165 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | FCL Components | THT | 12.0 V DC | 600.0 mW | 30.0 A | SPST-NO | AgSnO2/In | 240.0 Ohm | 15.7 mm | 12.3 mm | 14.0 mm | -40.0 °C | 125.0 °C | |||||||
17 | Manufacturers Part No. FBR51NL210-W1-RW(FBR51NL210W1-RW) FCL Components Automotive relay FBR51 SPDT 25A 10VDC 90Ohm | Customer Part No. Customer Project No. | 1.800 Pcs. Planned Delivery Time Ø 30 Weeks | (at least 10 or mul. of 10) | FCL Components | THR | 10.0 V DC | 25.0 A | SPDT | AgSnO2/In | 90.0 Ohm | 15.5 mm | 12.1 mm | 13.7 mm | RTIII | -40.0 °C | 125.0 °C | |||||||

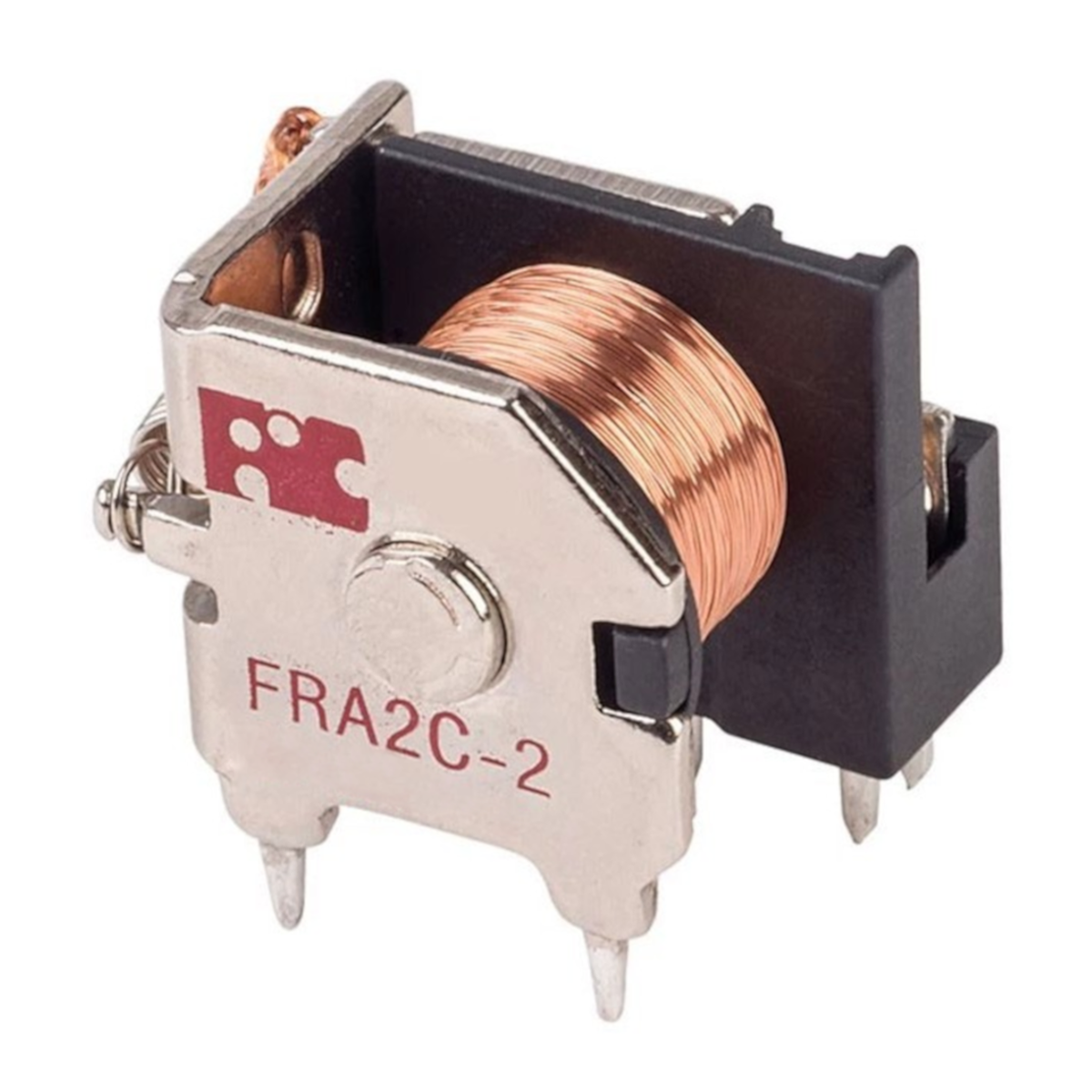

18 | Manufacturers Part No. FRA2C-2-DC12V(FRA12-OF) Forward Industrial Co. Automotive relay FRA2 SPDT 30A 12VDC 90Ohm | Customer Part No. Customer Project No. | 0 Pcs. | (at least 10 or mul. of 10) | Forward Industrial Co. | THT | 12.0 V DC | 1600.0 mW | 30.0 A | SPDT | Ag alloy | 90.0 Ohm | 19.0 mm | 24.0 mm | 20.0 mm | -40.0 °C | 105.0 °C | |||||||

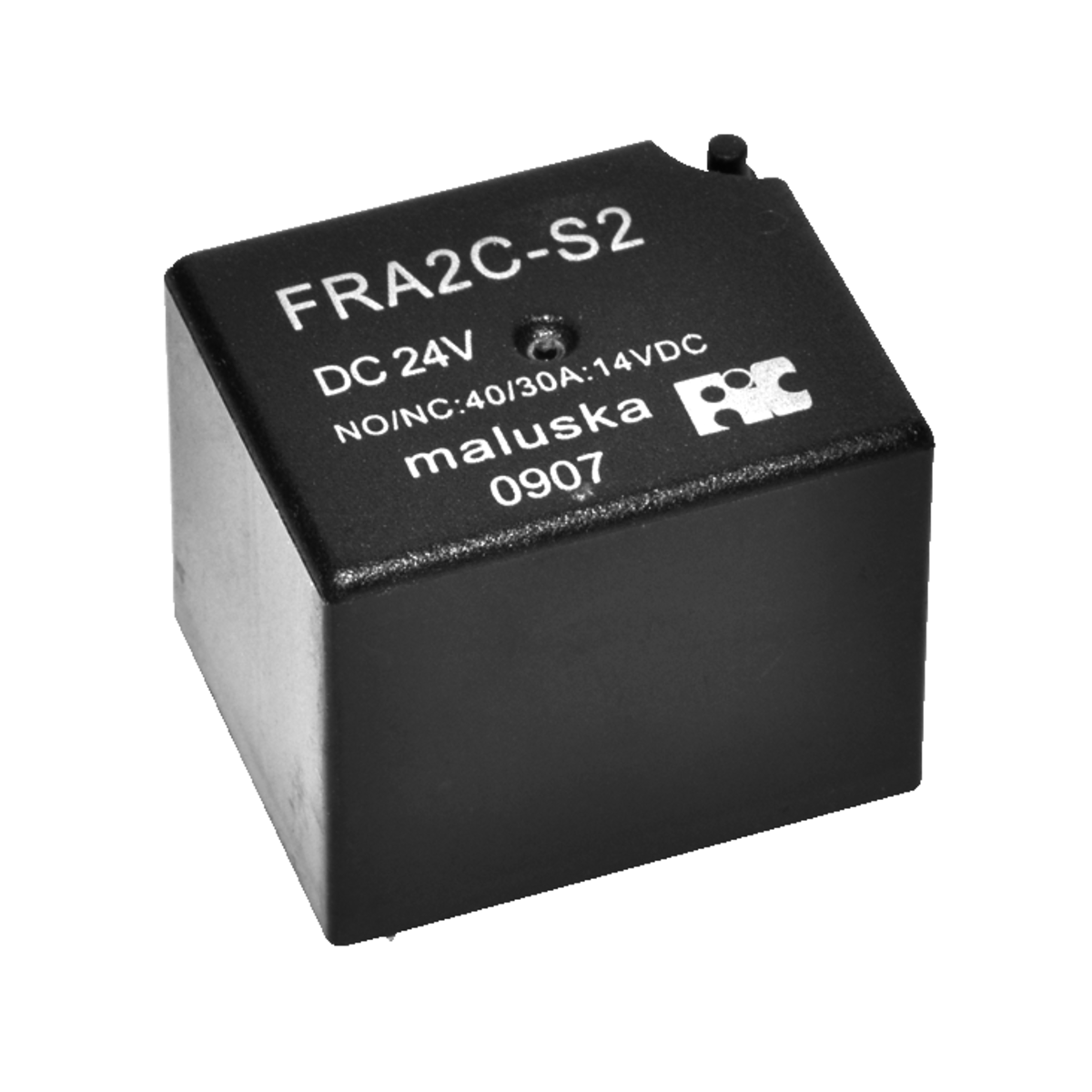

19 | Manufacturers Part No. FRA2C-S2-DC12V(FRA12-WD) Forward Industrial Co. Automotive relay FRA2 SPDT 30A 12VDC 90Ohm | Customer Part No. Customer Project No. | 440 Pcs. | (at least 10 or mul. of 10) | Forward Industrial Co. | THT | 12.0 V DC | 1600.0 mW | 30.0 A | SPDT | Ag alloy | 90.0 Ohm | 22.0 mm | 26.5 mm | 22.3 mm | -40.0 °C | 105.0 °C | |||||||

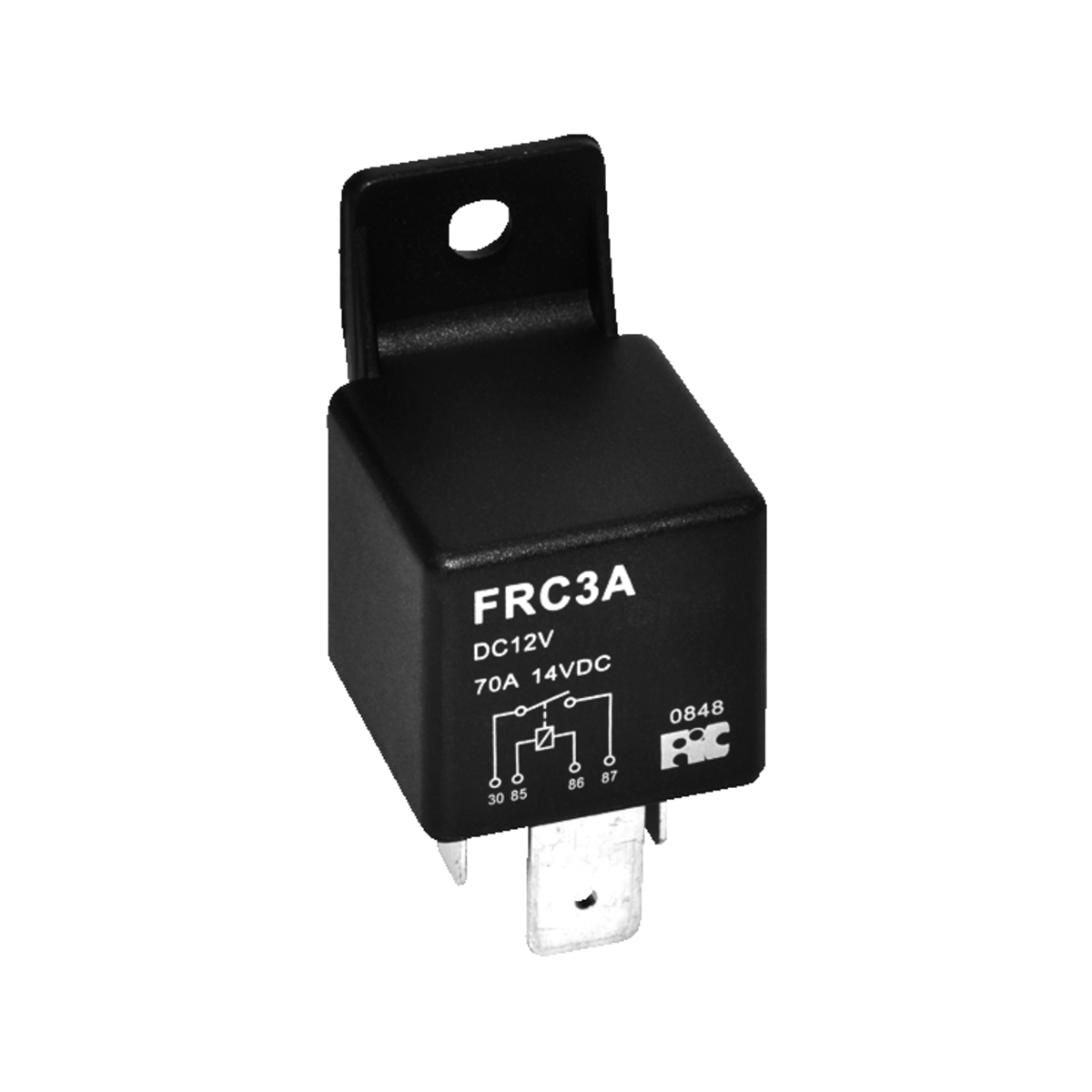

20 | Manufacturers Part No. FRC3-A-DC12V(FRC3-12F) Forward Industrial Co. Automotive relay FRC3 SPST-NO 70A 12VDC 80Ohm | Customer Part No. Customer Project No. | 975 Pcs. | (at least 5 or mul. of 5) | Forward Industrial Co. | THT | 12.0 V DC | 1800.0 mW | 70.0 A | SPST-NO | AgSnO2 | 80.0 Ohm | 29.0 mm | 29.0 mm | 26.6 mm | -40.0 °C | 85.0 °C | |||||||

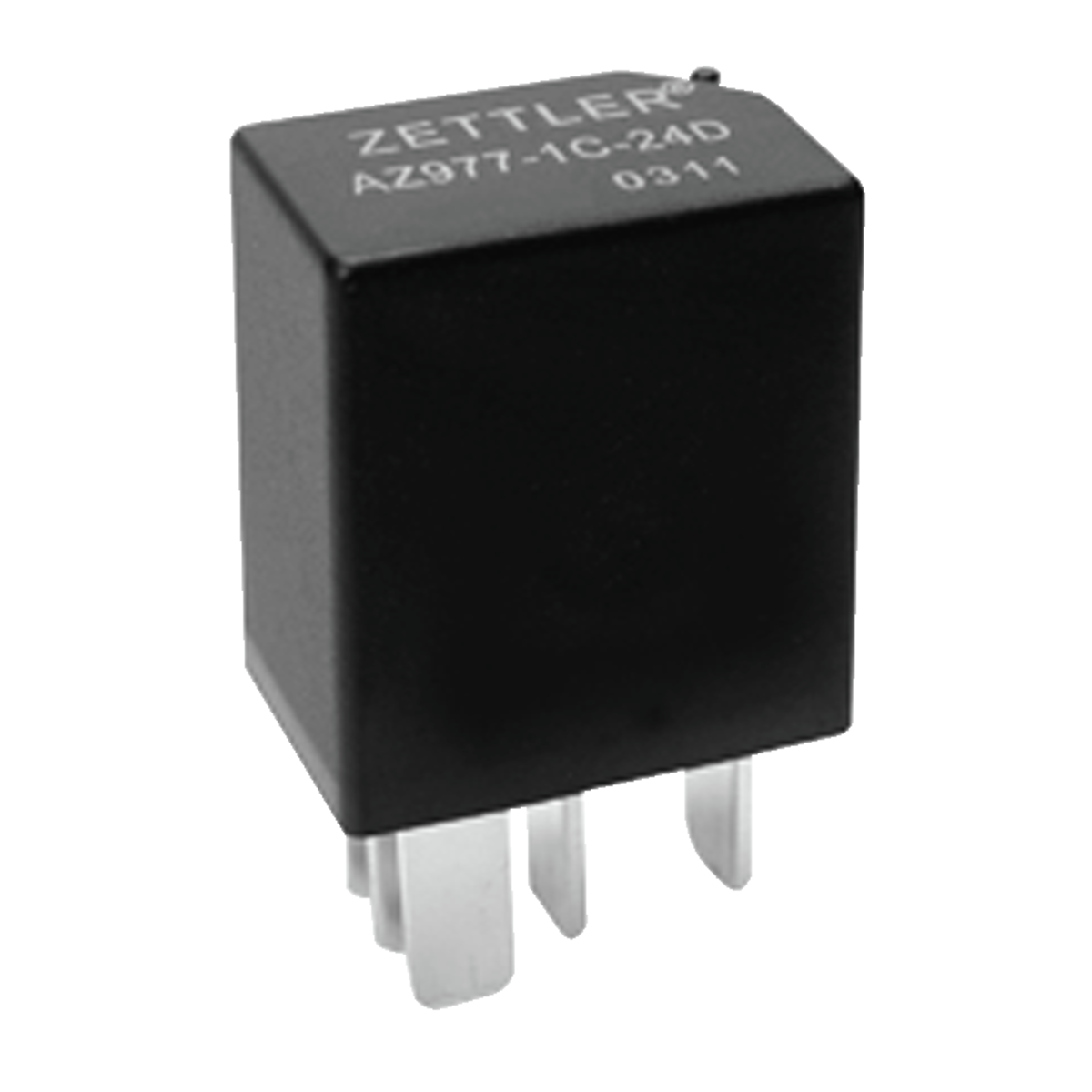

21 | Manufacturers Part No. AZ977-1C-12D(AZ977-1C-12D) Zettler Automotive relay AZ977 SPDT 20A 12VDC 97Ohm | Customer Part No. Customer Project No. | 945 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 5 or mul. of 5) | Zettler | THT | 12.0 V DC | 534.0 mW | 20.0 A | SPDT | AgSnO2 | 97.0 Ohm | 23.0 mm | 15.5 mm | 26.0 mm | -40.0 °C | 85.0 °C | |||||||

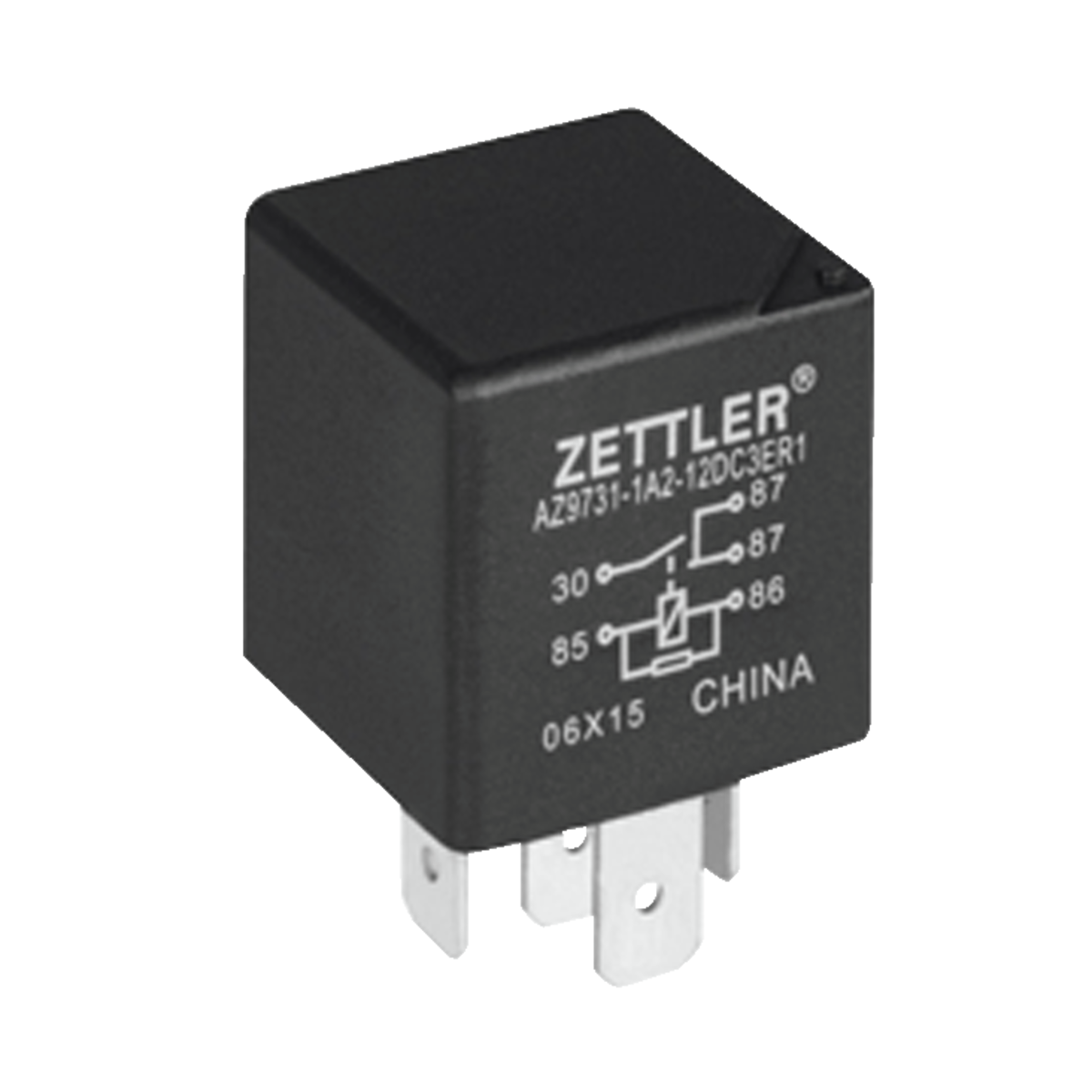

22 | Manufacturers Part No. AZ9731-1A-12DC2(AZ9731-1A-12DC2) Zettler Automotive relay AZ9731 SPST-NO 40A 12VDC 90Ohm | Customer Part No. Customer Project No. | 610 Pcs. Planned Delivery Time Ø 16 Weeks | (at least 10 or mul. of 10) | Zettler | THT | 12.0 V DC | 680.0 mW | 40.0 A | SPST-NO | AgSnO2 | 90.0 Ohm | 26.5 mm | 26.5 mm | 24.5 mm | -40.0 °C | 125.0 °C | |||||||
23 | Manufacturers Part No. AZ9731-1C-24DC2(AZ9731-1C-24DC2) Zettler Automotive relay AZ9731 SPDT 40A 24VDC 360Ohm | Customer Part No. Customer Project No. | 20 Pcs. | (at least 10 or mul. of 10) | Zettler | THT | 24.0 V DC | 680.0 mW | 40.0 A | SPDT | AgSnO2 | 360.0 Ohm | 26.5 mm | 26.5 mm | 24.5 mm | -40.0 °C | 125.0 °C | |||||||

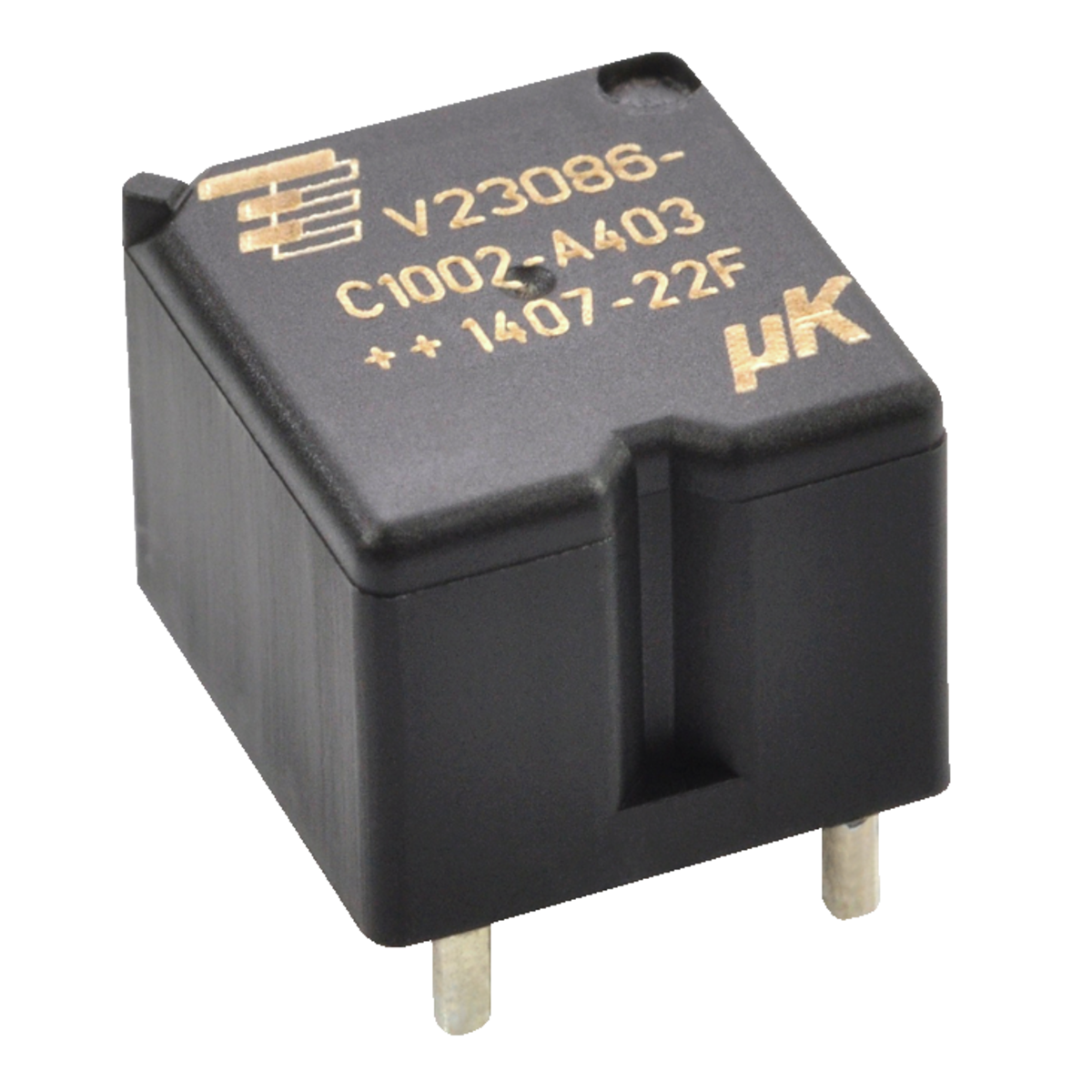

24 | Manufacturers Part No. 1-1393280-1(V23086C1002A403) TE Connectivity Automotive relay K SPST-NO 30A 10VDC 181Ohm | Customer Part No. Customer Project No. | 835 Pcs. Planned Delivery Time Ø 27 Weeks | (at least 5 or mul. of 5) | TE Connectivity | THT | 10.0 V DC | 552.0 mW | 30.0 A | SPST-NO | AgSnO2 | 181.0 Ohm | 12.0 mm | 12.9 mm | 9.9 mm | RTIII | -40.0 °C | 105.0 °C | ||||||
25 | Manufacturers Part No. TRS-L-24VDC-S-Z(TRS-L-24) Tianbo Automotive relay TRS SPDT 30A 24VDC 1.016Ohm | Customer Part No. Customer Project No. | 2.250 Pcs. | (at least 25 or mul. of 25) | Tianbo | THT | 24.0 V DC | 570.0 mW | 30.0 A | SPDT | Ag alloy | 1016.0 Ohm | 13.2 mm | 12.3 mm | 9.8 mm | -40.0 °C | 105.0 °C |
