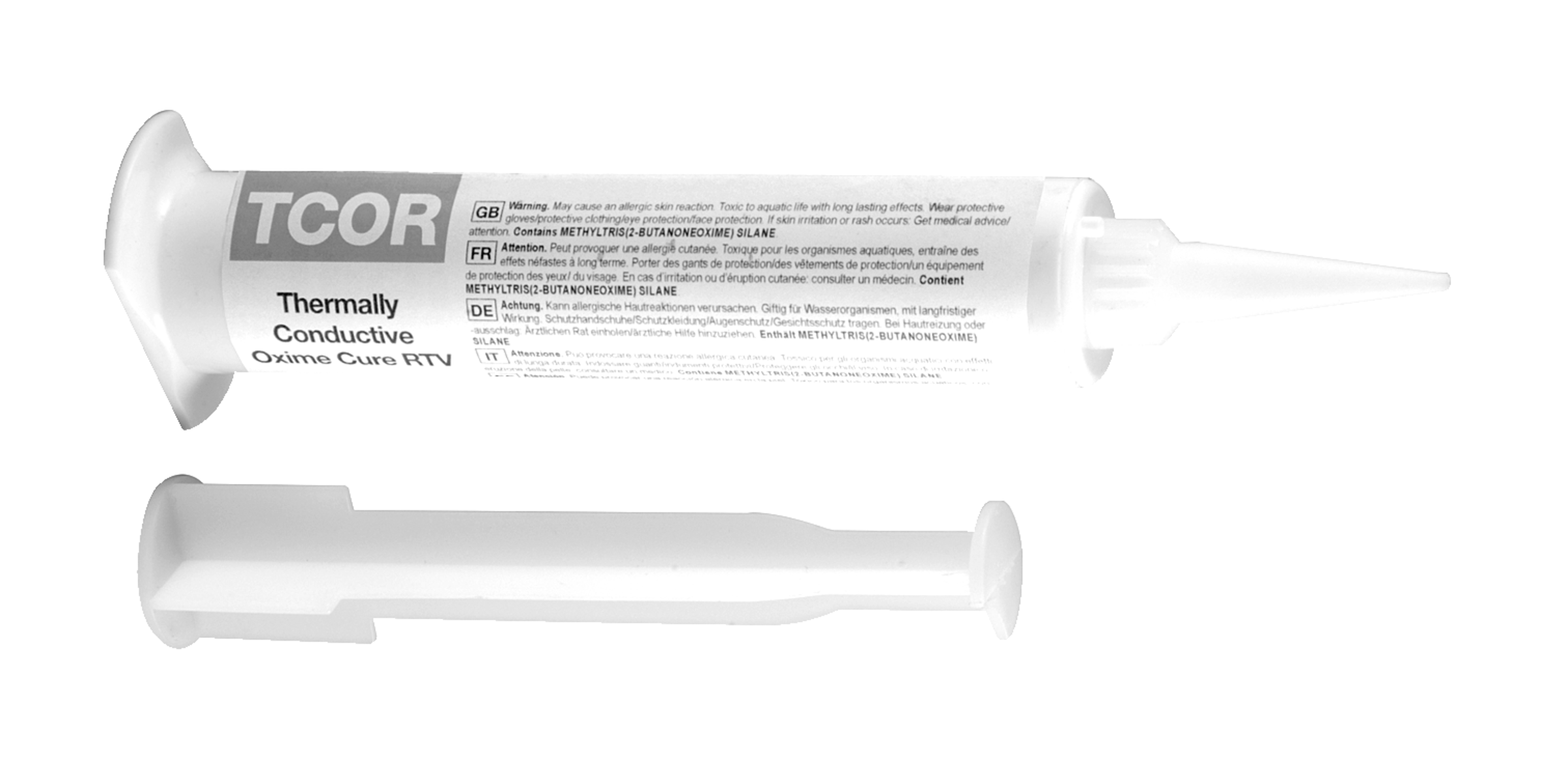

TCOR75S
Electrolube Thermally Conductive rubber 75ml white
0 Pcs. in stock
1 Pcs.
4 Pcs.
Prices
Quantity and Options
Fact Sheet
- Packaging (ml)
- 75 ml
- RoHS-Conform
Specifications
Operating conditions
- Thermal conductivity
- 1.8 W/m.K
- Temperature resistance, min.
- -50 °C
- Temperature resistance, max.
- 230 °C
- Storage
TCOR is a moisture curing system, releasing oxime upon cure. Relative humidity above 50% is preferred for curing. The use of elevated temperatures will not increase the speed of cure and is not recommended. When storing the TCOR do not store it in conditions above 30 ºC and 50% RH to avoid a reduction in the shelf life. TCOR has a reasonable bond strength for and can be used for adhesive applications.
- Shelf Life
- 12 Monate
- Viscosity, min. (20°C)
- 140 mPa·s
- Viscosity, max. (20°C)
- 150 mPa·s
Safety/Certifications
- Directions
Surfaces must be clean and dry and free from grease, dust and contaminants. Electrolube manufacture a range of solvent and water based cleaning solutions for the preparation of surfaces prior to application. Electrolube TCR GUN is a dispensing method for use with TCOR75S. The pack fits inside the dispensing unit; a trigger is pulled which forces out the product, offering efficient and accurate dispensing of TCOR75S. Due to the moisture curing nature of TCOR once a syringe has been opened it must be used in one use.
