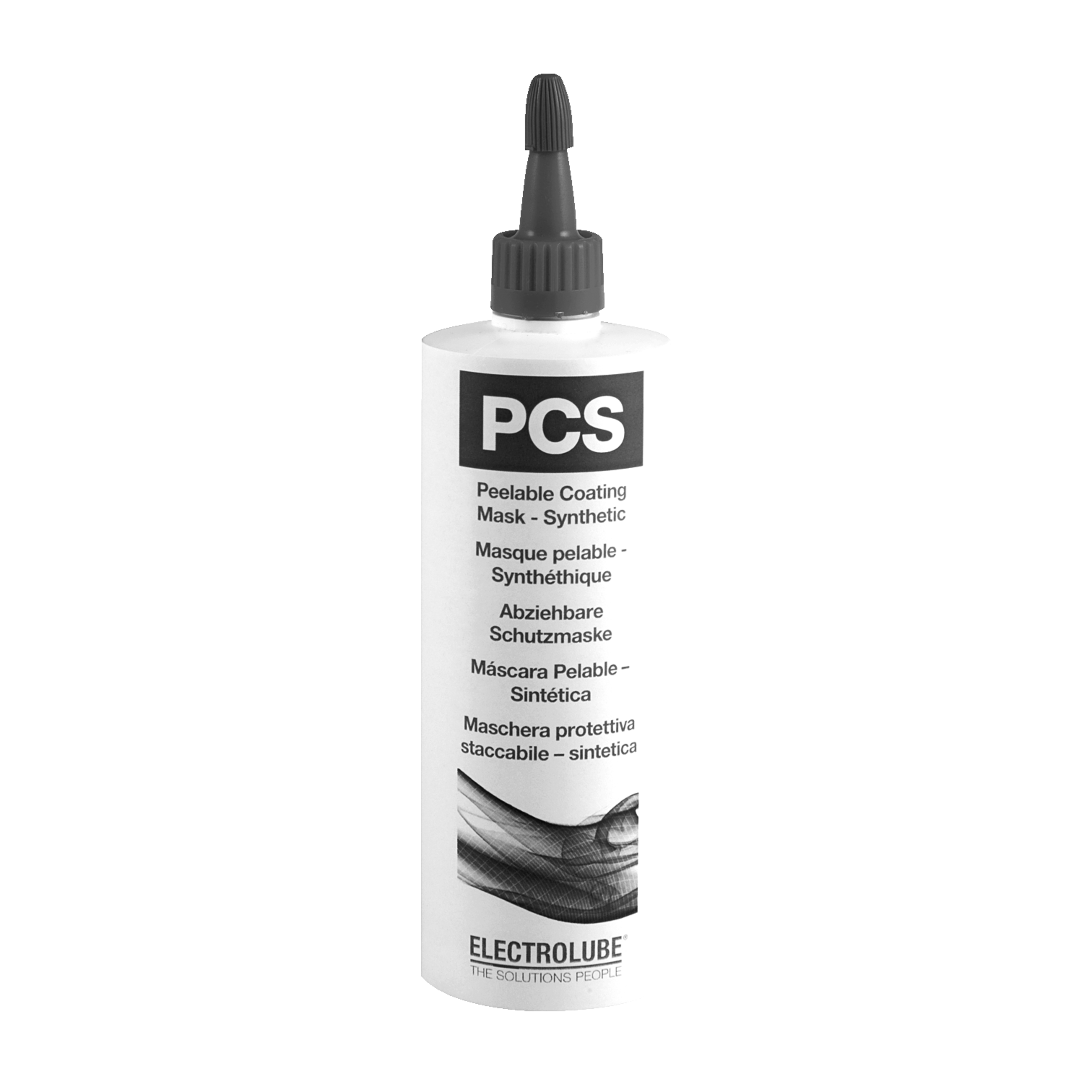

PCS250
Electrolube Peelable Coating Mask 250ml
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 19.05.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Leaded
- false
- RoHS-Conform
Specifications
Open all
Operating conditions
- Density (20°C)
- 1 g/cm3
- Viscosity, min.
- 55.000 mPa*s (20°C)
- Viscosity, max.
- 65.000 mPa*s (20°C)
- Shelf Life
- 12 Monate
Safety/Certifications
- Directions
PCS should be applied to the area being masked to a thickness of at least 1mm to enable easy peeling after use. Dry at 65°C for at least 30 minutes (2 hours at 23°C). This can be accelerated by heating @ 80°C. Thicker films may require longer drying times. As PCS dries it changes in colour from pink to red and must be fully dry before the conformal coating or wave soldering process. Following application of a conformal coating, PCS can be removed by peeling off once the coating is touch dry. The conformal coating may then be secondary or heat cured if applicable, according to the manufactures guidelines. When used as a solder mask, PCS can be removed by peeling off after the process, once the substrate has cooled to room temperature.
