PCM250ML

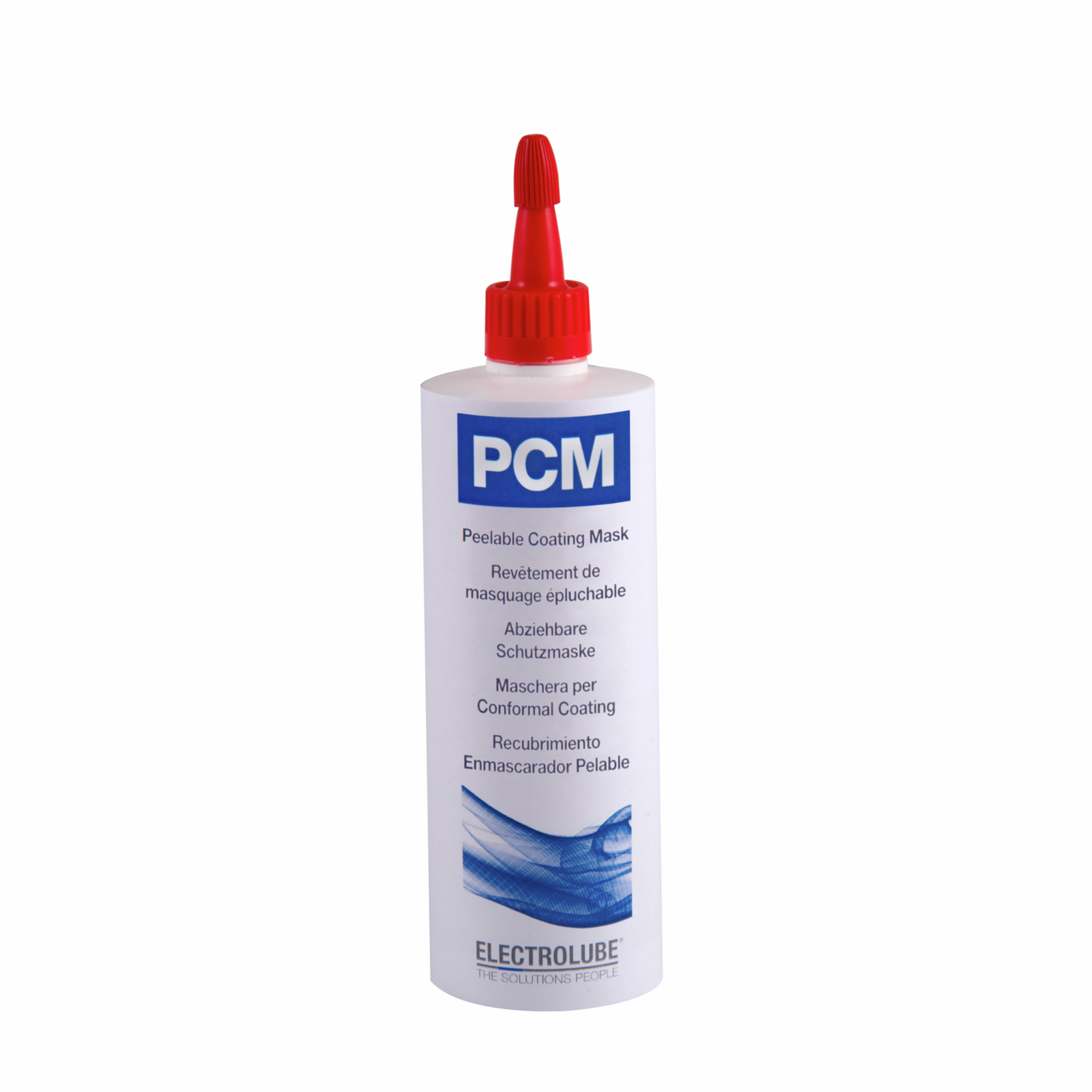

Electrolube Peelable Coating Mask 250ml

Manufacturer Part No.
PCM250ML
Schukat Part No.
PCM250ML
Manufacturer
Electrolube
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
12 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Leaded
false
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Electrolube
Type
  • Peelable Coating Mask
Series
  • PCM
Product group
  • R3411 Peelable Coating Mask
Application

  • For the protection of components during the soldering process

Leaded
Packaging (ml)
  • 250 ml
Solid content
  • 70 %
Features

  • - Flexible, solvent resistant latex with high film strength
    - Used for masking components, connectors and other items during a conformal coating process
    - Completely hand-peelable, leaves no residue
    - Suitable for use with dip, spray or brush applied conformal coatings
    - Suitable for use in wave soldering applications
    - Shelf life: see expiration date (printed on the bottle), but min. 2 months

Operating conditions

Density (20°C)
  • 1.11 g/cm3
Viscosity, min.
  • 30.000 mPa*s (20°C)
Viscosity, max.
  • 60.000 mPa*s (20°C)
Storage

  • Store below 30°C (between 10°C and 25°C is ideal) in original container.

Shelf Life
  • 12 Monate

Safety/Certifications

Directions

  • Masking should take place between the cleaning and coating process. PCM should be applied to the area being masked to a thickness of at least 1mm to enable easy peeling after coating. Dry at room temperature for at least 2 hours. This can be accelerated by heating to 60°C for 30 minutes but some discolouration of copper may occur. Thicker films may require longer drying times. As PCM dries it darkens in colour. PCM must be fully dry before being coated. After spray, dip or brush application with conformal coating the coating should be air-dried in accordance with manufacturer's recommendations before PCM is removed. When the coating is dry, peel off PCM by hand to leave the protected area or component clean and free from coating. The conformal coating may then be heat cured if applicable.

Documents

PCM-Germany.pdf
Download (pdf, 197 KB)
PCM-Germany.pdf
Download (pdf, 197 KB)

Other Products

All Products of the Series
PCM250HV
Electrolube
Peelable Coating Mask 250ml
from €15.84

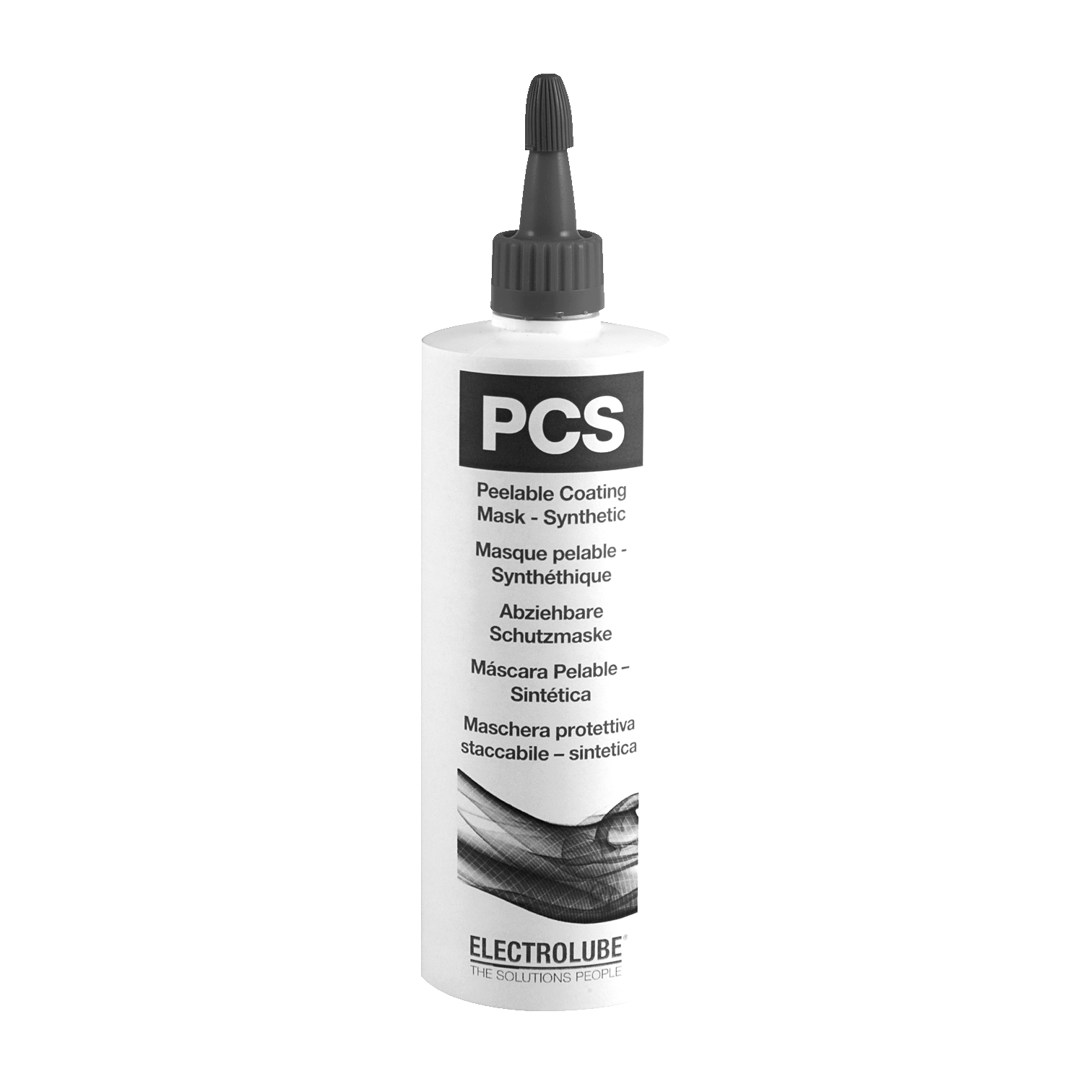

PCS250
