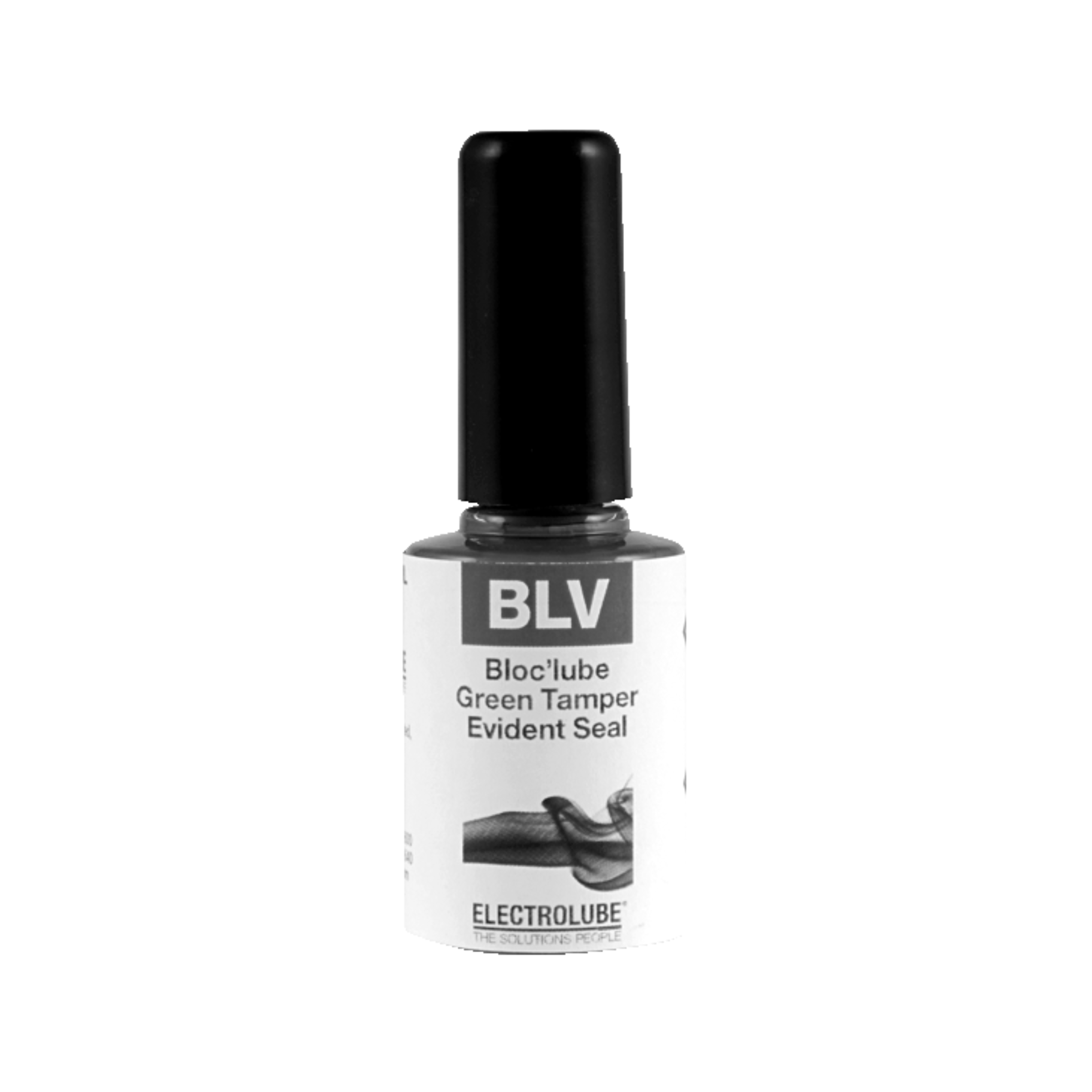

BLV15ML
Electrolube Sealing Lacquer 15ml green
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
12 Pcs.
12 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Packaging (ml)
- 15 ml
- RoHS-Conform
Specifications
Open all
Operating conditions
- Temperature resistance, min.
- -50 °C
- Temperature resistance, max.
- 135 °C
- Shelf Life
- 48 Monate
Safety/Certifications
- Directions

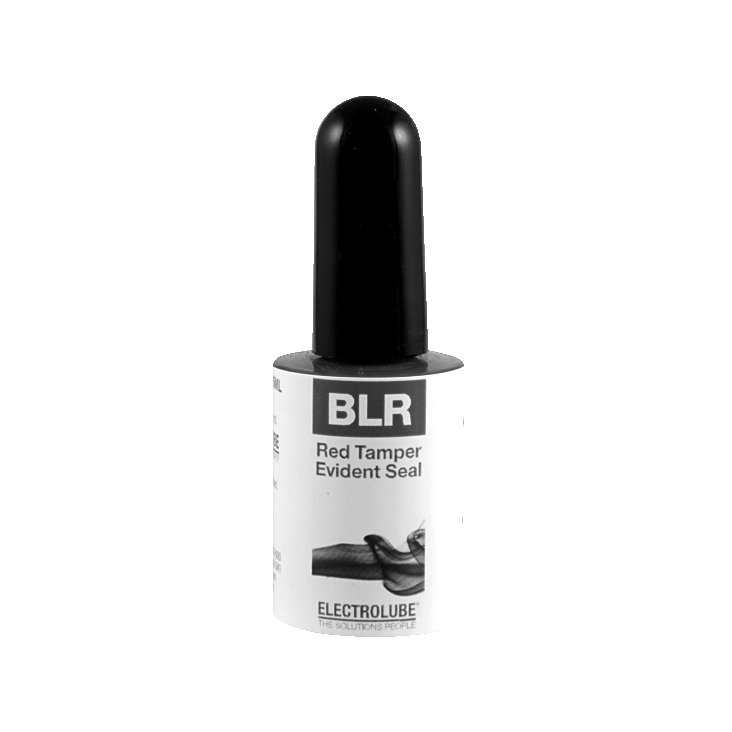

BLR/BLV should be applied directly onto the component with the brush contained in the lid of the bottle (15ml sizes) or directly from the syringe (BLR10SL). It should be applied in an even film in sufficient quantity to be easily visible. The coating will be tack free after 10 minutes but remains flexible for up to 24 hours. This is to allow fine tuning. After this time the seal will become brittle and any interference or tampering will break the seal and become self-evident. BLR/BLV is usually removed mechanically, however it can also be removed or surfaces cleaned using Electrolube Ultrasolve, ULS. Please check plastics compatibility prior to use.
Hazardous Substances/Goods
- UN number
- 1993 - Flammable liquid substance
