860534

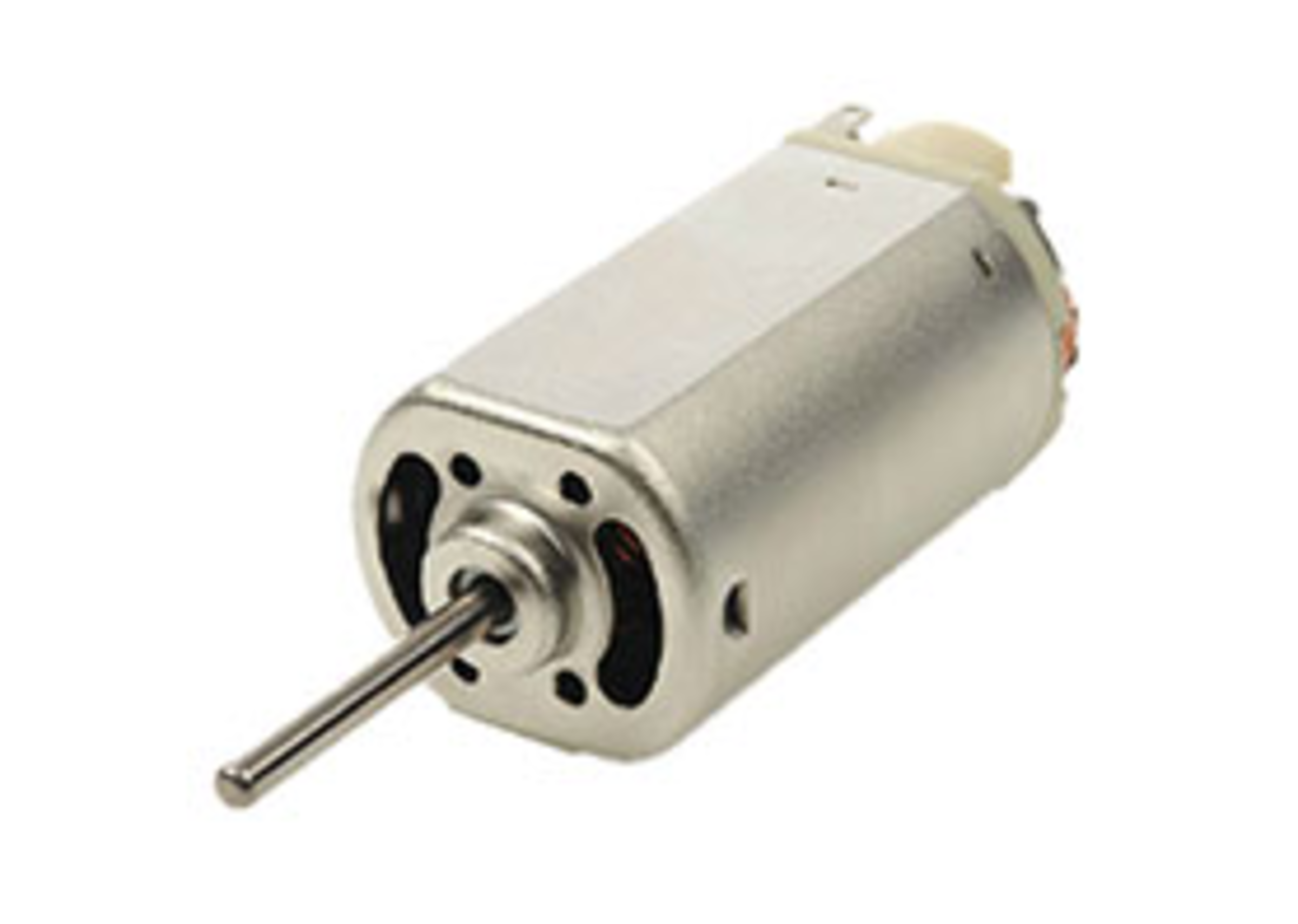

Ekulit Small motor 8,4VDC 15.700mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
25 Pcs.
25 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- M
- Type(Motor)
- Small motor
- Rated Voltage
- 8.4 V DC
- Rated current
- 15,700 mA
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Shaft End Play, min.
- 0 mm
- Shaft End Play, max.
- 0.1 mm
- Shaft Ø
- 3,165 mm
- Outside Shaft Length
- 26.8 mm
- Weight
- 134 g
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 30 °C
- Humidity, min.
- 30 %
- Humidity, max.
- 90 %
Technical features
- Rated Voltage
- 8.4 V DC
- Rated current
- 15,700 mA
- Starting current, max.
- 88,000 mA
- No-Load-Speed
- 27,150 rpm
- Nominal torque
- 0.029 Nm
- Torque
- 0.192 Nm
