860519

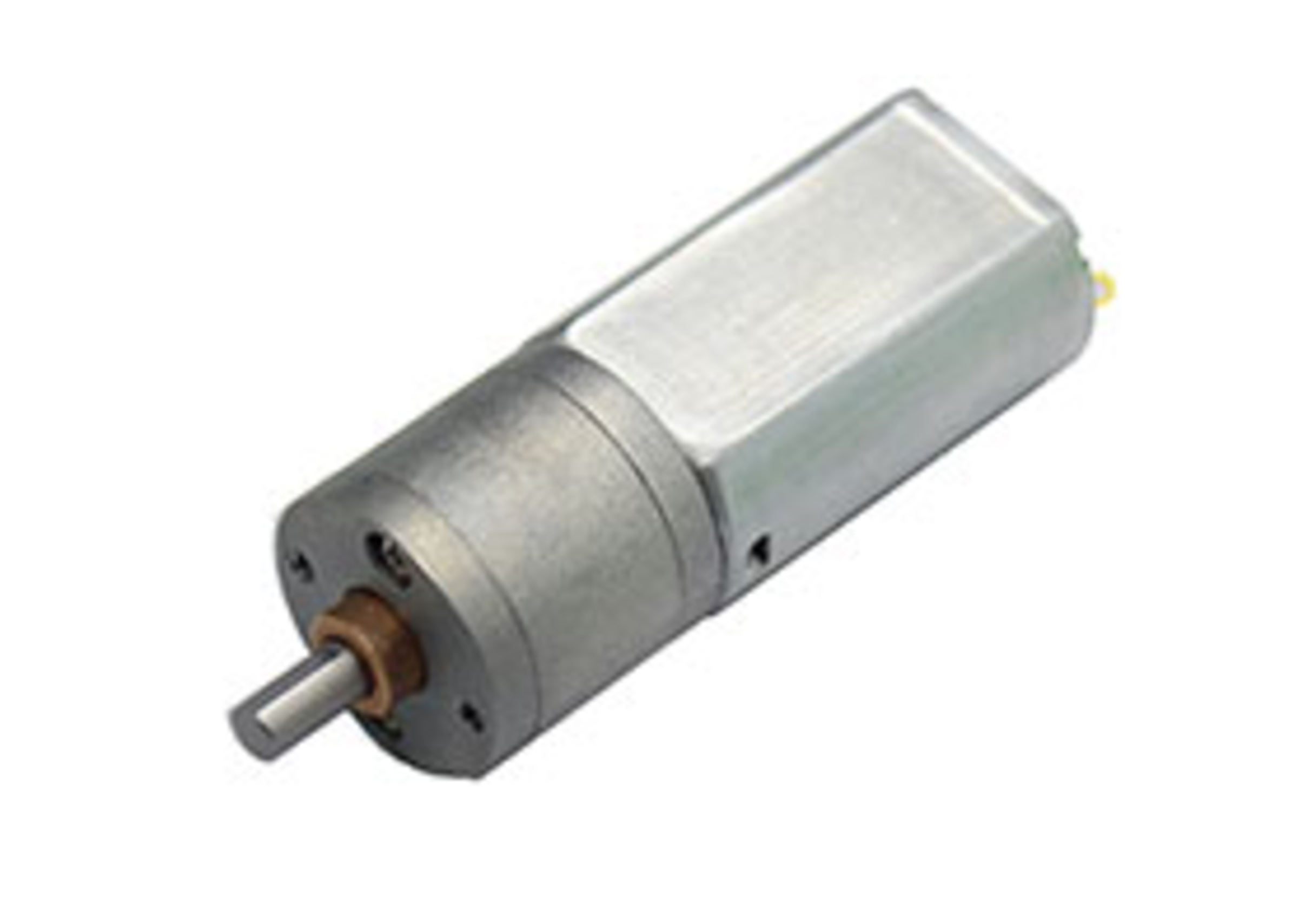

Ekulit Small motor Gear transmission 12VDC 280mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
23 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- GM
- Type(Motor)
- Small motor
- Geared Motors Type
- Gear transmission
- Rated Voltage
- 12 V DC
- Rated current
- 280 mA
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Shaft End Play, min.
- 0.05 mm
- Shaft End Play, max.
- 0.5 mm
- Screw size
- M2,5
- Shaft Ø
- 4x3,5 mm
- Outside Shaft Length
- 10.5 mm
- Weight
- 54 g
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 30 °C
- Humidity, min.
- 30 %
- Humidity, max.
- 95 %
Technical features
- Rated Voltage
- 12 V DC
- Rated current
- 280 mA
- Starting current, max.
- 1,600 mA
- No-Load-Speed
- 10,000 rpm
- Nominal torque
- 0.098 Nm
- Torque
- 0.588 Nm
