Manufacturer Part No.
220037
Schukat Part No.

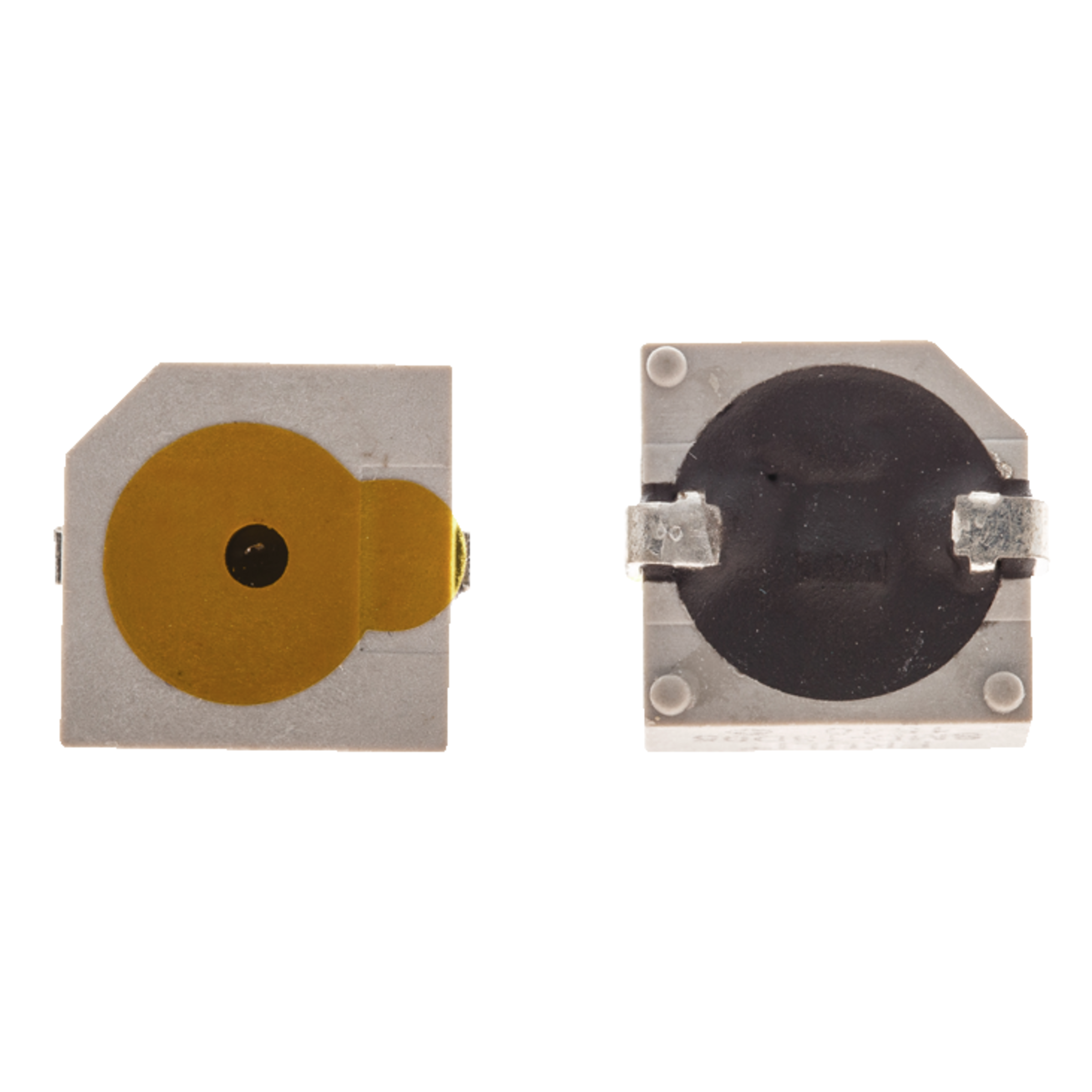

SMD-13D12
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Electric Sounder
Sound pressure level, min.
85 dB
Current Consumption Max.
30 mA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Ekulit
Type
  • Electric Sounder
Series
  • SMD
Product group
  • H1473
Dimension: Length
  • 12.8 mm
Dimension: Width
  • 13.8 mm
Dimension: Height
  • 7.1 mm
Assembly Type
  • SMD
Features
  • - Efficient Buzzer for SMD assembly
    - With integrated circiut
    - Small compact size

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical features

Operating voltage, min.
  • 8 V
Operating voltage, max.
  • 15 V
Current Consumption Max.
  • 30 mA
Sound pressure level, min.
  • 85 dB
