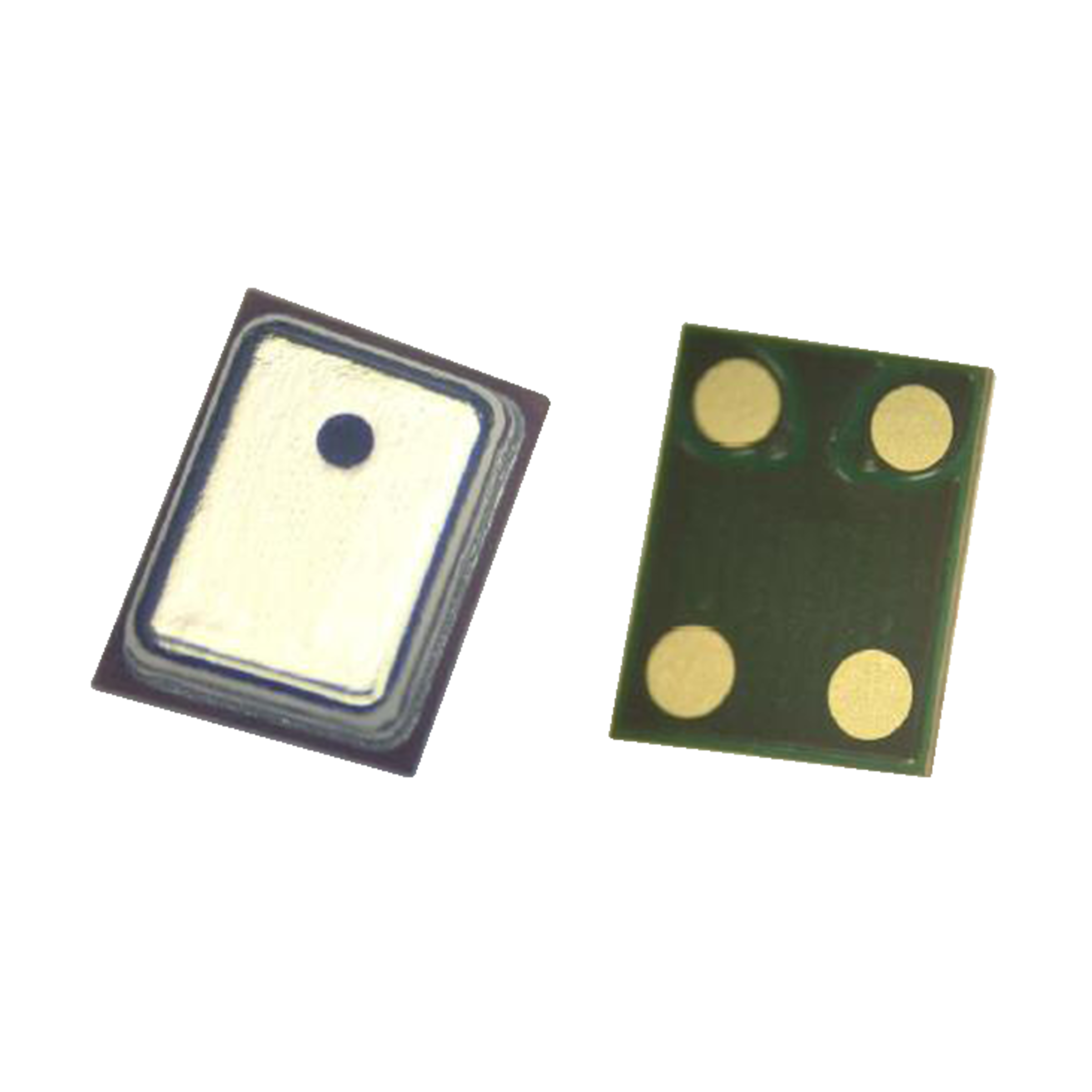

Ekulit Microphone -42dB 1,5V 3,6V 0,15mA SMD

Manufacturer Part No.
200750
Schukat Part No.
MS3729H9R-C-42
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

100 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Microphone
Sensitivity
-42 dB
Current Consumption Max.
0.15 mA
Operating voltage, min.
1.5 V
Operating voltage, max.
3.6 V
Signal to Noise Ratio
58 dB
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Ekulit
Type
  • Microphone
Series
  • MEMS
Product group
  • H1841 EKULIT MEMS-Microphone
Dimension: Length
  • 3.76 mm
Dimension: Width
  • 2.95 mm
Dimension: Height
  • 1.1 mm
Assembly Type
  • SMD
Features
  • - MEMS-Technology (Microelectromechanical System)
    - High Signal to Noise Ratio
    - Low power consumption
    - High sensitivity
    - Small type

Electrical features

Operating voltage, min.
  • 1.5 V
Operating voltage, max.
  • 3.6 V
Current Consumption Max.
  • 0.15 mA
Sensitivity
  • -42 dB
Signal to Noise Ratio
  • 58 dB
Directivity
  • Omnidirectional
