155060

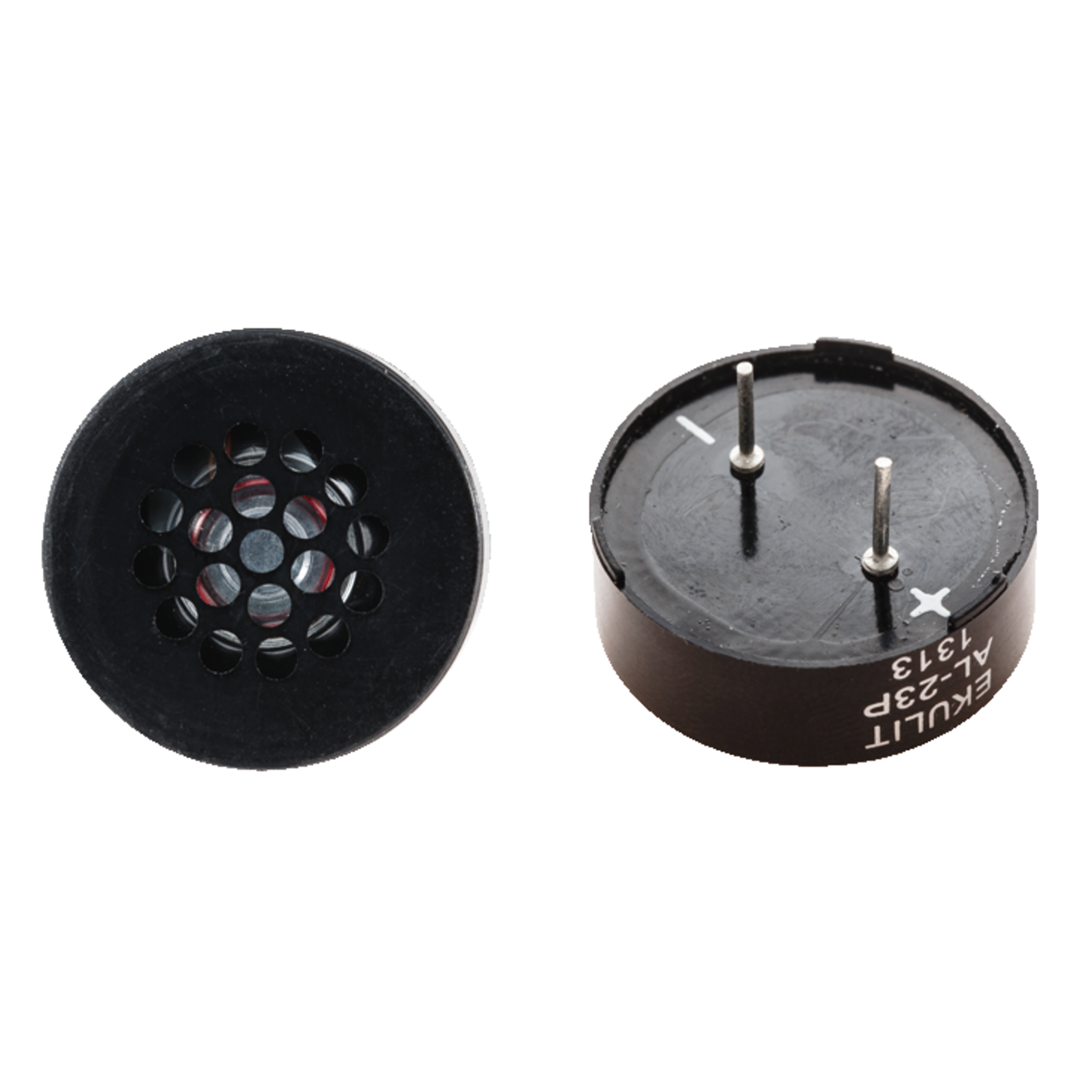

Ekulit Speaker AL 23mm 78dB 8Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
45 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Speaker
- Sound pressure level, min.
- 78 dB
- Impedance
- 8 Ohm
- Rated Power
- 0.1 W
- Maximum Power
- 0.2 W
- Termination Style
- Pins
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 60 °C
Electrical features
- Impedance
- 8 Ohm
- Rated Power
- 0.1 W
- Maximum Power
- 0.2 W
- Frequency, min.
- 1,200 kHz
- Frequency, max.
- 6,500 kHz
- Sound pressure level, min.
- 78 dB
